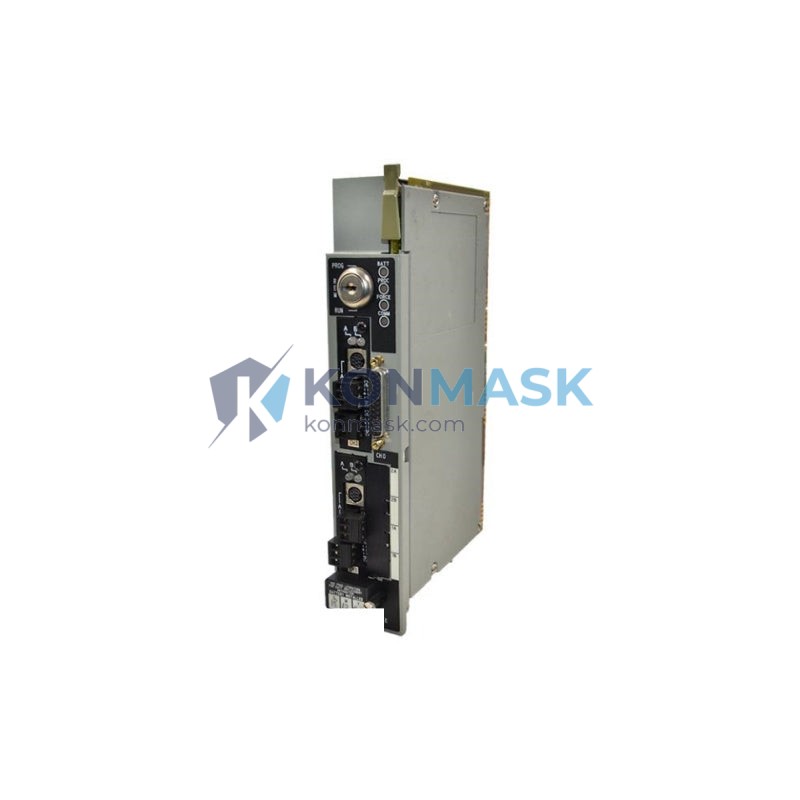

Allen-Bradley 1785-L40B PLC-5/40 Processor | Replacement, Equivalent & Selection Guide
The Allen-Bradley 1785-L40B is a mid-range processor in the classic Rockwell Automation PLC-5 family, designed for demanding industrial control applications requiring up to 40 I/O chassis slots. Widely deployed in manufacturing, oil & gas, and utilities, this processor remains a critical component in legacy automation systems worldwide. Konmask.com supplies genuine, tested, and refurbished 1785-L40B units with full traceability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 1785-L40B |
| Series | PLC-5 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Processor Type | Enhanced PLC-5 Processor |
| Max I/O Points | 3,072 digital I/O |
| Max I/O Chassis | 40 local I/O chassis slots |
| Memory | 48K words user memory |
| Communication Ports | DH+ (Data Highway Plus), RS-232 (Channel 0) |
| Programming Software | RSLogix 5 / 6200 Series |
| Backplane | 1771 I/O Backplane compatible |
| Power Supply | 1771-P4S / 1771-P6S (external) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 1.6 kg (approx.) |
| Housing | Single-slot, 1771 chassis mount |
Compatible Replacement & Equivalent Models
When the 1785-L40B is unavailable or end-of-life, the following models are commonly evaluated as replacements. Always verify firmware, memory, and I/O compatibility before substitution.
| Model | Series | I/O Capacity | Key Difference vs 1785-L40B | Drop-in? |
|---|---|---|---|---|
| 1785-L40C | PLC-5 | 3,072 pts | Enhanced series C; adds Ethernet option | ✅ Yes |
| 1785-L46B | PLC-5 | 4,096 pts | Larger memory (64K words) | ⚠️ Partial |
| 1785-L80B | PLC-5 | 3,072 pts | 80-slot chassis support | ⚠️ Partial |
| 1756-L71 | ControlLogix | Scalable | Modern platform; requires migration | ❌ Migration |
| 1756-L74 | ControlLogix | Scalable | High-capacity modern replacement | ❌ Migration |
| 1769-L30ER | CompactLogix | Up to 30 axes | Compact form factor; different chassis | ❌ Migration |
Note: ControlLogix and CompactLogix replacements require RSLogix 5000 / Studio 5000 and program conversion. Konmask can advise on migration paths.
Why Choose the Original 1785-L40B
- Zero re-engineering cost — drop-in replacement for existing 1771 chassis installations
- Proven reliability — field-tested in continuous 24/7 industrial environments for 20+ years
- RSLogix 5 compatibility — no software migration or retraining required
- DH+ network continuity — maintains existing Data Highway Plus topology without rewiring
- Lower total cost — avoids expensive ControlLogix migration projects for stable legacy lines
- Immediate availability — Konmask maintains stock of tested units for fast dispatch
Typical Applications
- Automotive assembly line control and sequencing
- Oil & gas pipeline monitoring and valve control
- Water treatment and utilities SCADA integration
- Food & beverage batch processing
- Pulp, paper, and printing machine control
- Legacy plant modernization with minimal downtime
System Compatibility
- Chassis: 1771-A1B, 1771-A2B, 1771-A3B, 1771-A4B series
- Power Supplies: 1771-P4S, 1771-P6S, 1771-P7
- I/O Modules: Full 1771 I/O module family (digital, analog, specialty)
- Programming: RSLogix 5 (v8.x+), 6200 Series Software
- Networks: DH+ (1770-KF2, 1784-KTX), RS-232 (DF1 protocol)
- HMI: PanelView 550/900/1000/1400 via DH+ or RS-232
Selection Guide
Use this guide to determine whether the 1785-L40B is the right processor for your application:
- Existing 1771 chassis installation? → 1785-L40B is the preferred direct replacement.
- Need >48K words memory? → Consider 1785-L46B (64K) or 1785-L80B.
- Require Ethernet/IP natively? → Upgrade to 1785-L40C or migrate to ControlLogix 1756-L7x.
- Planning full plant modernization? → ControlLogix 1756-L71/L74 with Studio 5000 is recommended.
- Budget-constrained maintenance replacement? → Refurbished 1785-L40B from Konmask is the most cost-effective path.
- Safety-critical application? → Evaluate 1785-L40B with 1771-ASB safety I/O or migrate to GuardLogix.
Quality Assurance & Sourcing
- All units undergo functional power-on testing and firmware verification before shipment
- Sourced from authorized distributors, OEM surplus, and decommissioned plant equipment
- Each unit ships with a 90-day warranty covering defects in materials and workmanship
- Traceability documentation available upon request for regulated industries
- Anti-static packaging with humidity indicators for safe international shipping
How to Order
- Step 1: Confirm your chassis model and current firmware version (check processor label)
- Step 2: Add the 1785-L40B to cart or contact us for bulk/project pricing
- Step 3: Provide your shipping address — we ship worldwide via DHL, FedEx, and UPS
- Step 4: Receive your unit with test report and warranty card within 3–7 business days
For urgent requirements or project quantities (>5 units), email support@konmask.com for priority handling.
Replacement & Compatibility FAQ
Q: Is the 1785-L40B still manufactured by Rockwell Automation?
A: No. The PLC-5 series reached end-of-life (EOL). Konmask supplies tested surplus and refurbished units.
Q: Can I replace a 1785-L40B with a 1785-L40C without reprogramming?
A: In most cases yes — the L40C is backward compatible with L40B programs in RSLogix 5. Verify your firmware revision.
Q: Will my existing RSLogix 5 program run on a replacement 1785-L40B?
A: Yes, provided the replacement unit has equivalent or higher firmware. Always back up your program before swapping.
Q: What is the lead time for the 1785-L40B?
A: In-stock units ship within 1–2 business days. Out-of-stock units typically sourced within 5–10 business days.
Q: Do you provide a test report with the unit?
A: Yes. All units include a functional test report. Detailed FAT reports available for project orders.
