Allen-Bradley 2711R-T4T – 4″ Compact HMI Graphic Terminal | PanelView 800 / 2711R Series

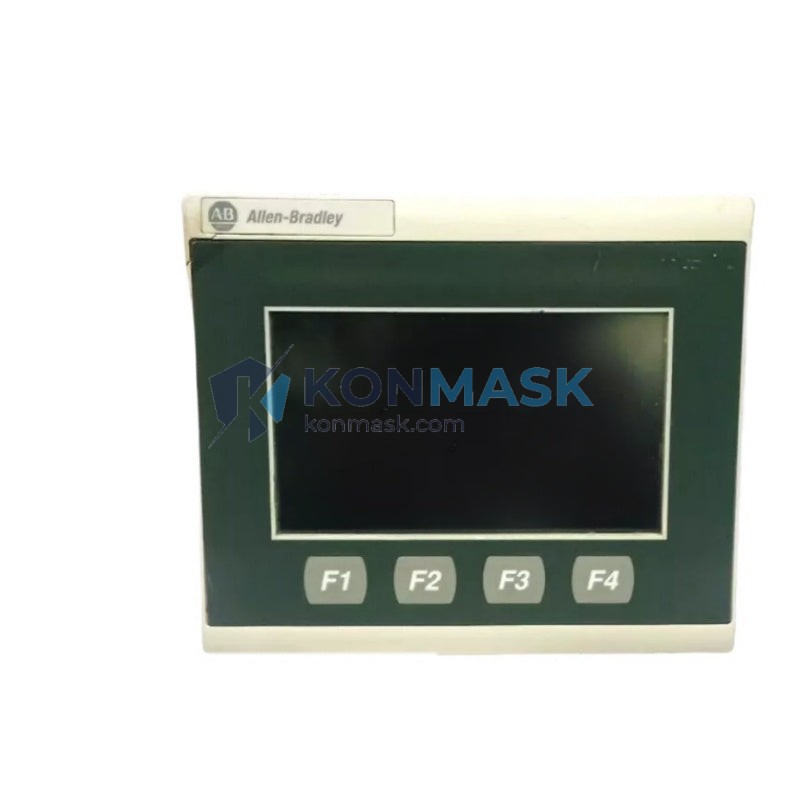

Engineering Background
The Allen-Bradley 2711R-T4T is part of Rockwell Automation’s PanelView 800 series — a compact, cost-effective HMI platform engineered for machine-level operator interface applications. Designed to integrate seamlessly with Allen-Bradley Micro800 and MicroLogix controller families, the 2711R-T4T delivers reliable visualization and control in space-constrained industrial environments. Konmask.com supplies this unit as a verified, tested component sourced through authorized distribution channels.
Product Positioning
Targeted at OEM machine builders, panel integrators, and MRO procurement engineers requiring a compact 4-inch HMI with native Rockwell ecosystem compatibility. The 2711R-T4T is the entry-level touchscreen terminal in the PanelView 800 family, offering a balance of functionality, footprint efficiency, and total cost of ownership for light industrial and packaging applications.

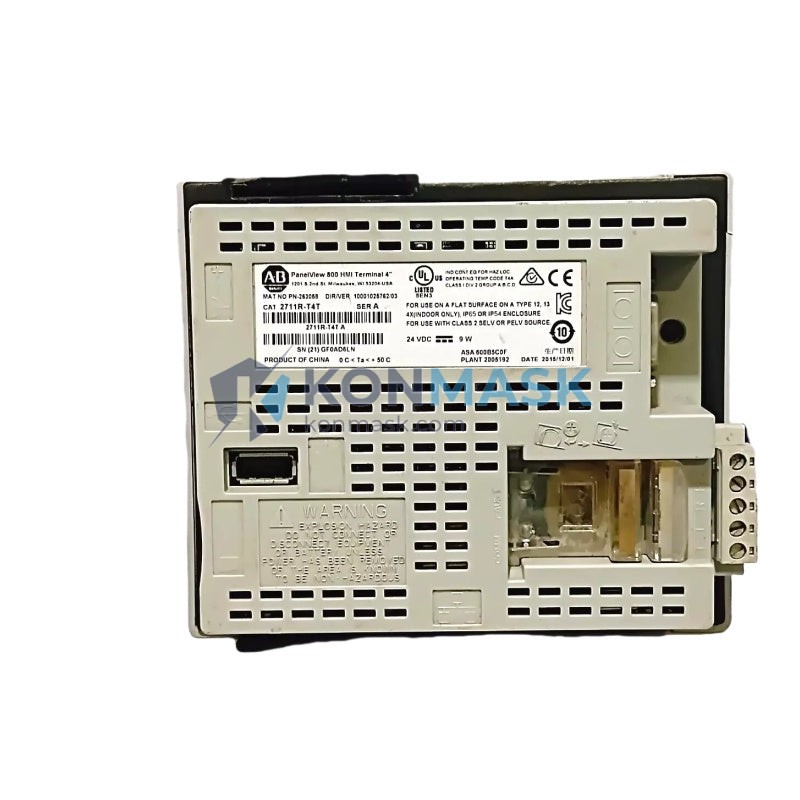

Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 2711R-T4T |
| Series / Platform | PanelView 800 / 2711R Series |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Display Size | 4.3″ WQVGA Color TFT LCD |
| Display Resolution | 480 × 272 pixels |
| Touch Technology | Resistive Touchscreen |
| Communication Port | RS-232 / RS-422 / RS-485 (Serial) |
| Protocol Support | DF1, DH-485, Modbus RTU |
| Power Supply | 24V DC (±20%), 0.5A max |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection Rating | NEMA 4/4X, IP65 (front panel) |
| Memory | 128 MB Flash / 128 MB RAM |
| Application Software | Connected Components Workbench (CCW) |
| Panel Cutout | 138 mm × 100 mm (W × H) |
| Overall Dimensions | 152 mm × 114 mm × 52 mm |
| Weight | Approx. 0.45 kg |
| Certifications | UL, CE, RCM, KC |
| Country of Origin | United States |
Proven Application Environments
- Packaging Machinery: Conveyor line HMI for start/stop, speed reference, and fault display on Micro820/Micro830 systems
- HVAC & Building Automation: Compact operator panel for chiller, AHU, and pump control stations
- Food & Beverage: Washdown-rated front panel (IP65) suitable for hygienic zone machine interfaces
- Material Handling: Sorter and palletizer operator terminals with serial PLC connectivity
- OEM Machine Panels: Space-constrained enclosures requiring sub-5″ HMI with native Rockwell protocol support
- Water & Wastewater: Remote pump station operator interface with DH-485 network integration
Engineering Advantages
- Native Rockwell Integration: Plug-and-play compatibility with Micro800 family via Connected Components Workbench — no third-party driver configuration required
- IP65 Front Panel: NEMA 4/4X rated for dust-tight and washdown environments without additional enclosure modification
- Compact Footprint: 4.3″ display in a 138 × 100 mm cutout — ideal for retrofit and space-constrained OEM panels
- Multi-Protocol Serial: Supports DF1, DH-485, and Modbus RTU — enabling connectivity to legacy Allen-Bradley and third-party PLCs
- Low Power Consumption: 24VDC @ 0.5A max — compatible with standard 24V panel power supplies, no dedicated HMI PSU required
- Free Development Software: CCW (Connected Components Workbench) is available at no cost from Rockwell Automation

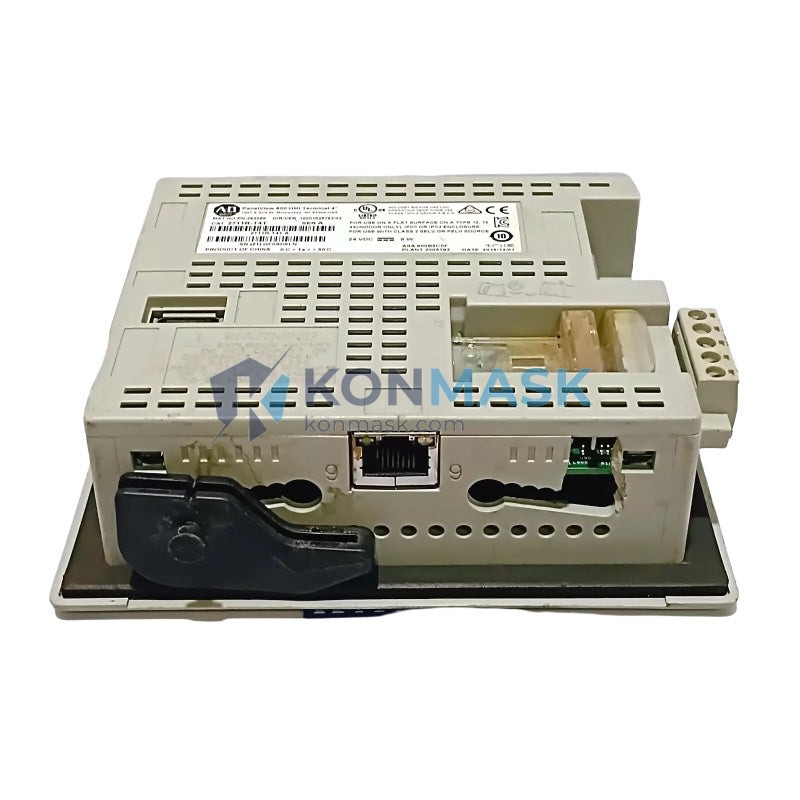

System Architecture & Signal Flow
The 2711R-T4T operates as a serial HMI terminal in a single-master, point-to-point or multi-drop network topology:
- Controller Layer: Allen-Bradley Micro820 / Micro830 / Micro850 / MicroLogix 1100/1400 via RS-232 (DF1) or RS-485 (DH-485)
- HMI Layer: 2711R-T4T reads/writes controller tags via serial polling — no Ethernet switch or router required
- Power Architecture: Single 24VDC feed to HMI; controller powered independently from same panel bus
- Programming Path: Engineering workstation → USB → 2711R-T4T (CCW project download); controller programmed separately via USB or Ethernet
- Signal Flow: Operator input (touchscreen) → CCW runtime tag → serial write to PLC register → PLC output → field device actuation
Sourcing & Quality Verification
- ✅ Authorized Distribution Channel: Units sourced through verified Allen-Bradley / Rockwell Automation authorized distributors
- ✅ Functional Test: Each unit undergoes power-on and communication port verification prior to shipment
- ✅ Genuine Firmware: Factory-loaded Rockwell firmware — no third-party or modified firmware
- ✅ Packaging Integrity: Original OEM packaging with intact serial number labels and certification marks
- ✅ Traceability: Lot and date code documentation available upon request for MRO and OEM procurement records
Procurement Process
- Confirm Compatibility: Verify your controller model (Micro800 / MicroLogix) and required communication protocol (DF1 / DH-485 / Modbus RTU)
- Request Quote: Contact support@konmask.com with quantity, delivery timeline, and any project-specific documentation requirements
- Order Confirmation: Purchase order accepted via email; proforma invoice issued within 1 business day
- Lead Time: In-stock units ship within 2–3 business days; ETA provided at order confirmation
- Documentation Package: Datasheet, test report, and packing list included with every shipment
- After-Sales Support: Technical support available via email and phone for integration and commissioning queries
Technical FAQ
Q: Is the 2711R-T4T compatible with CompactLogix or ControlLogix PLCs?
A: No. The 2711R-T4T uses serial communication (RS-232/RS-485) and is designed for Micro800 and MicroLogix families. For Logix5000 platforms, consider the PanelView Plus 7 (2711P series) with EtherNet/IP.
Q: What software is required to program the 2711R-T4T?
A: Connected Components Workbench (CCW) v13 or later, available free from the Rockwell Automation Software Download Center.
Q: Can the 2711R-T4T connect to non-Rockwell PLCs?
A: Yes — Modbus RTU protocol support enables connectivity to Siemens, Mitsubishi, Omron, and other third-party PLCs with Modbus slave capability.
Q: What is the warranty on this unit?
A: Konmask.com provides a 12-month functional warranty covering manufacturing defects. Units are tested prior to shipment.
Q: Is a replacement cable or accessory kit available?
A: Yes. Compatible accessories including 2711R-CBL-EX05 extension cables and panel mounting hardware are available — contact us for details.
