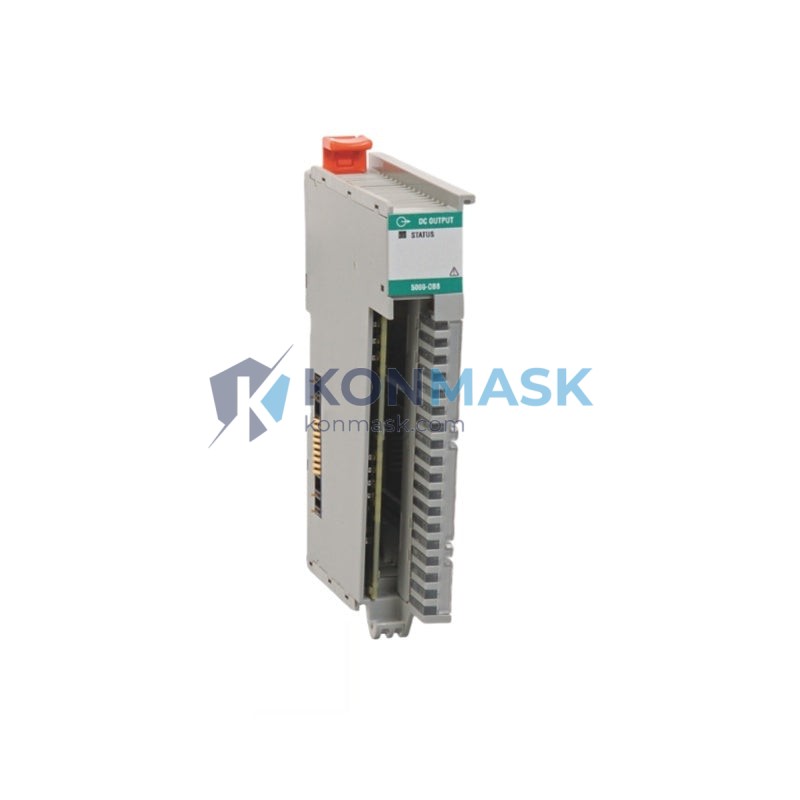

Genuine Allen-Bradley 5069-OB8 8-Point DC Digital Output Module | CompactLogix 5069 Series – Verified Source
The Allen-Bradley 5069-OB8 is an 8-point DC digital output module designed for the Rockwell Automation CompactLogix 5069 series control platform. At Konmask.com, every unit we supply undergoes a rigorous multi-step verification process to ensure authenticity, functionality, and traceability — giving industrial buyers the confidence they need when sourcing critical automation components.
Technical Specifications
- Part Number: 5069-OB8
- Series: Allen-Bradley CompactLogix 5069
- Module Type: Digital DC Output
- Number of Output Points: 8
- Output Voltage Range: 10–28.8V DC
- Output Current (per point): 2.0 A max
- Output Current (module total): 8.0 A max
- Output Type: Sourcing (PNP)
- Backplane Current (5V): 55 mA
- Backplane Current (3.3V): 110 mA
- Operating Temperature: 0–60°C (32–140°F)
- Storage Temperature: -40–85°C
- Relative Humidity: 5–95% non-condensing
- Dimensions (H × W × D): 144 × 22 × 105 mm
- Weight: Approx. 200 g
- Certifications: CE, UL, cUL, RCM
- Manufacturer: Rockwell Automation / Allen-Bradley
- Country of Origin: USA
Our 4-Step Quality Verification Process
Every 5069-OB8 module shipped from Konmask.com passes through our standardized verification protocol:
- Step 1 — Source Authentication: We verify the supply chain origin and cross-reference manufacturer batch records to confirm genuine Rockwell Automation production.
- Step 2 — Physical Inspection: Each unit is inspected for label integrity, housing condition, connector pin alignment, and absence of counterfeit indicators.
- Step 3 — Functional Bench Test: Modules are powered and tested for correct I/O response, backplane communication, and output switching performance.
- Step 4 — Documentation & Traceability: A test record is generated for each unit, including serial number, inspection date, and technician sign-off, available upon request.
Key Features & Benefits
- ✅ 8 individually isolated DC sourcing outputs for flexible field wiring
- ✅ Compact form factor — fits directly into CompactLogix 5069 chassis without adapters
- ✅ High current capacity — 2 A per point supports solenoids, relays, and actuators
- ✅ Electronic fusing with automatic reset for output short-circuit protection
- ✅ Diagnostic LEDs per output channel for rapid field troubleshooting
- ✅ Hot-swap capable — replace modules without powering down the chassis
- ✅ Studio 5000 Logix Designer compatible — seamless tag-based programming
- ✅ Genuine Rockwell Automation firmware — no third-party modifications
Typical Applications
- Solenoid valve control in fluid handling and pneumatic systems
- Motor starter and contactor switching in conveyor and packaging lines
- Indicator lamp and HMI signal driving in process control panels
- Relay coil activation in safety interlock circuits
- Actuator control in robotic assembly and pick-and-place systems
- Output control in food & beverage, automotive, and semiconductor manufacturing
Compatible System Components
- Controllers: 5069-L306ER, 5069-L310ER, 5069-L320ER, 5069-L330ER, 5069-L340ER (CompactLogix 5380 series)
- Power Supplies: 5069-PA4, 5069-PB4
- Chassis / Expansion: 5069-AEN2TR EtherNet/IP Adapter
- Programming Software: Studio 5000 Logix Designer v28.0 or later
- Related Output Modules: 5069-OB16, 5069-OW8I, 5069-OBV8S
- Related Input Modules: 5069-IB8, 5069-IB16
Global Sourcing & Shipping Capabilities
- Stock Availability: In-stock units ship within 1–3 business days
- Lead Time (non-stock): 5–15 business days depending on sourcing region
- Shipping Destinations: Worldwide — Americas, Europe, Middle East, Southeast Asia, Oceania
- Logistics Partners: DHL Express, FedEx International Priority, UPS Worldwide
- Export Compliance: All shipments comply with applicable export control regulations (EAR/ECCN)
- Customs Documentation: Commercial invoice, packing list, and certificate of origin provided upon request
- Packaging: Anti-static ESD packaging with foam insert; original manufacturer packaging where available
Certifications & Compliance Statement
- CE Marking: Compliant with EU Low Voltage Directive and EMC Directive
- UL / cUL Listed: Recognized under UL 508 (Industrial Control Equipment)
- RCM: Compliant for Australia/New Zealand markets
- RoHS: Meets EU RoHS 2 (2011/65/EU) requirements
- REACH: Compliant with SVHC substance restrictions
- ISO 9001: Sourced through ISO 9001:2015 certified supply chain partners
Certification documentation available upon written request for qualified buyers.
How to Order
- Confirm Part Number: Verify 5069-OB8 matches your system’s I/O requirements and firmware revision.
- Select Quantity: Add the required quantity to your cart. Volume pricing available for orders of 5+ units.
- Request a Quote: For large orders, OEM projects, or urgent requirements, email support@konmask.com for a dedicated quote within 24 hours.
- Checkout Securely: We accept major credit cards, wire transfer (T/T), and PayPal for international buyers.
- Track Your Shipment: A tracking number is provided within 24 hours of dispatch.
Authenticity & Trust FAQ
Q: Are these genuine Allen-Bradley / Rockwell Automation products?
A: Yes. All 5069-OB8 units we supply are genuine Rockwell Automation products. We do not sell clones, refurbished-as-new, or grey-market units without disclosure.
Q: Can you provide a certificate of authenticity?
A: Yes. A traceability document and inspection report are available upon request for qualified buyers. Contact us before or after purchase.
Q: What is your return and warranty policy?
A: We offer a 30-day DOA (Dead on Arrival) replacement guarantee. Extended warranty options are available for volume buyers. See our full policy at Konmask.com/policies.
Q: Do you offer technical support for integration?
A: Our team includes automation engineers familiar with Rockwell platforms. We can assist with basic configuration guidance and point you to official Rockwell documentation.
Q: Can I order a sample unit before committing to a bulk order?
A: Yes. Sample orders are accepted. Contact us to discuss sample pricing and lead time.
Q: What if the module I receive has a different firmware revision than expected?
A: We disclose firmware revision information where known. If a specific revision is required, please specify this in your order inquiry.
