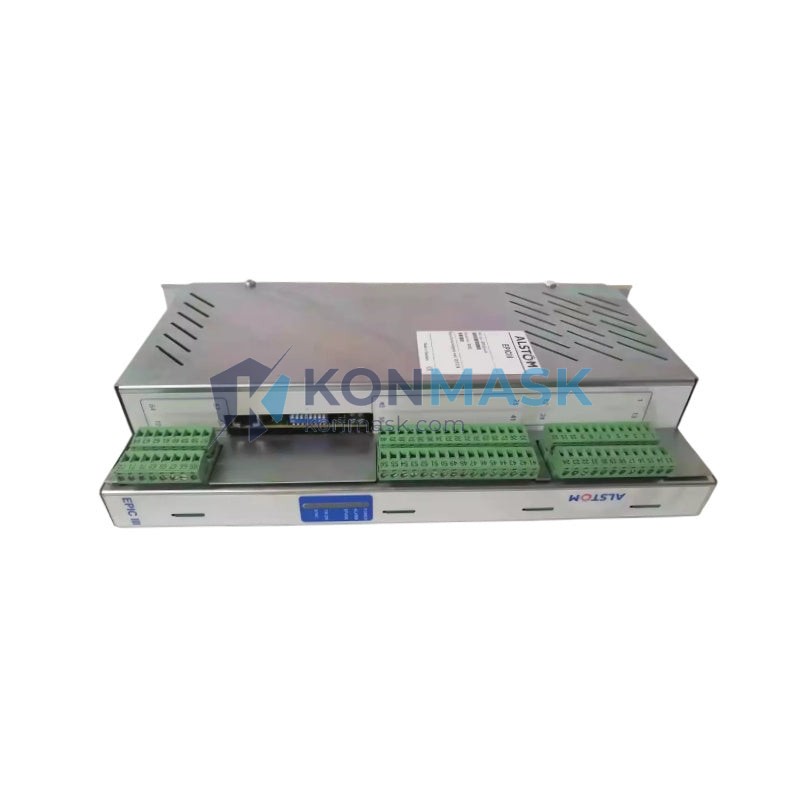

ALSTOM EP3-G-4-A-EN – Integrated Electrostatic Precipitator Controller | EP3 Platform
Engineering Background
The ALSTOM EP3 series represents ALSTOM’s third-generation digital control platform for electrostatic precipitators (ESP), engineered to meet the stringent emission control requirements of power generation, cement, steel, and chemical processing industries. The EP3-G-4-A-EN variant integrates high-voltage energization control, rapper sequencing, and process diagnostics into a single compact module, replacing multi-cabinet legacy systems with a unified DIN-rail-mountable solution.
Product Positioning
Designed for procurement engineers and plant maintenance teams sourcing certified OEM replacement or upgrade modules, the EP3-G-4-A-EN delivers drop-in compatibility with existing ALSTOM ESP installations while supporting modern fieldbus communication and remote SCADA integration. Konmask.com supplies this module from verified industrial channels with full traceability documentation.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | EP3-G-4-A-EN |
| Manufacturer | ALSTOM |
| Series / Platform | EP3 (Third-Generation ESP Control) |
| Module Type | Integrated Electrostatic Precipitator Controller |
| Control Channels | 4 independent high-voltage control channels |
| Rapper Control | Integrated rapper sequencing (electromagnetic & tumbling) |
| Communication Interface | EN-standard fieldbus / serial (model suffix -EN) |
| Mounting | DIN rail / panel mount |
| Power Supply | 24 VDC nominal (consult datasheet for tolerance range) |
| Operating Temperature | 0°C to +55°C |
| Protection Class | IP20 (module); IP54 enclosure recommended for field installation |
| HS Code | 8537.10 |
| Country of Origin | CN |
| Weight (approx.) | 500 g |
Proven Application Environments
- Coal-fired power plants – flue gas treatment and fly ash collection systems
- Cement manufacturing – kiln exhaust and clinker cooler ESP installations
- Steel & metallurgy – blast furnace and sintering plant emission control
- Chemical & petrochemical – process gas cleaning and acid mist collection
- Waste-to-energy (WtE) – municipal solid waste incineration flue gas treatment
- Pulp & paper – recovery boiler and lime kiln ESP systems
Engineering Advantages
- 4-channel integrated design – eliminates inter-module wiring complexity and reduces panel footprint by up to 60% vs. discrete relay-based systems
- Adaptive HV energization – automatic back-corona detection and spark rate optimization for maximum collection efficiency
- Rapper sequence management – configurable rapper timing prevents re-entrainment and maintains collection plate cleanliness
- EN fieldbus compatibility – native integration with plant DCS/SCADA via standard industrial protocols
- Diagnostic & alarm logging – onboard fault memory supports predictive maintenance and root-cause analysis
- OEM-grade reliability – designed and manufactured to ALSTOM EP3 platform specifications for long MTBF in continuous industrial operation
System Architecture & Signal Flow
The EP3-G-4-A-EN operates as the central intelligence node within an ALSTOM ESP control cabinet. The module receives process feedback signals (current, voltage, spark detection) from the high-voltage transformer-rectifier (T/R) sets across all 4 channels. Its onboard DSP executes real-time energization algorithms, issuing firing angle commands to the T/R thyristor controllers. Simultaneously, the rapper control subsystem outputs timed activation signals to electromagnetic or tumbling-type rapper drivers. All operational data is transmitted upstream to the plant DCS via the EN fieldbus interface, enabling centralized monitoring, setpoint adjustment, and alarm management without local panel intervention.
Sourcing & Quality Verification
- Sourced through verified industrial supply channels with documented traceability
- Each unit undergoes incoming inspection: visual, label verification, and functional pre-check
- Original manufacturer markings, date codes, and serial numbers preserved and documented
- Certificate of conformity and test records available upon request
- Packaging: anti-static shielding bag + foam-lined export carton
Procurement Process
- Confirm compatibility – provide your existing EP3 cabinet model and T/R set count to our engineering team
- Request quotation – contact support@konmask.com or call +0086 19859288691 for lead time and pricing
- Place order – purchase online or via proforma invoice (T/T, L/C accepted)
- Shipping – DHL / FedEx express or sea freight; export documentation (CI, PL, CO) provided
- After-sales support – technical commissioning guidance available from Konmask engineering team
Technical FAQ
Q: Is the EP3-G-4-A-EN a direct replacement for older ALSTOM EP1/EP2 controllers?
A: The EP3 platform uses a different hardware architecture. Direct drop-in replacement depends on your cabinet wiring harness. Contact our team for a compatibility assessment.
Q: What does the “-EN” suffix indicate?
A: The “-EN” suffix designates the European/international standard fieldbus communication variant, as opposed to region-specific protocol variants.
Q: Can this module control both electromagnetic and tumbling rappers?
A: Yes. The rapper control subsystem supports both rapper types via configurable output parameters.
Q: What is the warranty period?
A: Konmask.com provides a 12-month warranty against manufacturing defects from the date of shipment. Extended warranty options are available on request.
Q: Do you provide installation and commissioning support?
A: Yes. Remote technical support and on-site commissioning services are available. Contact us for details.
