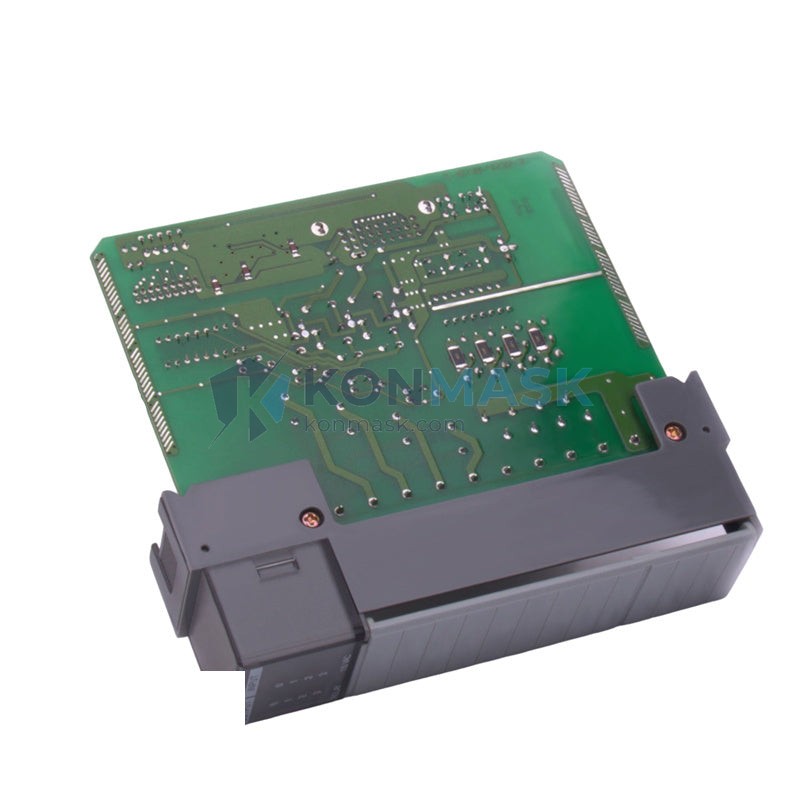

PLC Programming Terminal & On-Machine HMI Solution — Allen-Bradley 1747-OCVGA1 | SLC 500 Open Controller VGA Interface Module
In discrete manufacturing and process control environments, engineers face a persistent challenge: how to provide operators and maintenance technicians with real-time PLC data visibility directly at the machine, without routing long cable runs to a remote HMI panel or deploying a dedicated PC workstation. Studies show that unplanned downtime caused by delayed fault diagnosis costs discrete manufacturers an average of $260,000 per hour, and over 40% of that delay is attributable to operators lacking immediate access to controller status at the point of operation. Legacy SLC 500 installations — still running millions of I/O points across North American and Asian factories — compound this problem: their serial-only programming ports were never designed for modern display integration.
The Allen-Bradley 1747-OCVGA1 Open Controller VGA Interface Module resolves this at the hardware level. By inserting directly into the SLC 500 chassis as a standard I/O slot module, it exposes a standard VGA output that drives any compatible monitor or industrial display panel — transforming the controller chassis itself into a self-contained programming and operator interface node. No separate PC, no proprietary HMI hardware, no additional software license: the 1747-OCVGA1 turns the SLC 500 rack into a complete open-controller workstation, enabling on-machine programming, diagnostics, and operator interaction at the point of control.
Where This Product Is Used
Automotive Body & Assembly Lines
Used in body-in-white welding cells and transfer line control panels where SLC 500 racks manage 256–512 I/O points per station. The 1747-OCVGA1 allows maintenance engineers to connect a ruggedized VGA monitor directly to the rack for in-situ ladder logic diagnostics during shift changeovers, eliminating the need to carry a laptop to each station. Operating environment: 0–55 °C ambient, high EMI from welding inverters, conforming to IEC 61131-2 controller immunity requirements.
Food & Beverage Packaging Lines
Deployed in washdown-adjacent control enclosures on filling, capping, and labeling machines where IP54-rated panels house SLC 5/04 or 5/05 processors. The VGA interface enables line supervisors to view real-time recipe parameters and fault codes on a panel-mount monitor without opening the enclosure door, supporting HACCP documentation requirements and reducing contamination risk. Typical duty cycle: 24/7 continuous operation at 40 °C.
Water & Wastewater Treatment Plants
Installed in SCADA-integrated pump station panels where SLC 500 systems control variable-speed drives for raw water intake and effluent pumping. The 1747-OCVGA1 provides a local VGA display node for operators performing manual overrides during SCADA communication failures, meeting EPA and local utility requirements for manual control capability. Environment: high humidity (up to 95% RH non-condensing), H₂S exposure in headworks areas.
Oil & Gas Wellhead & Pipeline Control
Used in Class I Division 2 (ATEX Zone 2 equivalent) purged-and-pressurized enclosures at remote compressor stations. The module enables field technicians to perform on-site PLC program modifications and trend monitoring via a locally mounted VGA display, reducing the need for remote access over unreliable cellular SCADA links. Conforms to NFPA 496 purged enclosure requirements when installed in a Type X or Y purged panel.
Pharmaceutical & Life Sciences Manufacturing
Deployed in 21 CFR Part 11-compliant control systems for tablet compression, coating, and lyophilization equipment. The open-controller architecture allows validated HMI software to run directly on the SLC 500 platform with VGA output to a GMP-compliant operator panel, supporting electronic batch record integration. Qualification documentation (IQ/OQ) available upon request.
Pulp, Paper & Converting
Installed in winder and coater drive control panels where SLC 500 racks manage tension control loops and web break detection. The VGA interface provides operators with a dedicated display for real-time tension profiles and alarm annunciation at the machine, reducing web break response time. Operating range: 10–50 °C, high paper dust environment requiring periodic filter maintenance on the display unit.
Technical Specifications
- Part Number: 1747-OCVGA1 — unique catalog identifier for Allen-Bradley SLC 500 open controller VGA interface
- Series / Revision: Open Controller Series — confirm revision letter with Konmask team for firmware compatibility
- Chassis Compatibility: SLC 500 fixed and modular chassis (1746-A4, A7, A10, A13) — occupies one I/O slot; application relevance: supports all standard SLC 500 rack configurations used in the above industries
- Processor Compatibility: SLC 5/03, 5/04, 5/05 (OS300 and above) — application relevance: covers the majority of installed SLC 500 base still in production service
- Video Output: Standard VGA (DB-15 HD female) — drives monitors up to 1024×768 resolution; application relevance: compatible with all standard industrial panel-mount VGA displays
- Operating Temperature: 0 to 55 °C (32 to 131 °F) — application relevance: covers automotive, food & beverage, and general manufacturing ambient ranges
- Storage Temperature: −40 to 85 °C
- Relative Humidity: 5 to 95% non-condensing — application relevance: suitable for water/wastewater and coastal installations
- Power Consumption: Supplied by SLC 500 backplane (5 VDC); consult chassis power budget before installation
- Weight: 300 g (0.66 lb)
- Agency Certifications: UL Listed, CE Marked, cUL (Canada)
- Communication Interface: SLC 500 backplane bus — no external wiring required for controller communication
- Software Requirement: RSLogix 500 / Studio 5000 Logix Designer (for programming); open-controller runtime software for HMI functionality
Why Engineers Specify This Model
- In automotive body shop welding cells, the 1747-OCVGA1 delivers zero-cable-run local diagnostics because it integrates directly into the SLC 500 backplane, eliminating serial cable management across high-EMI environments, meeting IEC 61131-2 noise immunity requirements.
- In food & beverage packaging lines, the 1747-OCVGA1 delivers enclosure-door-closed operator visibility because the VGA output drives a panel-mount display without requiring the control door to be opened, supporting HACCP contamination control protocols.
- In water treatment pump stations, the 1747-OCVGA1 delivers SCADA-independent local control visibility because it provides a standalone display node that operates without network connectivity, meeting EPA manual override requirements.
- In oil & gas purged enclosures, the 1747-OCVGA1 delivers field-programmable open-controller capability because it allows on-site program edits via a locally mounted VGA display, reducing costly remote-access infrastructure, conforming to NFPA 496 purged panel standards.
- In pharmaceutical batch manufacturing, the 1747-OCVGA1 delivers 21 CFR Part 11-compatible HMI integration because the open-controller architecture supports validated operator interface software with full audit trail capability, meeting FDA electronic records requirements.
- In pulp & paper winder control, the 1747-OCVGA1 delivers real-time tension profile display at the machine because the VGA output provides a dedicated operator display independent of the SCADA network, reducing web break response time and unplanned downtime.
Complete System Bill of Materials
The following components represent a complete SLC 500 open-controller workstation build using the 1747-OCVGA1:
- 1747-OCVGA1 — This module (VGA interface, open controller core) — the primary subject of this listing
- 1746-A7 or 1746-A10 — SLC 500 modular chassis — houses the processor, power supply, and all I/O modules including the 1747-OCVGA1
- 1747-L553 / L554 / L555 — SLC 5/03, 5/04, or 5/05 processor — the controller that the 1747-OCVGA1 interfaces with via the backplane
- 1746-P4 — SLC 500 power supply (4A, 24 VDC input) — provides regulated 5 VDC backplane power consumed by the 1747-OCVGA1
- 1746-IB16 / OB16 — Digital I/O modules — co-resident in the chassis, managed by the same processor interfaced through the 1747-OCVGA1
- Industrial VGA Panel-Mount Monitor (customer-supplied, 10–15 inch, 1024×768) — receives VGA signal from the 1747-OCVGA1 DB-15 output
- VGA Cable, DB-15 HD, shielded, ≤3 m — connects 1747-OCVGA1 output to the panel-mount monitor; shielded cable recommended in high-EMI environments
- RSLogix 500 Software License — required for PLC programming via the open-controller interface
- 1747-UIC USB-to-DH485 Interface Converter (optional) — for legacy DH-485 network connectivity alongside the VGA interface
Compliance & Industry Standards
- UL 508A (Underwriters Laboratories) — Industrial Control Panels; confirms the module meets North American safety requirements for industrial control equipment. Buyer significance: required for UL-labeled control panels in the US and Canada.
- CE Marking / Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU — confirms conformity with European safety and electromagnetic compatibility requirements. Buyer significance: mandatory for equipment placed on the EU market.
- cUL Listing (Canadian Standards) — Canadian equivalent of UL listing. Buyer significance: required for installations subject to Canadian Electrical Code (CEC) inspection.
- IEC 61131-2 — Programmable Controllers — Equipment Requirements and Tests; the 1747-OCVGA1 operates within an SLC 500 system that conforms to this standard. Buyer significance: confirms EMI immunity and environmental performance for industrial PLC installations.
- RoHS Directive 2011/65/EU — Restriction of Hazardous Substances; confirms the module is free of restricted substances. Buyer significance: required for EU market access and preferred by environmentally conscious procurement teams globally.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources the 1747-OCVGA1 through authorized Allen-Bradley distributors, certified surplus channels with full traceability, and direct OEM overstock. All units are original Rockwell Automation manufacture — no third-party remanufactured or counterfeit product.
4-Step Inspection Process:
- Visual & Physical Inspection — Examination of PCB, connector pins, label integrity, and housing for damage, corrosion, or evidence of unauthorized repair.
- Functional Power-On Test — Module is installed in a live SLC 500 test chassis and powered on to confirm backplane communication and VGA output signal generation.
- Firmware / Revision Verification — Catalog number, series letter, and firmware revision are confirmed against Rockwell Automation documentation and recorded.
- ESD-Safe Packaging & Documentation — Unit is packaged in anti-static bag with desiccant, and all test records are filed for traceability.
Documentation Available Upon Request: Certificate of conformance, inspection report, datasheet (1747-UM011), revision history, and customs/export documentation (HS code, country of origin declaration).
How to Source This Part
- Submit Your Inquiry — Contact Konmask.com via the product page, email support@konmask.com, or WhatsApp/WeChat at +0086 19859288691 with your required quantity, target delivery date, and any revision or firmware requirements.
- Receive Quote & Availability Confirmation — Our team responds within 24 hours with pricing, stock status, lead time, and shipping options. For urgent requirements, same-day response is available during business hours (UTC+8).
- Order, Ship & Track — Orders are processed and dispatched from our warehouse with full tracking. We ship globally via DHL Express, FedEx International Priority, and UPS Worldwide — typical transit: 3–7 business days to North America and Europe, 2–5 days to Southeast Asia. Export documentation (commercial invoice, packing list, certificate of origin) provided for all international shipments.
Application-Specific FAQ
Q: Can the 1747-OCVGA1 be used as a standalone HMI replacement in an existing SLC 500 machine control panel?
A: Yes. In machine control panel applications, the 1747-OCVGA1 enables the SLC 500 chassis to function as an open-controller workstation, driving a VGA panel-mount display for operator interaction. This eliminates the need for a separate HMI device in space-constrained enclosures. The open-controller software environment supports custom operator screens, alarm displays, and recipe management — all running on the existing SLC 500 hardware.
Q: Is the 1747-OCVGA1 suitable for use in a water treatment SCADA system where the SLC 500 must continue operating during network outages?
A: Absolutely. In water & wastewater SCADA applications, the 1747-OCVGA1 provides a fully local display and programming interface that operates independently of the SCADA network. If the Ethernet or DH+ network fails, operators can still view real-time PLC data and perform manual overrides via the VGA-connected local display — a critical requirement for EPA-compliant pump station control.
Q: What is the maximum VGA cable length recommended for use in a high-EMI automotive welding cell environment?
A: In high-EMI automotive welding cell environments, Konmask recommends using a shielded VGA cable of no more than 3 meters between the 1747-OCVGA1 DB-15 output and the panel-mount monitor. For longer runs, a VGA signal amplifier/extender with EMI shielding should be used. Proper cable routing away from welding power cables and use of ferrite cores at both ends will further reduce interference, maintaining display signal integrity in compliance with IEC 61131-2 EMC requirements.
