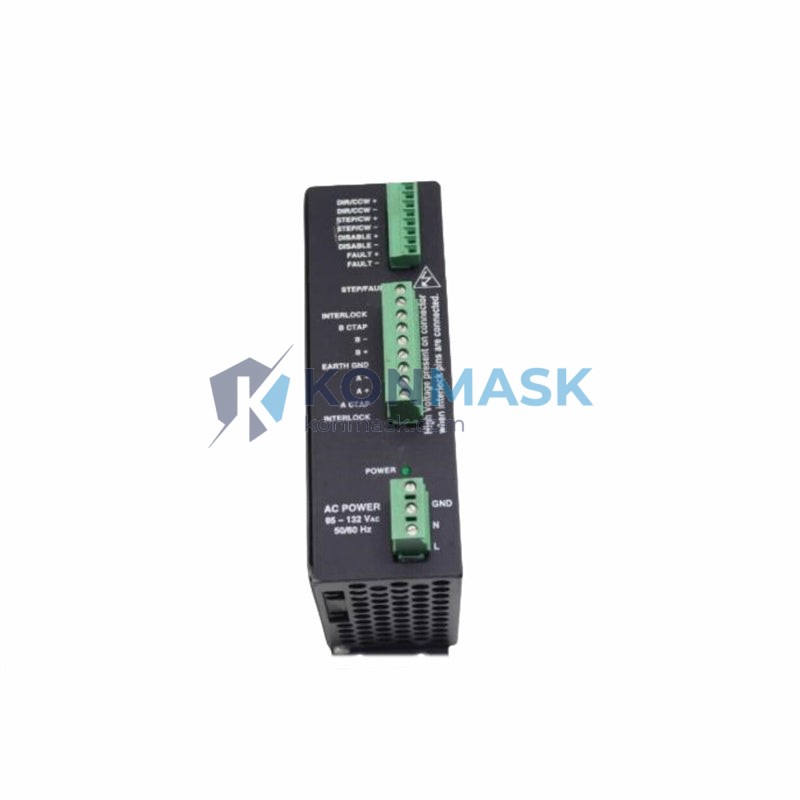

AMCI SD17060B-25 Stepper Motor Driver | Replacement, Equivalent & Selection Guide
The AMCI SD17060B-25 is a high-performance 2-phase microstepping stepper motor driver designed for precise motion control in industrial automation systems. Whether you are sourcing an original unit, seeking a compatible replacement, or evaluating equivalent alternatives, this guide provides everything you need to make an informed selection decision.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | AMCI (Advanced Micro Controls Inc.) |
| Model / Part Number | SD17060B-25 |
| Series | SD Series Stepper Drives |
| Drive Type | 2-Phase Microstepping Stepper Motor Driver |
| Output Current | Up to 6.0 A peak per phase |
| Input Voltage | 24–75 VDC |
| Microstep Resolution | Up to 25,000 steps/rev (software selectable) |
| Communication Interface | RS-422 / RS-485 serial, EtherNet/IP optional |
| PLC Compatibility | Allen-Bradley, Siemens, Mitsubishi, Omron, and others |
| Protection | Over-current, over-temperature, short-circuit |
| Mounting | DIN rail or panel mount |
| Operating Temperature | 0°C to 50°C |
| Weight | Approx. 1,260 g |
| Certifications | CE, UL |
Compatible Replacement & Equivalent Models
If the AMCI SD17060B-25 is unavailable or you require a cost-effective alternative, the following models offer compatible specifications and can serve as direct or near-direct replacements:
- AMCI SD17060E — Same SD series, EtherNet/IP variant; identical mechanical and electrical footprint
- AMCI SD17060D — DeviceNet interface variant; same current and voltage ratings
- Leadshine DM860H — 2-phase driver, 20–80 VDC, up to 7.2 A; widely used as a functional equivalent
- Gecko Drive G213V — 18–80 VDC, 7 A peak; compatible with NEMA 34 motors, similar step resolution
- Applied Motion STR8 — RS-485 networked stepper drive; comparable current and voltage range
- Parker Compumotor ZETA6104 — Legacy equivalent for older Parker-based systems
Note: Always verify wiring pinout, communication protocol, and step/direction signal levels before substituting drivers in a live system.
Why Choose the Original AMCI SD17060B-25
- Native PLC Integration — Designed to work seamlessly with Allen-Bradley PLCs via Add-On Instructions (AOI) and EDS files, reducing commissioning time significantly.
- Proven Reliability — AMCI SD series drives are field-proven in thousands of industrial installations across North America and globally.
- Advanced Microstepping — Up to 25,000 steps/rev delivers ultra-smooth motion and eliminates resonance issues common in lower-resolution drives.
- Compact DIN-Rail Design — Space-efficient form factor simplifies panel integration without sacrificing power density.
- Comprehensive Protection — Built-in over-current, over-temperature, and short-circuit protection extends system lifespan.
Typical Applications
- CNC machining and engraving systems
- Automated assembly and pick-and-place equipment
- Conveyor indexing and positioning systems
- Packaging machinery and labeling equipment
- Medical device manufacturing automation
- Semiconductor wafer handling and inspection systems
- Robotics and multi-axis motion control platforms
System Compatibility
The SD17060B-25 is compatible with the following PLC and motion control platforms:
- Allen-Bradley / Rockwell Automation — ControlLogix, CompactLogix, MicroLogix (via RS-422/485)
- Siemens S7 Series — S7-300, S7-400, S7-1200, S7-1500 (with appropriate serial module)
- Mitsubishi MELSEC — Q Series, iQ-R Series
- Omron NJ/NX Series — Via EtherNet/IP or serial interface
- Beckhoff TwinCAT — EtherCAT-based systems with serial gateway
- Generic Step/Direction Controllers — Compatible with any controller outputting standard step/direction signals
Selection Guide
Use the following criteria to confirm the SD17060B-25 is the right drive for your application, or to identify the best alternative:
- Motor Phase Current: Confirm your stepper motor’s rated current does not exceed 6.0 A peak. For motors above this threshold, consider the AMCI SD17060E or Leadshine DM860H.
- Supply Voltage: Ensure your DC bus voltage falls within 24–75 VDC. Higher-voltage systems may require a different drive family.
- Communication Protocol: The -25 suffix denotes RS-422/RS-485 serial. If your system requires EtherNet/IP, select the SD17060E variant instead.
- Step Resolution: For applications requiring sub-microstep smoothness, the 25,000 steps/rev capability of this drive is a key differentiator versus lower-resolution alternatives.
- Enclosure & Mounting: DIN-rail mount is standard. Verify panel depth and clearance requirements before installation.
Quality Assurance & Sourcing
At Konmask.com, all AMCI SD17060B-25 units are sourced through verified supply channels. Each unit undergoes the following before shipment:
- Visual and mechanical inspection against OEM specifications
- Functional power-on verification
- Authenticity check against AMCI serial number database where applicable
- Secure anti-static packaging with full traceability documentation
We supply both new original and refurbished/tested units. Condition is clearly stated on each listing. All orders include a warranty certificate.
How to Order
- Confirm your part number: AMCI SD17060B-25
- Specify quantity and required condition (new / refurbished)
- Add to cart or contact us directly for bulk pricing and lead time
- For urgent requirements, email support@konmask.com or call +0086 19859288691
- We ship worldwide with DHL, FedEx, and UPS express options available
Replacement & Compatibility FAQ
Q: Can I replace the SD17060B-25 with a Leadshine DM860H directly?
A: Functionally yes for step/direction applications, but the communication protocol and wiring differ. Reconfiguration of the controller output and motor wiring is required.
Q: What does the “-25” suffix mean in SD17060B-25?
A: The “-25” designates the RS-422/RS-485 serial communication interface variant within the SD17060B product family.
Q: Is the SD17060B-25 compatible with NEMA 34 stepper motors?
A: Yes, provided the motor’s rated phase current is within the 6.0 A peak output rating of the drive.
Q: Does Konmask.com provide technical support for integration?
A: Yes. Our engineering team can assist with wiring diagrams, PLC configuration files, and commissioning guidance. Contact us at support@konmask.com.
Q: What is the lead time for the SD17060B-25?
A: In-stock units ship within 1–3 business days. For out-of-stock items, typical lead time is 2–4 weeks depending on sourcing channel.
