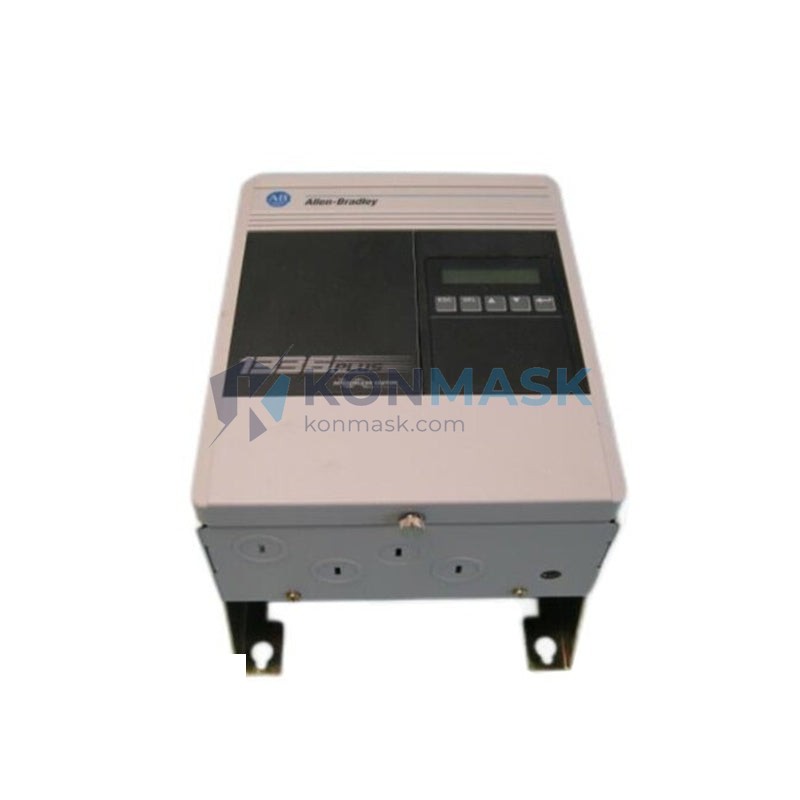

Allen-Bradley 1336S-BRF30-AA-EN – Adjustable Frequency AC Drive | 1336 PLUS Series
Engineering Background
The Allen-Bradley 1336 PLUS series represents Rockwell Automation’s proven architecture for industrial variable-speed motor control. Engineered for demanding continuous-duty applications, the 1336 PLUS platform delivers precise torque and speed regulation across a wide range of industrial environments — from HVAC and pump systems to conveyor lines and compressor drives.
Product Positioning
The 1336S-BRF30-AA-EN is a 30 HP (22 kW) 460 V AC adjustable frequency drive within the 1336 PLUS family. It is designed for OEM integrators, plant engineers, and MRO procurement teams requiring a field-proven, drop-in replacement or new-installation drive with full Allen-Bradley ecosystem compatibility. Konmask.com supplies this unit from verified surplus and authorized channels, with full traceability documentation available on request.
Complete Technical Specifications
| Catalog Number | 1336S-BRF30-AA-EN |
| Series | 1336 PLUS |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Output Power | 30 HP / 22 kW |
| Input Voltage | 380–480 V AC, 3-Phase |
| Output Voltage | 0–480 V AC, 3-Phase |
| Output Current | 46 A (nominal) |
| Input Frequency | 47–63 Hz |
| Output Frequency Range | 0–400 Hz |
| Control Method | Volts/Hz (V/Hz), Sensorless Vector |
| Enclosure Rating | IP20 / NEMA Type 1 (open chassis) |
| Communication | EN (EtherNet/IP) embedded adapter |
| Braking | Dynamic braking transistor included (BRF suffix) |
| Overload Capacity | 150% for 60 seconds |
| Ambient Temperature | 0°C to +50°C (operating) |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5–95% RH, non-condensing |
| Altitude | Up to 1000 m without derating |
| Weight | Approx. 10.94 kg |
| Certifications | UL, CE, cUL |
| Catalog Suffix Breakdown | B = 460V class | RF = Regenerative/Braking | 30 = 30 HP | AA = Standard | EN = EtherNet/IP |
Proven Application Environments
- HVAC Systems: Variable-speed fans, air handling units, and chiller pump control in commercial and industrial buildings
- Water & Wastewater: Centrifugal pump speed regulation for flow and pressure optimization
- Material Handling: Conveyor belt drives, palletizers, and sortation systems requiring smooth acceleration profiles
- Compressor Drives: Screw and reciprocating compressor soft-start and speed control
- OEM Machine Builders: Integrated into custom automation panels requiring EtherNet/IP network connectivity
- Process Industries: Extruders, mixers, and agitators in chemical, food & beverage, and plastics manufacturing
Engineering Advantages
- Embedded EtherNet/IP (EN): Native integration with Rockwell ControlLogix, CompactLogix, and Studio 5000 — no external communication module required
- Dynamic Braking Transistor (BRF): Built-in braking chopper enables rapid deceleration without external braking unit for most applications
- Sensorless Vector Control: Delivers improved low-speed torque performance without encoder feedback, reducing system complexity
- 150% Overload Capacity: Handles transient load spikes common in pump and fan applications without nuisance tripping
- Wide Input Voltage Tolerance: 380–480 V ±10% accommodates global power grid variations
- Rockwell Ecosystem Compatibility: Fully compatible with DriveExplorer, DriveExecutive, and RSLogix 5000 parameter management tools
System Architecture & Signal Flow
The 1336S-BRF30-AA-EN operates on a standard AC-DC-AC conversion architecture:
- Rectifier Stage: Three-phase AC input is rectified to a DC bus via a full-wave diode bridge
- DC Bus & Filtering: Capacitor bank smooths DC bus voltage; the BRF braking transistor connects an external resistor for regenerative energy dissipation
- IGBT Inverter Stage: PWM-controlled IGBT modules synthesize variable-frequency, variable-voltage AC output to the motor
- Control Board: DSP-based control executes V/Hz or sensorless vector algorithms; EtherNet/IP adapter provides real-time I/O and parameter access over standard Ethernet infrastructure
- I/O Interface: Analog inputs (0–10 V, 4–20 mA), digital inputs/outputs, and relay outputs for external control integration
Sourcing & Quality Verification
- Source Traceability: Units sourced from verified industrial surplus, authorized distributors, or OEM decommissioning — full chain-of-custody documentation available
- Pre-shipment Inspection: Each unit undergoes visual inspection for physical integrity, label verification, and catalog number confirmation
- Functional Testing: Power-on and parameter-read testing performed where applicable; test reports available on request
- Counterfeit Mitigation: Catalog number, date code, and firmware version cross-referenced against Rockwell Automation records
- Packaging: Anti-static bagging, foam cushioning, and double-wall carton for international transit protection
Procurement Process
- Inquiry: Submit your catalog number, required quantity, and delivery timeline to support@konmask.com or via the product page
- Quote & Availability Confirmation: Our technical team confirms stock status, lead time, and pricing within 1 business day
- Order Placement: Purchase order accepted via Shopify checkout, bank transfer (T/T), or negotiated terms for qualified accounts
- Quality Check & Documentation: Pre-shipment inspection report and packing list issued prior to dispatch
- Shipping: DHL / FedEx / sea freight options available; export documentation (commercial invoice, packing list, COO) provided for customs clearance
- After-Sales Support: Technical assistance available post-delivery for installation and commissioning queries
Technical FAQ
Q: Is the 1336S-BRF30-AA-EN compatible with ControlLogix via EtherNet/IP?
A: Yes. The EN suffix denotes an embedded EtherNet/IP adapter. The drive appears as a standard EtherNet/IP device in Studio 5000 and can be configured using the 1336 PLUS EDS file available from Rockwell Automation’s product compatibility download center.
Q: Does this drive require an external braking resistor?
A: The BRF suffix confirms a built-in dynamic braking transistor. An external braking resistor (sized to application duty cycle) must be connected to the BR+ / BR- terminals. Konmask can advise on resistor sizing upon request.
Q: Can this unit replace a 1336 PLUS II or 1336 IMPACT drive?
A: Mechanical and electrical footprints differ between 1336 sub-families. Cross-reference the original catalog number and frame size before substitution. Our engineering team can assist with compatibility assessment.
Q: What is the warranty on surplus units?
A: Konmask provides a 90-day functional warranty on verified surplus units. Extended warranty options are available — contact us for details.
Q: Is export documentation available for international shipments?
A: Yes. We provide commercial invoice, packing list, certificate of origin, and HS code documentation (HS: 8504.40) for all international orders.
