Analog Input Multiplexer Solution – Honeywell MC-TAMR04 51305907-175 | UCN Series
In high-density process plants, engineers routinely face a critical instrumentation bottleneck: dozens of low-level analog signals—thermocouples, RTDs, and millivolt transmitters—must be accurately digitized and delivered to the DCS controller with zero cross-channel interference. A single mV of noise on a thermocouple loop translates to ±2–5 °C of temperature error, which in a refinery distillation column or power plant boiler can trigger spurious shutdowns, product quality deviations, or—at worst—safety system misoperation. Legacy wiring schemes that run individual signal cables back to the marshalling cabinet consume 30–40% more panel space and increase commissioning labor by an estimated 200 man-hours per 100 I/O points.

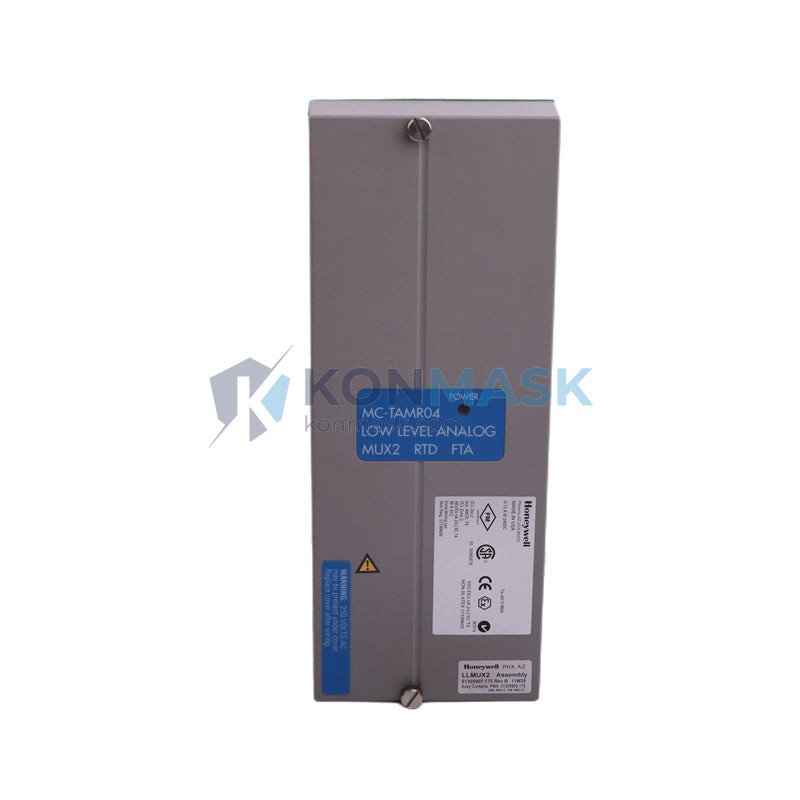

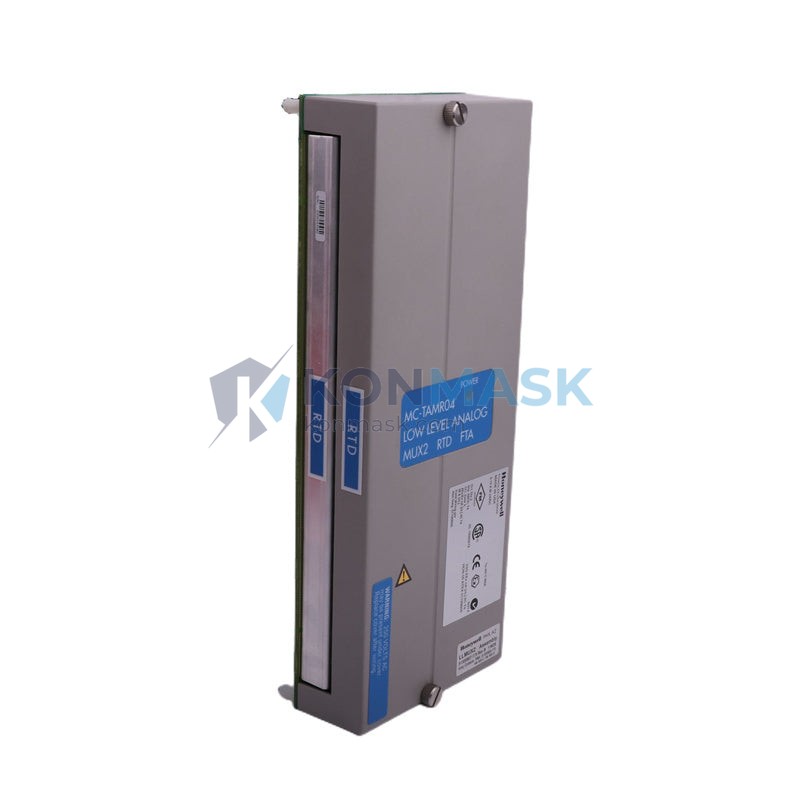

The Honeywell MC-TAMR04 (part number 51305907-175) is a UCN-bus Low Level Analog Input Multiplexer engineered specifically to eliminate this bottleneck. By multiplexing up to four low-level analog channels through a single UCN node, it reduces field wiring density, provides on-board cold-junction compensation for thermocouple inputs, and delivers 16-bit resolution data directly to the TotalPlant Solution (TPS) / TDC 3000 controller—all within the deterministic scan cycle that safety-critical loops demand. The result: fewer termination points, tighter measurement accuracy, and a fully documented signal chain that satisfies IEC 61511 functional safety audits.
Where This Product Is Used
Oil & Gas Refining
- Crude distillation unit (CDU) tray temperature profiling — 40–80 thermocouple points per column, ambient up to 55 °C, requiring ±1 °C accuracy to maintain cut-point control per API 2540 standards.
- Fired heater tube-skin monitoring — continuous mV-level thermocouple scanning at 500 ms intervals to detect hot spots before exceeding API 530 design limits.
- Amine absorber temperature gradient measurement — corrosive H₂S environment, signals routed through IS barriers, module operates in Class I Div 2 compatible cabinets.
Power Generation
- Boiler drum and superheater temperature arrays — up to 120 thermocouple inputs per boiler, scanned within a 1-second DCS cycle to comply with ASME PTC 4 performance test codes.
- Gas turbine exhaust temperature spread monitoring — 24-point thermocouple ring, mV signals below 50 mV, requiring high common-mode rejection to reject generator ground noise.
- Steam turbine bearing temperature surveillance — RTD/thermocouple hybrid inputs, alarm setpoints per ISO 10816 vibration and temperature limits.
Chemical & Petrochemical
- Reactor temperature profiling in fixed-bed catalytic units — multi-zone thermocouple grids, process temperatures 200–600 °C, IEC 61511 SIL 2 loop integrity required.
- Distillation column differential temperature control — low-level mV signals from Type K/J thermocouples, cold-junction compensation critical in non-climate-controlled field enclosures.
- Exothermic reaction runaway detection — fast scan rate essential; module’s UCN polling ensures data latency under 500 ms for ESD interlock response.
Pulp & Paper
- Recovery boiler smelt spout temperature monitoring — extreme radiant heat environment, Type B/R/S thermocouple inputs, signals below 20 mV requiring high-resolution ADC.
- Digester temperature profiling — 16–32 thermocouple points per vessel, continuous scan, TAPPI TIP 0404-46 process control guidelines.
- Dryer section felt temperature arrays — moderate temperature range, high-density I/O, module reduces marshalling cabinet footprint by 40%.
Pharmaceutical & Biotech
- Autoclave and sterilization chamber temperature validation — FDA 21 CFR Part 11 audit trail requires traceable, time-stamped temperature records; UCN data historian integration provides this natively.
- Bioreactor temperature gradient monitoring — low-level RTD/thermocouple inputs, GMP-compliant signal chain, IQ/OQ/PQ validation documentation available.
- Clean-in-place (CIP) temperature verification — rapid thermal cycling, module’s cold-junction compensation maintains accuracy across 10–80 °C ambient swings.
Metals & Mining
- Electric arc furnace (EAF) electrode temperature monitoring — high electromagnetic interference environment, module’s differential input design rejects common-mode noise up to 120 V.
- Continuous casting mold temperature arrays — Type K thermocouple grids, 250 ms scan requirement, direct integration with Honeywell TPS quality control historian.
- Smelter off-gas temperature profiling — high-temperature Type R/S inputs, harsh dusty environment, module housed in NEMA 4 purged enclosure.
Technical Specifications
| Part Number | MC-TAMR04 / 51305907-175 |
| Manufacturer | Honeywell Process Solutions |
| Series | UCN (Universal Control Network) — TPS / TDC 3000 |
| Module Type | Low Level Analog Input Multiplexer (LLAI MUX) |
| Number of Channels | 4 differential analog input channels [supports high-density thermocouple arrays] |
| Input Signal Range | Low-level mV signals (thermocouple, RTD bridge, strain gauge) [critical for sub-50 mV thermocouple signals] |
| Resolution | 16-bit ADC [delivers ±0.015% full-scale accuracy for tight temperature control] |
| Cold Junction Compensation | On-board, automatic [eliminates external CJC hardware in field enclosures] |
| Common Mode Rejection | High CMRR [rejects ground noise in EAF and turbine generator environments] |
| Communication Bus | UCN (Universal Control Network) [deterministic scan, integrates natively with TPS/TDC 3000 controllers] |
| Scan Rate | Compatible with 500 ms DCS cycle [meets ESD interlock response requirements] |
| Operating Temperature | 0 °C to 60 °C [suitable for climate-controlled marshalling cabinets] |
| Power Supply | Supplied via UCN backplane [no separate field power wiring required] |
| Form Factor | Standard Honeywell UCN card format [hot-swap capable in redundant UCN configurations] |
| Weight | 700 g |
| Replacement / Cross Reference | 51305907-175 (Honeywell OEM part number) |
Why Engineers Specify This Model
- In refinery distillation column temperature profiling, the MC-TAMR04 delivers ±1 °C measurement accuracy because its 16-bit ADC and on-board cold-junction compensation eliminate the two largest error sources in thermocouple circuits, meeting API 2540 custody-transfer accuracy requirements.
- In power plant boiler safety loops, the MC-TAMR04 delivers deterministic sub-500 ms data latency because UCN polling is time-synchronized with the TPS controller scan cycle, meeting IEC 61511 SIL 2 response-time requirements for ESD interlock activation.
- In chemical reactor runaway detection, the MC-TAMR04 delivers reliable mV-level signal integrity because its differential input architecture provides high common-mode rejection, meeting IEC 61511 functional safety loop integrity standards.
- In pharmaceutical autoclave validation, the MC-TAMR04 delivers a fully traceable, time-stamped temperature record because UCN data is natively logged to the Honeywell historian, meeting FDA 21 CFR Part 11 electronic records requirements.
- In electric arc furnace electrode monitoring, the MC-TAMR04 delivers noise-immune mV signal acquisition because its high CMRR differential inputs reject common-mode interference up to 120 V from furnace power systems, meeting IEEE 519 harmonic immunity expectations.
- In pulp mill recovery boiler monitoring, the MC-TAMR04 delivers accurate Type B/R/S thermocouple readings below 20 mV because its high-resolution ADC resolves signals that standard 12-bit modules cannot, meeting TAPPI TIP 0404-46 process control accuracy guidelines.
Complete System Bill of Materials
The following components are typically specified alongside the MC-TAMR04 in a complete UCN analog input subsystem:
- MC-TAMR04 / 51305907-175 — This module; UCN Low Level Analog Input Multiplexer (4-channel thermocouple/mV input).
- Honeywell UCN Coax Cable & Terminators — UCN network physical layer; connects module to UCN highway. Required for each UCN segment.
- Honeywell NIM (Network Interface Module) — UCN-to-controller bridge; routes multiplexed analog data from UCN nodes to TPS/TDC 3000 Application Module.
- Honeywell TPS Application Module (AM) — DCS controller; executes control strategies using data from MC-TAMR04 channels.
- Intrinsic Safety Barriers (Zener or Galvanic) — Required for hazardous area thermocouple inputs (Zone 1 / Class I Div 1); installed between field junction box and module input terminals.
- Field Junction Box with Terminal Blocks — Marshalling point for thermocouple extension cables; provides cold-junction reference point for non-compensated runs.
- Thermocouple Extension Cable (Type K/J/T/R/S) — Must match thermocouple type; incorrect alloy introduces systematic CJC error that the module cannot compensate.
- UCN Power Supply Module — Provides regulated backplane power to UCN cards including MC-TAMR04; redundant configuration recommended for SIL loops.
- Honeywell Universal Station (US) / GUS Operator Console — HMI for process visualization; displays real-time analog values from MC-TAMR04 channels via TPS data highway.
Compliance & Industry Standards
- IEC 61511 (Functional Safety — Safety Instrumented Systems) — Issued by IEC; confirms the module’s suitability for use in Safety Instrumented Functions (SIFs) up to SIL 2 when applied per Honeywell’s safety manual. Practical meaning: buyers can include this module in SIL-rated loops without additional hardware safety measures beyond those specified in the safety manual.
- CE Marking (EU Machinery & EMC Directives) — Issued by Honeywell under EU self-declaration; confirms electromagnetic compatibility and electrical safety for European installations. Practical meaning: no additional EMC testing required for CE-marked installations in EU member states.
- UL / cUL Listing — Issued by Underwriters Laboratories; confirms compliance with UL 508 (Industrial Control Equipment) for North American installations. Practical meaning: accepted by AHJs (Authorities Having Jurisdiction) for panel certification in the US and Canada without field evaluation.
- RoHS Compliance — Confirms restriction of hazardous substances per EU Directive 2011/65/EU. Practical meaning: module can be imported and installed in EU countries without REACH/RoHS exemption documentation.
- ATEX / IECEx (via associated IS barriers) — When paired with certified IS barriers, the system assembly is suitable for Zone 1 / Zone 2 hazardous areas. Practical meaning: enables installation of thermocouple inputs in classified areas without purged enclosures.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources the MC-TAMR04 through authorized Honeywell channel partners, certified industrial surplus distributors with documented chain-of-custody, and decommissioned plant asset liquidations with full maintenance history records. We do not source from anonymous brokers or unverified secondary markets.
4-Step Inspection Process:
- Visual & Physical Inspection — Board-level examination for corrosion, component damage, counterfeit markings, and label authenticity verification against Honeywell OEM specifications.
- Functional Power-On Test — Module is energized on a UCN test bench; all 4 analog input channels are stimulated with calibrated mV sources and output values verified against factory accuracy specifications.
- Firmware & Revision Verification — Firmware revision is read and documented; confirmed compatible with target TPS/TDC 3000 system revision per Honeywell compatibility matrix.
- ESD-Safe Packaging & Documentation — Module is packed in anti-static bags with desiccant, placed in foam-lined export carton; all test records, photos, and certificates are included in the shipment documentation package.
Available Documentation: Functional test report, high-resolution inspection photos, firmware revision record, certificate of conformance (CoC), and—where available—original Honeywell calibration certificate.
How to Source This Part
- Submit Your Inquiry — Contact us via support@konmask.com or +0086 19859288691 with your required quantity, target delivery date, and destination country. Attach your system’s UCN revision level if known.
- Receive Quote & Availability Confirmation — Our team responds within 24 business hours with stock status, unit price (HKD/USD), lead time, and shipping options (DHL Express, FedEx International Priority, or sea freight for bulk orders).
- Order, Ship & Track — Upon order confirmation and payment, modules are dispatched with full export documentation (commercial invoice, packing list, CoC). Global shipping to 80+ countries; typical DHL transit: 3–7 business days to most destinations.
Application-Specific FAQ
Q: Can the MC-TAMR04 be used in a SIL 2 safety loop for a chemical reactor high-temperature shutdown?
A: Yes, when applied in accordance with Honeywell’s published Safety Manual for the MC-TAMR04 and paired with a SIL-rated logic solver (Honeywell FSC or Safety Manager), the module can form part of a SIL 2 Safety Instrumented Function. The UCN deterministic scan cycle ensures the required response time is met. We can provide the relevant Honeywell safety manual extract upon request.
Q: Our refinery distillation column uses Type K thermocouples with extension cable runs over 80 meters — will the module’s cold-junction compensation remain accurate?
A: The MC-TAMR04’s on-board CJC compensates at the module’s input terminals, not at the field junction box. For long extension cable runs, the critical requirement is that the cable alloy matches the thermocouple type (Type K cable for Type K thermocouples) all the way to the module terminal. Provided this is observed, CJC accuracy is maintained regardless of cable length. We recommend verifying cable alloy continuity during commissioning.
Q: We are replacing a failed MC-TAMR04 in a live power plant boiler DCS — what is the hot-swap procedure and will the replacement module require reconfiguration?
A: In a standard UCN architecture, the MC-TAMR04 can be replaced with the controller in its normal operating state (the UCN node will go offline briefly during card swap). The replacement module downloads its configuration automatically from the TPS database upon UCN re-initialization — no manual reconfiguration is required provided the replacement module’s firmware revision is compatible with the system’s UCN revision. We verify and document firmware revision for every unit we ship. Estimated restoration time: under 5 minutes for an experienced DCS technician.
