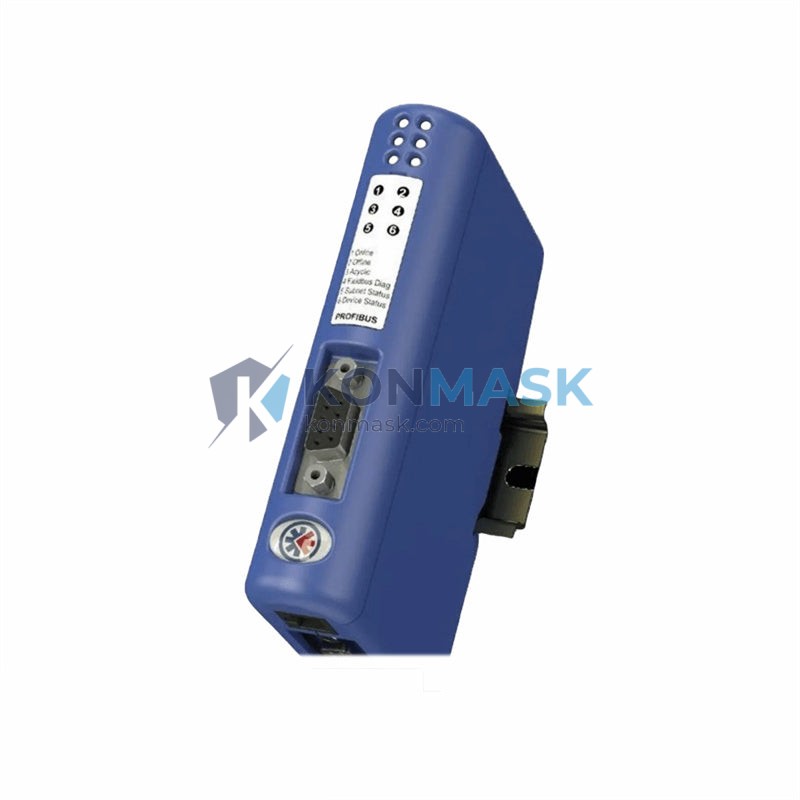

Anybus AB-7007-C – Ethernet/IP & Modbus TCP Gateway Module | Anybus CompactCom Platform
Engineering Background: The Anybus AB-7007-C is a compact, DIN-rail-mountable industrial communication gateway developed by HMS Networks (formerly Anybus). It is engineered to bridge legacy serial-based field devices to modern Ethernet-based industrial networks, enabling seamless protocol conversion between Modbus RTU/ASCII and Ethernet/IP or Modbus TCP environments without requiring PLC reprogramming or hardware replacement.
Product Positioning: Designed for procurement engineers and system integrators who need a reliable, certified, and immediately deployable solution for network modernization projects. The AB-7007-C eliminates costly controller upgrades by acting as a transparent protocol translator at the edge of the control network.
Complete Technical Specifications
- Part Number / SKU: AB-7007-C
- Manufacturer: HMS Networks (Anybus)
- Product Series: Anybus Communicator
- Form Factor: DIN-rail mount, compact housing
- Network Side Protocol: Ethernet/IP, Modbus TCP
- Serial Side Protocol: Modbus RTU, Modbus ASCII
- Ethernet Port: 2 × RJ45, 10/100 Mbit/s, auto-negotiation, auto-crossover
- Serial Port: 1 × RS-232/422/485 (software selectable)
- Baud Rate: 300 – 115,200 bps
- Data Bits: 7 or 8
- Parity: None, Even, Odd
- Stop Bits: 1 or 2
- Max Nodes (Serial): Up to 31 Modbus RTU slave devices
- Input Data Size: Up to 512 bytes
- Output Data Size: Up to 512 bytes
- Power Supply: 10–30 VDC
- Power Consumption: Max 3 W
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5–95% (non-condensing)
- Protection Rating: IP20
- Dimensions (W × H × D): 45 × 75 × 99 mm
- Weight: Approx. 200 g
- Certifications: CE, UL, cUL, ATEX Zone 2 (optional), RoHS compliant
- Configuration Tool: Anybus Configuration Manager (ACM) – free download
- Firmware Update: Via USB or Ethernet
- Country of Origin: Sweden
Proven Application Environments
- Connecting legacy Modbus RTU drives, sensors, and meters to Ethernet/IP PLCs (Allen-Bradley, Rockwell Automation)
- SCADA/HMI integration where serial field instruments must report to Ethernet-based supervisory systems
- Water treatment and utilities: bridging flow meters and RTUs to plant Ethernet backbone
- Oil & gas: integrating serial pressure/temperature transmitters into DCS Ethernet segments
- Building automation: connecting BMS serial devices to IP-based control networks
- Food & beverage: modernizing serial-based filling lines without replacing field instruments
- Discrete manufacturing: enabling Industry 4.0 data collection from legacy serial equipment
Engineering Advantages
- Zero-code configuration: Graphical ACM software maps serial registers to Ethernet/IP or Modbus TCP data tables — no scripting required
- Dual Ethernet ports with built-in switch: Supports daisy-chain topology, reducing cabling cost in linear machine layouts
- Transparent data mapping: Supports both polled and event-driven data exchange for deterministic control loops
- Wide power input range (10–30 VDC): Compatible with 12 V and 24 V panel power supplies without additional regulators
- Extended temperature range (-25°C to +70°C): Suitable for outdoor enclosures and harsh industrial environments
- Compact DIN-rail form factor: Fits standard 35 mm DIN rail; minimal panel space consumption
- Proven HMS reliability: HMS Networks holds 30+ years of industrial communication expertise with millions of deployed nodes globally
System Architecture & Signal Flow
The AB-7007-C operates as a Modbus RTU/ASCII master on the serial side, polling up to 31 slave devices on a single RS-485 bus. Collected data is mapped into an internal process image and exposed to the Ethernet side as Ethernet/IP I/O data or Modbus TCP registers. The dual RJ45 ports with integrated switch allow the unit to be inserted inline into an existing Ethernet segment without requiring an external switch. Configuration is stored in non-volatile flash memory, ensuring parameter retention across power cycles.
Signal Flow: Serial Slave Devices (RS-485) → AB-7007-C Serial Port → Internal Data Mapping (ACM-configured) → Ethernet/IP or Modbus TCP → PLC / SCADA / HMI
Sourcing & Quality Verification
- Source: Konmask.com sources AB-7007-C units directly from authorized HMS Networks distributors and verified secondary-market channels with full traceability
- Inspection: Each unit undergoes visual inspection, label verification (HMS part number, date code, revision), and power-on functional test prior to shipment
- Authenticity: Firmware version and hardware revision are verified against HMS Networks official release notes
- Packaging: Ships in original or equivalent ESD-safe packaging with all original accessories (terminal blocks, documentation)
- Warranty: 90-day Konmask operational warranty; original HMS Networks warranty terms apply where applicable
Procurement Process
- Step 1: Confirm part number AB-7007-C and required quantity with your engineering team
- Step 2: Request a formal quotation via [email protected] or +0086 19859288691
- Step 3: Review datasheet and ACM configuration guide (available on request)
- Step 4: Place order — lead time typically 1–5 business days for in-stock units
- Step 5: Receive unit with test report, packing list, and certificate of conformance
- Step 6: Deploy using ACM configuration software — free download from HMS Networks
Technical FAQ
- Q: Can the AB-7007-C act as a Modbus TCP server (slave) on the Ethernet side?
- A: Yes. The unit supports both Ethernet/IP adapter (slave) and Modbus TCP server modes, making it compatible with any Modbus TCP master including SCADA systems and HMIs.
- Q: How many Modbus RTU registers can be mapped?
- A: Up to 512 bytes of input and 512 bytes of output data can be mapped, covering hundreds of Modbus holding registers, input registers, coils, and discrete inputs.
- Q: Is the AB-7007-C compatible with Allen-Bradley CompactLogix and ControlLogix PLCs?
- A: Yes. Via Ethernet/IP, it integrates natively with Rockwell Automation PLCs using standard Add-On Profiles (AOP) or generic Ethernet/IP module configuration in Studio 5000.
- Q: What is the difference between AB-7007 and AB-7007-C?
- A: The “-C” suffix denotes the Communicator variant with the integrated dual-port Ethernet switch and extended temperature rating. Always verify the full part number when ordering.
- Q: Can I update the firmware in the field?
- A: Yes. Firmware updates are performed via the USB service port or over Ethernet using the ACM tool, with no special hardware required.
- Q: What serial wiring topology is supported?
- A: RS-485 multi-drop bus (up to 31 nodes), RS-422 point-to-point, and RS-232 point-to-point — all selectable via software without hardware jumpers.
