Vibration Monitoring Solution – Bently Nevada 16710-13 | 3300 Series Proximity System

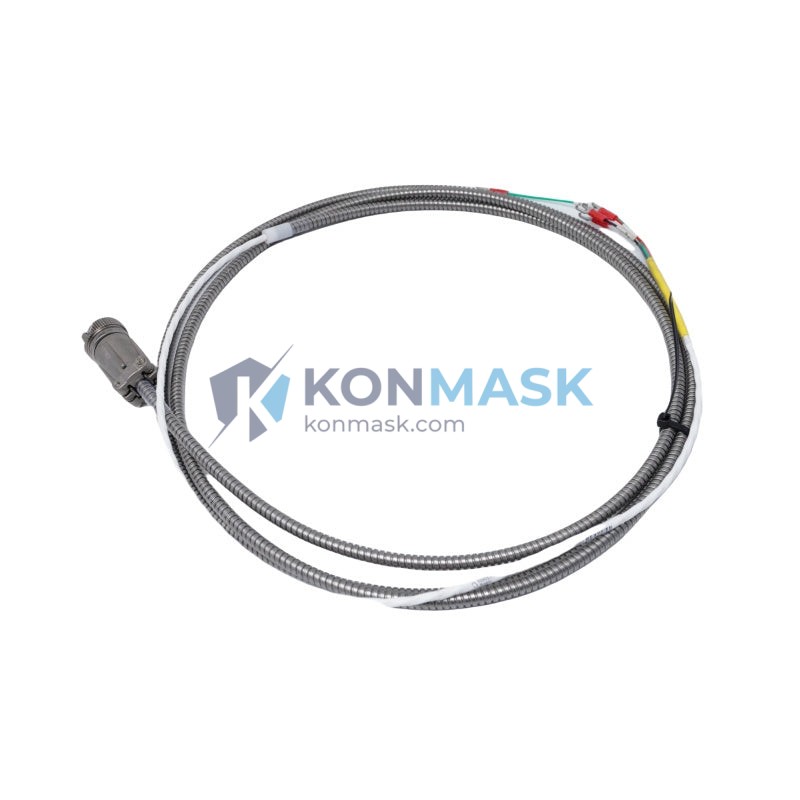

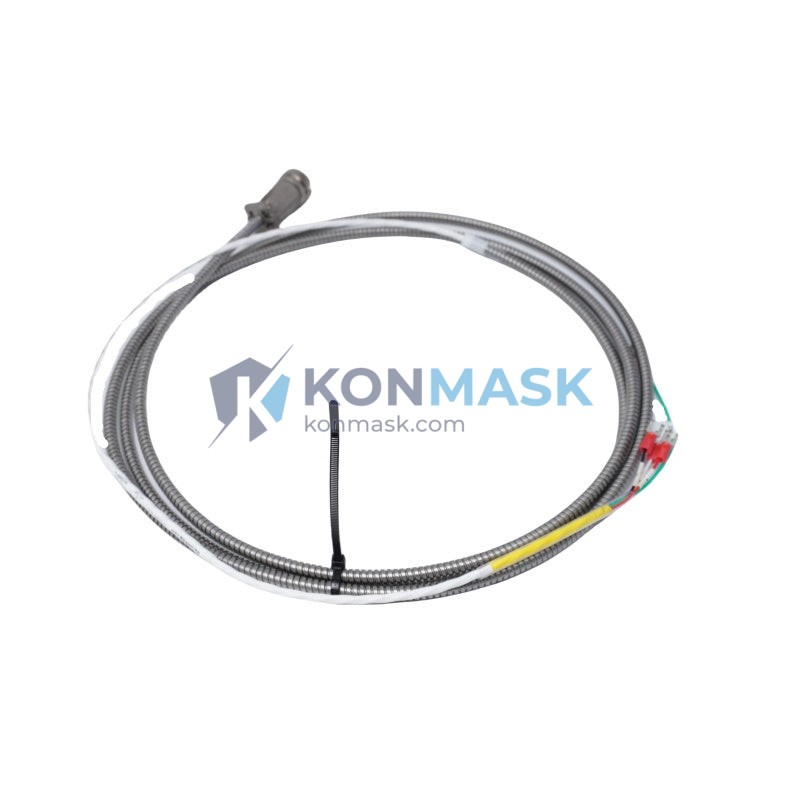

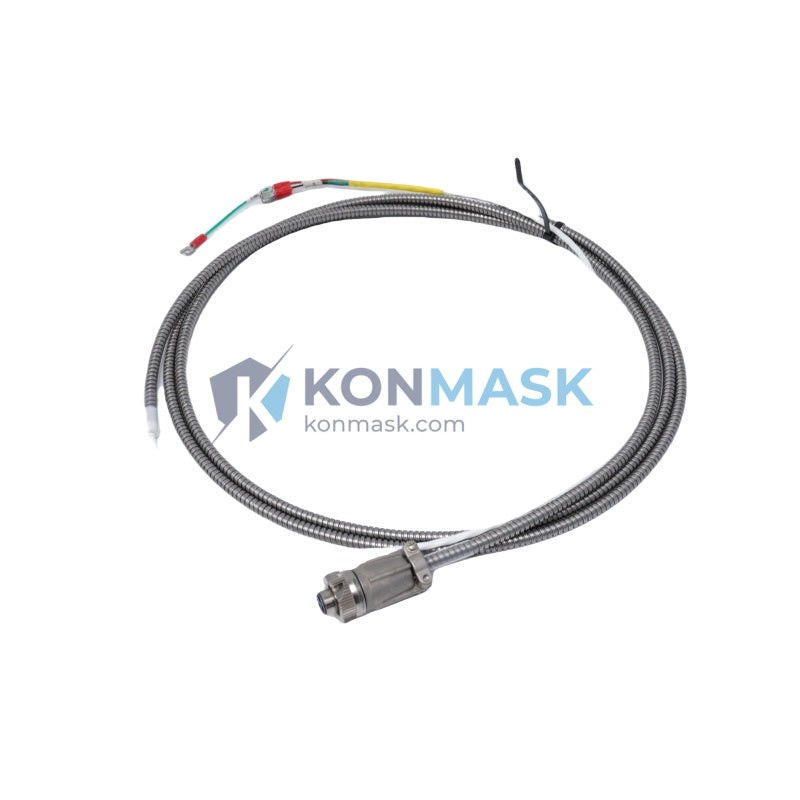

The Bently Nevada 16710-13 Interconnect Cable is a precision-engineered signal cable designed for the Bently Nevada 3300 Series proximity transducer system. It provides a reliable, low-noise electrical path between the proximitor/extension cable and the monitoring rack, ensuring accurate shaft vibration and position data in critical rotating machinery applications.
Where This Product Is Used
The 16710-13 is specified by rotating machinery engineers and reliability teams across heavy industry wherever continuous vibration monitoring is mandatory:
- Steam & Gas Turbines – Shaft radial vibration and axial position monitoring per API 670
- Centrifugal Compressors – Real-time rotor dynamics surveillance in petrochemical and LNG plants
- Boiler Feed Pumps – Bearing health monitoring in power generation facilities
- Gearboxes & Expanders – High-speed shaft displacement measurement in refinery service
- Marine Propulsion Systems – Continuous shaft monitoring in shipboard machinery rooms
- Offshore Platforms – Hazardous-area vibration monitoring on gas compression trains
Technical Specifications
- Part Number: 16710-13
- Series: Bently Nevada 3300 Proximity Transducer System
- Cable Type: Interconnect Cable (Proximitor to Monitor Rack)
- Connector Type: Compatible with 3300 Series proximitor output connectors
- Signal Type: Analog DC voltage (proximity gap signal)
- Shielding: Individually shielded for EMI/RFI rejection
- Weight: 280 g
- Operating Temperature: Per Bently Nevada 3300 Series environmental ratings
- Compliance: API 670 compatible; CE marked
Why Engineers Specify This Model
- OEM Precision: Factory-terminated connectors eliminate field-wiring errors that corrupt vibration signals
- Low Capacitance: Maintains signal integrity over the full cable run, critical for accurate gap voltage readings
- Drop-in Replacement: Direct substitute for worn or damaged OEM cables — no recalibration required
- Robust Construction: Designed for continuous duty in high-vibration, high-temperature industrial environments
- System Compatibility: Engineered specifically for the 3300 Series ecosystem; avoids impedance mismatches that cause false alarms
Complete System Bill of Materials
The 16710-13 is one component in the Bently Nevada 3300 proximity measurement chain. A complete loop typically includes:
- 3300 XL 8mm or 11mm Proximity Transducer (probe)
- Extension Cable (e.g., 330130 series)
- 3300 Series Proximitor (signal conditioner)
- 16710-13 Interconnect Cable ← this item
- 3500 or 3300 Series Monitor Rack (e.g., 3500/40M, 3500/42M)
Contact us to source the complete loop as a verified matched set.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- IEC 61511 – Functional Safety for Process Industry Sectors
- ATEX / IECEx – Suitable for use in systems installed in hazardous areas (verify with full system documentation)
- CE Marking – Meets applicable EU directives
Quality Assurance & Sourcing
All Bently Nevada components supplied by Konmask.com are:
- Sourced from authorized distributors or verified surplus channels with full traceability
- Inspected for physical integrity, connector condition, and labeling accuracy prior to dispatch
- Shipped with original manufacturer documentation where available
- Backed by our 90-day quality guarantee — if the part does not perform as specified, we make it right
How to Source This Part
Ready to order or need a formal quotation for your procurement team?
- Online: Add to cart and check out directly on this page
- Email RFQ: support@konmask.com — include your required quantity and delivery timeline
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days; ex-stock orders quoted within 24 hours
Application-Specific FAQ
Q: Is the 16710-13 compatible with the Bently Nevada 3500 monitoring rack?
A: Yes. The 16710-13 interconnect cable is designed for the 3300 Series proximitor output and connects to the field wiring terminal of 3500 Series monitor cards via standard signal wiring practices.
Q: Can this cable be used in a hazardous (classified) area?
A: The cable itself is passive; hazardous-area suitability depends on the complete system’s ATEX/IECEx certification. Consult your system documentation and safety engineer before installation in Zone 1/2 or Division 1/2 areas.
Q: What is the difference between an extension cable and an interconnect cable?
A: The extension cable runs from the probe tip to the proximitor. The interconnect cable (16710-13) runs from the proximitor output to the monitor rack input — it carries the conditioned DC gap voltage signal, not the raw RF oscillator signal.
Q: Do you supply a Certificate of Conformance (CoC)?
A: Yes, a CoC is available upon request for all orders. Please specify this requirement when placing your order or in your RFQ email.
Q: Can I order multiple units for a plant-wide spares program?
A: Absolutely. We offer volume pricing for quantities of 5 or more. Contact us for a tiered quote.
