Turbomachinery Vibration Monitoring Solution – Bently Nevada 21000-16-10-00-217-04-02 | 3300 XL Series
Where This Product Is Used

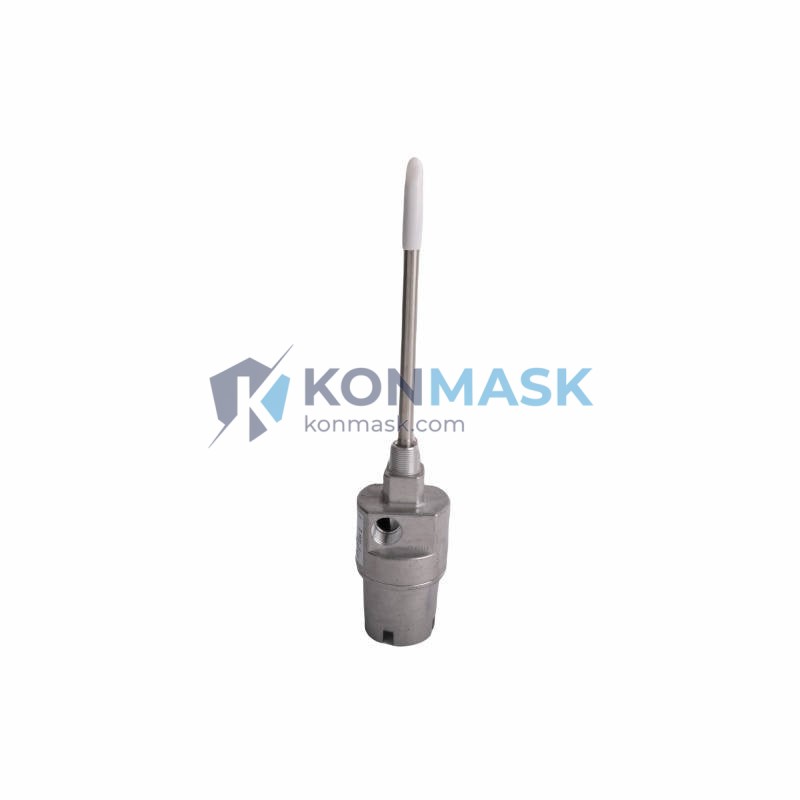

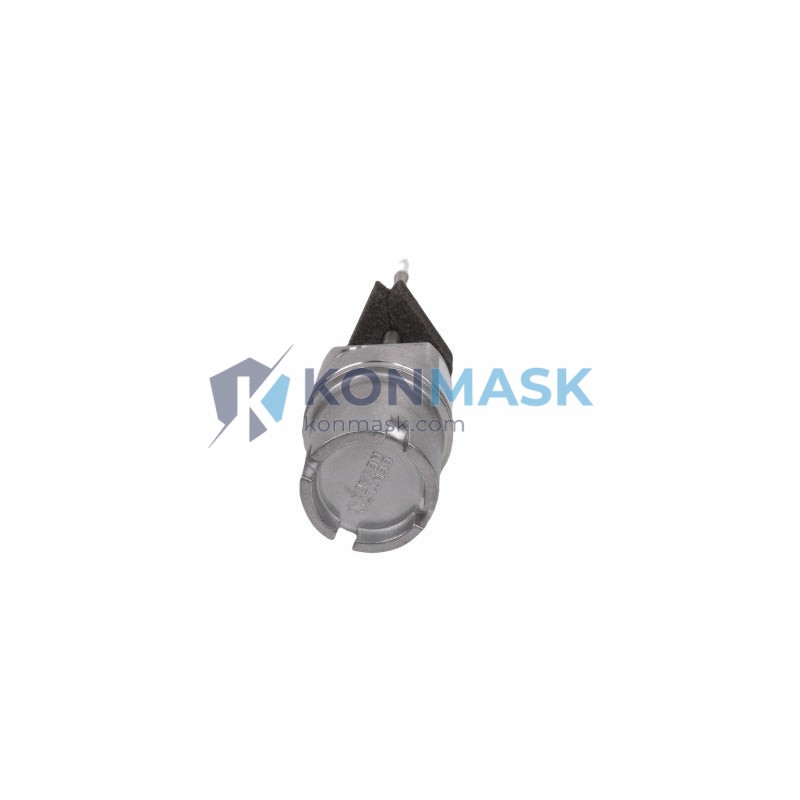

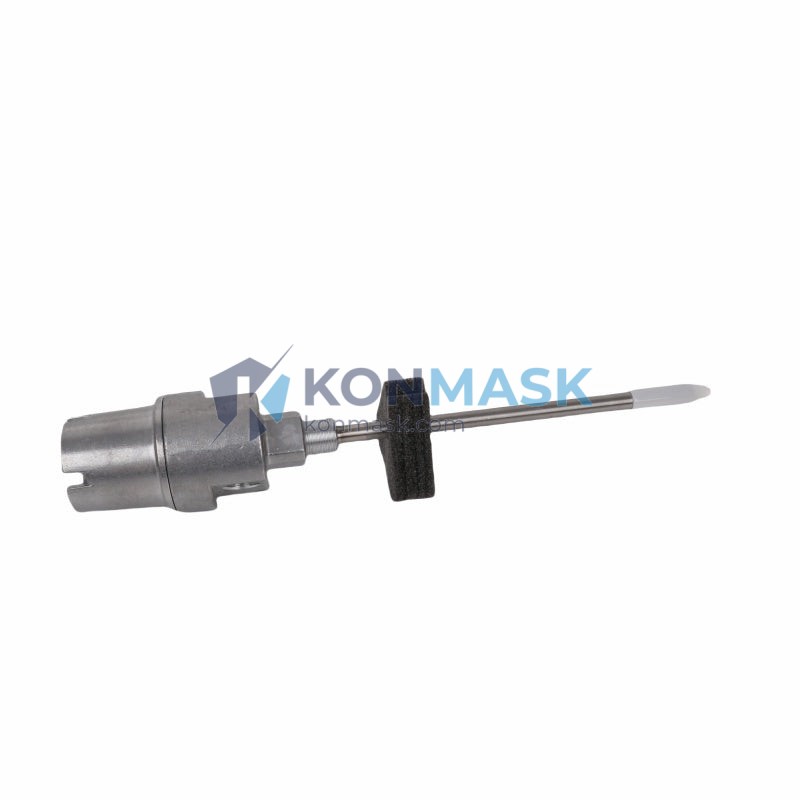

The Bently Nevada 21000-16-10-00-217-04-02 Proximity Probe Housing Assembly delivers precision non-contact shaft vibration and position measurement in critical rotating machinery. Typical deployment environments include:
- Steam & Gas Turbines – Radial vibration and axial position monitoring on high-speed shafts in power generation plants
- Centrifugal Compressors – Bearing journal orbit analysis in petrochemical and LNG compression trains
- Pumps & Fans – Continuous shaft displacement monitoring in critical process loops
- Gearboxes – Gear mesh frequency and shaft runout detection in heavy industrial drives
- Marine Propulsion Systems – Shaft alignment and vibration surveillance on vessel drive trains
This housing assembly provides the mechanical interface that precisely positions the eddy-current probe tip at the correct gap distance from the target shaft, ensuring measurement accuracy and long-term signal stability in harsh plant environments.
Technical Specifications
- Part Number / SKU: 21000-16-10-00-217-04-02
- Manufacturer: Bently Nevada (Baker Hughes)
- Series: 3300 XL / 21000 Series Proximity Transducer System
- Product Type: Proximity Probe Housing Assembly
- Probe Thread Size: 5/16-28 UNF
- Housing Material: Stainless steel with corrosion-resistant finish
- Operating Temperature: –35 °C to +177 °C
- Ingress Protection: Suitable for IP65+ industrial enclosures
- Weight: Approx. 1,080 g (assembly)
- Compatibility: Bently Nevada 3300 XL 8mm / 11mm proximity transducer systems; compatible monitors: 3300/16, 3500/42, 3500/46
Why Engineers Specify This Model
- OEM Dimensional Accuracy – Maintains the exact probe-to-target gap geometry required by API 670 machinery protection standards
- Drop-in Replacement – Direct form-fit-function substitute for existing 21000-series installations; no re-calibration of the monitor required
- Vibration-Resistant Construction – Stainless steel housing withstands high-cycle fatigue in continuous-duty rotating machinery
- Sealed Cable Exit – Prevents moisture ingress at the probe-to-extension-cable junction, critical in steam-laden or outdoor environments
- Traceable Calibration – Each assembly verified against Bently Nevada sensitivity curves (200 mV/mil, 7.87 V/mm) before shipment
Complete System Bill of Materials
For a fully functional Bently Nevada proximity transducer loop, the following components are typically required:
- Proximity Probe Housing Assembly – 21000-16-10-00-217-04-02 (this item)
- Extension Cable – Bently Nevada 330130-xxx-xx-00 (length per application)
- Proximitor / Driver – Bently Nevada 3300 XL 8mm or 3500/42 module
- Barrier / Isolator – Required for hazardous area (ATEX/IECEx) installations
- Monitor Rack – Bently Nevada 3500 Series rack with appropriate I/O modules
- Mounting Hardware – Probe holder, lock nut, and bracket (application-specific)
Contact [email protected] for complete BOM assistance and compatible part cross-references.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- API 670 Annex D – Eddy-current transducer system performance requirements
- IEC 61511 – Functional safety for process industry sectors (SIL-rated loops)
- ATEX / IECEx – Hazardous area certification available on select configurations
- ISO 10816 / ISO 20816 – Mechanical vibration measurement and evaluation
- RoHS Compliant – Restriction of Hazardous Substances
Quality Assurance & Sourcing
Konmask.com sources industrial automation components through verified supply channels with full traceability. Every unit of the 21000-16-10-00-217-04-02 is:
- Inspected upon receipt against OEM dimensional and electrical specifications
- Stored in ESD-safe, climate-controlled warehousing
- Shipped with original manufacturer documentation where available
- Backed by Konmask’s quality guarantee and post-sale technical support
We do not sell counterfeit or refurbished-as-new parts. All inventory is clearly graded (New / Surplus New / Reconditioned) at time of quotation.
How to Source This Part
- Click Add to Cart or use the Request a Quote form for volume pricing
- Email [email protected] with your PO number, required quantity, and delivery timeline
- Call / WhatsApp: +0086 19859288691 for urgent requirements
- Provide your shipping address for accurate freight cost calculation (DHL / FedEx / sea freight available)
Typical lead time: 3–7 business days for in-stock units. Express shipping available on request.
Application-Specific FAQ
Q: Is the 21000-16-10-00-217-04-02 compatible with the Bently Nevada 3500/42 vibration monitor?
A: Yes. This housing assembly is part of the 3300 XL transducer system, fully compatible with the 3500/42 and 3500/46 monitor modules when used with the correct Proximitor driver.
Q: What is the standard probe gap for this assembly?
A: The recommended initial gap is 1.0 mm (40 mil) for 8mm probes, yielding a –10 VDC output at mid-range. Refer to the Bently Nevada calibration curve for your specific driver.
Q: Can this housing be used in a hazardous (classified) area?
A: Certain configurations carry ATEX/IECEx certification. Please confirm the area classification with our technical team before ordering.
Q: Do you offer calibration certificates?
A: Yes. Factory calibration documentation is available upon request. Third-party NIST-traceable calibration can be arranged for an additional fee.
Q: What is the difference between the 21000 and 330100 series probe assemblies?
A: The 21000 series uses a 5/16-28 UNF thread and is designed for the 3300 XL 8mm transducer system. The 330100 series targets the standard 3300 8mm system. Both are compatible with the 3500 monitor rack but use different Proximitor drivers.
