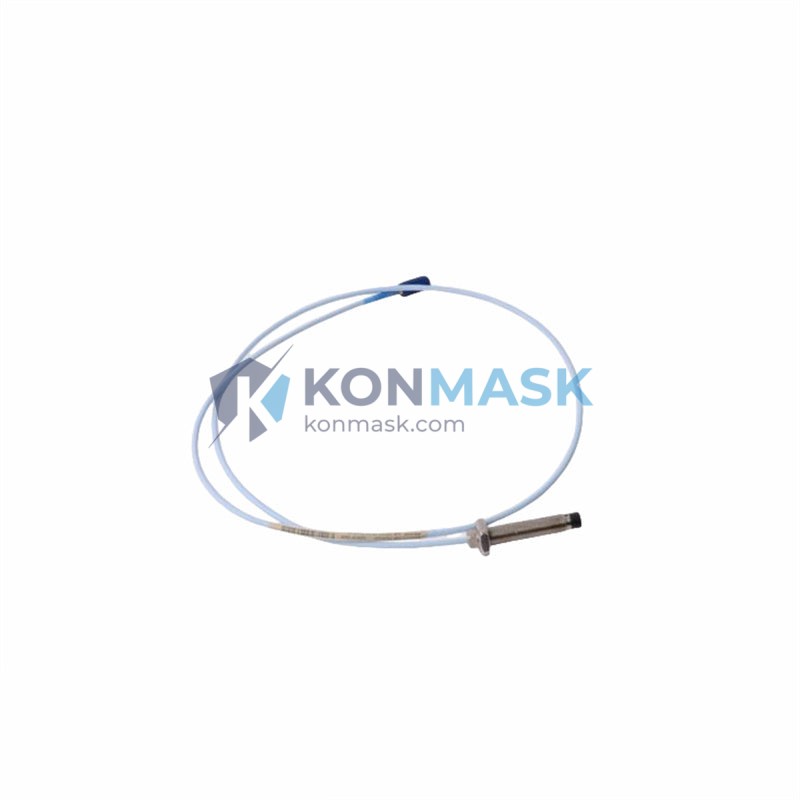

Bently Nevada 330104-07-14-05-01-00 Proximity Transducer System | 3300 XL Series

Bently Nevada 330104-07-14-05-01-00 Proximity Transducer System – 3300 XL Series

When a critical rotating machine loses its vibration monitoring capability, the consequences are immediate and severe: undetected shaft displacement, catastrophic bearing failure, unplanned downtime, and in worst cases, irreversible damage to turbines, compressors, or pumps worth millions of dollars. The Bently Nevada 330104-07-14-05-01-00 Proximity Transducer System is the precision sensing solution that stands between normal operation and disaster — providing continuous, real-time eddy-current-based shaft position and vibration data that plant engineers and condition monitoring systems depend on around the clock.

Within the renowned Bently Nevada 3300 XL Series, the 330104-07-14-05-01-00 occupies a well-established position as a full-system proximity transducer package — integrating the probe, extension cable, and Proximitor® sensor into a calibrated, matched set. The 3300 XL platform is one of the most widely deployed vibration monitoring systems in global heavy industry, trusted by petrochemical plants, power generation facilities, and LNG terminals across more than 100 countries. This specific configuration (07 mm probe tip, 14-inch cable, 5-meter extension, standard output) is engineered for demanding shaft-rider and radial vibration applications where measurement accuracy and long-term reliability are non-negotiable.

Technical Specifications

• Part Number: 330104-07-14-05-01-00
• Series: Bently Nevada 3300 XL Proximity Transducer System
• Probe Tip Diameter: 7.87 mm (standard)
• Probe Cable Length: 14 inches (integral)
• Extension Cable Length: 5 meters
• Proximitor® Sensor: Included (matched system)
• Measurement Principle: Eddy-current (non-contact)
• Output Signal: -24 VDC nominal (standard Bently Nevada output)
• Linear Range: Per 3300 XL calibration standard
• Temperature Range: Per OEM specification
• Connector Type: Standard BNC / Bently Nevada proprietary
• Weight: Approx. 200 g
• Condition: New / Surplus / Refurbished (specify on inquiry)

Note: All specifications are based on OEM documentation. Do not rely solely on this page for engineering design — always verify against the official Bently Nevada datasheet for your application.

Key Features & Benefits

• Matched System Calibration: Probe, extension cable, and Proximitor® sensor are factory-calibrated as a matched set, ensuring measurement accuracy without field recalibration.
• Non-Contact Measurement: Eddy-current technology eliminates mechanical wear, providing reliable shaft vibration and position data with zero contact on the rotating element.
• Drop-In Replacement: 100% compatible with existing Bently Nevada 3300 XL monitoring systems — no rewiring, no reconfiguration required.
• Wide Industry Acceptance: Approved for use in API 670-compliant machinery protection systems.
• Long Service Life: Robust construction rated for continuous operation in harsh industrial environments including high temperature, humidity, and vibration.
• Fast Procurement: Available from Konmask.com stock or sourced globally — reducing your MRO lead time significantly.

Industry & Equipment Applications

• Oil & Gas: Centrifugal compressors, gas turbines, pipeline pumps, LNG expanders
• Power Generation: Steam turbines, hydro generators, gas turbine generators
• Petrochemical: Reactor feed pumps, cracked gas compressors, ethylene plant machinery
• Marine & Offshore: Propulsion systems, offshore platform rotating equipment
• Pulp & Paper / Mining: Large motor-driven fans, ball mills, kiln drives

System Integration & Compatible Parts

The 330104-07-14-05-01-00 is designed to integrate seamlessly with the Bently Nevada 3300 XL monitoring ecosystem. Compatible and commonly paired components include:

• Bently Nevada 3300/16 Monitor Rack
• Bently Nevada 3500 Series Machinery Protection System
• 3300 XL Extension Cables (various lengths)
• 3300 XL Proximitor® Sensors (330180 series)
• Bently Nevada TK-3 Calibration Kit

If you need a complete matched system or individual replacement components, contact our team — we source across the full 3300 XL and 3500 Series catalog.

Our Quality Assurance Process

At Konmask.com, every Bently Nevada component goes through a structured verification process before shipment:

• Visual inspection for physical damage, connector integrity, and cable condition
• Part number and label verification against OEM documentation
• Functional bench test where applicable (Proximitor® output signal check)
• Secure anti-static packaging with moisture barrier for international shipping
• Full traceability documentation provided on request

How to Order

1. Submit your inquiry via the Contact / Request a Quote form on this page.
2. Provide your required quantity, delivery timeline, and destination country.
3. Our team will confirm availability, condition, and lead time within 1 business day.
4. Receive a formal proforma invoice — payment via T/T, L/C, or other agreed terms.
5. Shipment via DHL, FedEx, or sea freight with full export documentation.

Why Choose Konmask.com?

• 🔧 Industrial Automation Specialists: We focus exclusively on DCS, PLC, and machinery protection components — not a general electronics marketplace.
• 🌍 Global Supply Network: We source from authorized distributors, OEM surplus, and verified industrial suppliers worldwide.
• 📦 Reliable Export Logistics: Experienced in cross-border B2B shipments to Europe, Southeast Asia, Middle East, and the Americas.
• 📋 Documentation Support: COO, packing list, test reports, and customs documentation available.
• 💬 Responsive Technical Team: Engineers available to assist with compatibility verification and system integration questions.

Frequently Asked Questions

Q: Is the 330104-07-14-05-01-00 a complete system or just the probe?

A: It is a complete matched Proximity Transducer System, including the probe, integral cable, extension cable, and Proximitor® sensor — all factory-calibrated as a set.

Q: Can I use this with my existing Bently Nevada 3500 rack?

A: Yes. The 3300 XL Proximity Transducer System is compatible with Bently Nevada 3500 Series monitors. Please confirm your specific monitor card model with our team to ensure full compatibility.

Q: What is the lead time for this part?

A: Lead time depends on current stock status. In-stock items typically ship within 3–5 business days. For sourced items, lead time is 2–4 weeks. Contact us for real-time availability.

Q: Do you provide a warranty?

A: Yes. We offer a standard 90-day warranty on functionality for all tested units. Extended warranty terms are available — please inquire.

Q: Can you supply the calibration certificate?

A: For new OEM units, the original calibration documentation is included where available. For surplus/refurbished units, we can arrange third-party calibration verification upon request.

---
