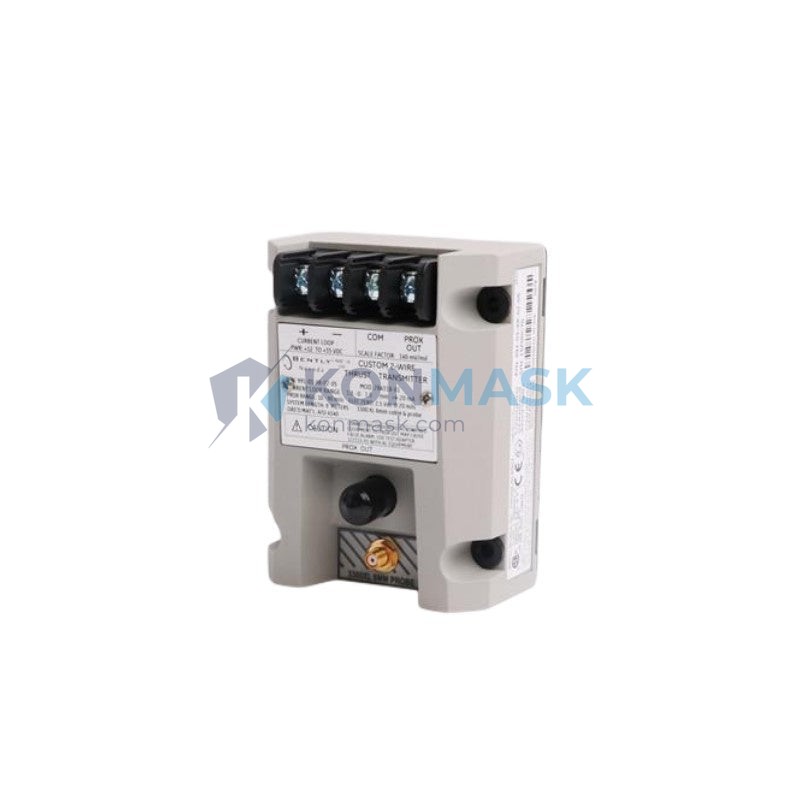

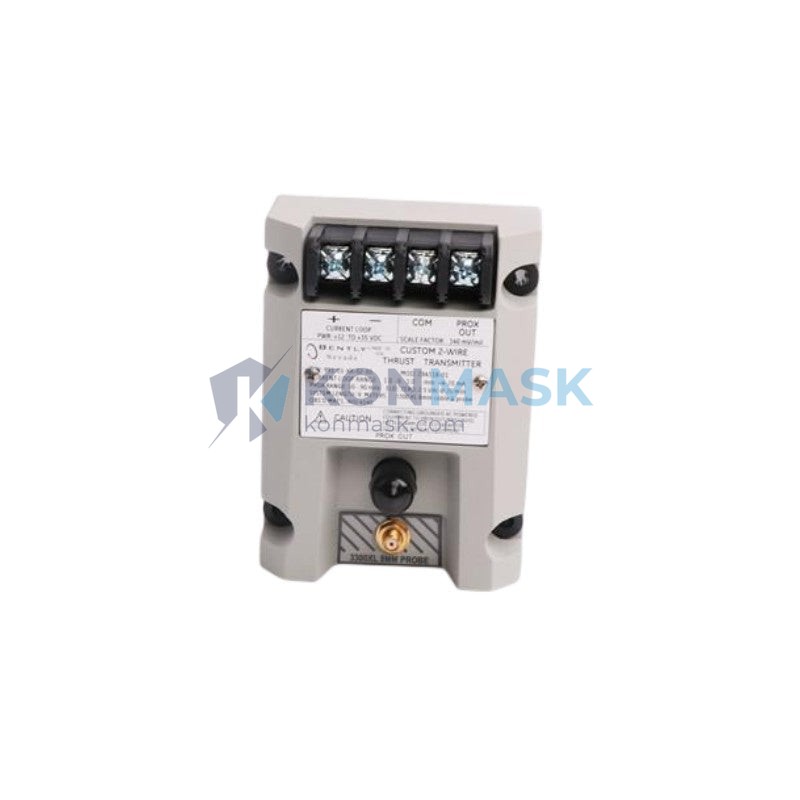

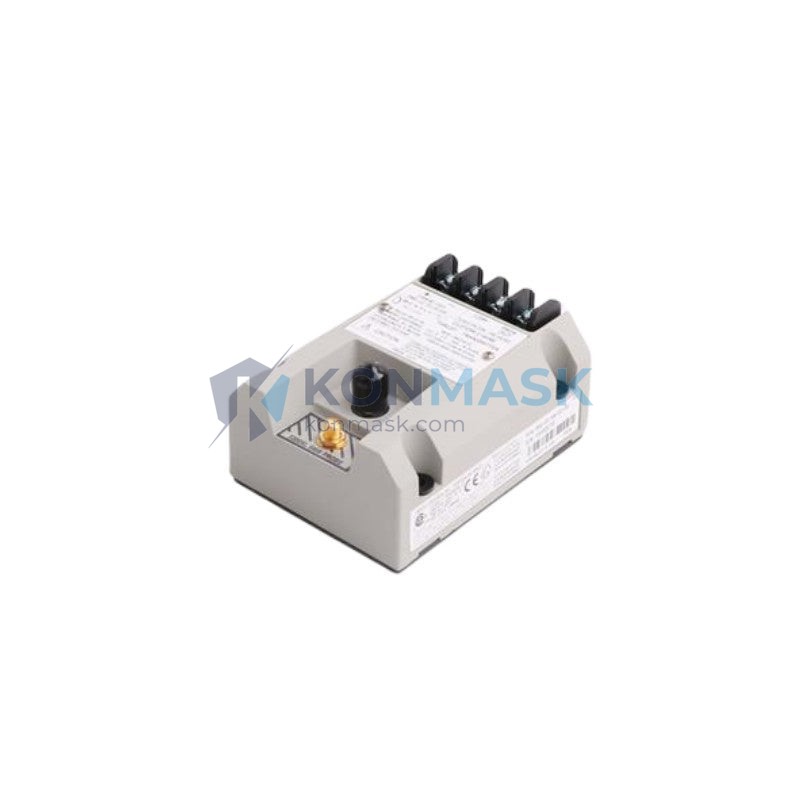

Bently Nevada 991-01-XX-01-00 MOD 284318-01 — Vibration Signal Transmitter | 3500 Machinery Protection Series
Engineering Background: The Bently Nevada 3500 Series is the industry benchmark for continuous machinery protection in rotating equipment applications. Deployed across turbines, compressors, pumps, and generators worldwide, the platform provides real-time vibration, position, and dynamic pressure monitoring that feeds directly into plant DCS and safety instrumented systems. The 991-01-XX-01-00 MOD 284318-01 is a dedicated vibration signal transmitter module within this architecture, converting raw proximity transducer signals into standardized 4–20 mA outputs for integration with third-party monitoring infrastructure, historian systems, and control loops.
Product Positioning: This transmitter is distinguished from standard 3500 I/O modules by its standalone signal conditioning capability — it operates independently of the 3500 rack backplane for remote or distributed installations. The MOD 284318-01 modification designates a factory-configured output range and connector variant optimized for direct field wiring without additional signal conditioning hardware. Boundary conditions: this module is designed for eddy-current proximity transducer inputs (Bently Nevada 3300 XL / 7200 series compatible); it is not intended for accelerometer or velocity transducer inputs without appropriate signal conditioning upstream.
Complete Technical Specifications
Electrical
- Input Signal: Eddy-current proximity transducer (–24 VDC bias, 200 mV/mil nominal sensitivity)
- Output Signal: 4–20 mA, loop-powered, isolated
- Supply Voltage: 18–30 VDC
- Loop Resistance: 0–600 Ω maximum
- Accuracy: ±1% of full scale
- Frequency Response: DC to 10 kHz (–3 dB)
- Isolation: 500 VDC input-to-output
Mechanical
- Enclosure: Aluminum alloy, IP20 (panel-mount)
- Dimensions: Refer to Bently Nevada drawing 284318-01 (approx. DIN rail compatible form factor)
- Weight: 3.82 kg (as shipped with packaging)
- Connector: Terminal block, screw-type, 2.5 mm² max wire cross-section
- Mounting: DIN rail or panel surface
Environmental
- Operating Temperature: –40°C to +70°C
- Storage Temperature: –55°C to +85°C
- Relative Humidity: 5–95% non-condensing
- Vibration (operating): 2 g, 10–500 Hz per IEC 60068-2-6
- Shock: 30 g, 11 ms per IEC 60068-2-27
Certifications
- API 670 (Machinery Protection Systems) compliant
- CE Marked (EMC Directive 2014/30/EU)
- RoHS compliant
- UL/CSA listed (verify current listing status with factory documentation)
Data source: Bently Nevada 3500 Series product documentation, drawing 284318-01, and API 670 5th Edition cross-reference. Specifications subject to revision — confirm against current factory datasheet for safety-critical applications.
Proven Application Environments
- Petrochemical / Steam Turbine Generators: Continuous shaft radial vibration monitoring on high-speed turbine trains operating at 3,000–3,600 RPM under variable load conditions, where trip-level accuracy is mandatory for API 670 compliance.
- LNG / Centrifugal Compressor Trains: Rotor displacement measurement on multi-stage centrifugal compressors in liquefaction service, where process gas composition changes create variable bearing load profiles requiring stable transmitter baselines.
- Power Generation / Gas Turbines: Distributed vibration signal conditioning for gas turbine units where the transmitter output feeds both the plant DCS historian and an independent safety instrumented system (SIS) loop.
- Water Treatment / Large Vertical Pumps: Shaft proximity monitoring on vertical turbine pumps in raw water intake stations, where the transmitter’s wide operating temperature range accommodates outdoor installation in humid subtropical climates.
- Refinery / Reactor Feed Pumps: Axial position and radial vibration dual-channel monitoring on API 610 pumps in high-temperature hydrocarbon service, integrated with DeltaV or Ovation DCS via 4–20 mA hardwired inputs.
- Pulp & Paper / High-Speed Rolls: Bearing condition monitoring on paper machine rolls operating at surface speeds exceeding 2,000 m/min, where the transmitter’s 10 kHz frequency response captures early-stage bearing defect frequencies.
Engineering Advantages
- For distributed installations remote from the 3500 rack, this transmitter provides standalone 4–20 mA output without rack backplane dependency, because the MOD 284318-01 configuration integrates all signal conditioning circuitry within the module housing.
- For safety-critical machinery protection loops, this transmitter delivers API 670-compliant measurement accuracy, because the eddy-current input circuit maintains ±1% full-scale accuracy across the full –40°C to +70°C operating range without field calibration adjustment.
- For DCS integration projects requiring hardwired analog inputs, this transmitter eliminates the need for external signal converters, because the isolated 4–20 mA loop output is directly compatible with standard AI cards from Emerson, Honeywell, Siemens, and ABB.
- For high-vibration environments such as compressor skids, this transmitter maintains signal integrity under 2 g continuous vibration, because the internal PCB assembly is conformal-coated and mechanically isolated from the terminal block.
- For plants operating under IEC 61511 functional safety requirements, this transmitter supports SIL verification workflows, because its failure mode data is documented in accordance with IEC 61508 Part 2 hardware assessment methodology.
- For retrofit projects replacing legacy monitoring hardware, this transmitter accepts existing 3300 XL and 7200 series proximity transducer wiring without re-cabling, because the input impedance and bias voltage specifications are backward-compatible with the full Bently Nevada eddy-current transducer family.
System Architecture & Signal Flow
Signal Flow: Proximity transducer (eddy-current, –24 VDC bias) → field cable (shielded, twisted pair) → 991-01-XX-01-00 MOD 284318-01 input terminals → internal signal conditioning (demodulation, scaling, isolation) → 4–20 mA output loop → DCS AI card / safety relay / historian input.
Compatible Transducers:
- Bently Nevada 3300 XL 8mm Proximity Transducer System (330180-XX-XX) — direct compatible, same bias voltage and sensitivity standard
- Bently Nevada 7200 Series 5mm / 8mm / 11mm Proximity Systems — compatible with sensitivity adjustment at the transmitter span potentiometer
- Third-party eddy-current transducers with –24 VDC bias and 200 mV/mil (7.87 V/mm) nominal sensitivity — verify gap voltage range against transmitter input specification before installation
Substitution Conditions: The 991-01-XX-01-00 MOD 284318-01 may be substituted by the Bently Nevada 990-05-XX-01-00 in applications where rack-mounted installation is acceptable and the 3500 backplane is available. For applications requiring HART communication overlay on the 4–20 mA loop, evaluate the 3500/45 Position Monitor with analog output option as an alternative architecture.
Sourcing & Quality Verification
Units offered through Konmask.com are sourced from authorized industrial surplus channels, decommissioned plant asset liquidations, and verified secondary-market distributors with documented chain of custody. Each unit undergoes the following verification process before listing:
- Visual & Mechanical Inspection: Housing integrity, connector condition, label legibility, and absence of corrosion or impact damage assessed against Bently Nevada factory acceptance criteria.
- Functional Bench Test: Input signal simulation with calibrated eddy-current signal source; output loop current verified at 4 mA (0% span) and 20 mA (100% span) ±0.5% using traceable reference instrumentation.
- Firmware / Revision Verification: MOD designation and PCB revision confirmed against unit label and internal markings; cross-referenced with Bently Nevada engineering change notice (ECN) database where available.
- Documentation Package Assembly: Available documentation compiled per order, including original factory datasheet, calibration record, and chain-of-custody declaration.
Documents available upon request: Factory datasheet (PDF), functional test report, calibration certificate (where applicable), export compliance declaration (ECCN / HTS classification), and packing list with serial number.
Procurement Process
- Inquiry Submission: Submit part number, required quantity, and delivery timeline via the contact form or directly to support@konmask.com. Include application context (machine type, operating conditions) for technical pre-screening.
- Quotation & Stock Confirmation: A response with confirmed stock status, unit price, lead time, and available documentation is provided within 24 hours on business days. Expedited response available for shutdown/turnaround situations — indicate urgency in the subject line.
- Order Fulfillment: Orders are processed with ESD-safe packaging, double-box shipping for international destinations, and full tracking. Export documentation (commercial invoice, packing list, COO certificate) provided for cross-border shipments.
Technical Support: Pre-sale application engineering consultation is available for installation compatibility, signal chain design review, and substitution analysis. Post-sale support covers installation verification and functional test procedure guidance. Contact: support@konmask.com | +0086 19859288691.
Technical FAQ
Q: Is the 991-01-XX-01-00 MOD 284318-01 compatible with the Bently Nevada 3500/42M Position Monitor module?
A: The transmitter outputs a standard 4–20 mA signal that is compatible with any analog input accepting this range. However, the 3500/42M is a rack-mounted monitor that processes transducer signals directly via the backplane — it does not accept 4–20 mA loop inputs. This transmitter is intended for applications where the 4–20 mA output feeds an external DCS or recorder, not a 3500 rack monitor input. Confirm the signal architecture with the plant I&C engineer before ordering.
Q: Can this transmitter replace a Bently Nevada 990-05-XX-01-00 in an existing installation?
A: Direct substitution is possible in field-mounted (non-rack) applications where the 4–20 mA output interface is unchanged. The 991-01-XX-01-00 MOD 284318-01 and 990-05-XX-01-00 share the same eddy-current input specification and output signal standard. Verify connector pinout and housing mounting pattern against the existing installation drawing before proceeding. No firmware reconfiguration is required for standard span settings.
Q: Does this unit carry current SIL certification for use in IEC 61511 safety loops?
A: The 991-01-XX-01-00 series has been assessed under IEC 61508 Part 2 hardware methodology. SIL suitability for a specific safety function depends on the overall safety loop architecture (1oo1, 1oo2, 2oo3), proof test interval, and PFD calculation performed by the plant functional safety engineer. A FMEDA summary and failure rate data are available upon request to support the SIL verification calculation. This transmitter alone does not carry a standalone SIL 2 certificate — system-level assessment is required per IEC 61511 Clause 11.
