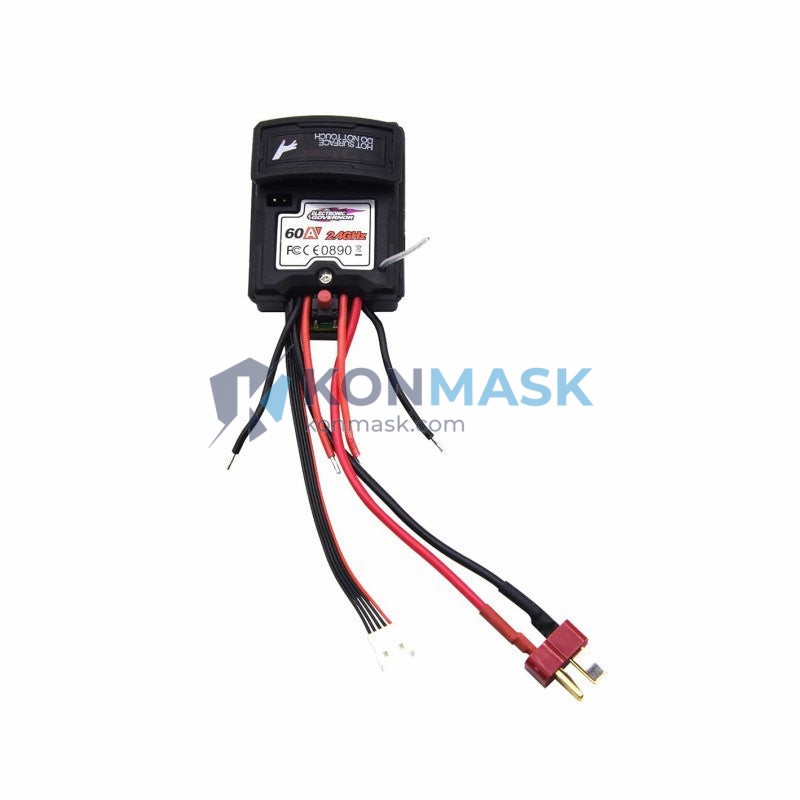

Blomiky ZJBX-17-005 – Electronic Speed Controller (ESC) | RC Brushed Motor Driver Platform
Engineering Background: The ZJBX-17-005 is an OEM-grade electronic speed controller (ESC) manufactured by Blomiky, designed as a direct replacement and upgrade component for compatible RC vehicles. ESCs are the critical power-management bridge between the battery pack and the drive motor, translating receiver throttle signals into precise, variable voltage output to control motor speed, direction, and braking response.
Product Positioning: Targeted at RC hobbyists, repair technicians, and OEM integrators requiring a verified, plug-and-play brushed motor ESC that matches original factory specifications. The ZJBX-17-005 eliminates compatibility guesswork and ensures reliable operation within Blomiky-platform RC systems.
Complete Technical Specifications
- Part Number / SKU: ZJBX-17-005
- Manufacturer: Blomiky
- Component Type: Electronic Speed Controller (ESC) – Brushed
- Motor Compatibility: Brushed DC motors (standard RC vehicle configuration)
- Control Signal: PWM signal from RC receiver (standard 3-pin servo connector)
- Functions: Forward / Reverse / Brake
- Connector Type: OEM plug-and-play (matches Blomiky platform wiring harness)
- Weight: Approx. 300 g (including harness)
- Operating Environment: Indoor / outdoor RC vehicle use
- Condition: New, OEM-equivalent replacement
Note: Detailed electrical ratings (input voltage range, continuous/peak current) should be confirmed against the specific Blomiky vehicle model documentation. Contact support@konmask.com for model-specific datasheet assistance.
Proven Application Environments
- Direct OEM replacement for Blomiky RC trucks, buggies, and crawlers using the ZJBX-17 ESC platform
- RC vehicle repair and maintenance workshops
- Hobbyist upgrade and performance restoration projects
- Educational robotics and RC engineering training platforms
- Spare parts inventory for RC fleet operators
Engineering Advantages
- OEM Compatibility: Designed to exact Blomiky platform specifications – no wiring modification required
- Plug-and-Play Installation: Direct connector match to factory harness reduces installation time to minutes
- Brushed Motor Optimized: Tuned PWM output for smooth throttle linearity and responsive braking on brushed drive systems
- Reliable Signal Processing: Stable PWM signal reception minimizes signal dropout and erratic behavior
- Compact Form Factor: Designed to fit within original chassis mounting points without modification
System Architecture & Signal Flow
The ZJBX-17-005 operates within a standard RC closed-loop control architecture:
- Transmitter → Sends throttle PWM signal (typically 1000–2000 µs pulse width)
- Receiver → Decodes and forwards signal via 3-pin servo output to ESC
- ESC (ZJBX-17-005) → Interprets PWM, modulates battery voltage via H-bridge switching circuit
- Brushed Motor → Receives variable voltage; speed and direction controlled by ESC output
- Battery Pack → Supplies main power rail to ESC; BEC (if integrated) powers receiver
This architecture ensures deterministic throttle response and protects the motor from over-current conditions through ESC-internal protection logic.
Sourcing & Quality Verification
- Source: Konmask.com sources Blomiky components through verified distribution channels to ensure authenticity
- Inspection: Each unit undergoes visual and connector-integrity inspection prior to dispatch
- Packaging: Ships in protective anti-static packaging to prevent ESD damage during transit
- Traceability: Part number ZJBX-17-005 is cross-referenced against Blomiky OEM part catalogs
Procurement Process
- Confirm your Blomiky RC vehicle model and verify ZJBX-17-005 compatibility (contact us if unsure)
- Add to cart and proceed to checkout – multiple payment methods accepted
- Orders processed within 1–2 business days; international shipping available
- Track your shipment via the confirmation email dispatch notification
- Installation support available via support@konmask.com
Technical FAQ
Q: Is the ZJBX-17-005 compatible with brushless motors?
A: No. This ESC is designed exclusively for brushed DC motors. Using it with a brushless motor will result in damage to the ESC and motor.
Q: What RC vehicle models is this ESC compatible with?
A: The ZJBX-17-005 is an OEM part for specific Blomiky RC vehicle platforms. Please contact support@konmask.com with your vehicle model number for confirmed compatibility.
Q: Can I program throttle endpoints or reverse direction?
A: Programming capability depends on the specific ESC firmware. Refer to the included documentation or contact us for the calibration procedure for your vehicle platform.
Q: What is the warranty on this part?
A: Konmask.com provides a standard 30-day DOA (Dead on Arrival) warranty. Extended warranty terms are available – contact support@konmask.com for details.
Q: Do you offer bulk/wholesale pricing?
A: Yes. Contact support@konmask.com or +0086 19859288691 for wholesale and OEM procurement inquiries.
