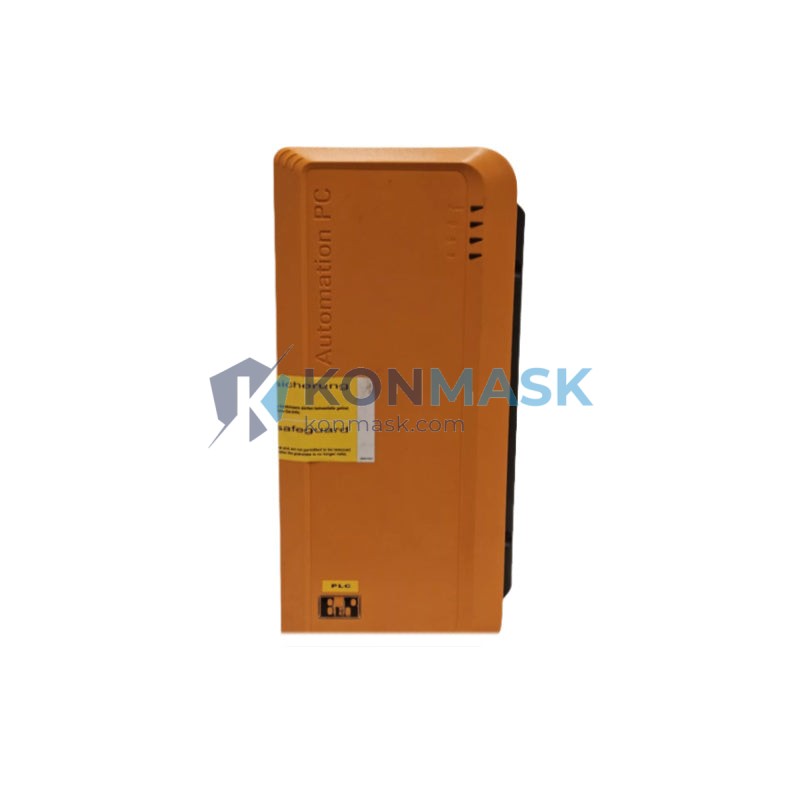

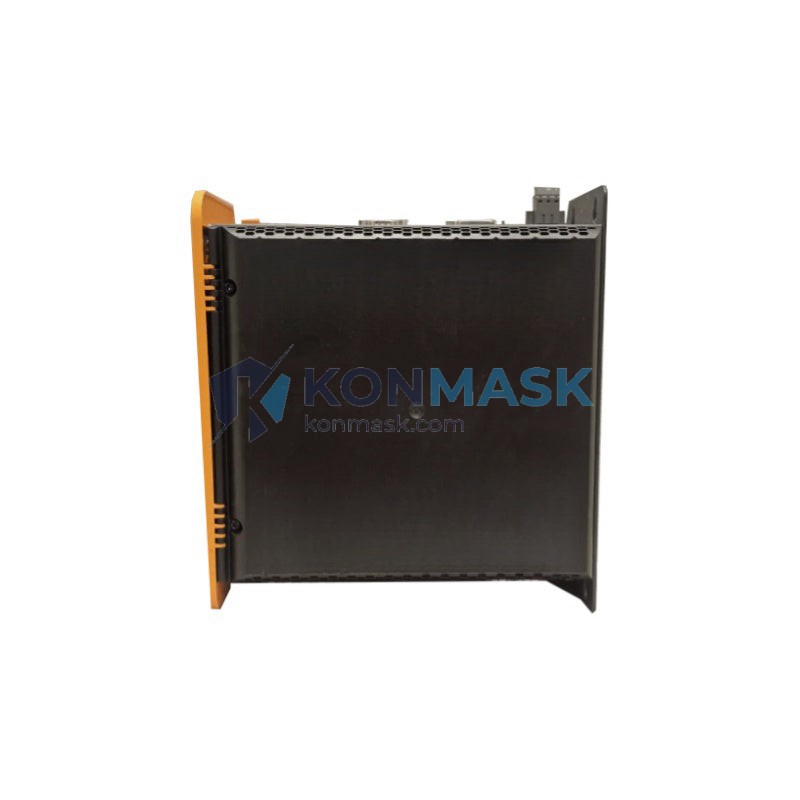

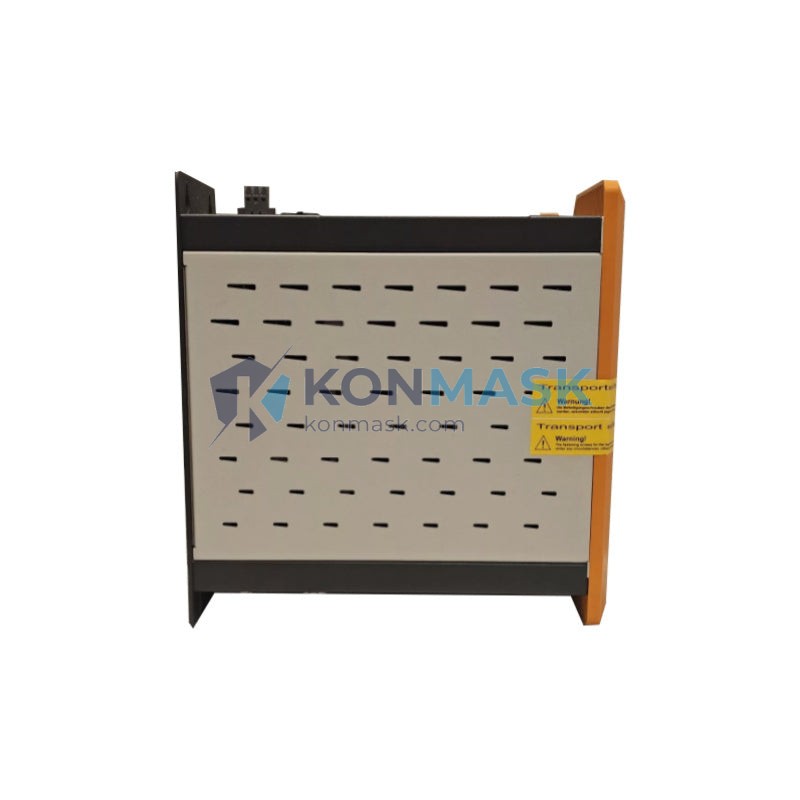

B&R 5PC910.SX02-00 – 2-Slot System Unit | Automation PC 910 Industrial Controller Platform
Engineering Background: The Automation PC 910 (APC910) series is B&R’s flagship embedded industrial computing platform, engineered for demanding HMI, soft-PLC, and SCADA applications in continuous-process and discrete-manufacturing environments. The 5PC910.SX02-00 is the 2-slot base system unit — the structural and computational core onto which CPU boards, interface modules, and expansion cards are mounted.
Product Positioning: Designed for procurement engineers and system integrators who require a verified, OEM-sourced system unit with full traceability. Konmask.com supplies this unit as a stocked or sourced component with inspection documentation available on request.
Complete Technical Specifications
- Part Number: 5PC910.SX02-00
- Series / Platform: Automation PC 910 (APC910)
- Manufacturer: B&R Industrial Automation GmbH (ABB Group)
- Form Factor: 2-Slot System Unit (accepts up to 2 plug-in modules / CPU boards)
- Mounting: Panel mount / 19″ rack compatible (with optional adapter)
- Cooling: Fanless passive cooling (model-dependent; verify with CPU board selection)
- Operating Temperature: 0 °C to +50 °C (verify with installed CPU board)
- Storage Temperature: −20 °C to +60 °C
- Relative Humidity: 5 % to 95 %, non-condensing
- Protection Class: IP20
- Power Supply: 24 V DC nominal (via backplane; PSU module required)
- Vibration Resistance: EN 60068-2-6 compliant
- Shock Resistance: EN 60068-2-27 compliant
- EMC Compliance: CE marked; EN 61000 series
- Weight: Approx. 1,000 g (system unit only, without CPU/modules)
- Backplane Slots: 2 (CPU board + 1 expansion or dual-module configuration)
- Compatible CPU Boards: 5PC910.BX01-00, 5PC910.BX02-00, 5PC910.BX03-00 (Intel Atom / Core i-series)
- Compatible Interface Modules: 5ACPCI.ETH0-00, 5ACPCI.CANI-00, 5ACPCI.RS00-00 and other APC910-series plug-in cards
- OS Support: Windows 10 IoT Enterprise, Windows Embedded Standard 7, B&R Automation Runtime (AR)
- Software Integration: B&R Automation Studio 4.x
- Country of Origin: Austria
- HS Code: 8537.10 (programmable controllers)
Proven Application Environments
- Machine HMI & Visualization: Compute backbone for operator panels and touch-screen HMI stations in packaging, printing, and plastics machinery.
- Soft-PLC / Motion Control Host: Runs B&R Automation Runtime to execute IEC 61131-3 PLC programs and coordinate ACOPOS servo drives via POWERLINK.
- SCADA Edge Node: Deployed as embedded SCADA client/server in water treatment, energy management, and building automation systems.
- Semiconductor & Electronics Manufacturing: Used in cleanroom-compatible enclosures for process control and recipe management.
- Food & Beverage / Pharmaceutical: Supports hygienic-design machine builds where fanless, sealed-front operation is required.
- OEM Panel Builder Integration: Standard choice for European and Asian OEMs building B&R-based control cabinets.
Engineering Advantages
- Modular Scalability: Field-upgradeable CPU boards without replacing the system unit — protecting capital investment.
- Fanless Reliability: Eliminates the primary mechanical failure point in industrial PCs, extending MTBF in dusty or vibration-prone environments.
- Unified Software Ecosystem: Full integration with B&R Automation Studio reduces engineering time for combined HMI + PLC + motion projects.
- POWERLINK & OPC UA Native: Deterministic real-time Ethernet (POWERLINK) and OPC UA for Industry 4.0 / IIoT connectivity.
- Long-Term Availability: B&R extended product lifecycle commitments reduce obsolescence risk for long-running machine programs.
- Global Certification: CE, UL, and cUL listings support deployment across North American, European, and Asian markets.
System Architecture & Signal Flow
The 5PC910.SX02-00 system unit houses the passive backplane interconnecting the CPU board and expansion modules via a high-speed internal bus. Power is distributed from a 24 V DC rail through the backplane to all installed boards. The CPU board handles all compute, storage, and primary I/O; expansion slots add fieldbus interfaces (CANopen, PROFIBUS, RS-232/422/485) or additional Ethernet ports. External I/O connects via the CPU board’s onboard ports or through B&R X20 / X67 remote I/O nodes over POWERLINK or Modbus TCP.
Typical signal flow: Field sensors/actuators → X20 I/O modules → POWERLINK network → APC910 CPU board (5PC910.SX02-00 backplane) → Automation Runtime / HMI application → SCADA / MES via OPC UA or Modbus TCP.
Sourcing & Quality Verification
- Source: Konmask.com sources B&R components from authorized distribution channels and verified secondary-market suppliers with full traceability.
- Inspection: Each unit undergoes visual inspection, label verification (part number, revision, serial number), and functional power-on check where applicable.
- Documentation: OEM datasheet, CE declaration of conformity, and inspection report available upon request.
- Warranty: 90-day Konmask warranty against DOA/defects; extended warranty available — contact sales.
- Counterfeit Prevention: All units cross-referenced against B&R’s published part number database. Suspicious units are quarantined and not listed.
Procurement Process
- Confirm Compatibility: Verify your target CPU board (e.g., 5PC910.BX02-00) and required expansion modules are compatible with the 2-slot configuration.
- Request Quote: Contact support@konmask.com or call +0086 19859288691 with your project BOM for volume pricing.
- Order & Lead Time: In-stock units ship within 2–5 business days. Sourced units: 7–21 business days depending on availability.
- Shipping: DHL Express / FedEx International Priority with full insurance and commercial invoice. EXW Xiamen available for freight-forwarder customers.
- Payment: T/T (bank transfer), PayPal, and trade-term arrangements for qualified accounts.
Technical FAQ
Q: Can the 5PC910.SX02-00 run without a CPU board installed?
A: No. The system unit is a passive backplane/chassis. A compatible CPU board (e.g., 5PC910.BX01-00) must be installed for operation.
Q: Is this unit compatible with the older APC620 or APC680 series CPU boards?
A: No. The APC910 backplane uses a different connector standard. CPU boards are not cross-compatible between APC series generations.
Q: Can I add a third slot later?
A: No — the 5PC910.SX02-00 is a fixed 2-slot unit. For 3- or 5-slot configurations, refer to 5PC910.SX03-00 or 5PC910.SX05-00.
Q: What is the difference between SX02-00 and SX02-01?
A: The -01 revision typically indicates a minor hardware revision (PCB or connector change). Functionally equivalent for most applications — confirm with B&R or Konmask if revision-specific firmware is required.
Q: Does Konmask provide programming or configuration services?
A: Hardware supply only. For Automation Studio programming support, contact a certified B&R system integrator in your region.
