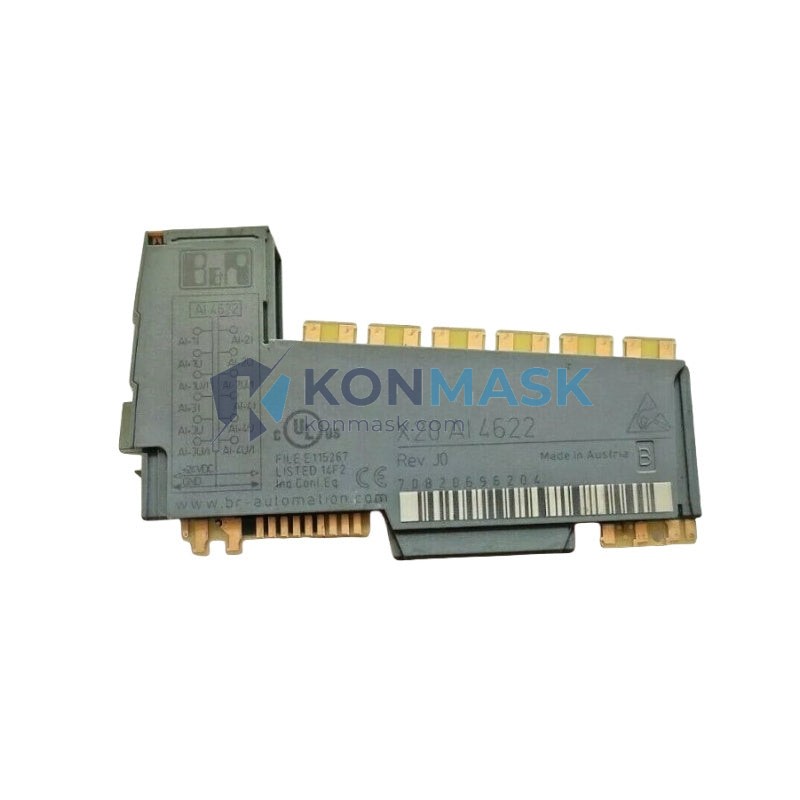

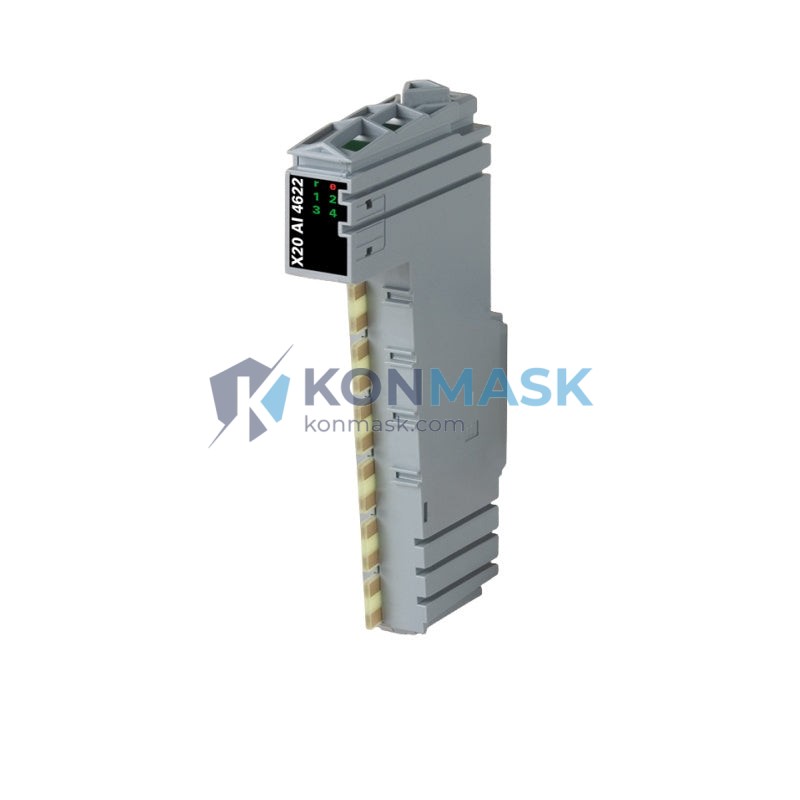

B&R X20 AI 4622 – 4-Channel Analog Input Module | X20 Automation System
Engineering Background
The B&R X20 System is one of the most widely deployed modular PLC platforms in precision manufacturing, packaging, and process automation. Designed for high-speed, deterministic control, the X20 backplane architecture enables seamless I/O expansion with sub-millisecond cycle times. The X20 AI 4622 is a core analog acquisition module within this ecosystem, purpose-built for applications demanding accurate, multi-channel signal conditioning from sensors, transmitters, and transducers.
Product Positioning
The X20 AI 4622 serves procurement engineers and system integrators who require a reliable, drop-in analog input solution for B&R X20-based control cabinets. Whether replacing a failed module in a running production line or specifying components for a new machine build, this module delivers the signal fidelity and bus compatibility required for mission-critical industrial environments. Konmask.com supplies this module with full traceability, competitive lead times, and pre-shipment verification.
Complete Technical Specifications
| Part Number | X20 AI 4622 |
| Manufacturer | B&R Industrial Automation GmbH |
| Module Type | Analog Input Module |
| Number of Channels | 4 (differential) |
| Input Signal Range | ±10 V / 0–20 mA (software selectable per channel) |
| Resolution | 12-bit |
| Conversion Time | ≤ 800 µs per channel |
| Input Impedance (Voltage) | > 100 kΩ |
| Input Impedance (Current) | 250 Ω (shunt) |
| Accuracy | ±0.1% of full scale (at 25°C) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Supply Voltage (Internal Bus) | 3.3 V / 5 V via X20 backplane |
| Field Supply Voltage | 24 V DC (±10%) |
| Power Consumption | Approx. 1.5 W |
| Protection Class | IP20 |
| Dimensions (W × H × D) | 12.5 mm × 99.9 mm × 80 mm |
| Weight | Approx. 80 g |
| Bus Interface | X2X Link (B&R proprietary high-speed I/O bus) |
| Certifications | CE, UL, cUL, ATEX (Zone 2 with appropriate housing) |
| Compatible CPUs | All B&R X20 CPU modules with X2X Link support |
Proven Application Environments
- Packaging Machinery: Precise tension and pressure monitoring via 4–20 mA transmitters on form-fill-seal lines.
- Plastics & Extrusion: Multi-zone temperature acquisition from thermocouple transmitters with ±10 V output.
- Hydraulic Press Control: Real-time pressure transducer feedback for closed-loop force regulation.
- Conveyor & Material Handling: Load cell signal acquisition for dynamic weighing and sorting systems.
- HVAC & Building Automation: Multi-point environmental sensor integration (temperature, humidity, CO₂).
- Water Treatment: Flow meter and level transmitter signal conditioning in continuous process plants.
- Semiconductor Fab Equipment: High-accuracy analog acquisition for process gas flow and chamber pressure.
Engineering Advantages
- Dual-Mode Input Flexibility: Each channel independently configurable for voltage (±10 V) or current (0–20 mA) without hardware jumpers — reduces BOM complexity and cabinet wiring time.
- X2X Link Bus Integration: Deterministic, high-speed data transfer to the CPU with guaranteed cycle-time synchronization — critical for motion-coordinated analog feedback loops.
- Compact 12.5 mm Pitch: Ultra-slim form factor maximizes I/O density in space-constrained control cabinets.
- Hot-Swap Capable: Module replacement without full system shutdown minimizes production downtime during maintenance.
- Integrated Diagnostics: Per-channel wire-break and overrange detection with status flags accessible via Automation Studio — eliminates need for external signal conditioners.
- Galvanic Isolation: Field-side isolation protects the CPU and backplane from ground loops and transient surges common in industrial environments.
System Architecture & Signal Flow
The X20 AI 4622 mounts directly onto the X20 bus module (X20BM01 or compatible) and communicates via the X2X Link at up to 100 Mbit/s. Analog signals enter through the terminal block, pass through a multiplexed ADC with per-channel sample-and-hold, and are digitized to 12-bit resolution. The digital values are mapped to process image variables in Automation Studio (AS) and are accessible within the same PLC scan cycle. Channel configuration (voltage/current mode, filter settings) is performed entirely in software via AS I/O configuration — no physical DIP switches or jumpers required.
Signal chain: Field Sensor → Terminal Block → Input Protection → MUX → ADC (12-bit) → X2X Link Frame → CPU Process Image → AS Variable
Sourcing & Quality Verification
- Origin: Sourced from authorized B&R distribution channels and verified secondary market with full chain-of-custody documentation.
- Pre-Shipment Testing: Each unit undergoes functional power-on verification and visual inspection for connector integrity, label authenticity, and firmware version confirmation.
- Packaging: ESD-safe anti-static bag, foam-padded carton, with serial number and firmware version recorded on packing slip.
- Documentation: B&R datasheet, declaration of conformity, and Konmask inspection report included on request.
- Warranty: 90-day Konmask operational warranty covering DOA and functional defects.
Procurement Process
- Confirm Compatibility: Verify your X20 CPU supports X2X Link and that your Automation Studio project version is compatible (AS 3.0.90+).
- Request Quote: Contact [email protected] for volume pricing, lead time confirmation, and availability of specific firmware revisions.
- Place Order: Purchase directly via Konmask.com checkout or submit a PO for B2B net-term arrangements.
- Receive & Inspect: Inspect packaging seal and serial number upon receipt. Cross-reference with Konmask packing slip.
- Commission: Install module on X20 bus module, configure channel modes in Automation Studio I/O Mapping, and validate signal readings against known reference.
Technical FAQ
Q: Is the X20 AI 4622 compatible with X20 CP1586 and CP3586 CPUs?
A: Yes. All X20 CPUs with X2X Link support are compatible. Confirm your AS hardware configuration includes the correct module GSD/hardware description file.
Q: Can I mix voltage and current channels on the same module?
A: Yes. Each of the 4 channels is independently configurable in Automation Studio — no hardware modification required.
Q: What is the maximum cable length for analog inputs?
A: B&R recommends shielded twisted-pair cable up to 30 m for voltage inputs and up to 100 m for current loop (4–20 mA) inputs. Shield should be grounded at one end only.
Q: Does the module support HART protocol?
A: No. The X20 AI 4622 is a standard analog input module and does not support HART multiplexing. For HART-enabled analog acquisition, refer to the X20 AI 4632HF.
Q: What happens if a channel input exceeds the rated range?
A: The module sets an overrange diagnostic flag in the process image. The ADC saturates at full scale; no hardware damage occurs within ±15 V / 30 mA transient limits.
Q: Can I order with a specific firmware version?
A: Konmask will confirm available firmware revisions at time of order. Specify your AS version requirement when requesting a quote.
