B&R Automation X20CP1586 CPU Module | Replacement, Equivalent & Selection Guide

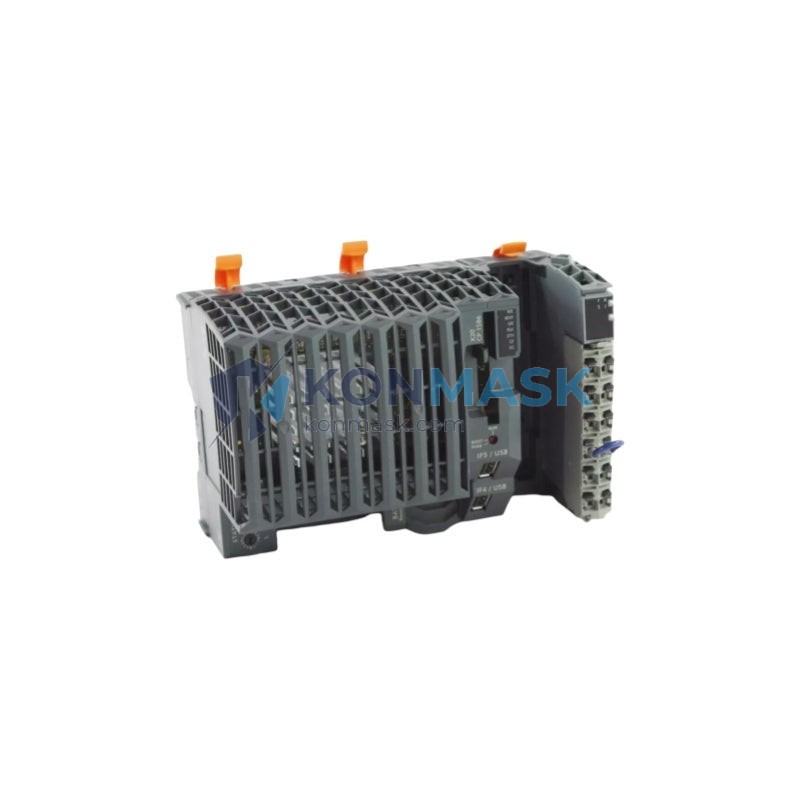

The B&R Automation X20CP1586 is a high-performance CPU module from the X20 modular PLC series, designed for demanding industrial automation applications. This page provides full technical specifications, compatible replacement models, selection guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Part Number / SKU: X20CP1586
- Manufacturer: B&R Automation (Bernecker + Rainer)
- Series: X20 Modular PLC System
- Module Type: CPU / Controller Module
- Processor: Intel Atom E3825 dual-core, 1.33 GHz
- RAM: 1 GB DDR3L
- Flash Storage: 4 GB onboard eMMC
- Operating System: B&R Automation Runtime (AR)
- Communication Interfaces: 2× Ethernet (POWERLINK / standard), 1× USB 2.0, 1× SD card slot
- Fieldbus Support: POWERLINK, Modbus TCP, EtherNet/IP (via software)
- Power Supply: 24 VDC (via X20 backplane)
- Operating Temperature: 0 °C to +55 °C
- Protection Rating: IP20
- Dimensions: Standard X20 module form factor
- Certifications: CE, UL, cUL
- Programming Standard: IEC 61131-3 (via Automation Studio)
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or functional equivalents for the X20CP1586. Always verify compatibility with your specific system configuration before substitution.
- B&R X20CP1585 – Lower-spec CPU in the same X20 family; suitable for less demanding tasks
- B&R X20CP1587 – Higher-spec successor with expanded memory and faster processing
- B&R X20CP3586 – Compact variant with similar processing power, different form factor
- B&R X20CP0482 – Entry-level X20 CPU; compatible backplane, reduced I/O throughput
- Siemens S7-1516-3 PN/DP – Cross-brand alternative for PROFINET environments (requires re-engineering)
- Beckhoff CX5130 – PC-based controller alternative for IEC 61131-3 environments
Note: Cross-brand replacements require full system re-validation. Contact our technical team for migration support.
Why Choose the Original X20CP1586
- ✅ Seamless integration with existing B&R X20 backplane and I/O modules
- ✅ Native POWERLINK real-time Ethernet support for deterministic motion control
- ✅ Full compatibility with B&R Automation Studio development environment
- ✅ Proven reliability in 24/7 industrial production environments
- ✅ Long-term availability and manufacturer support lifecycle
- ✅ Unified programming across B&R X20, X67, and APC platforms
Typical Applications
- Machine automation and motion control systems
- Packaging and printing machinery
- Semiconductor and electronics manufacturing
- Food & beverage processing lines
- Automotive assembly and test systems
- Building automation and HVAC control
System Compatibility
The X20CP1586 is designed to operate within the B&R X20 modular system. It is compatible with:
- All standard X20 I/O modules (digital, analog, specialty)
- X20 power supply modules (X20PS9400, X20PS9402, etc.)
- X20 bus controllers and remote I/O stations
- B&R ACOPOS and ACOPOSmulti servo drive systems (via POWERLINK)
- Automation Studio 4.x and later versions
Selection Guide
Use the table below to select the right X20 CPU for your application:
| Model | CPU Speed | RAM | Best For |
|---|---|---|---|
| X20CP0482 | 400 MHz | 128 MB | Simple I/O control, small machines |
| X20CP1585 | 1.0 GHz | 512 MB | Mid-range automation tasks |
| X20CP1586 | 1.33 GHz dual-core | 1 GB | Complex motion, data-intensive applications |
| X20CP1587 | 1.91 GHz dual-core | 2 GB | High-performance, multi-axis systems |
| X20CP3586 | 1.33 GHz dual-core | 1 GB | Compact panel-mount installations |
Quality Assurance & Sourcing
- 🔍 All units undergo pre-shipment functional inspection
- 📦 Original manufacturer packaging preserved where available
- 🏭 Sourced from authorized distributors and verified industrial surplus channels
- 📋 Traceability documentation available upon request
- 🔄 30-day return policy for unused, unopened items
- 🌐 Global shipping with DHL, FedEx, and UPS express options
How to Order
- Confirm your required quantity and delivery timeline
- Add to cart or contact us for bulk/project pricing
- Provide your shipping address and preferred carrier
- Receive order confirmation and tracking within 1 business day
For urgent requirements or large-volume orders, email support@konmask.com or call +0086 19859288691.
Replacement & Compatibility FAQ
Q: Can I replace X20CP1585 with X20CP1586 directly?
A: Yes, the X20CP1586 is a drop-in upgrade within the same X20 backplane. A firmware update via Automation Studio may be required.
Q: Is the X20CP1586 compatible with older X20 I/O modules?
A: Yes, it maintains backward compatibility with all standard X20 I/O modules. Verify firmware versions in Automation Studio.
Q: Can I use a Siemens or Beckhoff CPU as a replacement?
A: Cross-brand replacement requires full system re-engineering including rewiring, reprogramming, and re-commissioning. We recommend staying within the B&R ecosystem where possible.
Q: Do you offer warranty on the X20CP1586?
A: Yes, we provide a 90-day functional warranty on all units. Extended warranty options are available — contact us for details.
Q: What is the lead time for X20CP1586?
A: In-stock units ship within 1–3 business days. For out-of-stock items, typical lead time is 2–4 weeks depending on sourcing.
