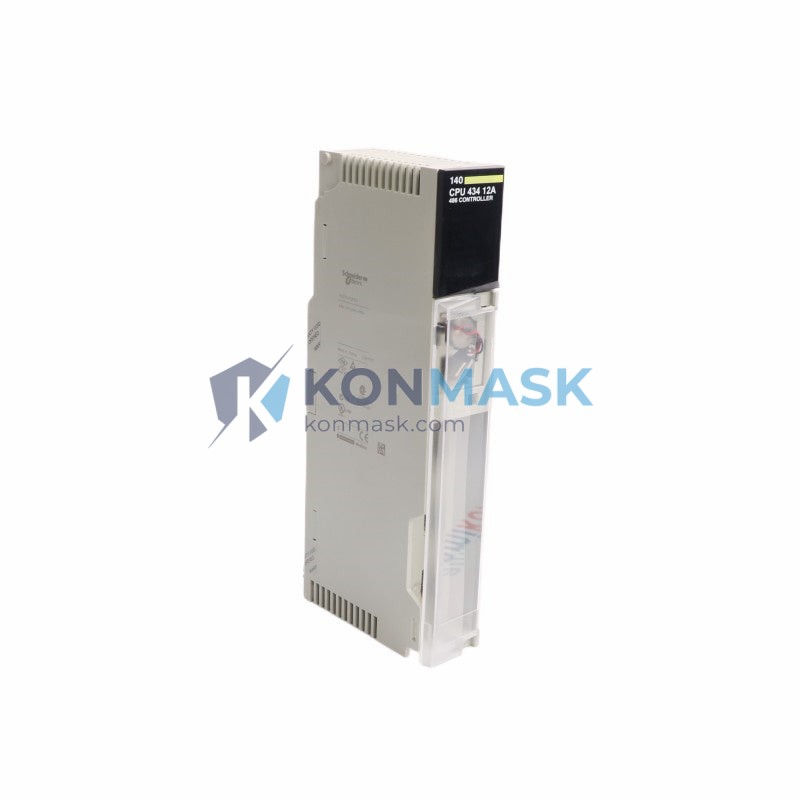

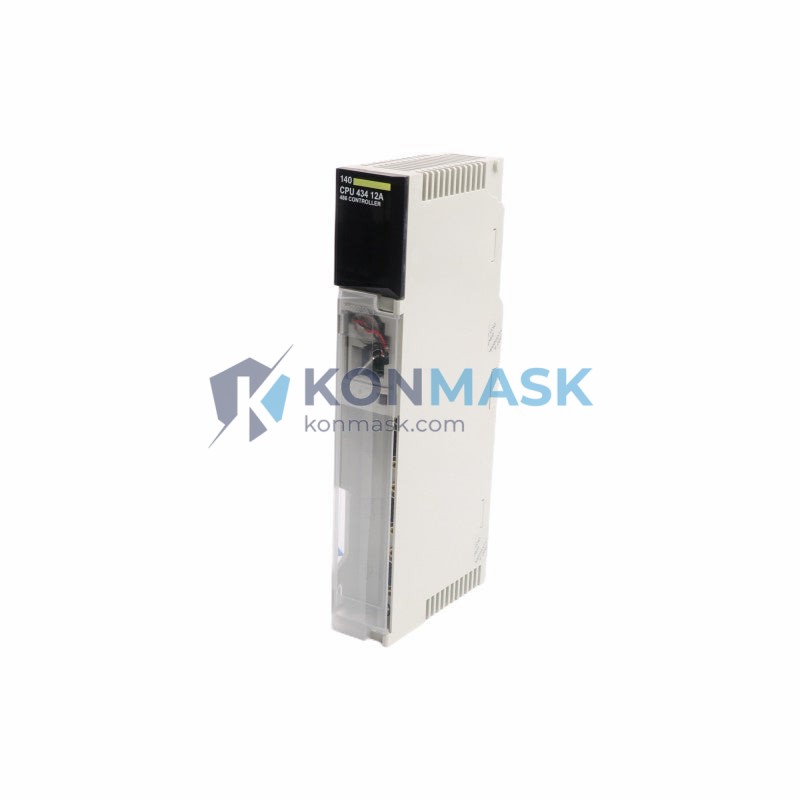

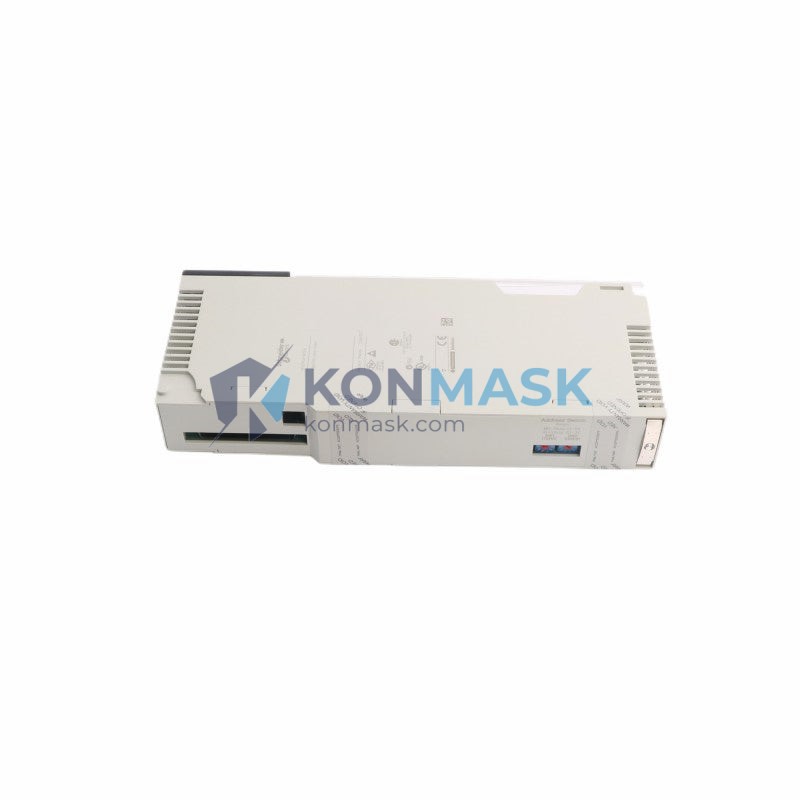

Schneider Electric 140CPU43412A CPU Module | Replacement, Equivalent & Selection Guide
The Schneider Electric 140CPU43412A is a high-performance CPU module designed for the Modicon Quantum PLC platform. It delivers robust processing power for demanding industrial automation applications including process control, machine automation, and critical infrastructure. This page provides full technical specifications, compatible replacement models, selection guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 140CPU43412A |
| Brand | Schneider Electric (Modicon) |
| Series | Modicon Quantum |
| Module Type | CPU / Processor Module |
| Processor | Motorola 68040 / 32-bit |
| Memory – RAM | 512 KB user RAM |
| Memory – Flash | 2 MB Flash (program storage) |
| Communication Ports | Modbus Plus (MB+), RS-232 (Modbus RTU) |
| I/O Capacity | Up to 64,000 I/O points (with RIO/DIO) |
| Operating Voltage | 5 VDC (backplane supplied) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Certifications | UL, CE, CSA |
| Mounting | Quantum backplane (140 XBP series) |
| Weight | ~500 g |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as direct or functional replacements for the 140CPU43412A. Always verify firmware compatibility and I/O configuration before substitution.
| Model | Brand | Compatibility Level | Key Difference |
|---|---|---|---|
| 140CPU43412 | Schneider Electric | Direct (earlier revision) | No suffix “A” – earlier hardware revision; functionally equivalent in most applications |
| 140CPU65150 | Schneider Electric | Upgrade replacement | Higher memory (1.5 MB RAM), faster scan; drop-in for most Quantum racks |
| 140CPU65160 | Schneider Electric | Upgrade replacement | Ethernet port added; suitable for Unity Pro migration projects |
| 140CPU67160 | Schneider Electric | Upgrade replacement | Dual Ethernet, enhanced diagnostics; recommended for new designs |
| 140CPU31110 | Schneider Electric | Downgrade / cost alternative | Lower memory; suitable for smaller I/O configurations |
Note: Cross-referencing requires validation of rack slot compatibility, power budget, and software version (Concept / ProWORX / Unity Pro).
Why Choose the Original Model
- Proven field reliability – Widely deployed in oil & gas, water treatment, and power generation since the 1990s.
- Software continuity – Native support for Concept and ProWORX programming environments without migration overhead.
- Spare parts ecosystem – Broad availability of compatible I/O modules, power supplies, and communication adapters.
- Stable lifecycle – Ideal for brownfield maintenance where system-wide upgrades are not feasible.
- Regulatory compliance – UL/CE certified; meets requirements for safety-critical installations.
Typical Applications
- Oil & gas pipeline monitoring and SCADA systems
- Water and wastewater treatment plant automation
- Power generation and substation control
- Chemical and petrochemical process control
- Discrete manufacturing and assembly line control
- Building management and critical infrastructure
System Compatibility
- Backplane: Modicon Quantum 140 XBP series (6, 10, 16-slot)
- Power Supply: 140 CPS series (110/220 VAC or 24/48 VDC variants)
- Remote I/O: 140 CRP / 140 CRA series (RIO head adapters)
- Distributed I/O: 140 NOE Ethernet I/O heads
- Programming Software: Schneider Concept 2.6+, ProWORX 32, Unity Pro (via migration tool)
- Communication: Modbus Plus network, Modbus RTU (RS-232), optional Ethernet via co-processor
Selection Guide
Use the criteria below to determine whether the 140CPU43412A is the right choice or whether an alternative model better fits your requirements:
| Requirement | Recommended Model |
|---|---|
| Direct spare / like-for-like replacement | 140CPU43412A (this model) or 140CPU43412 |
| Need more user memory (>512 KB) | 140CPU65150 or 140CPU65160 |
| Need built-in Ethernet port | 140CPU65160 / 140CPU67160 |
| Migrating to Unity Pro platform | 140CPU65160 / 140CPU67160 |
| Budget-constrained, small I/O count | 140CPU31110 |
| New system design (not brownfield) | Consider Modicon M580 (BMEP series) for modern architecture |
Quality Assurance & Sourcing
- Authenticity: All units sourced from authorized distributors or verified surplus channels with traceability documentation.
- Inspection: Each module undergoes visual inspection, label verification, and functional power-on testing prior to shipment.
- Warranty: 12-month warranty against manufacturing defects; replacement or refund guaranteed.
- Condition options: New (factory-sealed), Refurbished (tested & certified), and Used (as-is with inspection report) available — specify at time of inquiry.
- Lead time: In-stock units ship within 1–3 business days; sourced units typically 5–15 business days.
How to Order
- Confirm your part number: 140CPU43412A (check the label on your existing module).
- Specify required condition: New / Refurbished / Used.
- Provide your shipping destination and preferred freight method.
- Submit your inquiry via the product page, or contact us directly:
- 📧 [email protected]
- 📞 +0086 19859288691
- 🌐 https://konmask.com
Replacement & Compatibility FAQ
Q: Can I replace 140CPU43412A with 140CPU43412 (no suffix)?
A: Yes, in most cases. The “A” suffix denotes a hardware revision. Both are functionally equivalent for standard Concept/ProWORX applications. Verify firmware version compatibility if using advanced features.
Q: Is the 140CPU43412A compatible with Unity Pro?
A: Not natively. Unity Pro targets newer Quantum CPUs (140CPU651xx / 671xx). A migration project using Schneider’s conversion tools is required to move existing programs.
Q: Can this CPU be used in a hot-standby (HSBY) configuration?
A: No. Hot-standby requires dedicated HSBY CPU modules (e.g., 140CPU67160S). The 140CPU43412A is a standalone CPU only.
Q: What is the maximum I/O supported?
A: Up to 64,000 discrete I/O points when using Remote I/O (RIO) and Distributed I/O (DIO) drops across the Modbus Plus network.
Q: Do you provide a test report or certificate of conformance?
A: Yes. A test report and certificate of conformance (CoC) are available upon request for refurbished and new units.
