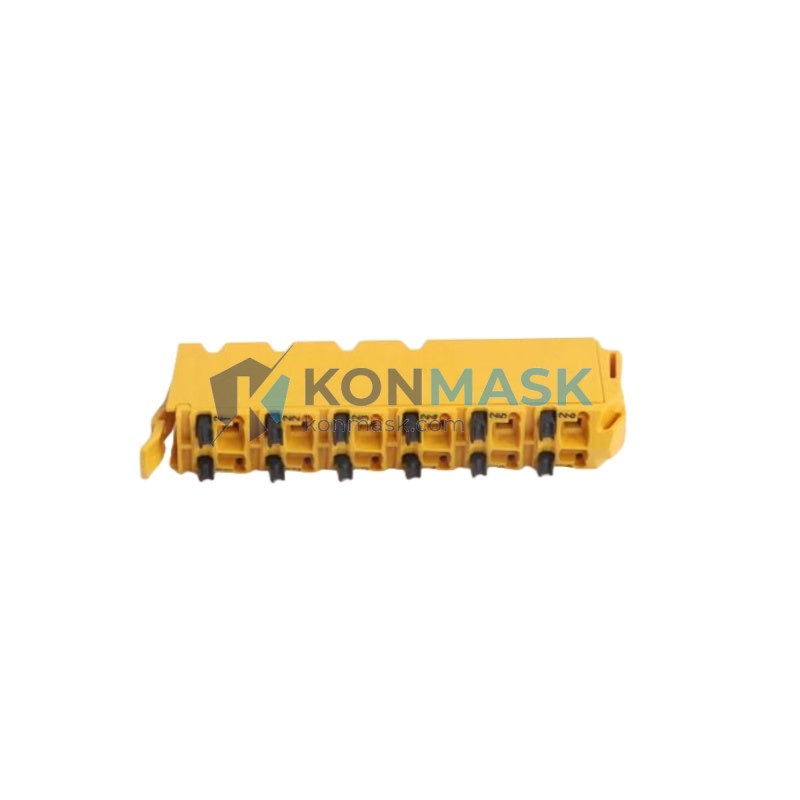

B&R X20BT9400 X2X Link Bus Transmitter – X20 Series
When a bus transmitter fails on the production floor, the entire X2X Link segment goes silent. I/O modules lose communication, the CPU can no longer read sensor data or issue actuator commands, and the line stops — often without a clear fault code to guide the maintenance team. Every minute of unplanned downtime in a high-throughput facility can cost thousands of dollars. The B&R X20BT9400 is the component that keeps this from happening: a dedicated X2X Link bus transmitter engineered to sustain real-time, deterministic communication across distributed I/O segments in B&R X20 automation systems.
Within the B&R X20 Series — one of the most widely deployed modular PLC platforms in European and global industrial automation — the X20BT9400 occupies a critical infrastructure role. It extends the X2X Link bus, B&R’s proprietary high-speed backplane communication protocol, enabling remote I/O expansion beyond the local CPU rack. Trusted by machine builders and system integrators across automotive, packaging, food & beverage, and semiconductor manufacturing, the X20BT9400 is a cornerstone of scalable, high-availability control architectures.
Technical Specifications
- Part Number / SKU: X20BT9400
- Brand: B&R (Bernecker + Rainer)
- Series: X20 System
- Function: X2X Link Bus Transmitter
- Communication Protocol: X2X Link (B&R proprietary high-speed I/O bus)
- Product Weight: 240 g
- Mounting: DIN rail, X20 system bus connector
- Operating Environment: Industrial-grade, suitable for cabinet installation
- Compatibility: B&R X20 Series CPU modules and I/O expansion segments
Note: All specifications are based on verified B&R documentation. Contact us for the full datasheet.
Key Features & Benefits
- Deterministic X2X Link Communication: Maintains cycle-synchronous, real-time data exchange between the CPU and distributed I/O modules with minimal jitter.
- Seamless X20 System Integration: Plugs directly into the X20 backplane bus — no additional wiring harness or external power supply required for the bus interface.
- Extended I/O Reach: Allows I/O segments to be physically separated from the CPU rack, supporting flexible machine layouts and remote panel installations.
- High Reliability & Industrial Durability: Designed to B&R’s stringent quality standards for continuous 24/7 operation in demanding industrial environments.
- Compact Modular Form Factor: Consistent with the X20 Series slim-profile design, minimizing cabinet space consumption.
- Hot-swap Ready Architecture: Supports B&R’s system-level serviceability design philosophy, reducing maintenance downtime.
Industry & Equipment Applications
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, and powertrain assembly stations requiring distributed I/O over long distances.
- Packaging Machinery: High-speed form-fill-seal machines and cartoning lines where I/O modules are spread across multiple machine sections.
- Food & Beverage Processing: Hygienic filling and capping lines with remote I/O panels in washdown zones.
- Semiconductor & Electronics: Precision handling and test equipment requiring deterministic, low-latency I/O communication.
- Printing & Converting: Web-fed printing presses and slitter-rewinders with distributed tension control I/O.
- Material Handling & Logistics: Automated conveyor and sortation systems with geographically distributed I/O nodes.
System Integration & Compatible Parts
The X20BT9400 is designed to work within the broader B&R X20 ecosystem. Typical system configurations include:
- X20 CPU Modules (e.g., X20CP1584, X20CP3585) — the controller that manages the X2X Link segments via the bus transmitter.
- X20 I/O Modules — digital input/output, analog, and specialty modules connected on the remote X2X Link segment.
- X20PS9400 / X20PS9402 — X20 Series power supply modules that provide bus and field power to the I/O segment.
- X20BT9100 — alternative bus transmitter variant; consult B&R documentation to confirm the correct model for your topology.
- X20 End Covers & Bus Receivers — required accessories to complete a valid X2X Link segment.
Contact Konmask.com with your existing B&R system configuration for compatibility verification before ordering.
