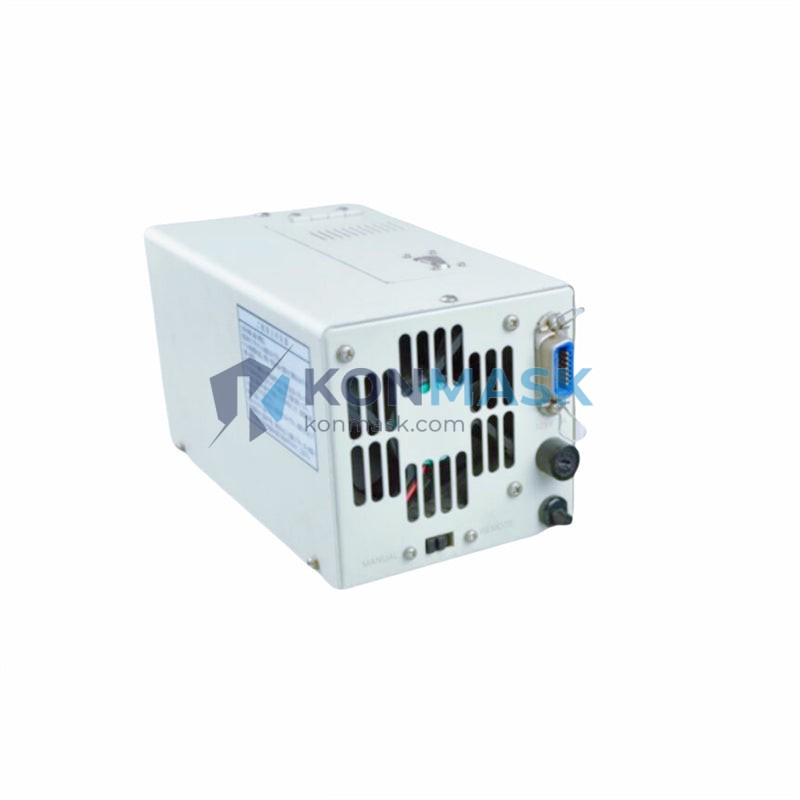

Machine Vision & Industrial Inspection Solution – CORRECT FA-100EN | Fiber Illuminator Series
Where This Product Is Used
The CORRECT FA-100EN Fiber Illuminator is engineered for demanding industrial environments where consistent, high-intensity illumination is critical. Typical deployment scenarios include:
- Machine Vision Systems – Provides stable, flicker-free light to CCD/CMOS cameras for automated visual inspection on production lines.
- PCB & Electronics Inspection – Illuminates fine surface features, solder joints, and component markings for AOI (Automated Optical Inspection) equipment.
- Pharmaceutical & Food Quality Control – Delivers uniform illumination for label verification, fill-level inspection, and contamination detection.
- Precision Measurement & Metrology – Supports coordinate measuring machines (CMM) and optical comparators requiring controlled light output.
- Semiconductor Wafer Inspection – Used in cleanroom environments where heat-free, remote light delivery via fiber optic guides is mandatory.
- Automotive Parts Inspection – Illuminates complex geometries on machined components for surface defect detection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FA-100EN |
| Brand | CORRECT |
| Product Type | Fiber Illuminator (Optical Fiber Light Source) |
| Series | FA Series |
| Weight | 2,620 g |
| Application | Machine Vision, Industrial Inspection, Metrology |
| Light Delivery | Fiber Optic Guide (remote illumination) |
| Operating Environment | Industrial |
For complete electrical specifications (voltage, wattage, color temperature, fiber bundle diameter), please contact our technical team or refer to the official CORRECT FA-100EN datasheet.
Why Engineers Specify This Model
- Remote Heat-Free Illumination – Fiber optic delivery separates the heat source from the inspection point, protecting sensitive components and samples.
- Stable Light Output – Consistent intensity ensures repeatable image quality across long production runs, reducing false rejects.
- Flexible Fiber Guide Compatibility – Compatible with standard ring lights, spot guides, and line guides for versatile setup configurations.
- Compact & Robust Construction – Designed for continuous 24/7 industrial operation with minimal maintenance.
- Proven CORRECT Brand Reliability – CORRECT is a recognized manufacturer in the industrial machine vision illumination sector.
Complete System Bill of Materials
For a complete fiber illumination system, engineers typically specify the following components alongside the FA-100EN:
- Fiber Optic Light Guide (ring, spot, or line type – specify bundle diameter)
- Mounting bracket or gooseneck arm for light guide positioning
- Machine vision camera (CCD or CMOS, monochrome or color)
- Lens (telecentric, macro, or standard C-mount)
- Image acquisition card or smart camera controller
- Vision software (e.g., Halcon, VisionPro, or OpenCV-based)
Contact support@konmask.com for bundled system quotations.
Compliance & Industry Standards
- Suitable for use in ISO-controlled manufacturing environments
- Compatible with CE-marked machine vision system integrations
- Designed for compliance with industrial electrical safety standards (verify specific certifications with CORRECT documentation)
- RoHS-compatible materials (confirm with official CORRECT product documentation)
Quality Assurance & Sourcing
At Konmask.com, every CORRECT FA-100EN unit is:
- Sourced directly from authorized CORRECT distribution channels
- Inspected upon receipt for physical integrity and completeness
- Stored in controlled warehouse conditions to preserve optical component quality
- Shipped with original manufacturer packaging and documentation
We maintain traceability records for all industrial automation components to support your procurement and quality audit requirements.
How to Source This Part
- Add to Cart – Place your order directly on this page for standard lead times.
- Request a Quote – For volume orders (>5 units) or project-based procurement, email support@konmask.com.
- Technical Pre-Sales – Need help confirming compatibility with your existing fiber guides or vision system? Our engineers are available via email or phone.
- Lead Time – Typical lead time is 3–7 business days for in-stock units. Contact us for expedited shipping options.
Application-Specific FAQ
Q: Can the FA-100EN drive multiple fiber light guides simultaneously?
A: This depends on the output port configuration of the specific unit. Please contact us with your fiber bundle specifications for confirmation.
Q: Is the FA-100EN suitable for cleanroom (ISO Class 5/6) environments?
A: The fiber optic delivery method makes it well-suited for cleanroom use, as the illuminator body can be located outside the controlled zone. Verify specific cleanroom ratings with CORRECT documentation.
Q: What fiber guide diameter is compatible with the FA-100EN?
A: Standard CORRECT FA-series fiber guides are compatible. Contact our team with your current guide specifications for cross-reference confirmation.
Q: Can this replace other brand fiber illuminators in my existing setup?
A: In many cases yes, provided the fiber bundle connector type matches. Our technical team can assist with compatibility assessment.
Q: Do you provide a warranty on this product?
A: Yes. All products sold through Konmask.com carry a standard warranty. Contact support for warranty terms applicable to your region.
