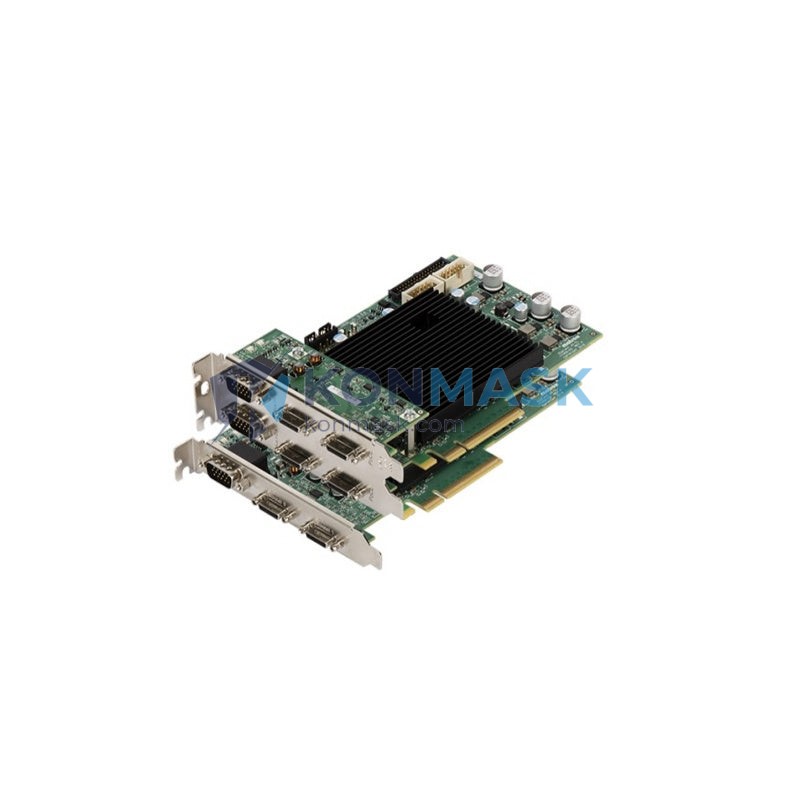

Matrox RADEV5MCLSF – Multi-Camera CameraLink Frame Grabber | Radient eV5 Platform
Engineering Background: The Matrox Radient eV5 series represents Matrox Imaging’s fifth-generation PCIe frame grabber architecture, engineered specifically for demanding industrial machine vision deployments. The RADEV5MCLSF variant integrates Medium/Full CameraLink interface support with a high-bandwidth PCIe Gen2 x4 host interface, delivering deterministic image acquisition for multi-camera inspection systems.
Product Positioning: Designed for procurement engineers and system integrators sourcing a reliable, high-throughput frame grabber for semiconductor inspection, flat-panel display testing, web inspection, and precision metrology applications. The RADEV5MCLSF is a direct OEM replacement and upgrade path for legacy CameraLink acquisition boards, offering backward compatibility with existing CameraLink camera ecosystems while providing modern PCIe bandwidth headroom.
Complete Technical Specifications
- Part Number / SKU: RADEV5MCLSF
- Product Family: Matrox Radient eV5
- Camera Interface: CameraLink – Base, Medium, Full, and 80-bit configurations
- Number of Camera Ports: 1× Full CameraLink (or 2× Base/Medium via dual-tap)
- Host Interface: PCIe Gen2 x4 (backward compatible with x8/x16 slots)
- Max Sustained Transfer Rate: Up to 1.6 GB/s to host memory
- On-Board Memory: 512 MB DDR3 frame buffer
- Trigger I/O: Opto-isolated trigger input; programmable strobe output via auxiliary I/O connector
- Supported Pixel Depths: 8-bit, 10-bit, 12-bit, 14-bit, 16-bit mono; RGB/YUV color
- Max Pixel Clock: 85 MHz per tap (CameraLink specification compliant)
- Form Factor: Low-profile PCIe card (full-height bracket included)
- Power Consumption: ≤ 10 W typical
- Operating Temperature: 0 °C to 55 °C
- OS Support: Windows 10/11 (64-bit), Windows Server 2019/2022, Linux (kernel 4.x+)
- SDK / Software: Matrox Imaging Library (MIL) compatible; GenICam/GenTL compliant
- Compliance: CE, FCC Class A, RoHS
- Country of Origin: Canada
- Weight: ~500 g (board + accessories)
Proven Application Environments
- Semiconductor & PCB Inspection: High-speed wafer and die-level defect detection with full-resolution CameraLink sensors
- Flat Panel Display (FPD) Testing: Line-scan and area-scan acquisition for mura and pixel defect analysis
- Web & Print Inspection: Continuous-web acquisition with hardware trigger synchronization for zero-miss defect capture
- Precision Metrology: Sub-pixel measurement systems requiring deterministic, low-latency image transfer
- Medical Imaging: X-ray and fluoroscopy camera integration requiring high bit-depth fidelity
- Robotics & Bin Picking: Multi-camera 3D vision systems with synchronized acquisition
Engineering Advantages
- Deterministic Latency: Hardware-level DMA engine bypasses OS scheduling jitter, ensuring frame-accurate acquisition timing
- Multi-Camera Flexibility: Single board supports Base, Medium, and Full CameraLink configurations without hardware changes
- Large On-Board Buffer: 512 MB DDR3 absorbs burst traffic during host CPU saturation events, preventing frame drops
- MIL SDK Integration: Native support for Matrox Imaging Library enables rapid application development with pre-built vision tools
- Low-Profile Option: Fits 1U rackmount industrial PCs and compact embedded vision platforms
- Long-Term Availability: Matrox Radient eV5 is an active product line with confirmed multi-year supply continuity
System Architecture & Signal Flow
The RADEV5MCLSF implements a direct DMA path from the CameraLink receiver FPGA to host system memory via PCIe Gen2 x4. The on-board FPGA handles pixel reassembly, tap geometry correction, and LUT-based pixel processing before DMA transfer, offloading the host CPU. Trigger signals are routed through opto-isolated circuitry to eliminate ground loop interference in electrically noisy factory environments. The auxiliary I/O connector provides programmable strobe outputs for synchronized illumination control.
Signal Flow: CameraLink Camera → MDR/SDR Connector → FPGA Receiver → DDR3 Frame Buffer → PCIe Gen2 x4 DMA → Host System Memory → MIL / Application Layer
Sourcing & Quality Verification
- Source: Konmask.com sources Matrox products through authorized distribution and verified secondary market channels with full traceability
- Inspection: Each unit undergoes functional power-on verification and visual inspection prior to shipment
- Authenticity: Serial numbers are cross-referenced against Matrox’s published product identification guidelines
- Packaging: Ships in anti-static ESD packaging with original accessories where available
- Warranty: 90-day Konmask operational warranty; OEM warranty terms apply where applicable
Procurement Process
- Step 1: Submit RFQ via support@konmask.com or place order directly on Konmask.com
- Step 2: Receive proforma invoice with lead time confirmation within 1 business day
- Step 3: Payment via T/T bank transfer, PayPal, or approved credit terms for qualified accounts
- Step 4: Unit ships within 3–7 business days; express DHL/FedEx available on request
- Step 5: Post-delivery technical support available via email and WhatsApp
Technical FAQ
Q: Is the RADEV5MCLSF compatible with Camera Link HS (CLHS) cameras?
A: No. The RADEV5MCLSF supports standard CameraLink (Base/Medium/Full/80-bit) only. For CLHS, refer to Matrox Rapixo CL series.
Q: Can I use two cameras simultaneously on one RADEV5MCLSF?
A: Yes, in dual Base or dual Medium configuration using the appropriate MDR26 Y-cable or dual-port cable assembly.
Q: What MIL version is required?
A: MIL 10.0 or later is recommended. MIL-Lite is included with the board for basic acquisition functionality.
Q: Does this board support Linux?
A: Yes. Matrox provides Linux drivers for kernel 4.x and above. Contact Matrox or Konmask for the latest driver package.
Q: Is export license required for purchase?
A: Buyers are responsible for compliance with applicable export control regulations in their jurisdiction. Konmask provides standard commercial invoice documentation.
