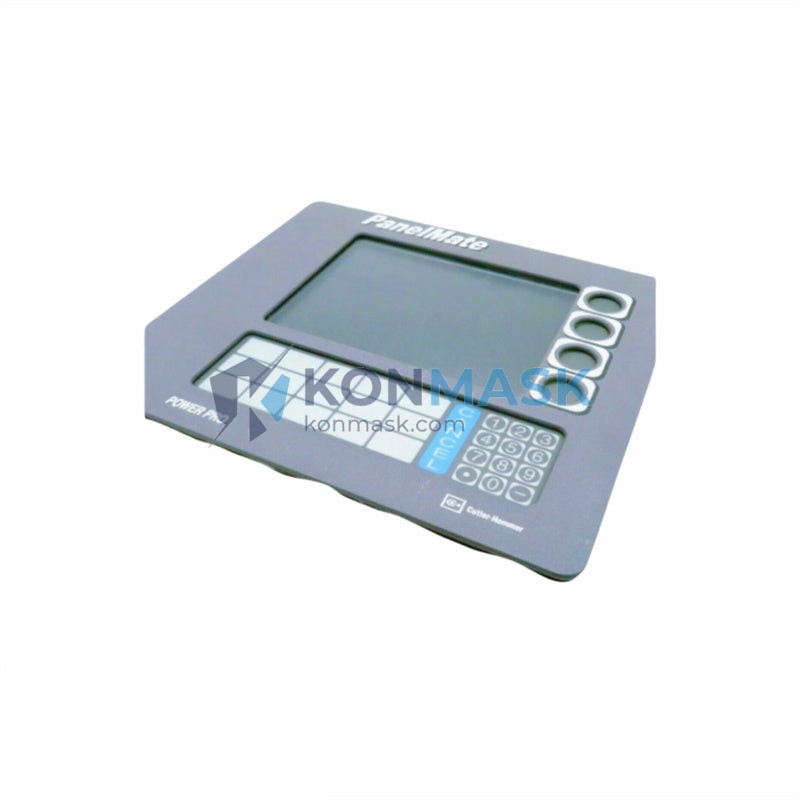

CUTLER HAMMER 1785K-PMPP-1700 Touch Panel – Operator Interface for PLC-5 Platform
Engineering Background: The 1785K-PMPP-1700 is a dedicated touch panel operator interface engineered by Cutler-Hammer (an Eaton brand) for integration with Allen-Bradley PLC-5 series programmable logic controllers. Designed for demanding industrial environments, this HMI provides direct operator interaction with PLC-5 control programs via a resistive touch display, enabling real-time process monitoring and parameter adjustment without a separate programming terminal.
Product Positioning: Targeted at maintenance engineers and system integrators managing legacy PLC-5 installations in manufacturing, utilities, and process industries. The 1785K-PMPP-1700 is the preferred replacement and upgrade path for facilities requiring continued HMI support on existing PLC-5 backplane architectures without full system migration.
Complete Technical Specifications
- Part Number / SKU: 1785K-PMPP-1700
- Manufacturer: Cutler-Hammer (Eaton)
- Series / Platform: PLC-5 Compatible HMI
- Device Type: Touch Panel Operator Interface
- Display Technology: Resistive Touch Screen
- Communication Interface: Compatible with PLC-5 DH+ / RS-232 communication ports
- Power Supply: Industrial DC input (refer to OEM datasheet for exact voltage range)
- Enclosure Rating: Panel-mount, suitable for NEMA 12 / IP54 equivalent environments
- Weight: 1,120 g (2.47 lb)
- Country of Origin: USA
- Condition: Genuine OEM – Tested Surplus / Refurbished Available
Proven Application Environments
- Continuous process manufacturing (chemical, petrochemical, pulp & paper)
- Discrete manufacturing lines with PLC-5 legacy control systems
- Water and wastewater treatment SCADA panels
- Automotive assembly and material handling conveyors
- Power generation and utilities substations
- Food & beverage processing with washdown-adjacent panel installations
Engineering Advantages
- Direct PLC-5 Integration: Native protocol compatibility eliminates gateway hardware and reduces latency in operator command execution.
- Legacy System Continuity: Extends the operational life of PLC-5 installations, deferring costly full-system migrations.
- Rugged Industrial Design: Built to withstand vibration, EMI, and temperature variations typical of factory floor environments.
- Intuitive Operator Interface: Touch-based navigation reduces operator training time and minimizes input errors versus keypad-only terminals.
- Compact Panel-Mount Form Factor: Optimized for retrofit into existing control cabinet cutouts.
System Architecture & Signal Flow
The 1785K-PMPP-1700 connects directly to the PLC-5 processor via the designated communication port (DH+ network or RS-232 serial link). Operator inputs on the touch screen are translated into PLC data table read/write commands. The HMI polls the PLC-5 data files at configurable scan rates, displaying real-time process values, alarm states, and setpoints. Configuration and screen programming are performed offline via compatible HMI development software and downloaded to the panel via serial or network connection.
Signal Flow: Operator Touch Input → HMI Controller → PLC-5 Communication Port → PLC-5 Data Table → HMI Display Update
Sourcing & Quality Verification
- All units sourced from verified industrial surplus channels and authorized distributors.
- Each unit undergoes visual inspection, functional power-on test, and communication port verification prior to shipment.
- Original OEM labels, firmware version, and serial numbers are preserved and documented.
- Counterfeit-risk screening applied: part markings, PCB date codes, and component profiles verified against OEM reference units.
- Certificate of conformance and test report available upon request for critical procurement.
Procurement Process
- Confirm Part Number: Verify 1785K-PMPP-1700 against your existing system BOM or panel drawing.
- Request Quote: Contact Konmask.com via the form below or email support@konmask.com with quantity and delivery requirements.
- Order Confirmation: Receive proforma invoice with lead time, shipping method, and payment terms.
- Quality Documentation: Request test report or CoC if required by your procurement policy.
- Shipment & Tracking: Units shipped with ESD-safe packaging; tracking number provided within 24 hours of dispatch.
- After-Sales Support: Technical assistance available post-delivery for installation and commissioning queries.
Technical FAQ
Q: Is the 1785K-PMPP-1700 compatible with ControlLogix or CompactLogix PLCs?
A: No. This panel is specifically designed for the Allen-Bradley / Cutler-Hammer PLC-5 platform. For ControlLogix/CompactLogix, a different HMI model with EtherNet/IP support is required.
Q: What programming software is required to configure this touch panel?
A: Configuration is performed using the OEM-specified HMI development software compatible with the 1785K series. Contact our technical team for software compatibility guidance.
Q: Can Konmask.com provide a warranty on this unit?
A: Yes. We offer a standard 90-day functional warranty on all tested surplus units. Extended warranty options are available upon request.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. For out-of-stock items, sourcing lead time is typically 5–15 business days depending on availability.
Q: Is DDP (Delivered Duty Paid) shipping available?
A: Yes. We support DDP, DAP, and EXW Incoterms. Please specify your preferred trade term when requesting a quote.
