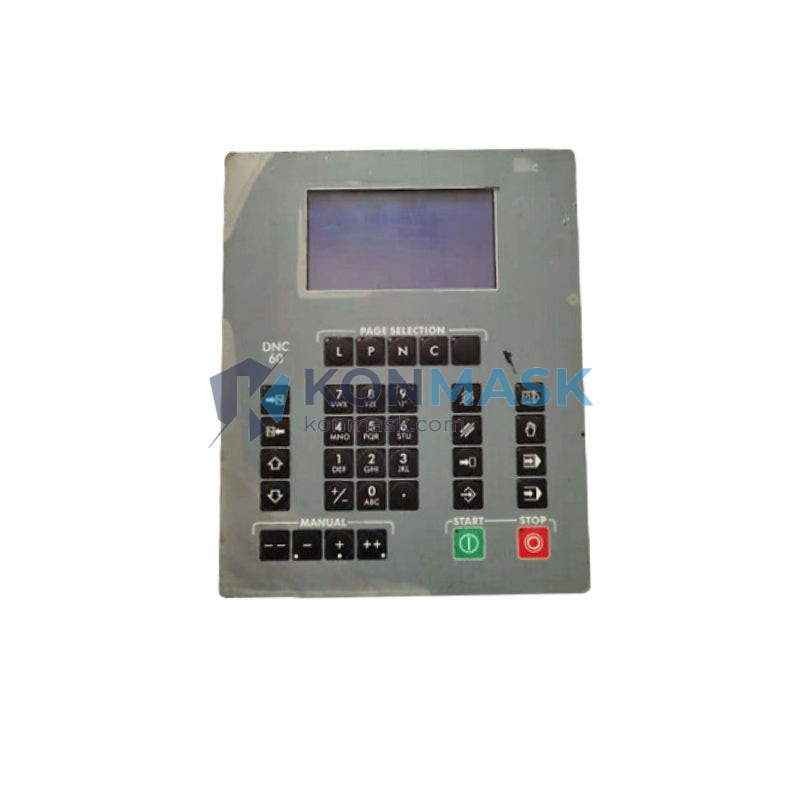

Cybelec S-DNC-61G/CUT V-DNC-61G/16 – Integrated CNC Display & Control Interface | DNC-61G Series Platform
Engineering Background
The Cybelec DNC-61G platform was engineered specifically for high-precision sheet-metal forming and wire EDM cutting environments. As a Swiss-origin CNC control specialist, Cybelec developed the DNC-61G series to address the demanding real-time interpolation, axis synchronization, and operator interface requirements of modern press brake and wire-cut EDM machinery. The S-DNC-61G/CUT V-DNC-61G/16 system screen is the primary human-machine interface (HMI) component of this platform — integrating display, input, and control logic into a single ruggedized assembly.
Product Positioning
This unit serves as a direct OEM replacement or upgrade screen for Cybelec DNC-61G-equipped press brakes and wire EDM machines. It is specified by maintenance engineers and procurement teams seeking to restore full CNC functionality without replacing the entire control cabinet. Konmask.com supplies this component with verified provenance, supporting industrial facilities across Asia, Europe, and the Americas.
Complete Technical Specifications
- Part Number: S-DNC-61G/CUT V-DNC-61G/16
- Manufacturer: Cybelec (Switzerland)
- Series / Platform: DNC-61G
- Component Type: CNC System Screen / HMI Display Assembly
- Compatible Machine Types: Press Brake, Wire EDM (CUT)
- Display Version: V-DNC-61G/16
- Interface: Integrated operator panel with CNC control logic
- Mounting: OEM panel-mount, direct replacement
- Weight (shipping): 5.3 kg
- Origin: Switzerland
- Condition: New / Refurbished (specify at inquiry)
Proven Application Environments
- Press Brake Forming Lines – Replaces failed or degraded HMI screens on Cybelec DNC-61G-controlled press brakes; restores full bending program management, axis positioning display, and tooling data entry.
- Wire EDM Cutting Machines – The “/CUT” designation confirms compatibility with wire-cut EDM controllers; supports contour programming, cutting parameter display, and real-time feed monitoring.
- Sheet Metal Fabrication Shops – Facilities running multi-shift operations where HMI reliability is critical to uptime and part quality.
- Toolroom & Precision Job Shops – Low-volume, high-mix environments requiring accurate bend angle and EDM path visualization.
- OEM Machine Refurbishment – Machine rebuilders and retrofitters restoring Cybelec-equipped machines to original specification.
Engineering Advantages
- OEM-Matched Interface: Exact form, fit, and function replacement — no firmware patching or parameter remapping required in standard swap scenarios.
- Dual-Application Design: A single SKU covers both press brake (S-DNC-61G) and wire EDM (CUT V-DNC-61G/16) variants, simplifying spare-parts inventory management.
- Ruggedized for Shop Floor: Designed to Cybelec’s industrial-grade standards for vibration, EMI, and thermal cycling typical of metal-forming environments.
- Reduced Downtime Risk: Stocking this screen as a critical spare eliminates multi-week lead times associated with factory-direct orders during machine breakdowns.
- Swiss Engineering Pedigree: Cybelec’s DNC-61G platform is recognized globally for interpolation accuracy and long service life in demanding production environments.
System Architecture & Signal Flow
The S-DNC-61G/CUT V-DNC-61G/16 screen assembly sits at the top of the DNC-61G control hierarchy:
- Operator Input Layer: Keypad, touchscreen (if equipped), and function keys feed commands into the CNC kernel.
- Display Layer: V-DNC-61G/16 display renders axis positions, program status, alarm codes, and tooling parameters in real time.
- Control Bus Interface: The screen communicates with the DNC-61G main CPU board via the proprietary Cybelec internal bus — no external converter required.
- I/O Signal Routing: Axis feedback signals (encoder data), M-function outputs, and safety interlock status are visualized through this HMI layer.
- Alarm & Diagnostics: Fault codes, axis error states, and program execution logs are displayed and logged through the screen interface.
Sourcing & Quality Verification
- All units sourced through verified industrial supply channels with documented chain of custody.
- Pre-shipment inspection includes visual examination, connector integrity check, and where applicable, power-on functional verification.
- Serial number and firmware version recorded and provided with shipment documentation upon request.
- Packaging: anti-static foam-lined carton with moisture barrier; compliant with international air and sea freight standards.
- Warranty: 90-day replacement warranty against manufacturing defects (DOA policy applies).
Procurement Process
- Submit Inquiry: Contact support@konmask.com with your machine model, current DNC-61G firmware version, and required delivery timeline.
- Quotation: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options.
- Order Confirmation: Purchase order or proforma invoice accepted; T/T, L/C, and trade assurance payment terms available.
- Inspection & Dispatch: Unit inspected, documented, and dispatched via DHL Express, FedEx, or sea freight per your preference.
- After-Sales Support: Installation guidance and compatibility confirmation provided by Konmask technical team post-delivery.
Technical FAQ
Q: Is this screen compatible with all DNC-61G variants?
A: This SKU (S-DNC-61G/CUT V-DNC-61G/16) is confirmed compatible with DNC-61G press brake and wire EDM (CUT) configurations. Please provide your machine’s full control model number at inquiry to confirm exact compatibility.
Q: Can this screen be used as a standalone upgrade on older DNC-6x series machines?
A: Compatibility with earlier DNC-6x series (e.g., DNC-60, DNC-600) requires hardware and firmware verification. Contact our technical team before ordering.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days. Out-of-stock units have a 4–8 week lead time depending on sourcing channel. Expedited sourcing available upon request.
Q: Do you provide installation support?
A: Yes. Konmask provides remote technical guidance for screen replacement procedures. On-site support can be arranged through our partner network in select regions.
Q: Is a refurbished unit available at lower cost?
A: Yes. Professionally refurbished units with 90-day warranty are available. Specify “refurbished” in your inquiry for pricing.
