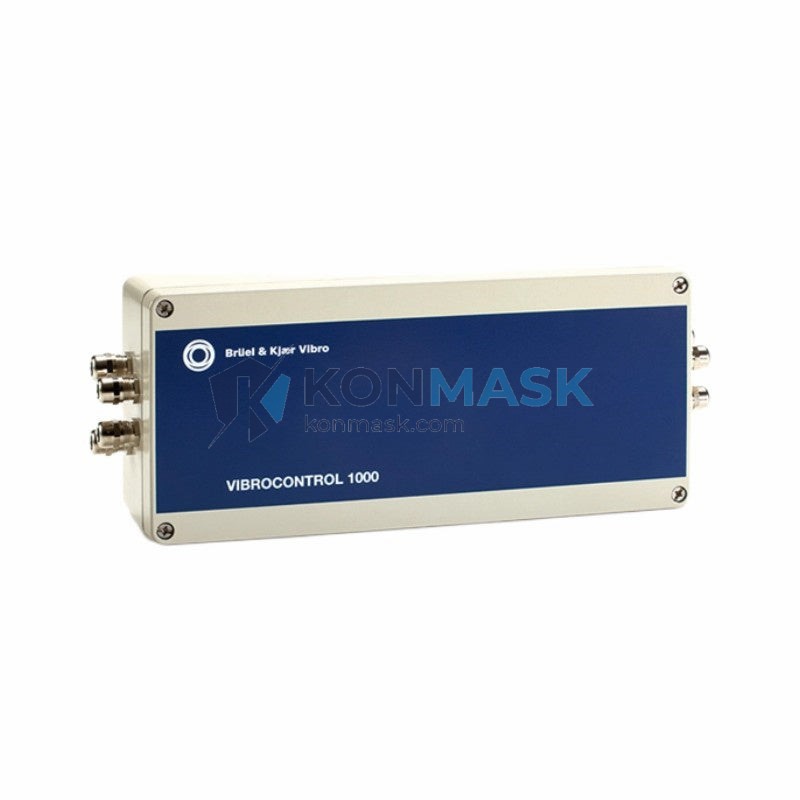

B&K Vibro VC-1100 C11 – Bearing Vibration Monitoring Sensor | Condition Monitoring Platform
Engineering Background
Brüel & Kjær Vibro (B&K Vibro) is a globally recognized leader in machine condition monitoring and protection systems, with decades of deployment across power generation, petrochemical, marine, and heavy industrial sectors. The VC-1100 series represents the company’s precision-grade vibration transducer platform, engineered for continuous bearing health surveillance in rotating machinery.
Product Positioning
The VC-1100 C11 is a high-sensitivity bearing vibration monitoring sensor designed for integration into both standalone condition monitoring systems and distributed plant-wide CMS networks. It delivers reliable, low-noise vibration signals from rolling-element bearings, enabling early fault detection and predictive maintenance scheduling — critical for minimizing unplanned downtime in asset-intensive operations.
Complete Technical Specifications
| Manufacturer | Brüel & Kjær Vibro (B&K Vibro) |
| Model / Part No. | VC-1100 C11 |
| Function | Bearing Vibration Monitoring Sensor |
| Measurement Type | Acceleration / Vibration (bearing-band) |
| Sensing Element | Piezoelectric crystal (IEPE / ICP® compatible) |
| Frequency Range | Bearing-band high-frequency detection (application-specific) |
| Output Signal | 4–20 mA / voltage analog or digital (per system integration) |
| Mounting | Stud mount / magnetic base (C11 variant) |
| Housing Material | Stainless steel, IP67-rated enclosure |
| Operating Temperature | –40 °C to +120 °C |
| Weight | Approx. 400 g (with cable) |
| Connector | MIL-spec / M12 (variant-dependent) |
| Compliance | CE, ATEX (zone-dependent configuration) |
| Compatible Systems | VIBROCONTROL 8000, VC-8000, SETPOINT, third-party CMS via IEPE input |
Note: Confirm exact datasheet parameters with Konmask technical team prior to final specification lock-in. Specifications subject to revision per B&K Vibro product updates.
Proven Application Environments
- Power Generation: Steam turbine bearing monitoring, generator end-shield vibration surveillance
- Oil & Gas / Petrochemical: Compressor and pump bearing health tracking in continuous-process plants
- Marine & Offshore: Propulsion shaft bearing monitoring under variable load conditions
- Heavy Industry: Rolling mill, paper machine, and cement kiln bearing condition assessment
- Water & Wastewater: High-speed pump and blower bearing surveillance
- Predictive Maintenance Programs: Integration with CMMS/EAM platforms for automated alert generation
Engineering Advantages
- High-Frequency Sensitivity: Optimized for early-stage bearing defect detection via envelope analysis and bearing-band monitoring — catches faults weeks before failure
- Low Noise Floor: Piezoelectric IEPE design ensures clean signal output even in high-EMI industrial environments
- Robust IP67 Enclosure: Stainless steel housing withstands washdown, coolant exposure, and harsh ambient conditions
- Wide Temperature Range: –40 °C to +120 °C operational envelope covers cryogenic to high-heat process zones
- Plug-and-Play Integration: IEPE/ICP® standard output ensures compatibility with B&K Vibro systems and third-party CMS platforms
- Long Service Life: Hermetically sealed sensing element with no moving parts — minimal maintenance requirement
System Architecture & Signal Flow
The VC-1100 C11 operates as a field-mounted transducer within a layered condition monitoring architecture:
- Sensor Layer: VC-1100 C11 mounted on bearing housing → captures raw vibration acceleration signal
- Signal Conditioning: IEPE constant-current excitation supplied by monitoring module (e.g., VC-8000 I/O card or third-party IEPE conditioner)
- Processing Layer: Monitoring system performs RMS, peak, envelope (bearing-band), and spectral analysis
- Alarm & Trending: Alert/danger thresholds trigger DCS/PLC outputs; trend data logged to historian or CMMS
- Reporting: Maintenance teams receive actionable bearing health KPIs — ISO 10816 / ISO 20816 compliant reporting
Sourcing & Quality Verification
- Source: Konmask.com sources B&K Vibro products through authorized distribution and verified surplus channels with full traceability
- Inspection: Each unit undergoes visual inspection, label verification, and functional check prior to dispatch
- Documentation: Original manufacturer documentation, calibration certificates, and test reports available upon request
- Warranty: 12-month Konmask quality guarantee; OEM warranty terms apply where applicable
- Counterfeit Prevention: All units verified against B&K Vibro part number databases; no grey-market or refurbished stock without explicit disclosure
Procurement Process
- Inquiry: Submit RFQ via Konmask.com product page or email support@konmask.com with quantity, delivery timeline, and project details
- Quotation: Receive itemized quote with lead time, freight options, and payment terms within 1 business day
- Order Confirmation: PO accepted via email or Shopify checkout; proforma invoice issued for wire transfer orders
- Quality Check & Dispatch: Unit inspected, packed with anti-static protection, and shipped with tracking
- After-Sales Support: Technical integration support available post-delivery; replacement/return handled per Konmask policy
Technical FAQ
Q: Is the VC-1100 C11 compatible with third-party CMS platforms?
A: Yes. The IEPE/ICP® output standard is universally compatible with any monitoring system that provides constant-current excitation (typically 2–20 mA at 18–30 VDC). Confirm input impedance and excitation current with your system supplier.
Q: What is the difference between the C11 and other VC-1100 variants?
A: The C11 suffix designates the mounting and connector configuration. Contact Konmask to confirm the exact variant matches your mechanical interface and cable routing requirements.
Q: Can this sensor be used in ATEX/hazardous area zones?
A: ATEX-rated configurations of the VC-1100 series exist. Confirm the specific Ex certification (zone, gas group, temperature class) required for your installation before ordering.
Q: What is the typical lead time?
A: In-stock units ship within 2–5 business days. For out-of-stock items, lead time is 2–6 weeks depending on sourcing channel. Contact us for real-time availability.
Q: Do you provide calibration certificates?
A: Original factory calibration documentation is provided where available. Third-party calibration can be arranged upon request at additional cost.
