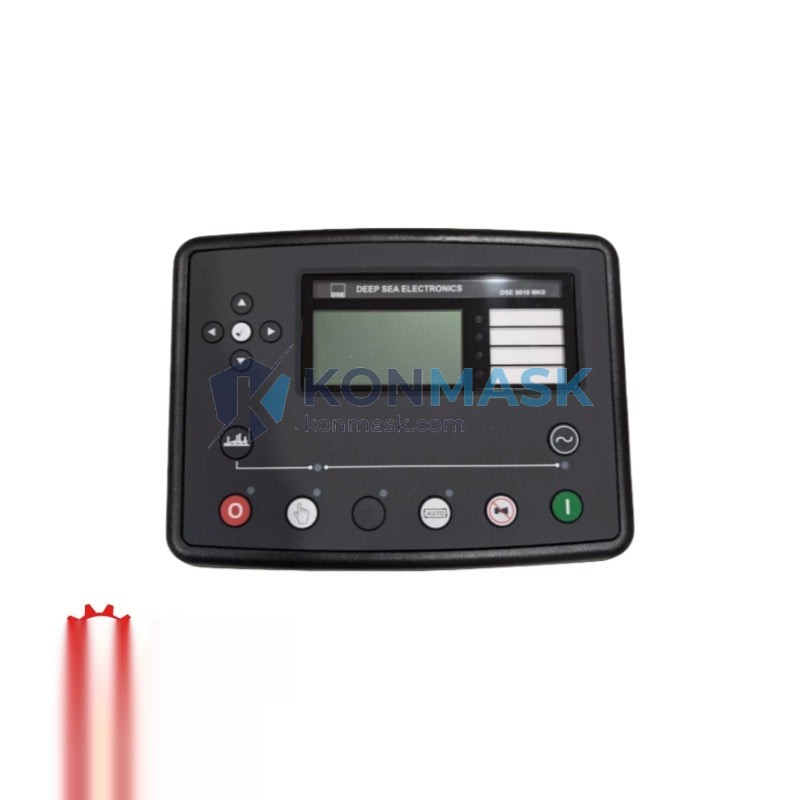

Deep Sea Electronics DSE8610 MKII Generator Control Module – DSE8000 Series Advanced AMF Controller
When a generator fails to start automatically during a mains power outage, the consequences can be catastrophic — hospitals lose life-support power, data centers suffer unrecoverable data loss, and industrial production lines grind to a halt. In mission-critical environments, the intelligence behind automatic mains failure (AMF) detection and generator start sequencing is not optional — it is the difference between continuity and crisis. The Deep Sea Electronics DSE8610 MKII Generator Control Module is engineered precisely to eliminate that risk.
The DSE8610 MKII occupies a flagship position within Deep Sea Electronics’ renowned DSE8000 Series — a product family trusted by generator OEMs, panel builders, and facility engineers across more than 100 countries. As a second-generation MKII refinement, this module delivers enhanced measurement accuracy, expanded communication protocols, and a more intuitive operator interface compared to its predecessor, making it one of the most specified AMF controllers in the global standby power market.
Technical Specifications
- Model: DSE8610 MKII
- Manufacturer: Deep Sea Electronics (DSE), UK
- Series: DSE8000 Series
- Function: Automatic Mains Failure (AMF) & Auto-Start Generator Controller
- Display: Backlit LCD with multi-language support
- Supply Voltage: 8–35 V DC
- Operating Temperature: -30°C to +70°C
- Protection Rating: IP65 (front panel)
- Communication: RS-232, RS-485 (Modbus RTU), USB, Ethernet (optional)
- Inputs: Configurable digital & analogue inputs for engine/alternator sensing
- Outputs: Relay outputs for fuel, start, load transfer, and alarm functions
- Weight: 800 g (approx.)
- Certifications: CE, RoHS compliant
Note: Specifications are based on published DSE documentation. Always verify against the official DSE8610 MKII datasheet for your specific application.
Key Features & Benefits
- Automatic Mains Failure Detection: Continuously monitors mains voltage and frequency; initiates generator start sequence within configurable time delays upon mains loss.
- Comprehensive Engine Protection: Monitors oil pressure, coolant temperature, battery voltage, and over/under speed — shutting down the generator safely before damage occurs.
- MKII Enhanced Accuracy: Improved measurement resolution for voltage, current, frequency, and power parameters compared to the original DSE8610.
- Remote Monitoring & Control: Modbus RTU over RS-485 enables integration with SCADA systems and building management systems (BMS).
- Event Log & Diagnostics: Stores alarm history and operational events for post-fault analysis and preventive maintenance planning.
- Configurable via DSE Configuration Suite: All timers, thresholds, and I/O assignments are fully configurable via PC software — no hardware changes required.
- IP65 Front Panel: Suitable for harsh industrial environments with dust and water ingress protection.
- Multi-Language Display: Supports operator interfaces in multiple languages for global deployment.
Industry & Equipment Applications
- Data Centers & IT Infrastructure: Ensures uninterrupted power for servers and network equipment during grid outages.
- Hospitals & Healthcare Facilities: Critical standby power management for life-support and surgical equipment.
- Oil & Gas Platforms: Reliable generator control in offshore and onshore production environments.
- Telecom Base Stations: Automatic generator start for remote and unmanned communication sites.
- Industrial Manufacturing Plants: Prevents production downtime caused by unexpected mains failures.
- Commercial Buildings & Hotels: Seamless power transfer management for elevators, HVAC, and emergency lighting.
- Water Treatment & Utilities: Maintains pump and treatment process continuity during power interruptions.
System Integration & Compatible Parts
The DSE8610 MKII is designed for seamless integration within DSE-based generator control panels. Compatible and commonly paired components include:
- DSE855 MKII — PC Interface & Data Logger Module
- DSE2130 — Remote Annunciator Panel
- DSE9480 — Battery Charger
- DSE8610 MKII Harness Kit — OEM wiring harness for panel integration
- Compatible with Deepsea, Stamford, Leroy Somer, and Mecc Alte alternators
- Supports Cummins, Perkins, Volvo Penta, MTU, and Caterpillar engine CAN interfaces
Our Quality Assurance Process
At Konmask.com, every DSE8610 MKII unit we supply undergoes a rigorous sourcing and verification process:
- Authorized Supply Chain: Units are sourced from verified distributors and authorized channels to ensure authenticity.
- Visual & Functional Inspection: Each module is inspected for physical integrity, label authenticity, and firmware version verification.
- Traceability: Batch and serial number records are maintained for full supply chain traceability.
- Packaging Integrity: Products are shipped in original or equivalent protective packaging to prevent transit damage.
- Documentation: Original datasheets and configuration guides are available upon request.
How to Order
- Submit your inquiry via the Contact / Request a Quote form on this page.
- Provide your required quantity, delivery destination, and any specific firmware or configuration requirements.
- Our technical team will respond within 1 business day with availability, lead time, and a formal quotation.
- Upon order confirmation, we arrange secure packaging and international shipping with full tracking.
For urgent requirements, contact us directly at [email protected] or call +0086 19859288691.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control components — PLC modules, DCS parts, HMI, drives, and power generation controls.
- Global B2B Supply: Serving OEMs, system integrators, and MRO buyers in over 50 countries.
- Technical Expertise: Our team includes qualified automation engineers who can assist with compatibility and application questions.
- Fast Response: Quotations within 24 hours; expedited sourcing for critical downtime situations.
- Secure Transactions: T/T, L/C, and other B2B payment terms available.
- After-Sales Support: Assistance with installation documentation, configuration guides, and warranty claims.
Frequently Asked Questions
Q: What is the difference between DSE8610 and DSE8610 MKII?
A: The MKII version features improved measurement accuracy, enhanced communication options, and updated firmware compared to the original DSE8610. It is the current production variant recommended by Deep Sea Electronics.
Q: Can the DSE8610 MKII be used for parallel generator applications?
A: The DSE8610 MKII is designed for single generator AMF applications. For parallel/synchronizing applications, DSE recommends the DSE8660 MKII or DSE8680 MKII.
Q: Is the DSE8610 MKII compatible with all generator brands?
A: Yes, it is compatible with most generator sets. Engine-specific CAN interfaces (J1939) are supported for major engine brands including Cummins, Perkins, Volvo Penta, and MTU.
Q: Do you provide the DSE Configuration Suite software?
A: The DSE Configuration Suite is freely available from Deep Sea Electronics’ official website. We can assist with configuration guidance upon request.
Q: What is the minimum order quantity (MOQ)?
A: We supply from single units upward. There is no minimum order quantity for standard stock items. Contact us for volume pricing on larger orders.
Q: How long does international shipping take?
A: Shipping times vary by destination. Express courier (DHL/FedEx/UPS) typically delivers within 3–7 business days globally. Sea freight options are available for bulk orders.
