Safety Instrumented System Analog Input Solution – TRICONEX 3704E | Tricon Series
In high-hazard process facilities, analog signal integrity is not a performance metric — it is a safety boundary. Field transmitters monitoring pressure, temperature, flow, and level feed directly into Safety Instrumented Functions (SIFs) that must respond within defined process safety times. When an analog input module fails to detect a 4–20 mA deviation, drifts out of calibration, or loses a channel without alarming, the entire Safety Instrumented System (SIS) may fail to act. Industry data indicates that instrumented protective layer failures account for over 30% of SIS-related incidents in oil and gas facilities, with analog input faults representing a disproportionate share of undetected dangerous failures.

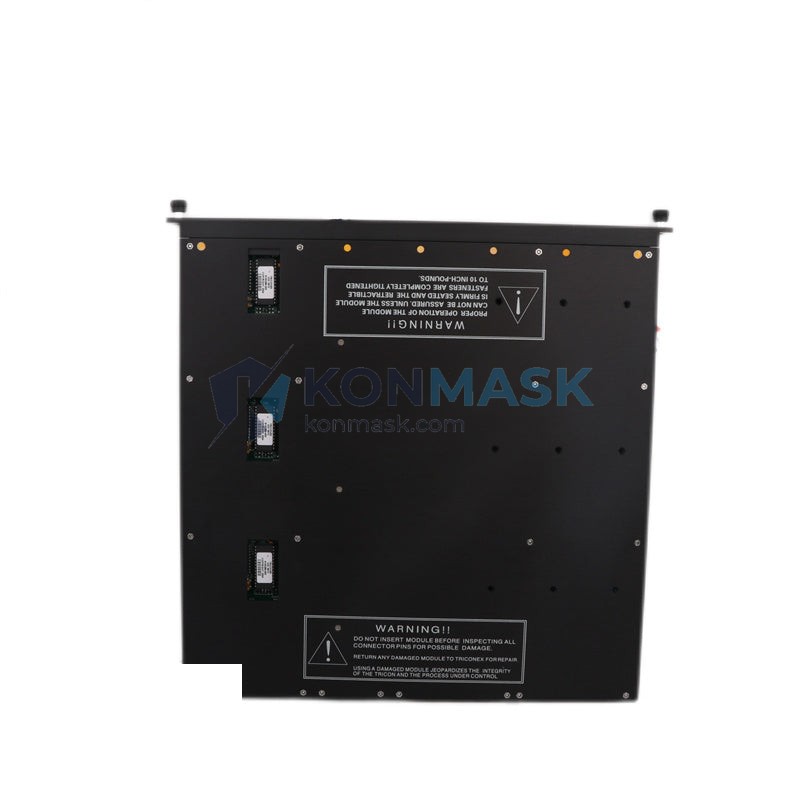

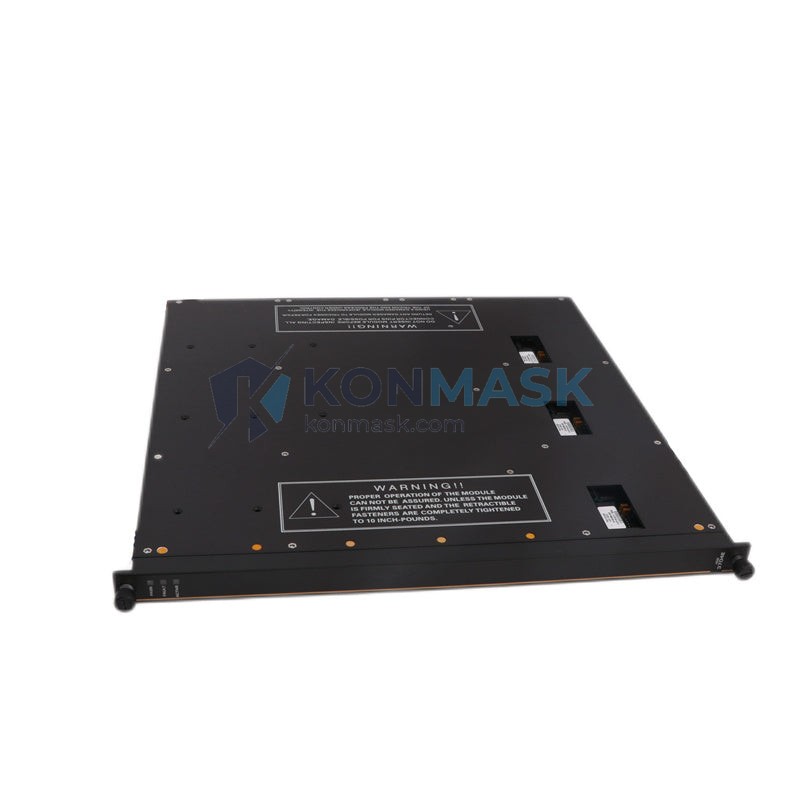

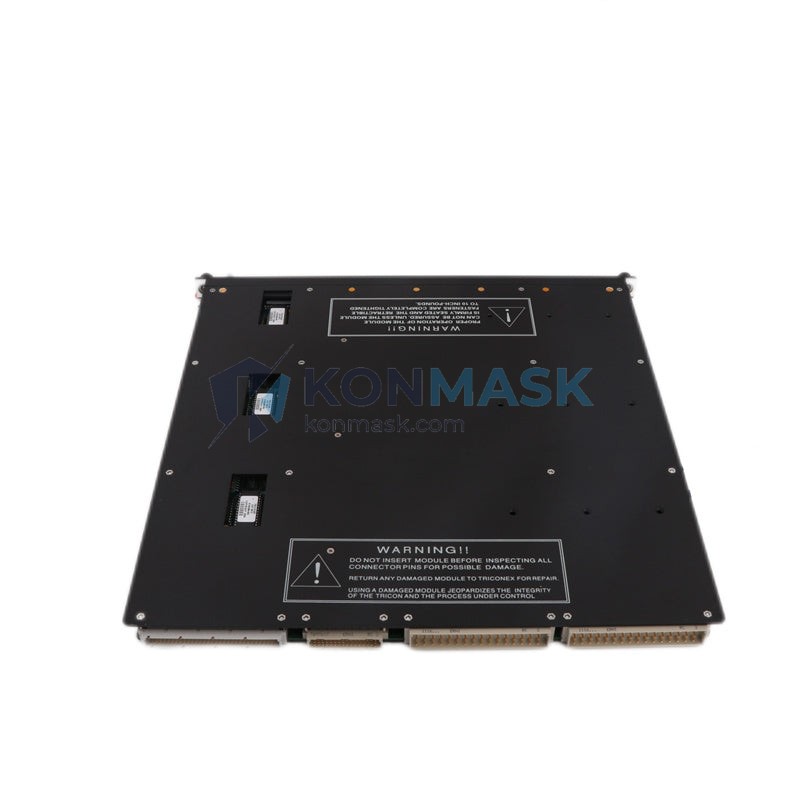

The TRICONEX 3704E Analog Input Module eliminates this risk at the hardware level. Built on Triconex’s proven Triple Modular Redundant (TMR) architecture, the 3704E continuously compares three independent signal paths for every channel. Any discrepancy — whether caused by sensor drift, wiring fault, or module degradation — is detected, voted, and alarmed before it can propagate to a spurious trip or, more critically, a dangerous undetected failure. The result is a module that sustains SIL 2 and SIL 3 loop integrity across the full process lifecycle, from commissioning through turnaround.
Where This Product Is Used
Oil & Gas – Upstream Production
Wellhead pressure and temperature monitoring on Christmas tree assemblies; subsea umbilical signal conditioning for topside SIS; separator level control loops operating at 150 psig and above. Environment: H₂S exposure, Class I Div 2 / Zone 1 hazardous area, ambient −40 °C to +70 °C. Standard: IEC 61511, API 14C.
Oil & Gas – Midstream Pipeline & Compression
Compressor suction/discharge pressure monitoring; pipeline pig receiver level detection; metering station flow transmitter inputs. Environment: outdoor enclosures, wide diurnal temperature swings, vibration from rotating equipment. Standard: ANSI/ISA 84.00.01, IEC 61511.
Petrochemical & Refining
Reactor feed flow and temperature SIFs in hydrocracking and catalytic reforming units; fired heater fuel gas pressure monitoring; distillation column differential pressure inputs. Environment: continuous operation, process temperatures to 400 °C, corrosive atmospheres. Standard: IEC 61511, OSHA PSM 29 CFR 1910.119.
Chemical Processing
Exothermic reactor temperature monitoring with SIL 2 requirements; chlorine and ammonia storage tank level SIFs; batch process pressure relief interlock inputs. Environment: aggressive chemical vapors, humidity to 95% RH non-condensing. Standard: IEC 61511, NFPA 72.
Power Generation
Turbine lube oil pressure and temperature monitoring; boiler drum level SIFs; generator hydrogen seal oil pressure inputs. Environment: high-vibration turbine halls, EMI from large rotating machines, 24/7 continuous operation. Standard: IEC 61508, NERC CIP (where applicable).
Nuclear & Critical Infrastructure
Balance-of-plant analog monitoring in non-safety-class but high-reliability applications; cooling water system flow and temperature inputs; emergency diesel generator fuel level monitoring. Environment: seismically qualified installations, strict EMC requirements, extended calibration intervals. Standard: IEC 61513, IEEE 603.
Technical Specifications
| Parameter | Value | Application Relevance |
|---|---|---|
| Module Type | Analog Input | Accepts 4–20 mA and voltage signals from field transmitters |
| Architecture | Triple Modular Redundant (TMR) | Three independent signal paths; 2-of-3 voting eliminates single-point failures |
| Series | Tricon | Compatible with Tricon v9/v10 chassis and Main Processors |
| Part Number | 3704E | Direct replacement for legacy 3704 in existing Tricon installations |
| SIL Rating | SIL 2 / SIL 3 capable | Supports high-demand and continuous-mode SIFs per IEC 61511 |
| Input Signal Range | 4–20 mA (standard); configurable voltage | Universal compatibility with HART and conventional transmitters |
| Channel Count | 16 channels per module | High-density I/O reduces chassis slots and wiring costs |
| Diagnostic Coverage | >99% (DC) | Meets IEC 61508 requirements for SIL 3 hardware fault tolerance |
| Operating Temperature | 0 °C to +60 °C | Suitable for climate-controlled control rooms and marshalling cabinets |
| Weight | 3,000 g (approx.) | Standard Tricon module form factor; no chassis modification required |
| Power Consumption | Per Tricon chassis specification | Powered via backplane; no external supply required |
| Communication | Tricon backplane bus | Seamless integration with Tricon Main Processor and TriStation 1131 |
| Isolation | Channel-to-channel and channel-to-backplane | Prevents common-cause failures across SIF loops |
Why Engineers Specify This Model
In high-demand SIL 2 reactor temperature loops, the 3704E delivers continuous 2-of-3 voted signal integrity because its TMR architecture detects single-channel drift without process interruption, meeting IEC 61511 Clause 11 hardware requirements for SIL 2 SIFs.
In offshore platform wellhead pressure monitoring, the 3704E delivers fault-tolerant operation in Class I Div 2 environments because its isolated channel design and TMR voting prevent a single wiring fault from causing a spurious shutdown, meeting API 14C and IEC 61511 requirements.
In refinery fired heater fuel gas pressure SIFs, the 3704E delivers sub-second fault detection because its online diagnostics continuously verify signal path integrity without requiring a proof test interruption, meeting OSHA PSM and IEC 61511 proof test interval requirements.
In power plant turbine protection systems, the 3704E delivers high EMI immunity because its isolated analog front-end rejects common-mode noise from large rotating machinery, meeting IEC 61000-4 EMC requirements for industrial environments.
In chemical plant exothermic reactor SIFs, the 3704E delivers long-term calibration stability because its precision analog circuitry maintains accuracy across extended proof test intervals, meeting IEC 61511 requirements for systematic capability.
In pipeline compressor station SIS upgrades, the 3704E delivers backward compatibility with existing Tricon v9/v10 chassis because it is a direct plug-in replacement for the legacy 3704 module, meeting project requirements for zero-modification installation and minimizing turnaround time.
Complete System Bill of Materials
The following components are typically specified alongside the TRICONEX 3704E in a complete Tricon SIS loop:
| Component | Typical Part / Type | Function & Relationship to 3704E |
|---|---|---|
| Tricon Main Processor | 4351B / 4352B | Executes safety logic; receives voted analog values from 3704E via backplane |
| Tricon Chassis | 7-slot / 14-slot | Physical housing; provides backplane power and communication bus for 3704E |
| Power Supply Module | 8312 / 8310 | Redundant chassis power; ensures 3704E operates during single PSU failure |
| Termination Assembly | 3000-series TA | Field wiring interface; connects 4–20 mA transmitters to 3704E channels |
| HART Multiplexer | Third-party HART MUX | Enables HART device management on 3704E analog channels |
| Field Transmitter | Rosemount 3051 / Yokogawa EJA | Source of 4–20 mA signal; must be SIL-rated to match loop SIL target |
| TriStation 1131 Software | v4.x / v5.x | Engineering workstation software for 3704E channel configuration and diagnostics |
| Communication Module | 4119A / 4120A | Enables Modbus/OPC connectivity for DCS integration of 3704E analog data |
| Surge Protection | MTL / Phoenix Contact SPD | Protects 3704E input channels from field-side lightning and surge events |
Compliance & Industry Standards
| Standard / Certification | Issuing Body | Practical Meaning for Buyers |
|---|---|---|
| IEC 61508 | IEC (International Electrotechnical Commission) | Functional safety of E/E/PE systems; confirms 3704E hardware meets SIL 2/3 PFD and architectural constraints |
| IEC 61511 | IEC | Process industry SIS standard; 3704E is qualified for use in SIL 2/3 Safety Instrumented Functions |
| TÜV Rheinland Certification | TÜV Rheinland | Third-party functional safety assessment; required by many EPCs and insurers as evidence of independent verification |
| CE Marking | European Commission | Confirms compliance with EU EMC and Low Voltage Directives; required for EU project installations |
| FM / CSA Approval | FM Global / CSA Group | North American hazardous area approval; confirms suitability for Class I Div 2 installations |
| ATEX / IECEx | Notified Bodies / IECEx Secretariat | International hazardous area certification; required for Zone 1/2 installations in EU and global projects |
| RoHS Compliance | European Commission | Restriction of hazardous substances; confirms module meets EU environmental directives |
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources TRICONEX 3704E modules exclusively from authorized distributors, certified surplus dealers with documented chain of custody, and direct OEM channels. We do not source from unverified secondary markets.
4-Step Inspection Process:
Step 1 – Visual & Physical Inspection: Board-level inspection for corrosion, component damage, counterfeit indicators, and label authenticity verification against OEM specifications.
Step 2 – Functional Bench Test: Module powered in a Tricon test chassis; all 16 analog input channels verified for signal accuracy, diagnostic response, and backplane communication.
Step 3 – Firmware & Revision Verification: Firmware version confirmed and documented; hardware revision cross-referenced against OEM compatibility matrices for target Tricon system version.
Step 4 – Documentation Package Assembly: All available OEM documentation, test records, and chain-of-custody records compiled and provided with shipment.
Available Documentation: OEM datasheet, functional safety manual, TÜV certificate (where available), test report, packing list with serial number, and certificate of conformance on request.
How to Source This Part
Step 1 – Submit Your Inquiry: Contact us at support@konmask.com or via the product page inquiry form with your required quantity, target delivery date, and Tricon system version (v9 or v10). We respond within 24 hours on business days.
Step 2 – Receive Quote & Availability Confirmation: We confirm stock status, firmware revision, and provide a formal quotation with lead time. For urgent SIS maintenance requirements, expedited processing is available.
Step 3 – Order, Inspect & Ship: Upon order confirmation, your 3704E undergoes our 4-step inspection process. We ship globally via DHL, FedEx, and UPS with full export documentation, commercial invoice, and packing list. EXW, FOB, and CIF terms available.
📞 +0086 19859288691 | ✉ support@konmask.com | 🌐 konmask.com
Application-Specific FAQ
Q: Can the TRICONEX 3704E be used in a SIL 3 Safety Instrumented Function for a high-pressure reactor application?
A: Yes. The 3704E’s TMR architecture with >99% diagnostic coverage supports SIL 3 loop integrity when used with appropriately rated field transmitters and a SIL 3-capable Tricon Main Processor. A full SIL verification calculation per IEC 61511 Clause 12 is required to confirm the complete loop PFD meets the SIL 3 target. We can provide the 3704E functional safety manual and TÜV certificate to support your SIL verification.
Q: Is the 3704E compatible with our existing Tricon v9 chassis in a refinery fired heater SIS upgrade?
A: The 3704E is designed for the Tricon platform and is compatible with Tricon v9 and v10 chassis. It is a direct replacement for the legacy 3704 module with no chassis modification required. We verify firmware revision compatibility with your specific Main Processor version before shipment. Please provide your Main Processor part number and TriStation version when inquiring.
Q: What documentation can you provide to support our offshore platform SIS Management of Change (MOC) process?
A: We provide a complete documentation package including OEM datasheet, functional safety manual, TÜV Rheinland certificate (where available), our internal functional test report with channel-level results, serial number record, and certificate of conformance. For IEC 61511 MOC requirements, this package supports hardware qualification, proof test record updates, and safety case documentation. Additional documentation requirements can be discussed at the inquiry stage.
