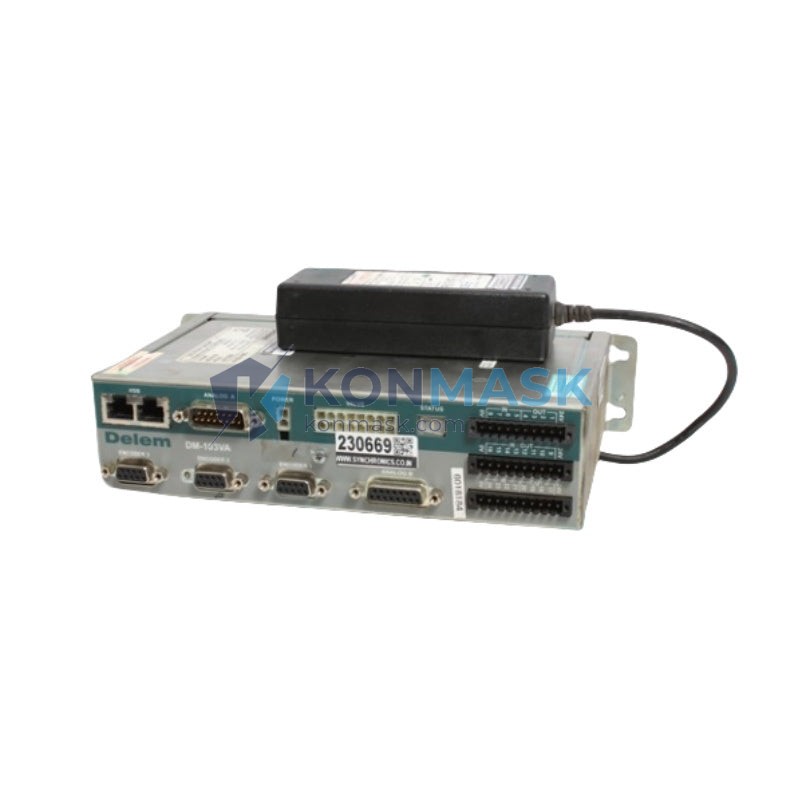

Delem DM-103VA – Multi-Axis Press Brake CNC Controller | DM Series Platform
Engineering Background: The Delem DM-103VA (part number 8576-001) is a dedicated CNC control unit engineered for hydraulic and electro-hydraulic press brake machines. Delem, headquartered in the Netherlands, has been the global benchmark for press brake and laser cutting CNC systems since 1968. The DM Series represents Delem’s mid-range control platform, balancing advanced multi-axis synchronization with a robust, field-proven hardware architecture trusted by OEMs and sheet metal fabricators worldwide.
Product Positioning: The DM-103VA targets production environments requiring precise Y1/Y2 axis synchronization, programmable back-gauge control, and reliable angle accuracy across high-volume bending cycles. It is the preferred retrofit and OEM-fit controller for press brakes in the 40–400 ton range, replacing legacy analog control boards with a fully digital, programmable CNC platform.
Complete Technical Specifications
- Part Number: 8576-001
- Model: DM-103VA
- Manufacturer: Delem (Netherlands)
- Series: DM Series CNC Platform
- Control Axes: Y1, Y2 (ram synchronization) + X-axis back-gauge (expandable)
- Machine Compatibility: Hydraulic press brakes, electro-hydraulic press brakes
- Tonnage Range: 40–400 ton class machines (typical)
- Programming: Graphical 2D bend sequence programming
- Interface: Backlit LCD display with membrane keypad
- Communication Ports: RS-232 / RS-422 serial interface
- Power Supply: 24 VDC (typical, verify with machine documentation)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -20°C to +70°C
- Enclosure: Panel-mount, IP54 front face (typical)
- Weight: Approx. 800 g (controller unit)
- Certifications: CE marked; RoHS compliant
Proven Application Environments
- Sheet Metal Fabrication Shops: High-cycle bending of mild steel, stainless, and aluminum profiles requiring repeatable angle accuracy (±0.1°)
- HVAC Ductwork Manufacturing: Sequential multi-bend programs for duct flanges and brackets with automatic back-gauge positioning
- Structural Steel Fabrication: Heavy-gauge bending with Y1/Y2 synchronization to prevent ram skew on off-center loads
- Automotive Stamping & Forming: Prototype and low-volume part bending with stored program recall for rapid changeover
- Electrical Enclosure Manufacturing: Precision bending of thin-gauge panels and chassis components with tight angular tolerances
- Press Brake OEM Integration: Factory-fit CNC upgrade for Amada, Trumpf, LVD, Bystronic, and Durma press brake platforms
- Retrofit & Modernization Projects: Drop-in digital replacement for worn or obsolete analog press brake control systems
Engineering Advantages
- Dual-Axis Ram Synchronization: Independent Y1/Y2 servo control eliminates angular deviation across the full stroke, critical for long-bed machines
- Graphical Bend Sequencing: Operator-friendly 2D part programming reduces setup time and minimizes scrap on first-article bends
- Stored Program Library: Non-volatile memory retains bend programs through power cycles, enabling rapid job recall in high-mix production
- Modular I/O Architecture: Expandable axis and I/O configuration supports machine-specific customization without hardware redesign
- Delem Ecosystem Compatibility: Integrates with Delem DA-series offline programming software and DNC file transfer utilities
- Proven Field Reliability: MTBF-rated for continuous 3-shift industrial operation; widely supported by Delem-certified service networks globally
- Compact Panel-Mount Form Factor: Designed for direct integration into existing press brake control cabinets with minimal mechanical modification
System Architecture & Signal Flow
The DM-103VA operates as the central CNC brain of the press brake control loop. The operator inputs bend parameters (material, thickness, angle, back-gauge position) via the front-panel interface. The controller calculates the required Y1/Y2 ram stroke and X-axis back-gauge travel, then outputs synchronized analog or digital command signals to the hydraulic proportional valve amplifiers and servo drives. Real-time encoder feedback from the ram and back-gauge closes the position loop, enabling the controller to correct for hydraulic lag, material springback compensation, and thermal drift. The RS-232/RS-422 port allows DNC program upload/download and integration with factory MES/SCADA systems.
Sourcing & Quality Verification
- Origin: Genuine Delem manufactured unit; part number 8576-001 verified against Delem official BOM documentation
- Condition: New / Refurbished / Tested — specify requirement at inquiry
- Inspection: Each unit undergoes functional power-on test, firmware version verification, and connector integrity check prior to shipment
- Packaging: Anti-static ESD bag + foam-lined export carton; shock-rated for international air and sea freight
- Traceability: Serial number and firmware revision documented on packing slip for warranty and service records
- Warranty: 12-month replacement warranty against manufacturing defects (DOA policy: 7-day)
Procurement Process
- Submit Inquiry: Contact support@konmask.com or call +0086 19859288691 with your machine make/model and current controller part number
- Compatibility Confirmation: Our engineers verify DM-103VA (8576-001) compatibility with your specific press brake hydraulic and electrical configuration
- Quotation & Lead Time: Formal quotation issued within 24 hours; typical lead time 3–7 business days for in-stock units
- Order & Payment: Secure checkout via Konmask.com or T/T bank transfer for B2B orders
- Shipment & Tracking: DHL / FedEx / UPS express with full tracking; customs documentation provided for international orders
- Installation Support: Remote commissioning guidance available; Delem wiring diagrams and parameter backup files provided on request
Technical FAQ
Q: Is the DM-103VA compatible with my Amada / LVD / Durma press brake?
A: The DM-103VA is compatible with most hydraulic press brakes that use Delem DM-series controllers. Compatibility depends on the hydraulic valve interface and encoder type. Contact us with your machine model for a definitive confirmation.
Q: What is the difference between DM-103VA and DA-series controllers?
A: The DM Series is Delem’s dedicated press brake control platform with integrated Y1/Y2 synchronization. The DA Series (e.g., DA-66T, DA-69T) adds touchscreen HMI and advanced 3D graphical programming. The DM-103VA is the preferred choice for retrofit applications where cost-efficiency and proven reliability are priorities.
Q: Can I transfer existing bend programs from my old controller?
A: Yes. Bend programs can be transferred via RS-232 using Delem’s DNC utility or compatible third-party software. Our team can assist with program migration on request.
Q: What firmware version does this unit ship with?
A: Firmware version is confirmed and documented at dispatch. We can supply specific firmware versions on request to match your existing machine configuration.
Q: Do you provide a wiring diagram for installation?
A: Yes. Delem DM-103VA wiring schematics and I/O connection guides are provided with every order. Custom integration support is available for complex retrofit projects.
