Industrial Ventilation & HVAC Solution — ebm-papst D2E146-AP47-C3 | RadiCal Series
Where This Product Is Used

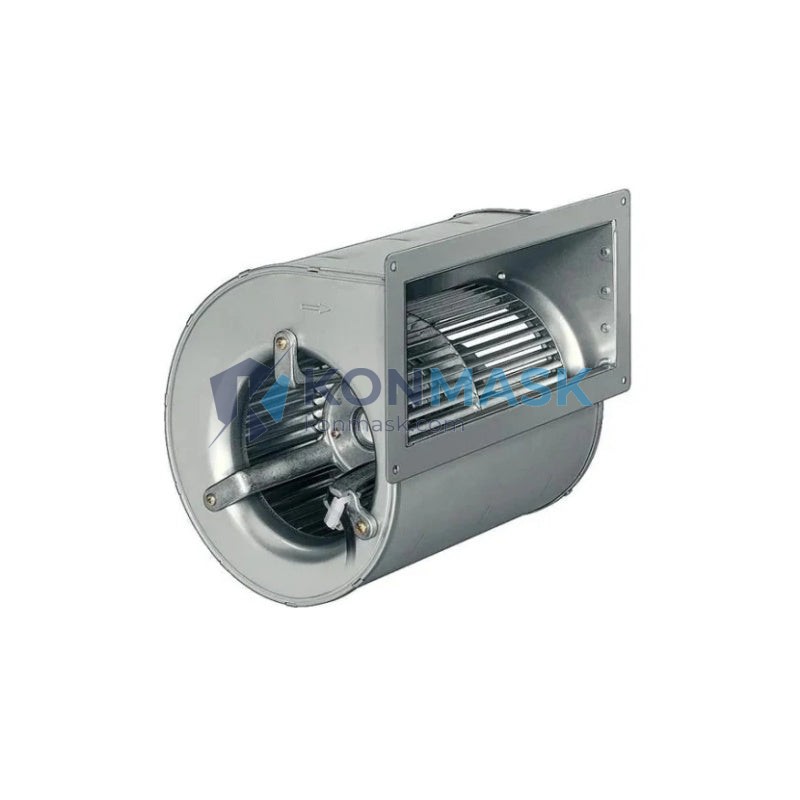

The ebm-papst D2E146-AP47-C3 is a high-performance AC centrifugal fan from the renowned RadiCal series, engineered for demanding industrial and commercial airflow applications. Typical deployment environments include:
- Air Handling Units (AHU) — central HVAC systems in commercial buildings, hospitals, and data centers requiring reliable, continuous airflow.
- Industrial Process Ventilation — manufacturing facilities, chemical plants, and food processing lines where consistent air exchange is critical.
- Control Cabinet & Enclosure Cooling — electrical switchgear rooms and automation panel enclosures requiring forced convection to protect sensitive electronics.
- Refrigeration & Cold Storage — evaporator fan duty in cold rooms and refrigerated display units.
- Telecommunications Infrastructure — base station shelters and server room cooling where compact, high-static-pressure fans are specified.
- OEM Equipment Integration — embedded into industrial dryers, laser systems, medical devices, and test equipment by OEM engineers.
Technical Specifications
| Part Number (SKU) | D2E146-AP47-C3 |
| Manufacturer | ebm-papst |
| Series | RadiCal (D2E) |
| Fan Type | AC Centrifugal Fan — Backward-Curved Impeller |
| Nominal Voltage | 400 V AC, 3-Phase (Δ/Y) |
| Frequency | 50 / 60 Hz |
| Impeller Diameter | 146 mm |
| Protection Class | IP44 (motor) |
| Insulation Class | Class F |
| Weight | 270 g (approx.) |
| Mounting | Flange / Free-inlet |
| Compliance | CE, RoHS |
For full performance curves (airflow vs. static pressure), dimensional drawings, and wiring diagrams, contact [email protected].
Why Engineers Specify This Model
- RadiCal Aerodynamics — ebm-papst’s patented backward-curved impeller geometry delivers superior efficiency at high static pressure compared to forward-curved alternatives, reducing energy consumption in continuous-duty applications.
- Robust AC Motor — Thermally protected, Class F insulation motor rated for 24/7 operation in ambient temperatures up to 40 °C, minimizing unplanned downtime.
- Compact 146 mm Form Factor — Drop-in replacement geometry compatible with standard D2E146 mounting frames, simplifying retrofit projects without mechanical redesign.
- Low Vibration & Acoustic Profile — Dynamically balanced impeller reduces structure-borne noise, critical for occupied building HVAC and medical equipment.
- Proven Global Track Record — The D2E series is specified by leading AHU OEMs and system integrators across Europe, Asia, and North America.
Complete System Bill of Materials
When integrating the D2E146-AP47-C3 into a control system or HVAC assembly, engineers typically source the following complementary components — all available at Konmask.com:
- Motor protection circuit breaker (e.g., Siemens 3RV, ABB MS series)
- Contactor or soft-starter for 3-phase motor control
- Variable frequency drive (VFD) — note: D2E146-AP47-C3 is AC motor; confirm VFD compatibility with ebm-papst datasheet
- Fan speed controller or BMS integration module
- Vibration isolation mounts and flexible duct connectors
- Inlet guard / outlet grille (146 mm series)
Compliance & Industry Standards
- CE Marking — Compliant with EU Machinery Directive and Low Voltage Directive.
- RoHS Directive — Restriction of Hazardous Substances compliant.
- ErP / Ecodesign — ebm-papst RadiCal fans are designed to meet EU ErP Lot 6 energy efficiency requirements for fans.
- ISO 9001 — Manufactured under ebm-papst’s certified quality management system.
Quality Assurance & Sourcing
Konmask.com specializes in industrial automation components sourced directly from authorized distribution channels and verified surplus inventories. Every unit of the D2E146-AP47-C3 offered on this listing:
- Is inspected for physical integrity and label authenticity prior to dispatch.
- Ships with original manufacturer packaging where available.
- Is traceable to documented supply chain records.
- Carries Konmask’s standard quality guarantee — contact us within 7 days of receipt for any discrepancy.
How to Source This Part
- Add to Cart — Click the purchase button above to place your order directly online.
- Request a Quote — For volume orders (5+ units), OEM procurement, or project BOM pricing, email [email protected] with your required quantity and delivery timeline.
- Expedited Sourcing — If the item shows out of stock, contact us via WhatsApp/phone at +0086 19859288691. We maintain access to extended supplier networks for urgent requirements.
- Technical Pre-Sales — Our engineering team can confirm dimensional fit, electrical compatibility, and cross-reference to alternative part numbers before you commit to purchase.
Application-Specific FAQ
Q: Can the D2E146-AP47-C3 be speed-controlled with a standard VFD?
A: The D2E146-AP47-C3 uses an AC induction motor. While VFD control is technically possible, ebm-papst recommends verifying motor winding compatibility and minimum speed limits with their technical datasheet. For variable-speed duty, consider ebm-papst’s EC (electronically commutated) equivalents. Contact us for cross-reference assistance.
Q: What is the direct replacement / cross-reference for this model?
A: The D2E146-AP47-C3 is specific to the ebm-papst D2E146 frame. Common cross-references include other AP-suffix variants in the same series. Confirm voltage and performance curve compatibility before substitution. Our team can assist.
Q: Is this fan suitable for outdoor installation?
A: The motor carries IP44 protection, suitable for splash-proof indoor and sheltered outdoor environments. For fully exposed outdoor duty, specify IP54 or IP55 rated variants.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For out-of-stock or bulk orders, typical lead time is 2–4 weeks depending on supplier availability. Contact us for a firm commitment.
Q: Do you provide a datasheet or dimensional drawing?
A: Yes. Email [email protected] with your part number and we will provide the official ebm-papst datasheet and 2D/3D drawings.
