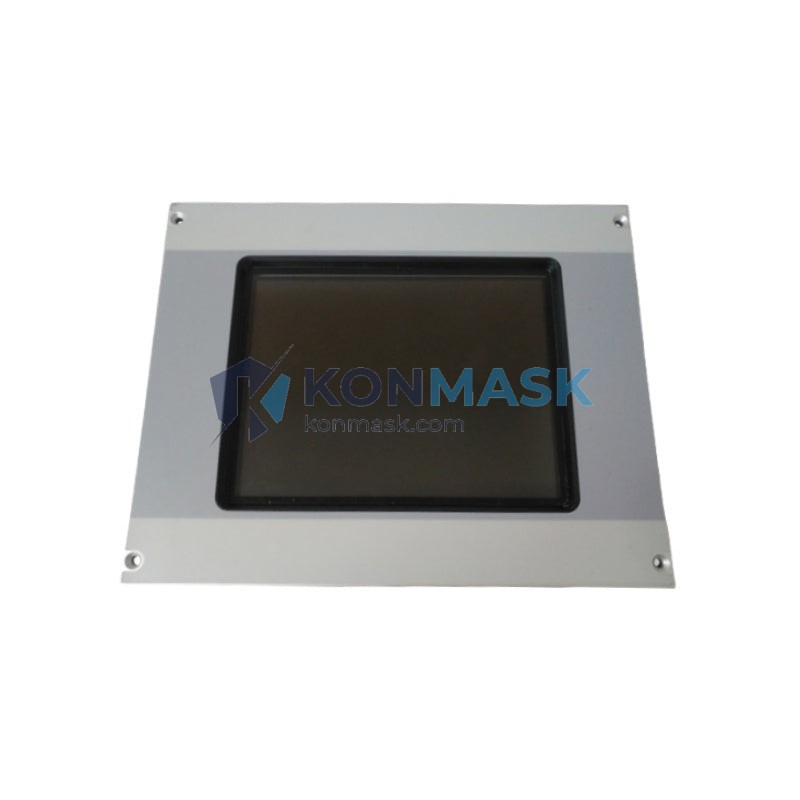

ELAU FW-V0022-XX Touch Screen Panel – Operator Interface for PacDrive Motion Control Platform
Engineering Background: The ELAU FW-V0022-XX is a dedicated operator touch screen panel engineered for integration with ELAU’s PacDrive motion control and automation platform — now part of the Schneider Electric ecosystem. Designed for demanding industrial environments, this HMI panel provides machine operators and automation engineers with a direct, intuitive interface to PacDrive controllers, enabling real-time parameter monitoring, fault diagnostics, and process visualization on the factory floor.
Product Positioning: As a factory-matched HMI component, the FW-V0022-XX eliminates compatibility guesswork for OEM machine builders and MRO procurement teams. It is the correct replacement or spare panel for PacDrive-based packaging, printing, and converting machinery where the original ELAU operator panel has failed or requires upgrade. Konmask.com supplies verified surplus and refurbished units with full functional testing documentation available on request.
Complete Technical Specifications
- Part Number / SKU: FW-V0022-XX
- Manufacturer: ELAU AG (Schneider Electric)
- Product Family: PacDrive HMI / Operator Panel Series
- Interface Type: Touch Screen (resistive/membrane, model-dependent)
- Compatible Controllers: ELAU PacDrive MC-4, MC-6, SC-4 series and compatible PacDrive variants
- Communication Interface: Proprietary ELAU bus / serial interface (controller-matched)
- Operating Voltage: 24 V DC (nominal, controller-supplied)
- Operating Temperature: 0 °C to +55 °C (storage: -20 °C to +70 °C)
- Protection Rating: IP65 front panel (panel-mount installation)
- Weight: Approx. 300 g
- Mounting: Panel cut-out, front-mount with rear locking clips
- Firmware Suffix “-XX”: Denotes universal firmware revision compatibility across PacDrive software generations
Proven Application Environments
- Packaging machinery (flow wrappers, cartoners, case packers) with PacDrive multi-axis motion
- Printing and converting lines (web tension control, register control systems)
- Pharmaceutical blister packaging and filling lines
- Food & beverage processing equipment with ELAU servo drive integration
- Textile and nonwoven production machinery
- Any OEM machine platform originally built on ELAU PacDrive architecture
Engineering Advantages
- OEM-Matched Compatibility: Factory-designed for PacDrive — no third-party HMI adaptation or custom programming required
- Plug-and-Play Replacement: Direct mechanical and electrical replacement for failed FW-V0022 series panels; preserves existing machine wiring harness
- Firmware Flexibility: The “-XX” suffix indicates cross-version firmware support, reducing obsolescence risk across PacDrive software releases
- Rugged Industrial Construction: IP65 front-face sealing protects against dust ingress and wash-down splash in production environments
- Reduced Downtime: Stocked as verified surplus — available for immediate dispatch to minimize machine downtime costs
System Architecture & Signal Flow
The FW-V0022-XX connects directly to the ELAU PacDrive controller via the dedicated HMI port. The panel receives display data and process variables from the controller’s real-time motion kernel and transmits operator inputs (parameter changes, mode selections, fault acknowledgements) back to the controller via the same interface. No external PLC or gateway is required — the panel operates as a native node within the PacDrive system architecture, ensuring deterministic response times consistent with the controller’s scan cycle.
Signal flow: PacDrive Controller → HMI Bus → FW-V0022-XX Panel (display rendering + touch input capture) → Controller feedback loop
Sourcing & Quality Verification
- All units sourced from verified industrial surplus channels, decommissioned OEM machines, or authorized distributor overstock
- Each unit undergoes visual inspection, connector integrity check, and power-on functional verification prior to listing
- Full test reports and photographic condition documentation available upon request before purchase
- Units are shipped in anti-static packaging with foam protection; original ELAU packaging supplied where available
- Traceability documentation (serial number, source record) provided for MRO and quality audit compliance
Procurement Process
- Confirm Compatibility: Verify your PacDrive controller model and existing HMI part number against FW-V0022-XX specifications — contact our engineering team if uncertain
- Request Stock Confirmation: Contact support@konmask.com or call +0086 19859288691 for real-time stock status and lead time
- Place Order: Add to cart and complete checkout, or request a formal quotation for PO-based procurement
- Shipping: DHL / FedEx / UPS express available; EXW Xiamen or DAP destination terms on request
- After-Sales: 90-day warranty on verified functional units; technical support available for installation guidance
Technical FAQ
- Q: Is the FW-V0022-XX compatible with all PacDrive controller versions?
- A: The “-XX” suffix indicates broad firmware compatibility across PacDrive generations. However, we recommend confirming your specific controller firmware version with our team before ordering to ensure full feature compatibility.
- Q: Can this panel be used with non-ELAU (third-party) controllers?
- A: No. The FW-V0022-XX uses ELAU’s proprietary communication protocol and is designed exclusively for PacDrive controller integration. It is not compatible with Siemens, Allen-Bradley, Mitsubishi, or other third-party PLC/motion platforms without custom hardware adaptation.
- Q: What does the “-XX” suffix mean in the part number?
- A: The “-XX” designation indicates a universal or unspecified firmware revision, meaning the unit is compatible across multiple PacDrive software versions rather than being locked to a single firmware release.
- Q: Do you provide installation support?
- A: Yes. Our engineering team can provide wiring diagrams, mounting specifications, and commissioning guidance. Contact support@konmask.com with your machine model and controller details.
- Q: What is the warranty on this unit?
- A: Verified functional units carry a 90-day warranty covering manufacturing defects and functional failure under normal operating conditions. Units sold as-is (untested) are clearly marked and carry no functional warranty.
