Description

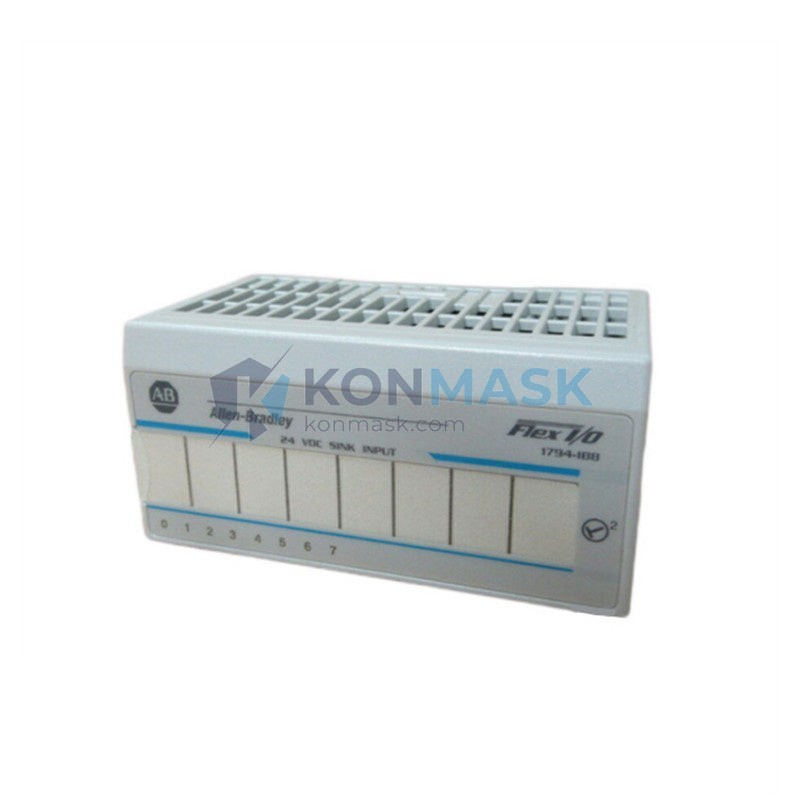

Allen-Bradley 1794-IB8 8-Point 24VDC Digital Input Module – FLEX I/O Series

When a digital input module fails on a FLEX I/O rack, the consequences are immediate and measurable: the PLC loses visibility into field device states, safety interlocks go blind, and production lines halt without warning. In process-critical environments — bottling lines, automotive assembly, water treatment — even a 30-minute unplanned downtime can cost tens of thousands of dollars. The 1794-IB8 is the component that stands between normal operation and that scenario.

Within the 1794 FLEX I/O family, the 1794-IB8 occupies the foundational position: an 8-point, 24V DC sinking input module designed for high-density discrete signal acquisition in space-constrained panel environments. Since its introduction, this module has been deployed across hundreds of thousands of installations globally, making it one of the most widely specified discrete input modules in Allen-Bradley’s distributed I/O portfolio. Its combination of compact form factor, IEC 61131-2 Type 1 input compliance, and native ControlNet/DeviceNet/EtherNet/IP compatibility through the FLEX I/O adapter architecture has made it a default choice for system integrators working on Logix-based control platforms.

Technical Specifications

Electrical

Input Voltage Range: 10–30V DC (nominal 24V DC)
Input Current: 6 mA at 24V DC (typical)
ON-State Voltage Threshold: ≥10V DC
OFF-State Voltage Threshold: ≤5V DC
Input Type: Sinking (IEC 61131-2 Type 1)
Number of Input Points: 8
Isolation: 1500V AC (field side to backplane)
Input Filter Time: 1 ms (hardware), configurable in software

Mechanical

Form Factor: FLEX I/O single-slot module
Connector: 18-pin removable terminal block (RTB)
Dimensions: Approx. 43 mm × 94 mm × 60 mm
Weight: Approx. 100 g
Mounting: FLEX I/O terminal base (1794-TB3, 1794-TB3S, or equivalent)

Environmental

Operating Temperature: 0°C to +55°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5–95% (non-condensing)
Vibration: IEC 68-2-6 compliant
Shock: IEC 68-2-27 compliant
Enclosure Rating: IP20 (module only)

Certifications & Standards

UL Listed, CE Marked, C-Tick
IEC 61131-2 Type 1 input compliance
ATEX Zone 2 (with appropriate housing)
Industry Standard: IEC 61131-2 for programmable controller equipment

Key Features & Benefits

8-point discrete input density — Consolidates eight 24V DC field signals onto a single FLEX I/O slot, reducing panel footprint by up to 50% compared to relay-based input marshalling panels in equivalent applications.
IEC 61131-2 Type 1 input compliance — Guarantees interoperability with standard 2-wire and 3-wire proximity sensors, pushbuttons, and limit switches without additional signal conditioning, eliminating a common source of field wiring errors.
1500V AC optical isolation — Protects the backplane and controller from field-side transients and ground loops, a critical requirement in environments with variable-frequency drives or high-inductive loads nearby.
Removable terminal block (RTB) design — Allows module replacement without disturbing field wiring, reducing mean time to repair (MTTR) to under 5 minutes in most installations.
Native compatibility with ControlLogix, CompactLogix, and FlexLogix platforms — No gateway or protocol converter required when paired with a 1794-series adapter; the module maps directly into the Logix tag database.
LED per-point status indication — Each input point has a dedicated status LED, enabling technicians to verify field device state at the module without a laptop or HMI, accelerating fault isolation during commissioning and troubleshooting.

Industry & Equipment Applications

Automotive Manufacturing — Body-in-white welding lines, transfer press interlocks, end-of-line test stations; reading proximity sensors on fixture clamps and part-present detectors.
Food & Beverage Processing — Conveyor jam detection, filling machine level switches, CIP (clean-in-place) valve position feedback; suitable for washdown-adjacent panels with IP54+ enclosures.
Water & Wastewater Treatment — Pump run/fail status, valve open/closed confirmation, high-level float switch inputs in lift stations and filtration systems.
Oil & Gas (Non-Hazardous Zones) — Wellhead equipment status monitoring, pipeline valve position feedback, compressor station discrete I/O expansion.
Pharmaceutical & Life Sciences — Batch reactor door interlocks, isolator glove port status, autoclave cycle completion signals in GMP-regulated environments.
Material Handling & Logistics — Sorter divert confirmation, pallet presence detection on conveyor accumulation zones, AGV docking station interlocks in distribution centers.

System Integration & Compatible Parts

Required upstream components (adapters):

1794-AENT — EtherNet/IP adapter (most common in new installations)
1794-ACN15 — ControlNet adapter
1794-ADN — DeviceNet adapter

Required terminal base:

1794-TB3 or 1794-TB3S (standard or spring-clamp RTB)

Commonly paired output modules:

1794-OB8 (8-point 24V DC sourcing output)
1794-OB16 (16-point output for higher density racks)

Functional equivalents / cross-reference:

1794-IB8S — Safety-rated version; use when SIL 2 or PLd machine safety requirements apply
1794-IB16 — Use when 16 input points are required in the same slot count
Note: The 1794-IB8 is not a drop-in replacement for 1794-IB8S in safety-rated applications without a full safety validation review.

Our Quality Assurance Process

Every 1794-IB8 unit sourced through Konmask.com passes a structured four-step verification process before shipment:

Visual & Physical Inspection — Enclosure integrity, connector pin condition, label legibility, and date code verification against known production batches.
Functional Power-On Test — Module is seated on a live FLEX I/O rack and each input point is exercised with a calibrated 24V DC signal source to confirm ON/OFF state transitions and LED response.
Firmware & Revision Check — Catalog number, series letter, and firmware revision are logged and disclosed to the buyer prior to shipment.
Packaging & ESD Protection — Units are packed in anti-static bags with foam cushioning; export cartons are labeled with fragile and ESD-sensitive markings.

Available documentation upon request: Test report, product photos (pre-shipment), certificate of conformance, original manufacturer datasheet.

How to Order

Submit your inquiry — Use the contact form on this page or email support@konmask.com with your required quantity, target delivery date, and destination country.
Receive your quote — Our team will respond within 24 hours with pricing, lead time, available stock, and shipping options tailored to your project timeline.
Confirm & ship — Once you approve the proforma invoice, we arrange export documentation and dispatch with full tracking. Most orders ship within 3–5 business days.

Why Choose Konmask.com?

Specialized in industrial automation components — We focus exclusively on PLC modules, DCS cards, and control system hardware. This is not a general electronics distributor; every team member understands the application context behind each part number.
Transparent sourcing disclosure — We clearly state whether a unit is new-in-box, surplus, or refurbished, and provide series/revision information before you commit to a purchase.
Export-ready documentation — We routinely prepare commercial invoices, packing lists, and certificates of conformance for international buyers, including those requiring customs clearance in the EU, Southeast Asia, and the Middle East.
Responsive technical support — Have a compatibility question before ordering? Our team can cross-reference your existing rack configuration and confirm fit before you place the order.
Secure packaging for international transit — All modules are packed to withstand the mechanical stress of air and sea freight, with ESD protection as standard.

Frequently Asked Questions

Q: Is the Allen-Bradley 1794-IB8 compatible with EtherNet/IP and ControlLogix systems?
A: Yes. When paired with a 1794-AENT EtherNet/IP adapter, the 1794-IB8 integrates directly into a ControlLogix or CompactLogix system. The module’s 8 input points map as a BOOL array in the Logix tag database with no custom configuration required beyond the adapter’s IP address assignment.

Q: What is the difference between the 1794-IB8 and the 1794-IB8S, and can I substitute one for the other?
A: The 1794-IB8 is a standard discrete input module; the 1794-IB8S is its safety-rated counterpart, certified for use in SIL 2 / PLd safety functions under IEC 62061 and ISO 13849-1. The two modules are not interchangeable in safety-rated applications. If your machine safety assessment requires a safety-rated input, you must use the 1794-IB8S with a compatible safety adapter (e.g., 1794-AENTR). For standard control applications without safety function requirements, the 1794-IB8 is the appropriate and more cost-effective choice.

Q: Can I source a replacement 1794-IB8 for an older system that is no longer in active production?
A: Yes. The 1794-IB8 has been in production for an extended period and surplus stock remains available through specialized distributors like Konmask.com. When ordering for legacy system maintenance, we recommend specifying your existing module’s series letter (visible on the product label) so we can match the revision and avoid any firmware compatibility concerns with your existing adapter firmware.

{
