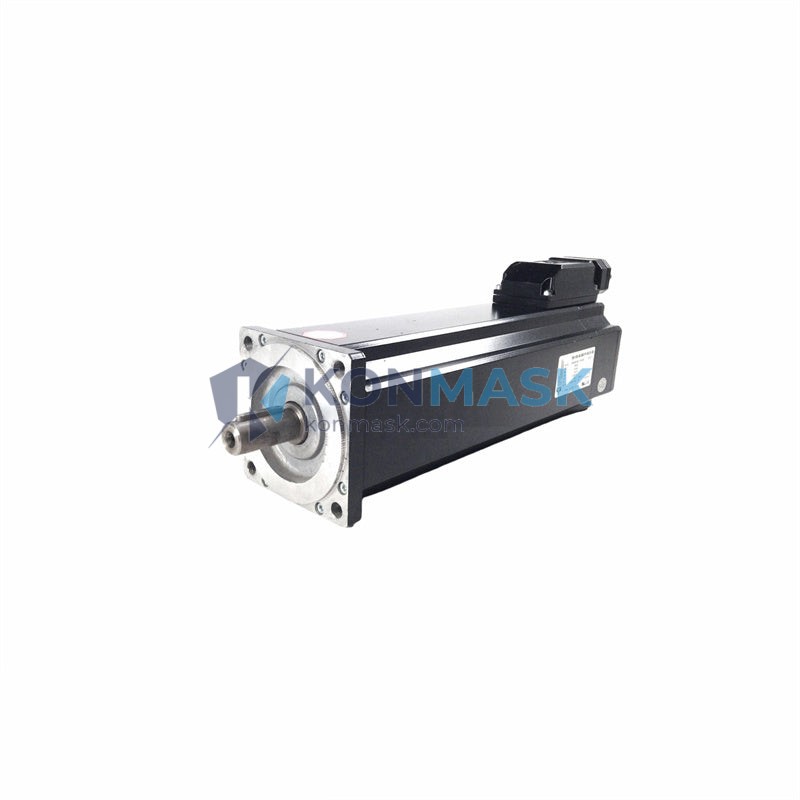

ELAU SM100/40/080/P1/45/S1/B0 AC Servo Motor – High-Torque Drive Unit for SM100 Series
When a servo motor fails on a packaging line, a printing press, or a CNC machining center, the entire production cell stops. Downtime costs mount by the minute — unplanned stoppages in industrial automation environments can cost thousands of dollars per hour. The ELAU SM100/40/080/P1/45/S1/B0 is the precision servo motor engineered to keep these critical systems running without interruption. Its robust construction and exact parameter matching make it the only acceptable replacement for OEM-specified motion control applications.
Within the ELAU SM100 series — developed under Schneider Electric’s motion control platform — the SM100/40/080/P1/45/S1/B0 occupies the high-torque segment, delivering 40 Nm of continuous torque at 800 rpm with an absolute encoder feedback system. This series has been widely deployed across European and Asian packaging machinery, flexographic printing systems, and multi-axis robotic cells, making it one of the most sought-after servo motor models in the global industrial automation aftermarket.
Technical Specifications
- Model / SKU: SM100/40/080/P1/45/S1/B0
- Brand: ELAU (Schneider Electric)
- Series: SM100
- Flange Size: 100 mm
- Rated Torque: 40 Nm
- Rated Speed: 800 rpm
- Encoder Type: P1 – Absolute Encoder
- Mounting Angle: 45°
- Duty Cycle: S1 – Continuous Duty
- Brake: B0 – No Brake
- Weight: 2.52 kg
- Shipping: Physical unit, requires shipping
Key Features & Benefits
- Absolute Encoder (P1): Retains position data after power loss — eliminates homing cycles on restart, reducing machine downtime and improving cycle efficiency.
- 40 Nm Continuous Torque: Handles demanding load profiles in packaging, printing, and material handling without thermal derating.
- S1 Continuous Duty Rating: Designed for sustained operation in 24/7 production environments without duty-cycle interruptions.
- No Brake (B0): Simplified mechanical design reduces inertia and maintenance points — ideal for horizontal axis applications where gravity load is not a concern.
- 100 mm Flange (SM100): Standard IEC flange dimensions ensure direct mechanical compatibility with existing motor mounts and gearboxes.
- Schneider Electric Ecosystem: Fully compatible with ELAU PacDrive controllers and Schneider Lexium drive systems for seamless integration.
Industry & Equipment Applications
- Packaging Machinery: Flow wrappers, cartoners, case packers, and form-fill-seal machines using ELAU PacDrive motion systems.
- Printing & Converting: Flexographic and gravure printing presses requiring precise register control at continuous duty.
- CNC Machining Centers: Rotary axis and feed axis drives where absolute position feedback is mandatory.
- Robotics & Handling: Multi-axis articulated robots and gantry systems in automotive and electronics assembly.
- Textile Machinery: Winding, unwinding, and tension control systems requiring smooth torque delivery.
System Integration & Compatible Parts
The SM100/40/080/P1/45/S1/B0 is designed to operate within the ELAU PacDrive motion control ecosystem. Compatible system components include:
- ELAU PacDrive Controller (MC-4, MC-6 series)
- ELAU SERCOS / CANopen servo amplifiers
- Schneider Lexium 32 / Lexium 62 servo drives
- ELAU SM100 series motor cables and encoder connectors
- Planetary gearboxes with 100 mm input flange (IEC standard)
Contact our technical team at support@konmask.com to verify compatibility with your existing drive and controller configuration before ordering.
Our Quality Assurance Process
Every ELAU SM100/40/080/P1/45/S1/B0 unit sourced and supplied by Konmask.com undergoes a structured verification process:
- Origin Verification: Units are traced to authorized distribution channels or verified OEM surplus stock.
- Visual & Mechanical Inspection: Shaft, flange, connector, and encoder housing are inspected for damage, corrosion, or tampering.
- Label & Nameplate Authentication: Model code, serial number, and production date are cross-referenced against manufacturer records.
- Packaging: Anti-static packaging with moisture barrier and shock-absorbing foam for international freight.
How to Order
- Submit an inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Receive a formal quotation with lead time and shipping options within 1 business day.
- Confirm order and receive proforma invoice for payment processing.
- Unit ships with full documentation: inspection report, packing list, and commercial invoice.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC modules, servo systems, DCS components, and automation hardware — not a general electronics marketplace.
- Global B2B Supply: Serving OEMs, system integrators, and MRO procurement teams across Europe, Southeast Asia, and the Americas.
- Fast Quotation: RFQ responses within 24 hours for stocked and sourced items.
- Technical Pre-Sales Support: Our engineers verify compatibility before shipment — reducing costly returns and installation errors.
- Secure International Shipping: DHL, FedEx, and UPS express options with full export documentation.
Frequently Asked Questions
Q: Is the ELAU SM100/40/080/P1/45/S1/B0 a new or refurbished unit?
A: We supply both new surplus (unused, original packaging) and professionally refurbished units. Stock type is confirmed at the time of quotation.
Q: Can this motor be used with a Schneider Lexium 32 drive?
A: The SM100 series is natively compatible with ELAU PacDrive amplifiers. Compatibility with Lexium 32 depends on firmware version and cable configuration — please contact our technical team to confirm.
Q: What is the lead time for this model?
A: Lead time varies by stock availability. Submit an RFQ and we will confirm within 1 business day.
Q: Do you provide a warranty?
A: Yes. All units carry a minimum 90-day functional warranty. Extended warranty options are available — ask your sales contact for details.
Q: Can you supply the matching motor cable and encoder connector?
A: Yes. We can supply complete cable sets for SM100 series motors. Specify your cable length and connector type when submitting your RFQ.
