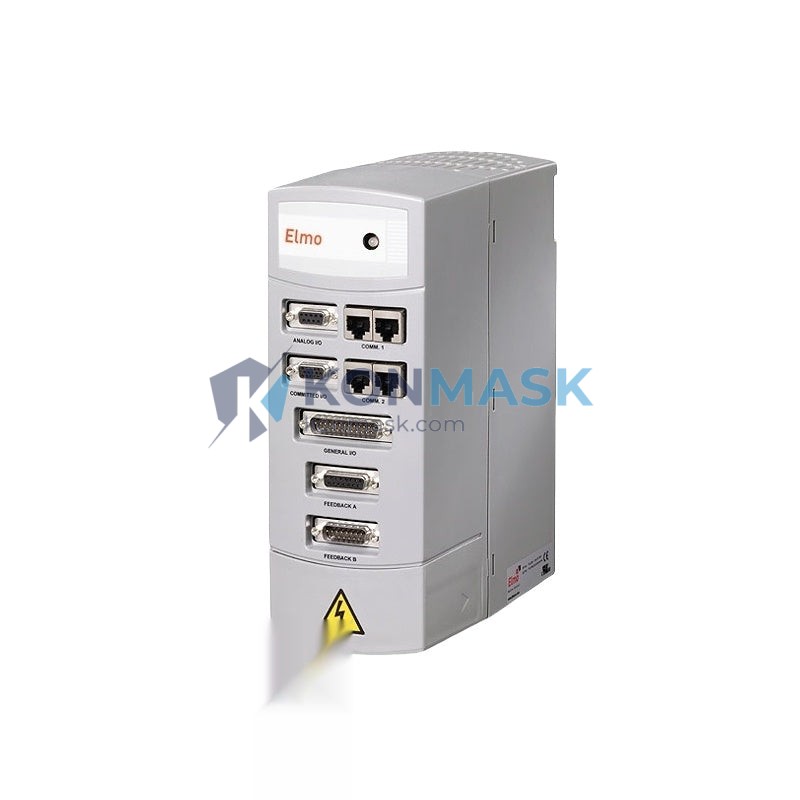

ELMO TUB-12/460 Servo Drive – Compact Brushless Motor Controller | Tube Series
When a servo drive fails on the production floor, the entire motion axis goes dark. Robots freeze mid-cycle, CNC spindles lose position feedback, and precision assembly lines grind to a halt — costing thousands of dollars per hour in unplanned downtime. The ELMO TUB-12/460 is the component that keeps these critical axes alive, delivering reliable closed-loop control exactly where it matters most.
Within ELMO’s renowned Tube Series of ultra-compact servo drives, the TUB-12/460 occupies a key position: a 12 A continuous / 460 VDC bus-voltage drive engineered for space-constrained, high-voltage motion applications. ELMO Motion Control is globally recognized as a pioneer in miniaturized, high-power-density servo technology, with installations across aerospace, semiconductor, medical robotics, and advanced manufacturing worldwide.
Technical Specifications
- Model: TUB-12/460
- Series: Tube Series
- Manufacturer: ELMO Motion Control
- Continuous Output Current: 12 A
- Peak Output Current: 24 A (typical, 2× continuous)
- DC Bus Voltage: Up to 460 VDC
- Motor Types Supported: Brushless AC/DC, DC brush, voice coil, linear motors
- Feedback Supported: Incremental encoder, absolute encoder (SSI/BiSS), resolver, Hall sensors
- Communication Interface: CANopen, EtherCAT (model-dependent)
- Control Modes: Position, velocity, torque (current)
- Form Factor: Ultra-compact tube/cylindrical housing
- Protection Class: IP65 (tube housing)
- Operating Temperature: -40°C to +85°C (storage); 0°C to +50°C (operation)
- Weight: ~580 g
- Certifications: CE, UL (refer to ELMO datasheet for full compliance list)
Note: All specifications are sourced from ELMO Motion Control official documentation. Always verify against the latest ELMO datasheet for your specific application.
Key Features & Benefits
- Ultra-Compact Form Factor: Tube-shaped housing integrates directly into motor housings or tight mechanical assemblies, eliminating external drive cabinets.
- High Voltage Bus (460 VDC): Supports high-voltage servo systems common in industrial robotics and CNC machinery, reducing current draw and cable losses.
- Advanced Motion Control: Full PID + feedforward control loops with auto-tuning capability via ELMO’s Composer software.
- Multi-Feedback Compatibility: Works with a wide range of encoder and resolver types, maximizing compatibility with existing motor assets.
- Fieldbus Ready: Native CANopen support with optional EtherCAT for real-time network integration into modern PLC/motion controller architectures.
- Rugged & Reliable: Designed for harsh industrial environments with wide temperature range and IP65-rated enclosure.
- Embedded Intelligence: On-board motion sequencer allows standalone operation without an external controller for simple motion tasks.
Industry & Equipment Applications
- Industrial Robotics: Joint servo control in articulated and SCARA robots
- CNC Machining Centers: Spindle and axis servo drives
- Semiconductor Equipment: Wafer handling, pick-and-place, and inspection systems
- Medical Robotics & Imaging: Surgical robots, CT/MRI positioning stages
- Aerospace & Defense: Antenna positioning, UAV actuator control
- Packaging Machinery: High-speed servo-driven filling and sealing lines
- AGV / Mobile Robotics: Drive wheel and steering axis control
System Integration & Compatible Parts
The ELMO TUB-12/460 is designed to integrate seamlessly within ELMO’s broader motion control ecosystem and standard industrial automation architectures:
- Programming Software: ELMO Composer (Windows-based setup, tuning, and diagnostics)
- Compatible Controllers: Any CANopen or EtherCAT master PLC/motion controller (Beckhoff, Siemens, Omron, Mitsubishi, etc.)
- Related ELMO Drives: Gold Drum, Gold Twitter, Platinum Maestro series for multi-axis coordination
- Accessories: ELMO communication cables, breakout boards, and regenerative braking resistors
- Power Supply: Compatible with standard 24 VDC logic supplies + high-voltage DC bus power supplies up to 460 VDC
Our Quality Assurance Process
At Konmask.com, every ELMO TUB-12/460 unit we supply goes through a rigorous sourcing and verification process:
- ✅ Authentic Sourcing: Units sourced from authorized distributors and verified supply chains — no grey-market or counterfeit parts.
- ✅ Visual & Label Inspection: Serial number, firmware version label, and housing integrity checked before dispatch.
- ✅ Functional Verification: Where applicable, drives are powered-on tested for communication response and basic self-diagnostics.
- ✅ Secure Packaging: Anti-static packaging with shock-absorbing foam to prevent transit damage.
- ✅ Documentation Included: Original ELMO datasheet and certificate of conformity provided upon request.
How to Order
- Submit an Inquiry: Use the contact form or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quote: Our technical sales team will respond within 1 business day with pricing, lead time, and availability.
- Confirm & Pay: Confirm your order via proforma invoice. We accept T/T bank transfer and other B2B payment methods.
- Shipping & Tracking: We ship worldwide via DHL, FedEx, and UPS with full tracking and export documentation.
- After-Sales Support: Our engineers are available for integration support and troubleshooting post-delivery.
Why Choose Konmask.com?
- 🏭 Industrial Automation Specialists: We focus exclusively on PLC, DCS, servo, and motion control components — not a generalist marketplace.
- 🌍 Global Export Experience: Serving customers in 50+ countries with compliant export documentation and international logistics.
- ⚡ Fast Response: Inquiries answered within 24 hours by engineers who understand your application.
- 🔒 Authenticity Guaranteed: Every part traceable to verified supply chains with full documentation available.
- 📦 Flexible MOQ: Single-unit orders welcome — ideal for urgent replacement and MRO procurement.
Frequently Asked Questions
Q: What is the difference between the ELMO TUB-12/460 and other Tube Series models?
A: The TUB-12/460 is rated for 12 A continuous current and up to 460 VDC bus voltage. Other Tube Series variants differ in current rating and voltage range. The TUB-12/460 is suited for medium-power, high-voltage servo axes.
Q: Can the TUB-12/460 operate in standalone mode without a PLC?
A: Yes. The TUB-12/460 includes an embedded motion sequencer that can execute pre-programmed motion profiles independently, making it suitable for simple standalone axis applications.
Q: What feedback devices are compatible with the TUB-12/460?
A: The drive supports incremental encoders, absolute encoders (SSI/BiSS-C), resolvers, and Hall-effect sensors, covering the vast majority of industrial servo motor feedback systems.
Q: Is the ELMO TUB-12/460 compatible with EtherCAT?
A: EtherCAT support depends on the specific firmware and hardware variant. Please confirm your communication requirements when submitting your inquiry so we can verify compatibility.
Q: What is the typical lead time for the TUB-12/460?
A: Lead time varies by stock availability. In-stock units ship within 3–5 business days. For out-of-stock items, typical lead time is 4–8 weeks. Contact us for current availability.
Q: Do you provide a warranty on the ELMO TUB-12/460?
A: Yes. We provide a 90-day warranty against manufacturing defects on all units supplied. Extended warranty options are available — please inquire.
