Vibration Monitoring Solution – Emerson AMS 6500 ATG A6500-UM | AMS 6500 Series

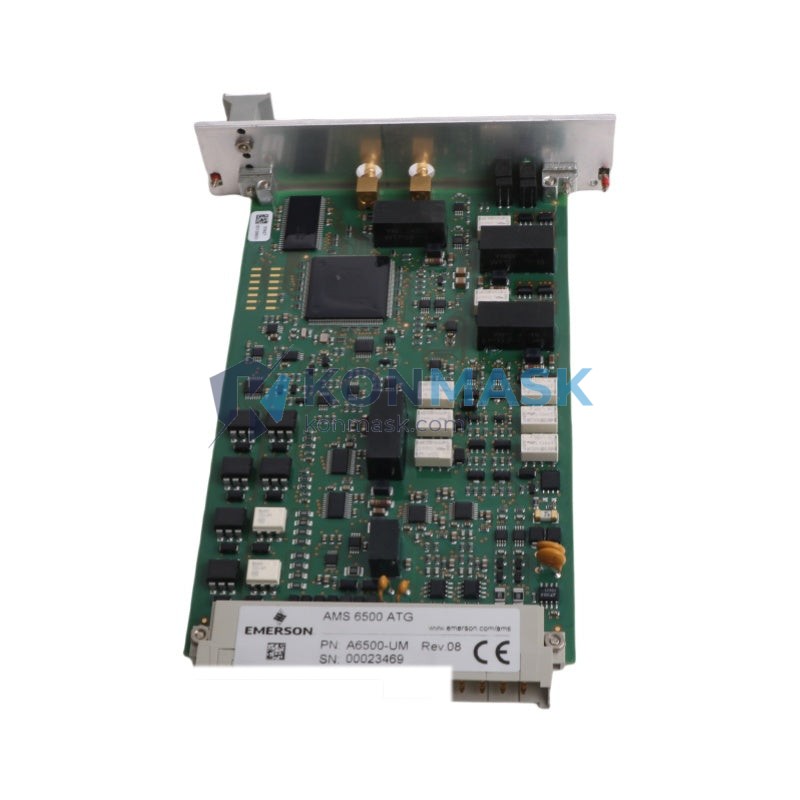

The Emerson AMS 6500 ATG A6500-UM Universal Measurement Card is a high-precision vibration and process measurement module engineered for continuous online machinery protection and predictive maintenance programs. Designed for integration within the AMS 6500 Machinery Health Monitor platform, this card delivers real-time dynamic data acquisition across a broad range of industrial rotating equipment.
Where This Product Is Used
The A6500-UM is deployed across critical rotating machinery environments where unplanned downtime carries significant operational and financial risk:
- Oil & Gas: Compressor trains, gas turbines, and centrifugal pumps on upstream/downstream platforms
- Power Generation: Steam turbines, generators, and boiler feed pumps in thermal and combined-cycle plants
- Petrochemical & Refining: Reactor agitators, extruders, and high-speed centrifuges
- Pulp & Paper / Mining: Large fans, crushers, and conveyor drive systems
- Water & Wastewater: High-capacity pump stations requiring 24/7 condition monitoring
Technical Specifications
- Model: AMS 6500 ATG A6500-UM
- Series: Emerson AMS 6500 Machinery Health Monitor
- Card Type: Universal Measurement Card
- Input Channels: Multi-channel dynamic and static measurement
- Sensor Compatibility: Accelerometers, velocity transducers, eddy-current proximity probes, process inputs
- Communication: Integrates with AMS 6500 backplane architecture
- Weight: 1,500 g
- Compliance: CE, API 670 compatible installations
Why Engineers Specify This Model
- Universal Input Flexibility: Accepts dynamic (AC) and static (DC) sensor inputs on a single card, reducing rack slot consumption
- API 670 Alignment: Supports machinery protection architectures compliant with API 670 standard for critical turbomachinery
- Seamless AMS Integration: Native compatibility with Emerson AMS Suite for trending, alarming, and predictive analytics
- High-Resolution Waveform Capture: Enables time-waveform and spectrum analysis for early fault detection (imbalance, misalignment, bearing defects)
- Proven Field Reliability: Widely deployed in Tier-1 refineries and power plants globally
Complete System Bill of Materials
For a fully operational AMS 6500 monitoring rack, the following components are typically required alongside the A6500-UM:
- AMS 6500 Rack / Chassis
- AMS 6500 Power Supply Module
- AMS 6500 Communication / I/O Gateway Card
- Eddy-Current Proximity Probe Systems (e.g., Emerson 3300 Series)
- Accelerometers / Velocity Sensors (application-dependent)
- Junction Boxes and Field Wiring Barriers
- AMS Machinery Health Manager Software License
Contact [email protected] for complete BOM assistance and compatibility verification.
Compliance & Industry Standards
- API 670: Machinery Protection Systems — 5th Edition compatible installations
- IEC 61511: Functional safety considerations for process industry sectors
- CE Marking: Meets applicable EU directives for industrial electronic equipment
- ISO 10816 / ISO 20816: Vibration measurement and evaluation standards for rotating machinery
Quality Assurance & Sourcing
Every Emerson AMS 6500 ATG A6500-UM unit supplied by Konmask.com undergoes the following verification process:
- Visual and dimensional inspection against OEM reference documentation
- Label, firmware revision, and date-code authentication
- Functional power-on verification where applicable
- Secure anti-static packaging with full traceability documentation
We source from authorized distributors, certified surplus channels, and direct OEM partnerships. All units are supplied with a Konmask quality certificate and 12-month warranty against manufacturing defects.
How to Source This Part
- In-Stock Orders: Add to cart and complete checkout — ships within 2-5 business days
- Quote Requests: Email [email protected] for volume pricing, lead time, and freight options
- Phone / WhatsApp: +0086 19859288691 (Mon-Fri, 09:00-18:00 CST)
- Urgent Requirements: Mention URGENT in your subject line for priority handling within 4 business hours
Application-Specific FAQ
Q: Is the A6500-UM compatible with both proximity probes and accelerometers?
A: Yes. The Universal Measurement Card accepts both dynamic AC inputs (accelerometers, velocity sensors) and DC inputs (proximity probes, process variables) within the same card, making it highly versatile for mixed-sensor installations.
Q: Can this card be hot-swapped in a live AMS 6500 rack?
A: Hot-swap capability depends on the specific rack firmware version and system configuration. Consult your Emerson system documentation or contact us for guidance before performing live maintenance.
Q: Does Konmask supply the full AMS 6500 system or individual cards only?
A: We supply both individual cards and complete rack assemblies. Contact us with your full BOM for a consolidated quote.
Q: What is the lead time for the A6500-UM?
A: In-stock units ship within 2-5 business days. For out-of-stock scenarios, typical lead time is 4-8 weeks depending on sourcing channel.
Q: Do you provide export documentation for international shipments?
A: Yes. We provide commercial invoices, packing lists, certificates of origin, and ECCN/HTS classification support for all international orders.
