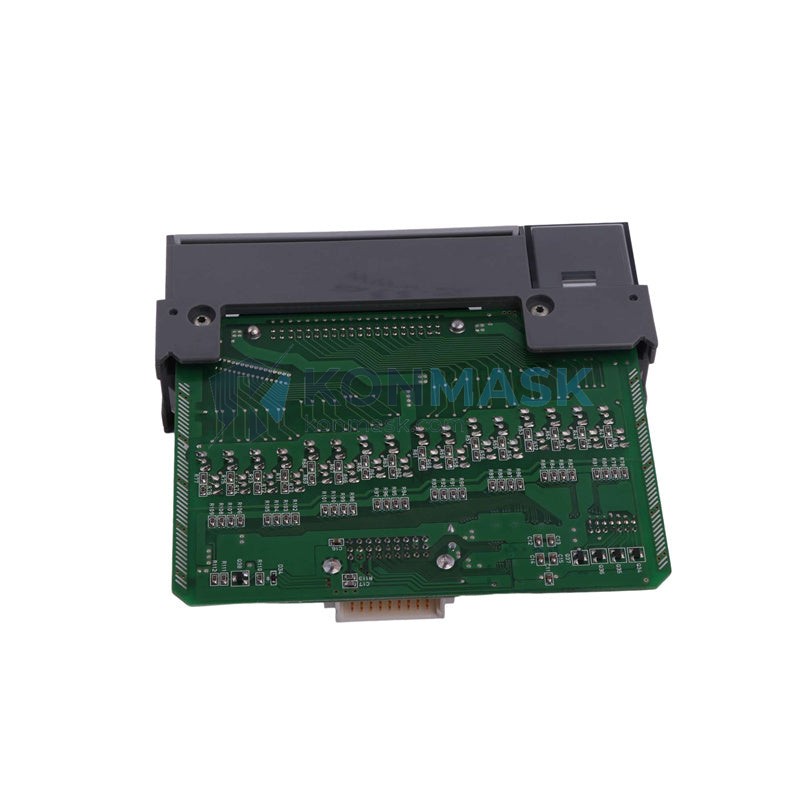

Allen-Bradley 1746-OV32 – 32-Point Current Sinking DC Output Module | SLC 500 Platform
Engineering Background: The Allen-Bradley SLC 500 programmable controller platform has been a backbone of discrete and process automation in petrochemical, power generation, and water/wastewater treatment facilities for over three decades. Within the SLC 500 I/O chassis architecture, output modules serve as the final control element interface — translating ladder logic states into field-level switching signals that drive solenoids, motor starters, indicator lamps, and relay coils. The 1746-OV32 occupies a single slot in any 1746-series chassis and delivers 32 independently controlled current sinking (NPN) DC outputs, making it the highest-density discrete output option in the standard SLC 500 I/O catalog.
Product Positioning: The 1746-OV32 is distinguished from the 1746-OB32 (sourcing/PNP output) by its current sinking topology, which is mandatory for compatibility with NPN-input field devices prevalent in Asian-manufactured sensors, proximity switches, and solenoid valve drivers. It is the correct selection when the field wiring common is connected to the positive DC rail (+V) and the load is switched on the return (0V) side. The 1746-OV32 is not suitable for sourcing (PNP) field device architectures or AC load switching; for those applications, the 1746-OB32 or 1746-OA16 respectively are the appropriate alternatives.
Complete Technical Specifications
Electrical
- Output Type: Current Sinking (NPN), Transistor
- Number of Outputs: 32 points
- Output Voltage Range: 10–50V DC
- Maximum Output Current: 0.5A per point
- Maximum Module Current: 4.0A total (all outputs ON simultaneously)
- Leakage Current (OFF state): ≤1.0 mA per point
- Voltage Drop (ON state): ≤1.0V DC at rated current
- Output Protection: Electronic short-circuit and overload protection per output group
- Backplane Current Draw: 5V DC @ 185 mA (from SLC 500 chassis backplane)
- Output Isolation: Optical isolation between field side and backplane logic
- Output Response Time (OFF→ON): ≤0.1 ms
- Output Response Time (ON→OFF): ≤0.5 ms
Mechanical
- Form Factor: Single-slot SLC 500 I/O module (1746-series chassis compatible)
- Wiring Connector: Removable 40-pin terminal block (field wiring side)
- Dimensions (H × W × D): 143 mm × 35 mm × 87 mm (approximate)
- Weight: ~300 g
- Mounting: Snap-fit into 1746-A4, A7, A10, A13 chassis slots
Environmental
- Operating Temperature: 0°C to +60°C
- Storage Temperature: −40°C to +85°C
- Relative Humidity: 5–95% non-condensing
- Vibration: 2g @ 10–500 Hz (IEC 68-2-6)
- Shock: 30g operational (IEC 68-2-27)
- Pollution Degree: 2 (IEC 60664-1)
Certifications
- UL Listed: UL 508 (Industrial Control Equipment)
- CE Marked: EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- CSA Certified: C22.2 No. 142
- RoHS Compliant: Directive 2011/65/EU
Data source: Rockwell Automation Publication 1746-TD004D-EN-P (SLC 500 I/O Modules Technical Data), verified against Rockwell Automation Product Compatibility and Download Center (PCDC) as of 2026.
Proven Application Environments
- Petrochemical / Refinery: Pump station motor starter control | Continuous duty cycling of NPN-input relay coils in hazardous-area junction boxes, requiring sustained 0.5A switching at elevated ambient temperatures up to 55°C.
- Power Generation / Thermal Plant: Auxiliary equipment sequencing (cooling fans, lube oil pumps) | High-cycle ON/OFF switching synchronized to turbine control logic, where fast response time (≤0.1 ms) prevents timing faults in protection relay circuits.
- Water / Wastewater Treatment: Chlorination dosing solenoid valve control | 32-point density allows a single module to manage an entire dosing manifold bank, reducing chassis slot consumption and simplifying wiring in wet-environment control panels.
- Automotive Assembly: Conveyor indexing and fixture clamping | NPN output compatibility with Japanese and Korean-manufactured proximity sensors eliminates signal inversion relays, reducing BOM cost and panel footprint.
- Food & Beverage Processing: Filling line valve sequencing | Optical isolation prevents ground loop interference in stainless-steel washdown environments where multiple grounding paths exist.
- Building Automation / HVAC: Multi-zone damper actuator control | The 32-point capacity supports large air-handling unit arrays from a single SLC 500 rack, minimizing hardware cost in retrofit projects.
Engineering Advantages
- For NPN field device networks, this output module eliminates the need for interposing relay banks, because the current sinking topology directly matches the switching polarity of NPN-input solenoids and sensors without additional signal conditioning.
- For high-density I/O requirements, this output module maximizes chassis utilization, because 32 points in a single slot reduces the number of chassis slots consumed compared to 16-point alternatives (1746-OV16), directly lowering hardware and installation costs.
- For electrically noisy industrial environments, this output module maintains signal integrity, because optical isolation between the field side and the SLC 500 backplane prevents conducted EMI from propagating into the processor or other I/O modules.
- For rapid machine cycle applications, this output module supports tight timing control, because the ≤0.1 ms turn-on response time is sufficient for most discrete sequencing tasks without requiring high-speed output modules.
- For maintenance-critical facilities, this output module simplifies troubleshooting, because the removable terminal block allows field wiring to be disconnected and reconnected without disturbing individual wire terminations, reducing MTTR.
- For long-lifecycle SLC 500 installations, this output module preserves backward compatibility, because it is electrically and mechanically interchangeable with earlier 1746-OV32 revisions, protecting the existing control system investment.
System Architecture & Signal Flow
Signal Flow: SLC 500 Processor (1747-L5x / L4x / L3x / L2x) → Backplane Data Bus → 1746-OV32 Output Image Table → Optical Isolator → NPN Transistor Switch → Field Load (solenoid / relay coil / indicator) → DC Common (+V rail). The module sources logic from the backplane 5V supply and switches the field-side 10–50V DC load on the return (0V) conductor.
Compatible Processors:
- 1747-L20, L30, L40, L40E, L40L, L531, L532, L541, L542, L543, L551, L552, L553 — all SLC 5/01 through SLC 5/05 processors; compatible because all share the same 1746-series backplane protocol and output image table addressing.
- 1746-A4 / A7 / A10 / A13 chassis — all standard SLC 500 chassis; the module occupies any I/O slot (slots 1–n, not slot 0 which is reserved for the processor).
Substitution Conditions: The 1746-OV32 may be substituted for a failed 1746-OV16 (16-point sinking) in the same slot with a firmware-level I/O configuration update in RSLogix 500 / Studio 5000 Logix Designer (offline change, download required). Direct hot-swap substitution without a program change is not supported. It is not a drop-in replacement for 1746-OB32 (sourcing) without field wiring polarity reversal.
Sourcing & Quality Verification
Units offered through Konmask.com are sourced from authorized industrial surplus channels, decommissioned OEM equipment, and verified distributor overstock. Each unit undergoes the following 4-step inspection process before listing:
- Visual Inspection: Examination of PCB, terminal block, connector pins, and housing for physical damage, corrosion, burn marks, or evidence of field repair.
- Label & Revision Verification: Catalog number, series letter, and firmware revision confirmed against Rockwell Automation PCDC records.
- Functional Bench Test: Module installed in a live SLC 500 chassis; all 32 output points exercised via RSLogix 500 forced I/O; leakage current and ON-state voltage drop measured per specification.
- Packaging & ESD Protection: Cleaned, anti-static bagged, and boxed with foam cushioning prior to shipment.
Documentation available upon request: Test report, high-resolution photos of actual unit (label, PCB, connector), Rockwell Automation datasheet (1746-TD004D-EN-P), and commercial invoice for customs clearance.
Procurement Process
- Inquiry Submission: Submit your requirement via the product page, email support@konmask.com, or WhatsApp/WeChat +0086 19859288691 with your required quantity, delivery timeline, and any specific revision or condition requirements.
- Quotation & Stock Confirmation: A response with confirmed stock status, unit price (quantity breaks available for orders ≥5 units), lead time, and shipping options will be provided within 24 hours on business days.
- Order Fulfillment: Payment confirmed → unit re-inspected and photographed → shipped with tracking via DHL Express, FedEx, or sea freight depending on destination and urgency. Export documentation (commercial invoice, packing list, COO) included as standard.
Technical Support: Pre-sale support covers compatibility verification, revision cross-reference, and RSLogix 500 configuration guidance. Post-sale support covers installation verification and DOA claims within 30 days of receipt.
Technical FAQ
Q: Is the 1746-OV32 compatible with SLC 5/05 Ethernet processors (1747-L553)?
A: Yes. The 1746-OV32 is compatible with all SLC 500 processors (SLC 5/01 through SLC 5/05) in any standard 1746-series chassis. The Ethernet capability of the 1747-L553 is independent of the I/O module selection; the output module communicates via the backplane, not the Ethernet port.
Q: Can the 1746-OV32 replace a 1746-OB32 (sourcing output module) directly?
A: Not without field wiring modification. The OV32 is current sinking (NPN, switches the 0V/return side), while the OB32 is current sourcing (PNP, switches the +V side). Substitution requires reversing the field device wiring polarity and confirming that the connected loads accept NPN switching. A program download is also required to update the I/O configuration in RSLogix 500.
Q: Does the 1746-OV32 carry UL and CE certification, and is it suitable for use in SIL-rated safety applications?
A: The module is UL 508 Listed and CE Marked (EMC + LVD directives), making it suitable for standard industrial control panel installations in North America and the EU. It is not independently SIL-rated under IEC 61508/61511. For SIL 1–3 safety instrumented functions, a dedicated safety-rated output module (e.g., Allen-Bradley GuardLogix or Safety I/O platform) is required. The 1746-OV32 may be used in the non-safety portion of a mixed-architecture system.
