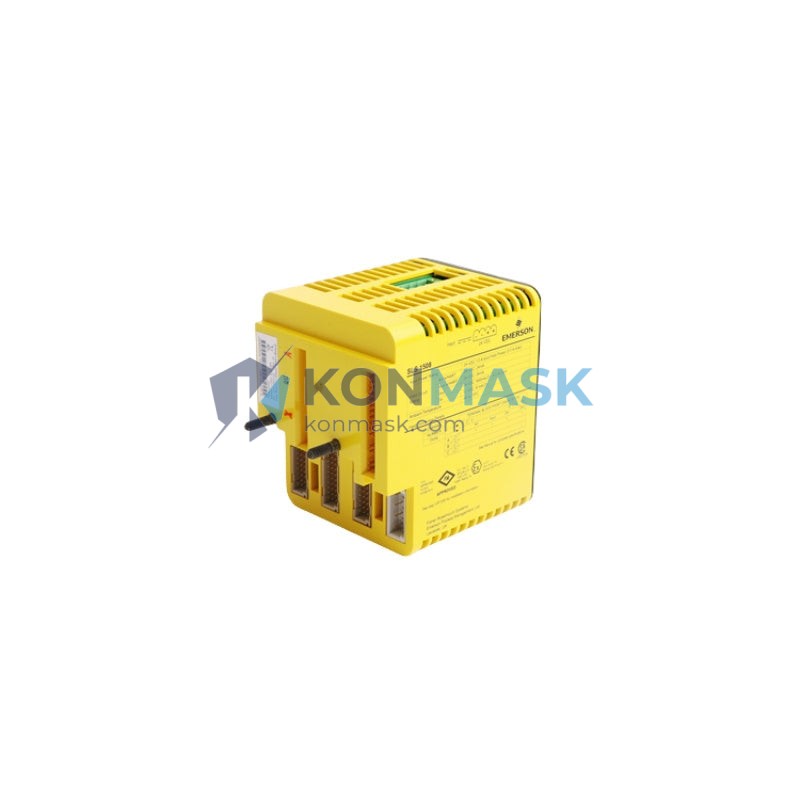

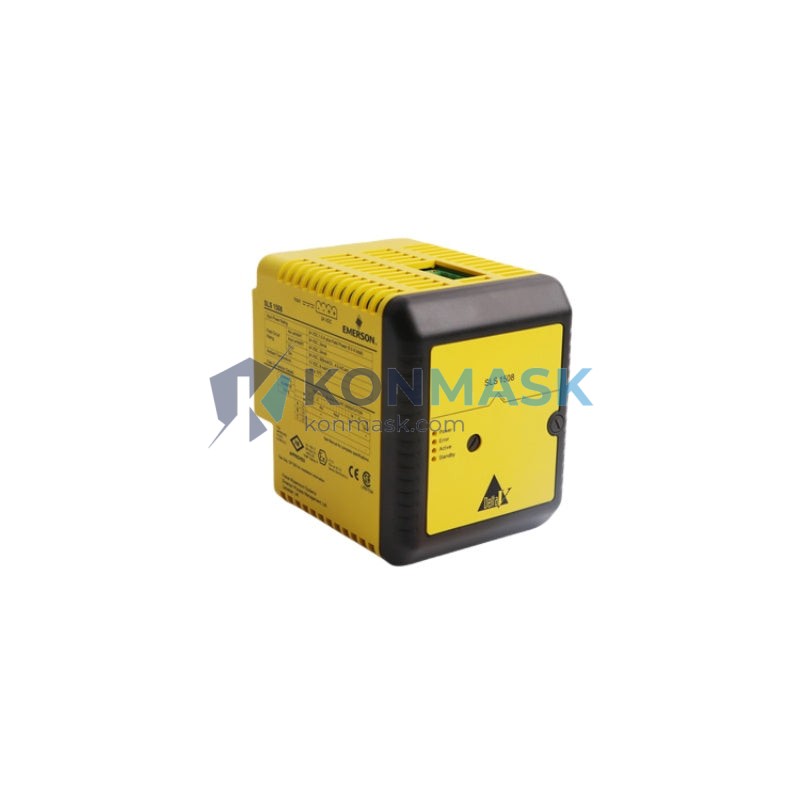

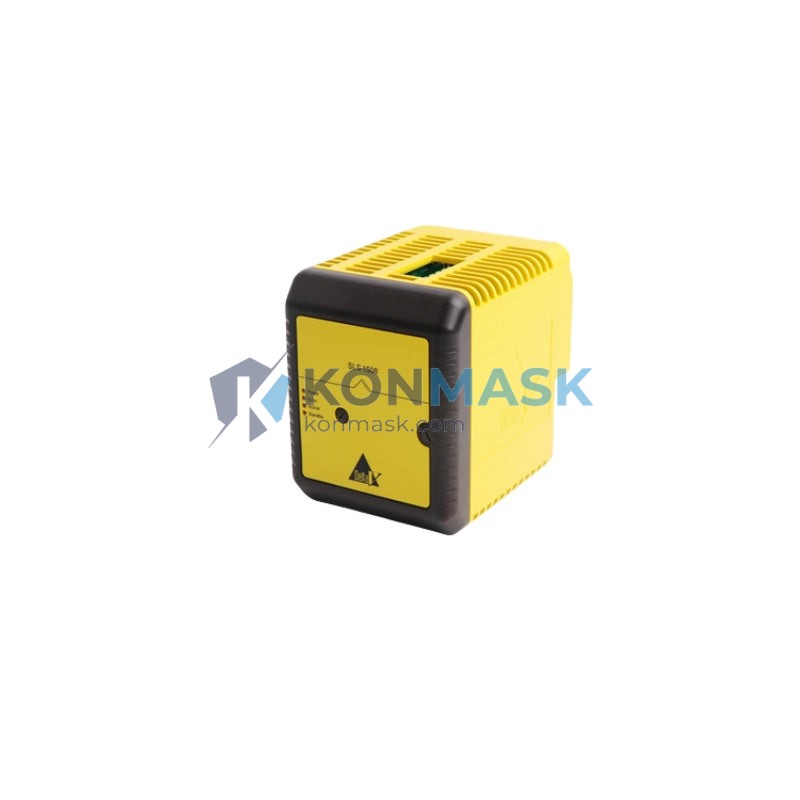

Emerson KJ2201X1-BA1 – Safety Logic Solver Module | DeltaV SIS Platform
Engineering Background: The Emerson DeltaV SIS (Safety Instrumented System) platform is a purpose-built, IEC 61511-compliant safety architecture widely deployed across oil & gas, petrochemical, power generation, and specialty chemical facilities. Unlike integrated safety layers bolted onto standard DCS platforms, DeltaV SIS maintains a fully independent safety execution environment — a critical design requirement for SIL 2 and SIL 3 loop integrity. The KJ2201X1-BA1 Logic Solver Module is the core computational element of this architecture, executing safety logic with deterministic scan cycles and hardware-enforced fault tolerance.
Product Positioning: Part number KJ2201X1-BA1 (Emerson internal BOM reference: 12P3162X122) is a field-proven logic solver designed for direct integration into DeltaV SIS controller chassis. It serves as the decision-making engine between field sensors and final control elements, processing voted inputs and commanding safe-state outputs in compliance with functional safety standards. This module is the preferred replacement and expansion unit for existing DeltaV SIS installations globally.
Complete Technical Specifications
- Manufacturer: Emerson Electric / Fisher-Rosemount Systems
- Part Number: KJ2201X1-BA1
- BOM / Revision Code: 12P3162X122
- Module Type: Safety Logic Solver (SLS)
- Platform: DeltaV SIS (Safety Instrumented System)
- Safety Integrity Level: SIL 2 capable (SIL 3 with redundant voting architecture)
- Standard Compliance: IEC 61508, IEC 61511, ANSI/ISA-84
- Communication Interface: DeltaV SIS proprietary backplane bus
- Power Supply: Supplied via controller chassis backplane (24 VDC nominal)
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Weight: Approx. 300 g
- Form Factor: Single-slot DeltaV SIS chassis card
- Diagnostic Coverage: High (per IEC 61508 DC classification)
- Proof Test Interval: Configurable per site safety requirements
- MTBF: Per Emerson SIL data package (available on request)
Proven Application Environments
- Oil & Gas: Emergency Shutdown (ESD) systems, High Integrity Pressure Protection Systems (HIPPS), wellhead control panels
- Petrochemical & Refining: Burner Management Systems (BMS), reactor trip systems, compressor protection
- Power Generation: Turbine protection, boiler safety interlocks, generator trip logic
- Chemical Processing: Exothermic reactor safety, toxic release prevention, pressure relief interlock logic
- LNG & Pipeline: Station ESD, leak detection logic, valve position safety voting
- Offshore Platforms: Fire & Gas (F&G) integration, platform ESD, process shutdown (PSD) tiers
Engineering Advantages
- Deterministic Execution: Fixed-cycle safety logic scan ensures predictable response times — critical for SIL loop time budget compliance.
- Hardware Fault Tolerance (HFT): Designed to meet HFT = 1 requirements in redundant configurations, supporting SIL 3 architectures.
- Seamless DeltaV SIS Integration: Native backplane communication eliminates gateway latency and simplifies HAZOP/LOPA documentation.
- Independent Safety Layer: Fully isolated from DeltaV BPCS (Basic Process Control System) — no shared execution resources.
- Online Diagnostics: Continuous self-test routines detect internal faults without interrupting safety function execution.
- Certified SIL Data Package: Emerson provides full FMEDA, PFD, and SFF data for functional safety lifecycle documentation.
- Long Field Service Life: Designed for 10+ year operational deployment with minimal preventive maintenance requirements.
System Architecture & Signal Flow
In a typical DeltaV SIS installation, the KJ2201X1-BA1 Logic Solver Module occupies a dedicated slot in the SIS controller chassis. Field sensor signals (4–20 mA, discrete, or HART) are received via SIS I/O modules on the same chassis backplane. The logic solver reads voted input states, executes the configured safety function (e.g., 1oo2, 2oo3 voting), and commands output modules to drive final elements (solenoid valves, motor contactors) to the defined safe state. All inter-module communication occurs over the isolated SIS backplane — physically and logically separated from the BPCS network. Diagnostics and configuration are managed via DeltaV SIS engineering workstation over a dedicated safety network segment.
Sourcing & Quality Verification
- Source: Decommissioned from operational DeltaV SIS installations or sourced from authorized surplus channels — not gray-market or counterfeit supply chains.
- Inspection Protocol: Each unit undergoes visual inspection (PCB, connectors, label integrity), functional power-on verification, and firmware revision check prior to listing.
- Authenticity Markers: Emerson holographic labels, original part number silkscreen, and BOM revision code (12P3162X122) verified against Emerson documentation.
- Packaging: Anti-static bag + foam-lined carton. ESD-safe handling throughout fulfillment.
- Warranty: 90-day operational warranty. DOA replacement within 7 business days.
- Documentation: Emerson datasheet and SIL certificate copies available upon request for engineering review.
Procurement Process
- Confirm Compatibility: Verify your DeltaV SIS chassis revision and firmware version against KJ2201X1-BA1 compatibility matrix (contact us for guidance).
- Request Quote: Contact support@konmask.com for volume pricing, lead time confirmation, and export documentation.
- Order Placement: Purchase order accepted via website checkout, bank transfer (T/T), or corporate PO for qualified accounts.
- Inspection & Dispatch: Unit re-inspected, photographed, and dispatched within 2 business days of payment confirmation.
- Shipping: DHL Express / FedEx International Priority with full tracking. Export documentation (commercial invoice, packing list, COO) included.
- Incoming Inspection Support: We provide reference photos and test data to support your incoming QC process.
Technical FAQ
- Q: Is KJ2201X1-BA1 compatible with all DeltaV SIS chassis versions?
- A: Compatibility depends on chassis hardware revision and DeltaV SIS firmware version. Contact us with your system details for a confirmed compatibility check before ordering.
- Q: Can this module be used in a SIL 3 application?
- A: SIL 3 is achievable with redundant logic solver configurations (e.g., 1oo2D architecture). Single-module deployment is typically rated SIL 2. Consult your functional safety engineer and Emerson SIL data package.
- Q: What firmware version is installed?
- A: Firmware revision is verified during our inspection process. Specific version details are provided in the unit’s inspection report. Firmware upgrades require Emerson DeltaV SIS engineering tools.
- Q: Do you provide a Factory Acceptance Test (FAT) report?
- A: We provide our internal inspection report. Original Emerson FAT documentation is not available for surplus units. For new FAT requirements, contact Emerson directly.
- Q: What is the lead time for international orders?
- A: In-stock units ship within 2 business days. DHL Express international transit is typically 3–5 business days to most destinations.
- Q: Can you provide an export license or EAR99 classification?
- A: Export classification documentation is provided upon request. Most standard automation modules fall under EAR99, but buyer is responsible for verifying import regulations in their jurisdiction.
