Emerson PR6426/010-040 – Non-Contact Eddy Current Displacement & Vibration Sensor | EPRO Series

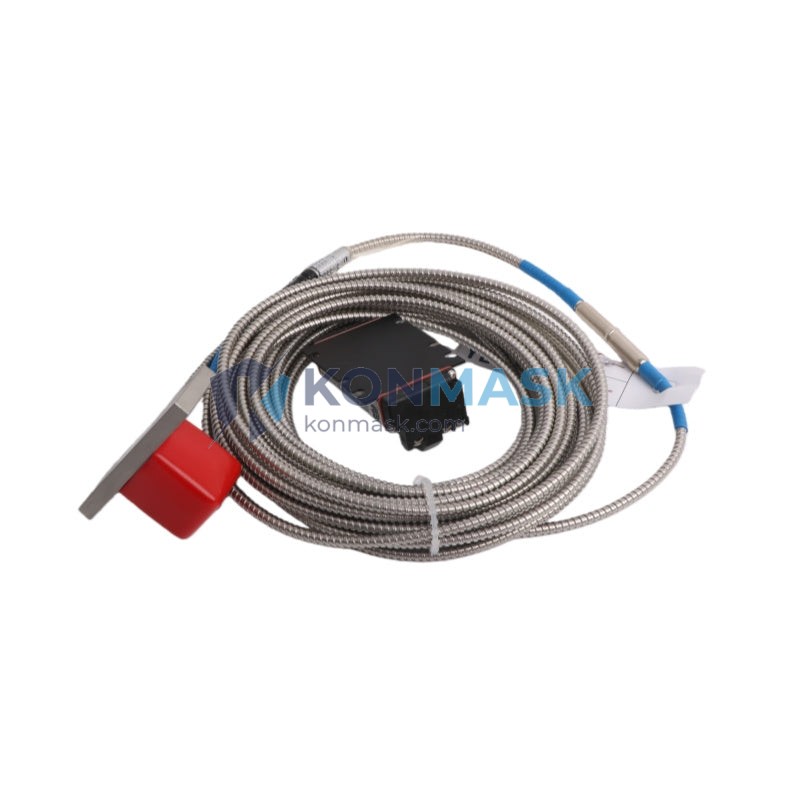

Engineering Background
The PR6426/010-040 is part of Emerson’s EPRO eddy current sensor platform, engineered for continuous, non-contact measurement of shaft vibration, axial displacement, and radial position in rotating machinery. Designed to operate in harsh industrial environments, this sensor delivers high-resolution analog output with exceptional linearity and long-term stability — critical for predictive maintenance programs in power generation, oil & gas, and heavy process industries.
Product Positioning
This sensor is the preferred choice for procurement engineers specifying condition monitoring instrumentation on turbines, compressors, pumps, and motors. It integrates directly with Emerson’s CSI and Bently Nevada monitoring systems, as well as third-party vibration monitoring platforms via standard 4–20 mA or voltage output interfaces.

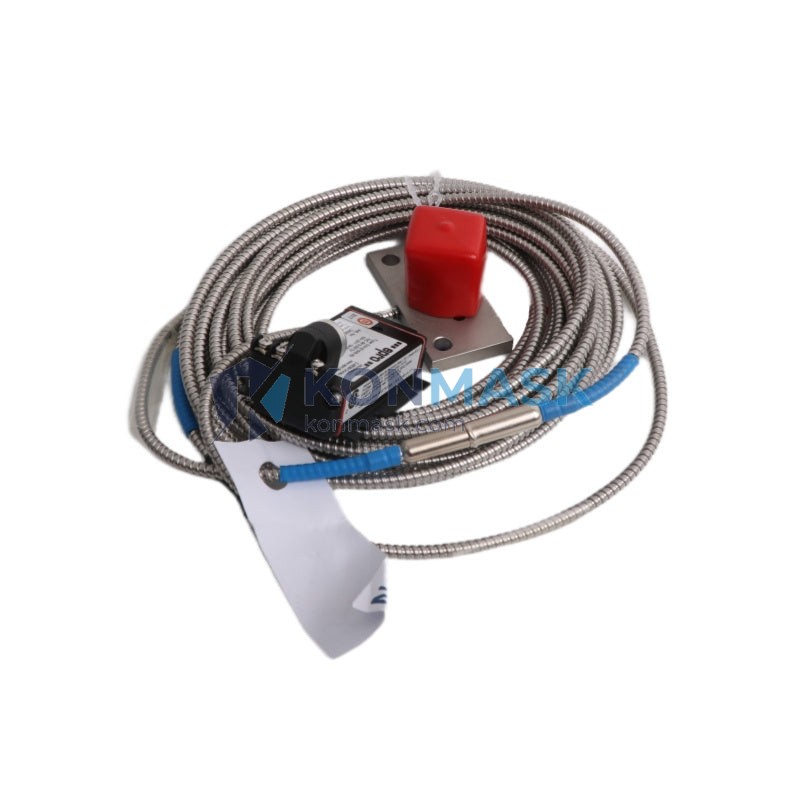

Complete Technical Specifications
- Part Number: PR6426/010-040
- Manufacturer: Emerson (EPRO Series)
- Sensor Type: Eddy Current / Inductive Proximity Probe
- Measurement: Non-contact shaft vibration, displacement, axial position
- Probe Tip Diameter: 10 mm
- Cable Length: 040 (4.0 m extension cable)
- Linear Range: 0–2 mm (nominal)
- Sensitivity: 8 mV/µm (typical)
- Frequency Response: 0–10,000 Hz
- Operating Temperature: -40°C to +120°C (probe); -40°C to +85°C (driver)
- Supply Voltage: -24 VDC (nominal)
- Output Signal: Analog voltage (DC)
- Target Material: Ferromagnetic and non-ferromagnetic metals
- Protection Rating: IP67
- Connector: MIL-C-5015 compatible
- Weight: Approx. 880 g (with cable)
- Compliance: CE, ATEX (consult datasheet for zone classification)
Proven Application Environments
- Steam and gas turbine shaft monitoring (radial vibration, axial thrust)
- Centrifugal compressor rotor displacement measurement
- High-speed pump and motor bearing clearance monitoring
- Gearbox and fan shaft position feedback
- Continuous emissions monitoring systems (CEMS) integration
- Petrochemical plant rotating equipment health programs
- Power plant predictive maintenance (PdM) infrastructure
Engineering Advantages
- Non-contact measurement: Zero mechanical wear, no lubrication required, suitable for high-speed shafts
- High bandwidth: 0–10 kHz frequency response captures sub-synchronous and high-frequency vibration events
- Temperature stability: Compensated design maintains calibration accuracy across wide thermal range
- Direct system integration: Compatible with Emerson CSI 2140, Bently Nevada 3500 series, and standard DCS/PLC analog input cards
- Robust construction: IP67-rated housing withstands oil mist, coolant splash, and high-humidity environments
- Long cable reach: 4.0 m extension cable allows sensor placement in confined machine housings with remote driver/conditioner mounting

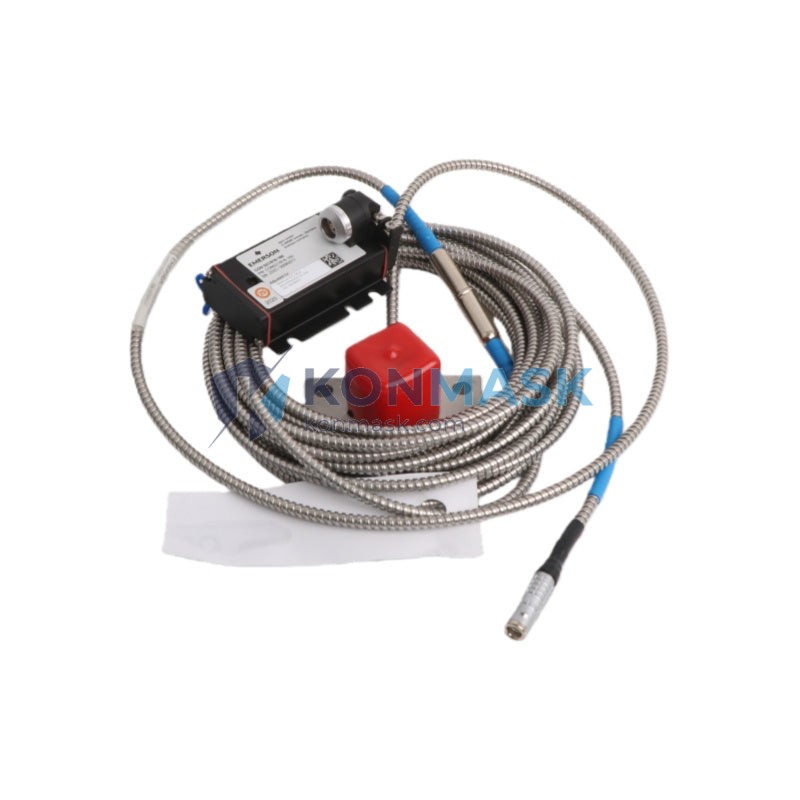

System Architecture & Signal Flow
The PR6426/010-040 operates as part of a three-component eddy current measurement chain:
- Probe (PR6426/010): Generates high-frequency electromagnetic field; detects target proximity via impedance change
- Extension Cable (/040): 4.0 m coaxial cable transmits raw oscillator signal with minimal loss
- Driver/Oscillator (CON021 or equivalent): Demodulates signal, provides linearized DC voltage output proportional to gap distance
Output voltage is fed directly to vibration monitors, safety shutdown systems, or analog input modules on DCS/PLC platforms. Signal conditioning and trip setpoint configuration are performed at the monitor level.
Sourcing & Quality Verification
- Origin: OEM Emerson / EPRO manufactured component
- Condition: New surplus / refurbished units available — condition specified at time of quotation
- Traceability: Serial number and manufacturing date code provided with each unit
- Testing: Each sensor undergoes functional verification (gap-voltage linearity check) prior to shipment
- Documentation: Calibration certificate and original datasheet available on request
- Packaging: Anti-static, foam-padded packaging with moisture barrier for international transit
Procurement Process
- Submit RFQ via support@konmask.com with quantity, required condition, and delivery timeline
- Receive quotation with lead time, unit price, and shipping options within 24 business hours
- Confirm purchase order — payment via T/T, PayPal, or trade finance terms for qualified accounts
- Shipment via DHL / FedEx / UPS with full tracking; export documentation (CO, packing list, commercial invoice) included
- Post-delivery technical support available via email and WhatsApp
Technical FAQ
Q: Is the PR6426/010-040 compatible with Bently Nevada 3500 series monitors?
A: Yes, with the appropriate driver/oscillator module. The analog output is standard and compatible with most Bently Nevada and third-party vibration monitors.
Q: What is the difference between PR6426/010-040 and PR6426/010-060?
A: The trailing number denotes cable length — /040 = 4.0 m, /060 = 6.0 m. All other electrical and mechanical specifications are identical.
Q: Can this sensor measure non-ferromagnetic targets such as aluminum or titanium shafts?
A: Yes. Eddy current sensors respond to all electrically conductive materials. Sensitivity and linear range may vary slightly by target material; recalibration is recommended for non-standard targets.
Q: What driver/conditioner is recommended for this probe?
A: Emerson CON021 or CON041 series drivers are the standard pairing. Third-party drivers with compatible oscillator frequency and impedance matching may also be used.
Q: Do you provide ATEX/IECEx certification documentation?
A: Yes, upon request. Please specify the hazardous area classification required when submitting your RFQ.
