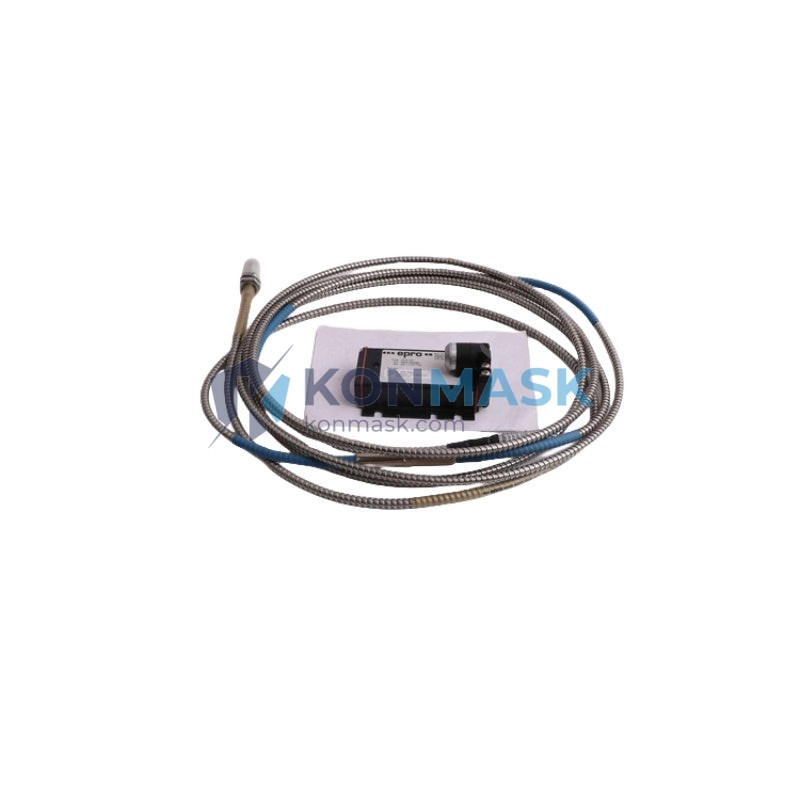

Vibration Monitoring Solution – EPRO PR6423/011-010 CON021 | Eddy Current Sensor Series
Where This Product Is Used
The EPRO PR6423/011-010 CON021 eddy current sensor is deployed across critical rotating machinery and precision measurement environments where non-contact displacement sensing is essential. Typical installation sites include:
- Steam & Gas Turbines — shaft radial vibration and axial position monitoring per API 670
- Centrifugal Compressors — rotor orbit analysis and bearing clearance measurement in petrochemical plants
- Large Electric Motors & Generators — continuous shaft displacement monitoring in power generation facilities
- Pumps & Fans — imbalance detection and predictive maintenance in process industries
- Machine Tool Spindles — runout and thermal growth measurement in precision manufacturing
- Paper & Steel Mills — roll position and gap control in heavy industrial processes
- Marine Propulsion Systems — shaft monitoring in offshore and shipboard applications
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | PR6423/011-010 |
| Conditioner / Driver | CON021 |
| Manufacturer | EPRO (Baker Hughes / Bently Nevada ecosystem compatible) |
| Sensor Type | Eddy Current (Non-contact inductive displacement) |
| Probe Tip Diameter | 11 mm |
| Nominal Gap Range | 0 – 2 mm (linear measurement range) |
| Sensitivity | 8 mV/µm (nominal) |
| Output Signal | DC voltage proportional to gap distance |
| Cable Length | 1.0 m (extension cable specified separately) |
| Operating Temperature | −40 °C to +120 °C (probe); −40 °C to +85 °C (driver) |
| Target Material | Steel / Stainless Steel (ferromagnetic and non-ferromagnetic variants available) |
| Supply Voltage | −24 VDC (via CON021 driver) |
| Protection Rating | IP67 (probe body) |
| Connector Type | MIL-C-5015 compatible |
| Weight | ~300 g (probe + driver assembly) |
Why Engineers Specify This Model
- API 670 Compliance — meets the machinery protection standard required by EPC contractors and end-users in oil & gas
- Non-Contact Measurement — zero mechanical wear; ideal for continuous 24/7 monitoring on critical assets
- High Linearity — consistent output across the full gap range minimises calibration drift over service life
- Plug-and-Play with EPRO / Bently Nevada Systems — direct compatibility with MMS6000, MMS3000, and 3500 series monitors reduces integration engineering time
- Robust Construction — stainless steel probe body and IP67 rating withstand harsh process environments including steam, oil mist, and vibration
- Proven Field History — widely specified in LNG, refinery, and power generation projects globally since the 1990s
Complete System Bill of Materials
A complete eddy current measurement chain using this sensor typically includes:
- Probe: EPRO PR6423/011-010 (this item)
- Driver / Signal Conditioner: EPRO CON021 (included in this SKU)
- Extension Cable: EPRO TQ-CON-0XX (length to suit installation; specify separately)
- Vibration Monitor: EPRO MMS6110 / MMS6120 or Bently Nevada 3500/42M
- Mounting Hardware: Probe holder bracket (customer-supplied or specify at order)
- DCS / PLC Interface: 4–20 mA or ±10 V analogue input card (site-specific)
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition)
- IEC 60068-2 — Environmental testing (vibration, temperature, humidity)
- ATEX / IECEx — Intrinsically safe variants available on request
- CE Marking — EMC Directive 2014/30/EU
- RoHS Compliant
Quality Assurance & Sourcing
Konmask.com sources the PR6423/011-010 CON021 through verified industrial automation distributors and authorised surplus channels. Every unit offered undergoes the following before dispatch:
- Visual and dimensional inspection against OEM datasheet
- Label and serial number authenticity verification
- Functional continuity check (probe coil resistance and driver output)
- Anti-static packaging with desiccant for long-term storage integrity
- Photographic documentation available on request
We maintain traceability records for all units and can provide inspection reports for critical project requirements.
How to Source This Part
- Add to Cart — place your order directly on this page for in-stock units
- Request a Quote — contact support@konmask.com for volume pricing, lead time confirmation, or project BOM support
- Urgent Requirement — call or WhatsApp +0086 19859288691 for same-day response on critical shutdowns
- Datasheet / Certification — request OEM documentation at time of enquiry; we supply available certificates with shipment
Application-Specific FAQ
Q: Is the PR6423/011-010 compatible with Bently Nevada 3500 series monitors?
A: Yes. The EPRO PR6423 series uses the same signal conditioning standard as Bently Nevada proximity probes and is electrically compatible with 3500/42M and similar cards when used with the CON021 driver.
Q: What shaft materials are supported?
A: The standard PR6423 is calibrated for AISI 4140 steel. For stainless steel (316L) or Inconel shafts, a recalibration or alternative probe variant is required — contact us to confirm.
Q: Can this sensor be used in ATEX Zone 1 environments?
A: Intrinsically safe (IS) variants of the PR6423 series exist. Confirm the exact suffix and associated IS barrier requirements with our technical team before specifying for hazardous areas.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. For out-of-stock or new-production units, lead time is 4–8 weeks. Contact us for current availability.
Q: Do you provide a warranty?
A: Yes. All units carry a 90-day functional warranty from date of shipment. Extended warranty and on-site support can be arranged for project contracts.
