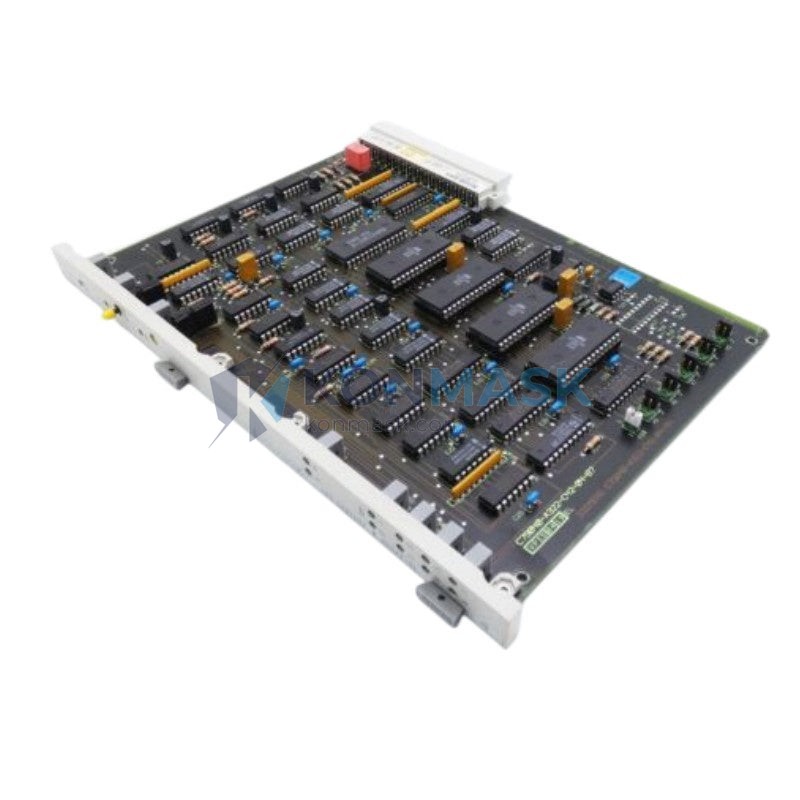

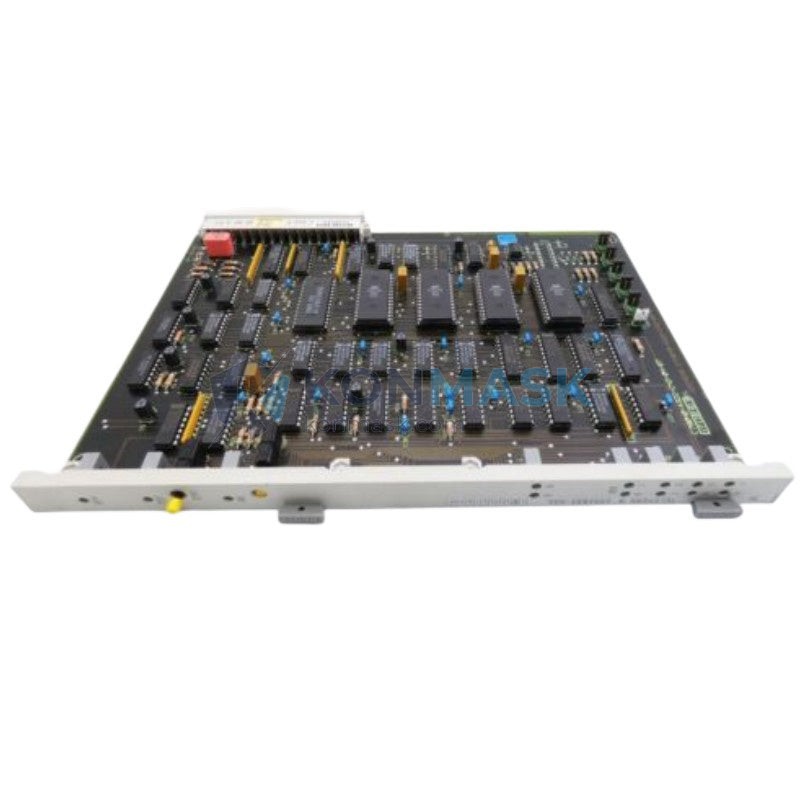

SIEMENS 6DS1832-8AA – EEPROM Module for CPU | TELEPERM M DCS Platform
Engineering Background
The SIEMENS 6DS1832-8AA is a dedicated EEPROM (Electrically Erasable Programmable Read-Only Memory) module designed for use with the TELEPERM M Distributed Control System (DCS) CPU units. TELEPERM M represents Siemens’ legacy yet highly reliable DCS architecture, widely deployed across petrochemical, power generation, and heavy industrial facilities worldwide. This EEPROM module serves as the non-volatile program and parameter storage medium for the CPU, ensuring that critical control logic and configuration data are retained through power cycles and system restarts without battery dependency.
Product Positioning
Procurement engineers maintaining aging TELEPERM M installations rely on the 6DS1832-8AA as a mission-critical spare. With OEM production discontinued, sourcing verified, tested units from specialist distributors is the only path to sustaining system uptime without costly platform migration. Konmask.com maintains stock of this module with full traceability and pre-shipment functional verification.
Complete Technical Specifications
| Part Number | 6DS1832-8AA |
| Manufacturer | SIEMENS AG |
| Module Type | EEPROM Memory Module |
| Platform | TELEPERM M DCS / SIMATIC S5 Compatible |
| Function | Non-volatile program and parameter storage for CPU |
| Memory Technology | EEPROM (Electrically Erasable Programmable ROM) |
| Interface | Direct CPU slot insertion (TELEPERM M backplane) |
| Operating Temperature | 0°C to +60°C (standard industrial range) |
| Storage Temperature | -40°C to +85°C |
| Supply Voltage | 5 VDC (via backplane) |
| Weight | approx. 300 g (with packaging) |
| Condition | New / Refurbished / Tested (specify at inquiry) |
| Warranty | 12 months functional warranty |
Proven Application Environments
- Petrochemical & Refinery Plants — sustaining TELEPERM M-based process control loops for reactor management and distillation column automation
- Power Generation Facilities — turbine governor and boiler control systems running on legacy TELEPERM M CPUs
- Chemical Manufacturing — batch process controllers requiring reliable non-volatile parameter retention
- Water Treatment Infrastructure — SCADA-integrated DCS nodes where CPU program integrity is safety-critical
- Pulp & Paper Mills — continuous process lines with long-running TELEPERM M installations
- Steel & Metals Processing — high-temperature environment control systems dependent on TELEPERM M architecture
Engineering Advantages
- Battery-Free Retention — EEPROM technology eliminates the risk of data loss due to battery failure, a common failure mode in older RAM-backed modules
- Direct Drop-In Replacement — 100% pin and form-factor compatible with the original TELEPERM M CPU slot; no firmware modification required
- Pre-Shipment Functional Test — every unit undergoes read/write cycle verification and data retention testing before dispatch
- Extended Shelf Life — EEPROM cells rated for 10+ years data retention in storage conditions
- Traceability Documentation — serial number, test report, and origin documentation available upon request for regulated industries
- Rapid Availability — in-stock units ship within 1–3 business days; emergency same-day dispatch available
System Architecture & Signal Flow
Within the TELEPERM M DCS architecture, the CPU module reads the 6DS1832-8AA EEPROM at power-on initialization to load the user program, I/O configuration tables, and PID parameter sets into working RAM. During normal operation, the CPU may write updated parameter values back to the EEPROM at defined save intervals or upon operator command. The EEPROM’s non-volatile nature ensures that the last-saved system state is always available for warm restart, minimizing process downtime after unplanned shutdowns.
Signal flow: Backplane 5V Bus → EEPROM Address/Data Bus → CPU Internal RAM → Process I/O Modules → Field Instruments
Sourcing & Quality Verification
- Source Traceability — units sourced from decommissioned plant inventories, authorized distributors, or OEM surplus channels; origin documented per unit
- Incoming Inspection — visual inspection for physical damage, pin integrity, and label authenticity
- Functional Testing — EEPROM read/write/erase cycle test using TELEPERM M-compatible test bench
- ESD-Safe Packaging — shipped in anti-static bags with foam cushioning and moisture barrier
- Counterfeit Mitigation — all units cross-referenced against known Siemens part markings and date codes; suspected non-genuine units are rejected and destroyed
Procurement Process
- Submit Inquiry — contact support@konmask.com with your required quantity, delivery timeline, and any certification requirements
- Quotation & Lead Time Confirmation — receive a formal quotation within 24 business hours including unit price, shipping cost, and estimated delivery
- Purchase Order — issue PO against the quotation; proforma invoice issued for prepayment or net terms (qualified accounts)
- Pre-Shipment Inspection — functional test report and photos provided before dispatch upon request
- Shipping & Tracking — DHL / FedEx / SF Express with full tracking; export documentation (commercial invoice, packing list, COO) included
- After-Sales Support — 12-month warranty; technical support available via email or WhatsApp
Technical FAQ
Q: Is the 6DS1832-8AA compatible with all TELEPERM M CPU variants?
A: The 6DS1832-8AA is designed for specific TELEPERM M CPU modules. Please confirm your CPU part number with our technical team before ordering to ensure compatibility.
Q: Can the EEPROM be reprogrammed in the field?
A: Yes, the EEPROM can be erased and reprogrammed using the TELEPERM M programming unit or compatible SIEMENS programming tools. Units are shipped blank or with customer-specified program upon request.
Q: What is the data retention life of the EEPROM?
A: EEPROM cells are rated for a minimum of 10 years data retention at 25°C and up to 1,000,000 write/erase cycles under standard operating conditions.
Q: Do you provide a test report with each unit?
A: Yes, a functional test report is available upon request at no additional charge. Certified test reports for regulated industries may incur a documentation fee.
Q: Can you supply multiple units for a plant-wide spare parts program?
A: Yes, volume pricing is available for orders of 3+ units. Contact us for a blanket order arrangement with staggered delivery.
Q: What export documentation is provided?
A: Standard export documentation includes commercial invoice, packing list, and certificate of origin. ECCN classification and export license support available upon request.
