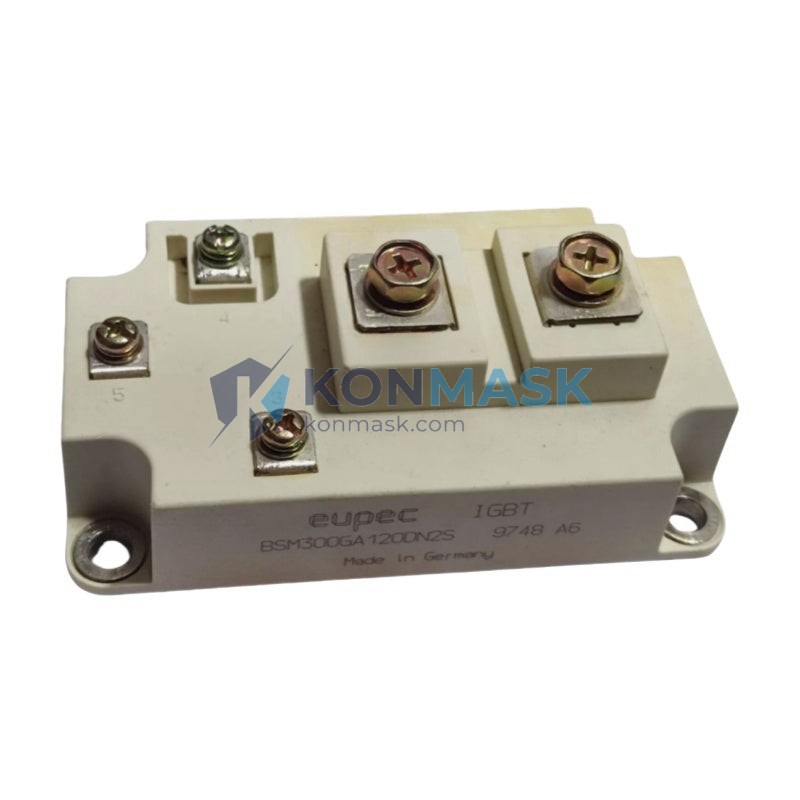

EUPEC BSM300GA120DN2S High-Power IGBT Switching Module – FF Series (Full-Bridge)
When a high-power IGBT module fails on the production floor, the consequences are immediate and severe: drive systems shut down, conveyor lines halt, and entire manufacturing cells go dark. In high-demand applications such as medium-voltage drives, industrial UPS systems, and traction inverters, even minutes of unplanned downtime translate into significant financial loss. The EUPEC BSM300GA120DN2S is the precision-engineered component that keeps these critical systems running — a 300A, 1200V full-bridge IGBT power module built to withstand the thermal and electrical stresses of continuous industrial operation.
Within the EUPEC FF Series, the BSM300GA120DN2S occupies a high-current, medium-voltage tier that makes it the preferred choice for engineers designing or maintaining 3-phase inverter stages, regenerative drives, and active front-end rectifiers. EUPEC (now part of Infineon Technologies) has long been recognized as a global benchmark for IGBT module reliability, and the BSM300GA120DN2S continues that legacy — combining low saturation voltage (VCE(sat)), fast switching characteristics, and robust short-circuit withstand capability into a single, industry-standard package.
Technical Specifications
- Part Number / SKU: BSM300GA120DN2S
- Brand: EUPEC (Infineon Technologies)
- Series: FF Series (Full-Bridge / Dual IGBT)
- Collector Current (IC): 300 A
- Collector-Emitter Voltage (VCES): 1200 V
- Module Configuration: Dual / Full-Bridge (2-in-1)
- Gate-Emitter Voltage (VGE): ±20 V
- Package Type: Standard FF (Flat Base) Power Module
- Isolation Voltage: 4000 Vrms (typical for this series)
- Operating Junction Temperature (Tj): -40°C to +150°C
- Weight: ~500 g
- RoHS Compliance: Yes
Note: All specifications are sourced from publicly available EUPEC/Infineon datasheets. Always verify against the official datasheet before design-in.
Key Features & Benefits
- High Current Density: 300A rated collector current enables compact drive designs without sacrificing thermal headroom.
- 1200V Blocking Voltage: Suitable for 690V AC bus applications and medium-voltage industrial systems.
- Low VCE(sat): Minimizes conduction losses, improving overall inverter efficiency and reducing heat sink requirements.
- Fast Switching Speed: Optimized for PWM frequencies used in modern variable-frequency drives (VFDs) and servo amplifiers.
- Short-Circuit Withstand Capability: Provides critical protection time for gate driver circuits to respond to fault conditions.
- Integrated Free-Wheeling Diodes: Simplifies circuit design and reduces component count in inverter topologies.
- Industry-Standard FF Package: Drop-in compatible with existing PCB layouts and heatsink assemblies using the FF footprint.
- Proven EUPEC/Infineon Quality: Manufactured under stringent automotive-grade process controls adapted for industrial applications.
Industry & Equipment Applications
- Variable Frequency Drives (VFDs): Motor speed control in pumps, fans, compressors, and conveyors.
- Industrial Servo Drives: High-dynamic positioning systems in CNC machining centers and robotics.
- Traction Inverters: Electric locomotives, light rail vehicles, and industrial electric vehicles.
- Uninterruptible Power Supplies (UPS): Online double-conversion UPS for data centers and critical infrastructure.
- Renewable Energy Inverters: Grid-tie inverters for wind turbines and large-scale solar installations.
- Welding Equipment: High-frequency inverter welding machines requiring precise current control.
- Induction Heating Systems: Industrial heating and hardening equipment.
System Integration & Compatible Parts
The BSM300GA120DN2S is commonly used alongside the following components in complete drive and inverter systems:
- Gate Driver ICs: Infineon 1ED020I12-F2, CONCEPT 2SD315AI — optimized for EUPEC FF-series modules.
- DC Bus Capacitors: Film capacitors rated ≥1200V DC for the intermediate circuit.
- Thermal Interface Materials: Dow Corning TC-5026 or equivalent phase-change thermal pad for FF package mounting.
- Heatsinks: Extruded aluminum heatsinks with FF-series bolt pattern (consult thermal resistance requirements).
- Related EUPEC Modules: BSM200GA120DN2S (200A), BSM400GA120DN2S (400A) — for scalable power stage design.
- Current Sensors: LEM HAL 600-S or equivalent for closed-loop current feedback.
Our Quality Assurance Process
At Konmask.com, every IGBT power module undergoes a rigorous multi-stage verification process before shipment:
- Source Verification: All units are sourced from authorized distributors or directly from manufacturer-certified channels. Counterfeit screening is performed on every batch.
- Visual Inspection: 100% visual check for package integrity, lead condition, date code consistency, and marking authenticity.
- Electrical Pre-screening: Key parameters including VCE(sat) and leakage current are spot-checked against datasheet limits.
- ESD-Safe Packaging: All modules are packed in anti-static bags with foam cushioning and clearly labeled with part number and quantity.
- Traceability: Batch records and certificates of conformance (CoC) are available upon request.
How to Order
- Submit your inquiry via the “Request a Quote” button on this page, or email support@konmask.com.
- Provide your required quantity, target delivery date, and any specific date code or traceability requirements.
- Our technical sales team will respond within 24 business hours with pricing, lead time, and stock availability.
- Upon agreement, a formal proforma invoice (PI) will be issued. Payment terms and shipping options will be confirmed at this stage.
- Orders are dispatched with full documentation including packing list, CoC, and commercial invoice.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC modules, DCS components, IGBT modules, and industrial automation hardware — not a generalist marketplace.
- Global Supply Network: Access to both new and hard-to-find legacy components from verified supply chain partners worldwide.
- Technical Support: Our team includes engineers with hands-on experience in drive systems and power electronics — we speak your language.
- Fast Response: Dedicated B2B inquiry handling with same-day response during business hours (UTC+8).
- Flexible Shipping: DHL, FedEx, UPS, and sea freight options available. Export documentation and customs support included.
- Competitive Pricing: Volume discounts available for OEM, MRO, and system integrator customers.
Frequently Asked Questions
- Q: Is the BSM300GA120DN2S still in production?
- A: The BSM300GA120DN2S was manufactured by EUPEC (now Infineon Technologies). Availability may vary between new stock, last-time-buy inventory, and tested used units. Contact us for current stock status.
- Q: Can you provide a datasheet for the BSM300GA120DN2S?
- A: Yes. The official Infineon/EUPEC datasheet is available upon request. Please contact support@konmask.com.
- Q: What is the minimum order quantity (MOQ)?
- A: We accommodate both single-unit replacement orders and bulk OEM purchases. There is no strict MOQ — please submit your inquiry with your required quantity.
- Q: Do you offer warranty on IGBT modules?
- A: Yes. We offer a quality guarantee on all components. Specific warranty terms are confirmed at the time of order based on product condition (new, refurbished, or tested).
- Q: How do I verify the authenticity of the module I receive?
- A: All shipments include a certificate of conformance. We also provide batch traceability documentation and welcome third-party inspection arrangements for large orders.
- Q: What gate driver is recommended for the BSM300GA120DN2S?
- A: Infineon’s 1ED020I12-F2 or CONCEPT’s 2SD315AI are commonly used with EUPEC FF-series modules. Consult the gate driver datasheet for VGE and RG recommendations.
