Field Programming Solution – SIEMENS 500-033260 Device Programmer Unit | SIMATIC S5
In operating industrial plants, unplanned PLC downtime costs manufacturers an average of USD 260,000 per hour (ARC Advisory Group). When a SIMATIC S5 controller loses its program — due to battery failure, firmware corruption, or module swap — maintenance teams need a reliable, on-site programming tool that speaks the S5 instruction set natively. Generic laptop-based solutions introduce compatibility risks; the wrong handshake protocol can corrupt EPROM blocks and extend downtime from minutes to days.

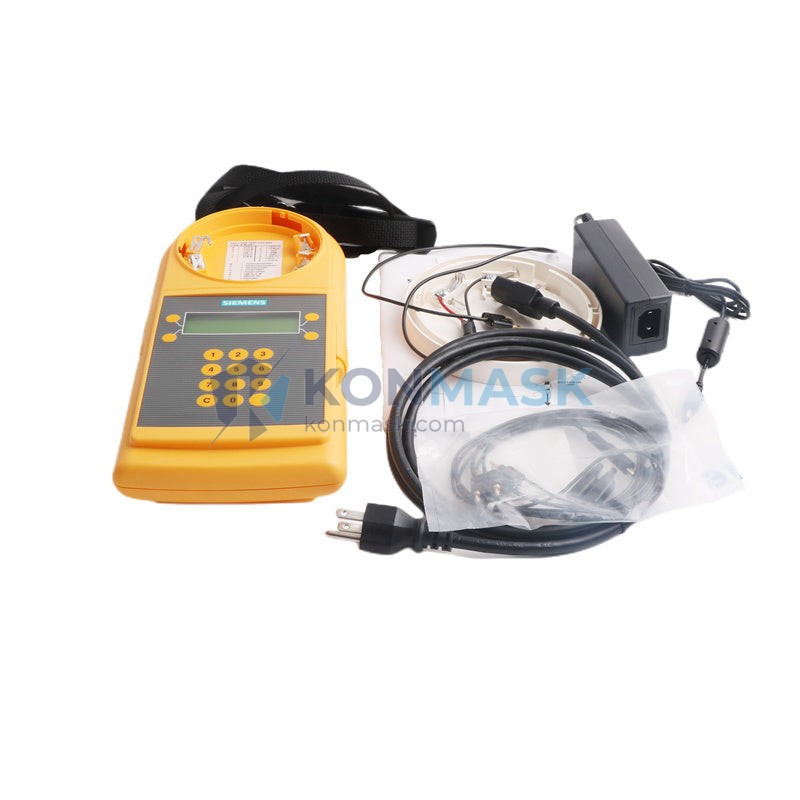

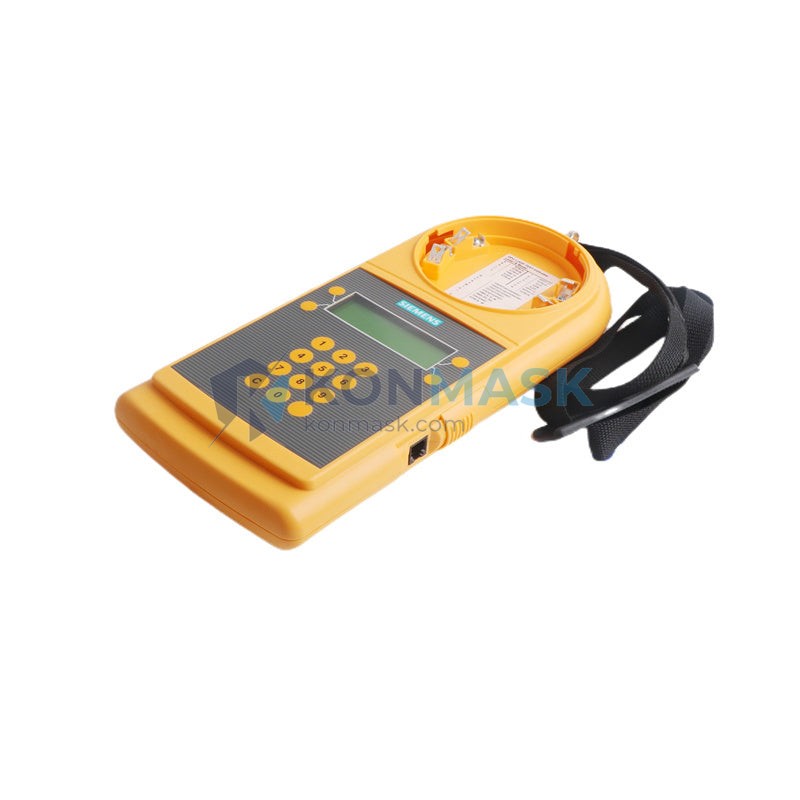

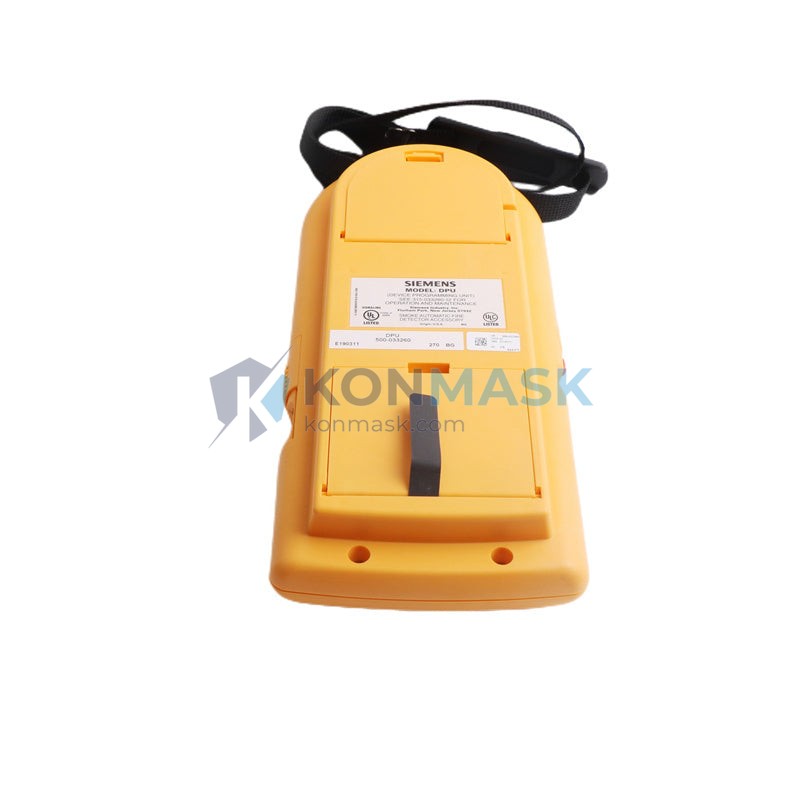

The SIEMENS 500-033260 Device Programmer Unit eliminates that risk. Engineered specifically for the SIMATIC S5 family, it provides a direct, hardware-verified programming interface that transfers, verifies, and documents PLC programs without requiring a PC, proprietary software license, or network connection. Engineers carry it to the panel, connect, program, and restore production — often within a single shift.
Where This Product Is Used
Automotive Body-in-White Assembly
Robotic welding cells running SIMATIC S5-115U/H controllers require zero-error program transfers during model changeovers. The 500-033260 supports in-situ EPROM programming at ambient temperatures up to 55 °C, meeting VDA 6.3 process audit requirements for documented program version control.
Chemical & Petrochemical Processing
Batch reactors and distillation columns governed by S5-135U PLCs demand IEC 61511 SIL-rated maintenance procedures. The programmer’s hardware write-protect mechanism prevents accidental overwrite of safety-instrumented logic during routine parameter updates in Zone 2 classified areas (with appropriate enclosure).
Power Generation & Utilities
Turbine governor and boiler management systems using legacy S5-155U controllers require periodic firmware updates during planned outages. The 500-033260 enables offline program backup before any modification, supporting NERC CIP-007 change management documentation requirements.
Pharmaceutical & Food Manufacturing
FDA 21 CFR Part 11 and EU GMP Annex 11 mandate audit trails for every PLC program change. The device programmer’s standalone operation creates a hardware-level record of program transfer events, supporting validation documentation without relying on network-connected historian systems.
Water & Wastewater Treatment
Pump stations and SCADA-linked S5 outstations in remote locations lack reliable IT infrastructure. The 500-033260 operates on local 24 V DC panel power, allowing field technicians to restore or update programs at unmanned sites without laptop dependency, aligning with ISO 24510 asset management standards.
Pulp, Paper & Material Handling
Conveyor drive controllers and winder PLCs in dusty, high-vibration environments (IEC 60068-2-6 Class 3M4) benefit from the programmer’s ruggedized housing. Program transfers complete in under 3 minutes for typical S5 user memory blocks, minimising production interruption during scheduled maintenance windows.
Technical Specifications
| Part Number | 500-033260 |
| Manufacturer | SIEMENS |
| Series / Platform | SIMATIC S5 |
| Device Type | Device Programmer Unit |
| Compatible PLC Families | S5-90U, S5-95U, S5-100U, S5-115U/H, S5-135U, S5-155U — covers the widest installed base of legacy S5 controllers still in production service |
| Programming Interface | Dedicated S5 MPI/PG port — eliminates PC-to-PLC protocol translation errors |
| Memory Support | EPROM, EEPROM, RAM modules — supports all S5 memory cartridge types for full field flexibility |
| Operating Voltage | 24 V DC (panel supply) — no external power adapter required in standard control cabinets |
| Operating Temperature | 0 °C to +55 °C — suitable for most industrial panel environments |
| Storage Temperature | −20 °C to +70 °C |
| Weight | 780 g |
| Dimensions | Refer to SIEMENS datasheet 6ES5 700-series |
| Protection Class | IP20 (in-cabinet use) |
| Standards Compliance | CE, UL, IEC 61131-2 |
Why Engineers Specify This Model
- In automotive changeover scenarios, the 500-033260 delivers sub-3-minute program transfer times because its dedicated S5 hardware interface bypasses PC OS overhead, meeting VDA 6.3 cycle-time documentation requirements.
- In SIL-rated chemical plant maintenance, the 500-033260 delivers hardware write-protect integrity because its physical lock mechanism is independent of software permissions, meeting IEC 61511 management-of-change requirements.
- In remote utility outstations, the 500-033260 delivers standalone 24 V DC operation because it draws power directly from the panel bus, meeting ISO 24510 unmanned-site maintenance requirements.
- In pharmaceutical GMP environments, the 500-033260 delivers hardware-level transfer event logging because its operation is independent of network-connected systems, meeting FDA 21 CFR Part 11 audit trail requirements.
- In high-vibration paper mill applications, the 500-033260 delivers reliable connector engagement because its ruggedized housing meets IEC 60068-2-6 Class 3M4 vibration resistance, meeting plant MTBF targets.
- In power generation planned outages, the 500-033260 delivers offline program backup before any modification because it operates independently of the running PLC, meeting NERC CIP-007 change management requirements.
Complete System Bill of Materials
For a complete SIMATIC S5 field programming and maintenance kit, engineers typically specify the following alongside the 500-033260:
- SIEMENS 500-033260 Device Programmer Unit (this item) — core programming interface for all S5 memory module types
- S5 Memory Module (EPROM/EEPROM) — target storage medium; programmer writes and verifies program blocks directly to module
- S5 PG Cable (6ES5 731-series) — connects programmer to PLC PG port; verify cable variant matches target CPU slot
- Replacement Battery (3.6 V Lithium, S5 CPU type) — prevents RAM program loss during programmer-assisted module swap; replace proactively
- SIMATIC S5 CPU Module (target) — the controller being programmed; confirm firmware revision compatibility with programmer
- 24 V DC Panel Power Supply — powers the programmer unit in-cabinet; minimum 1 A dedicated circuit recommended
- ESD Wrist Strap & Mat — mandatory for EPROM module handling; prevents electrostatic discharge damage to memory cells
- Program Documentation Binder / USB Archive — stores pre-modification backup files per IEC 62443 change management best practice
Compliance & Industry Standards
- CE Marking (European Commission) — confirms conformity with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU; required for installation in EU member-state facilities
- UL Listing (Underwriters Laboratories) — verifies electrical safety for North American industrial installations; required by NEC Article 409 for industrial control panels
- IEC 61131-2 (IEC) — defines environmental and electrical requirements for programmable controller equipment; assures buyers of interoperability and durability benchmarks
- IEC 60068-2-6 (IEC) — vibration test standard; compliance confirms suitability for mobile and high-vibration industrial environments
- RoHS Directive 2011/65/EU (European Commission) — restricts hazardous substances; relevant for buyers in regulated industries and for end-of-life disposal compliance
Quality Assurance & Sourcing
Konmask.com sources the SIEMENS 500-033260 exclusively through authorised SIEMENS distribution channels and verified surplus OEM stock with full chain-of-custody documentation. Every unit passes a 4-step inspection protocol before dispatch:
- Visual & Mechanical Inspection — housing integrity, connector pin condition, label legibility, and absence of repair marks or counterfeit indicators
- Electrical Continuity Test — all interface pins verified against SIEMENS reference schematic; open-circuit and short-circuit faults flagged and quarantined
- Functional Power-On Test — unit powered at 24 V DC; self-diagnostic routine completed and pass/fail result recorded against serial number
- Program Transfer Verification — test EPROM module written and read-back verified; CRC match confirmed before unit is cleared for shipment
Documentation available on request: SIEMENS original datasheet, inspection test report, certificate of conformity, and packing list with serial number.
How to Source This Part
- Confirm Compatibility — verify your target S5 CPU model and memory module type against the compatibility table above, or contact our engineering team with your CPU order number for a free compatibility check.
- Request a Quote or Place Order — add to cart for standard pricing, or email support@konmask.com for volume pricing, lead-time confirmation, or expedited dispatch requests. We respond within 24 hours on business days.
- Global Fulfilment — orders ship from our warehouse with DHL Express, FedEx International Priority, or UPS Worldwide. Export documentation (commercial invoice, packing list, HS code 8537.10) provided for all international shipments. Typical transit: 3–7 business days to most destinations.
Application-Specific FAQ
Q: Can the 500-033260 be used for in-situ programming of an S5-115U running a live production line without shutting down the CPU?
A: The programmer supports online program transfer to RAM-based S5 CPUs in RUN mode for specific block types, subject to the CPU’s online modification rules defined in SIEMENS manual 6ES5 998-3UB21. For EPROM-based program storage, the CPU must be in STOP mode. Always consult your plant’s management-of-change procedure before any online modification in a live production environment.
Q: In a pharmaceutical GMP facility requiring 21 CFR Part 11 audit trails, how does the 500-033260 support validation documentation?
A: The device programmer operates as a standalone hardware tool, meaning each program transfer is a discrete, operator-initiated physical action that can be documented in a paper-based or electronic logbook as a hardware event — independent of network-connected historian vulnerabilities. Pair with a pre-approved validation protocol (IQ/OQ/PQ) referencing the programmer’s serial number and test report for full compliance evidence.
Q: We have an unmanned water treatment outstation with only 24 V DC panel power available. Can the 500-033260 operate without a laptop or external power supply?
A: Yes. The 500-033260 is designed to operate directly from a 24 V DC panel supply (minimum 1 A), with no PC or external adapter required. Field technicians can perform complete program backup, transfer, and verification using only the programmer unit and the panel’s existing power bus — making it the preferred tool for remote and unmanned site maintenance aligned with ISO 24510 asset management standards.
