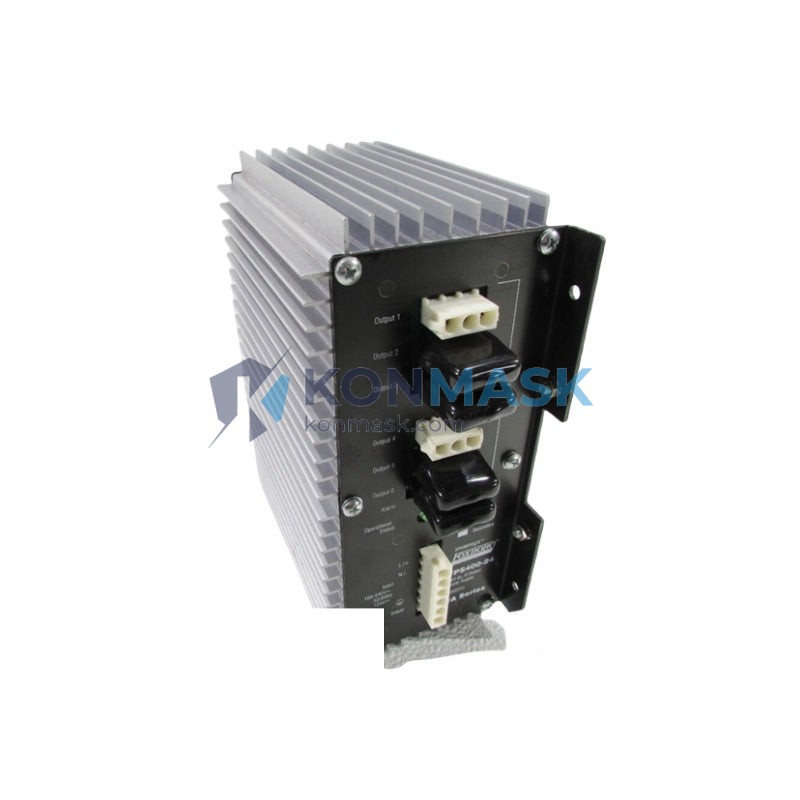

Foxboro P0922YU FPS400-24 DIN Rail Mounted Power Supply | Replacement, Equivalent & Selection Guide
The Foxboro P0922YU / FPS400-24 is a DIN Rail Mounted 24 VDC industrial power supply designed for use within Foxboro I/A Series Distributed Control Systems (DCS). It provides stable, regulated DC power to field I/O modules and control processors in demanding process automation environments. This page serves as a comprehensive selection, replacement, and compatibility reference for procurement engineers and system integrators.
Technical Specifications
- Part Number: P0922YU / FPS400-24
- Brand: Foxboro (Schneider Electric)
- Series: I/A Series DCS
- Output Voltage: 24 VDC
- Output Power: 400 W (nominal)
- Mounting: DIN Rail (EN 60715 / TS 35)
- Input Voltage: 85–264 VAC, 47–63 Hz (universal input)
- Operating Temperature: 0 °C to +60 °C
- Protection: Overvoltage, overcurrent, short-circuit protection
- Weight: Approx. 2.84 kg
- Compliance: CE, UL listed, RoHS
- Country of Origin: USA
Compatible Replacement & Equivalent Models
When the original P0922YU / FPS400-24 is discontinued or unavailable, the following models are commonly evaluated as functional equivalents. Always verify electrical and mechanical compatibility before substitution:
- Foxboro P0922XU / FPS200-24 — Lower wattage (200 W) variant; suitable for smaller I/O cabinets
- Phoenix Contact QUINT-PS/1AC/24DC/20 — 480 W, 24 VDC DIN rail PSU; widely used as a third-party replacement
- Siemens SITOP PSU300S 24V/20A — 480 W, 24 VDC; compatible form factor for I/A Series cabinets
- Puls QS20.241 — 480 W, 24 VDC; compact DIN rail design with active PFC
- Schneider Electric ABL8REM24050 — 120 W, 24 VDC; suitable for lighter loads within the same ecosystem
Note: Third-party replacements may require additional wiring adapters or firmware validation. Contact support@konmask.com for compatibility confirmation.
Why Choose the Original Foxboro P0922YU FPS400-24
- Factory-validated for Foxboro I/A Series DCS — zero integration risk
- Plug-and-play replacement with no firmware or configuration changes required
- Guaranteed electrical compatibility with FBM (Field Bus Module) I/O racks
- Meets Foxboro’s stringent EMC and safety certifications for process industries
- Backed by Schneider Electric’s global spare parts and support network
Typical Applications
- Oil & gas refinery DCS power distribution panels
- Chemical plant process control cabinets
- Power generation and utilities automation systems
- Pulp & paper mill I/A Series upgrades and retrofits
- Pharmaceutical batch control systems requiring 24 VDC rail power
System Compatibility
The FPS400-24 is designed to power the following Foxboro I/A Series components:
- FBM (Field Bus Modules) — all standard analog and digital I/O types
- CP60 / CP270 / CP280 Control Processors
- ZCP270 / ZCP280 Zone Control Processors
- Foxboro SCADA and HMI workstation auxiliary power rails
- Termination Assemblies (TA) and Marshalling Cabinets
Selection Guide
Use the following criteria to confirm the correct power supply for your application:
- Step 1 — Calculate load: Sum the power draw of all FBMs and processors in the cabinet. Add 20% safety margin.
- Step 2 — Verify input voltage: Confirm site AC supply (110 VAC or 220 VAC). The FPS400-24 accepts universal input (85–264 VAC).
- Step 3 — Check DIN rail space: Measure available rail length. The FPS400-24 requires approximately 100 mm of rail width.
- Step 4 — Confirm redundancy requirement: For critical loops, pair two FPS400-24 units with a Foxboro redundancy module (P0922ZU or equivalent).
- Step 5 — Validate certifications: Ensure CE/UL compliance matches your plant’s safety classification (SIL, ATEX zone requirements).
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Pre-shipment functional test: output voltage, ripple, and protection circuit verification
- Original manufacturer packaging preserved where available
- Traceability documentation (COC, test reports) available on request
- 12-month warranty against manufacturing defects
How to Order
- Confirm part number: P0922YU / FPS400-24
- Specify quantity and required delivery timeline
- Email support@konmask.com or call +0086 19859288691
- Receive quotation within 1 business day
- Payment via T/T, PayPal, or credit card; DHL/FedEx express shipping available worldwide
Replacement & Compatibility FAQ
Q: Is the FPS400-24 still in production?
A: The FPS400-24 / P0922YU may be listed as end-of-life by Schneider Electric. Konmask.com maintains stock of new, refurbished, and equivalent units. Contact us for current availability.
Q: Can I use a Phoenix Contact QUINT PSU as a direct replacement?
A: Electrically yes (24 VDC / 20 A output), but mechanical mounting and connector pinout must be verified against your specific cabinet drawing. We recommend a site survey before substitution.
Q: What is the lead time for the original P0922YU?
A: In-stock units ship within 3–5 business days. Out-of-stock orders typically require 4–8 weeks sourcing lead time.
Q: Do you provide a test report with each unit?
A: Yes. A functional test report is included with every shipment upon request.
Q: Can two FPS400-24 units be run in parallel for redundancy?
A: Yes, with the appropriate Foxboro redundancy diode module. Contact us for the correct redundancy kit part number.
