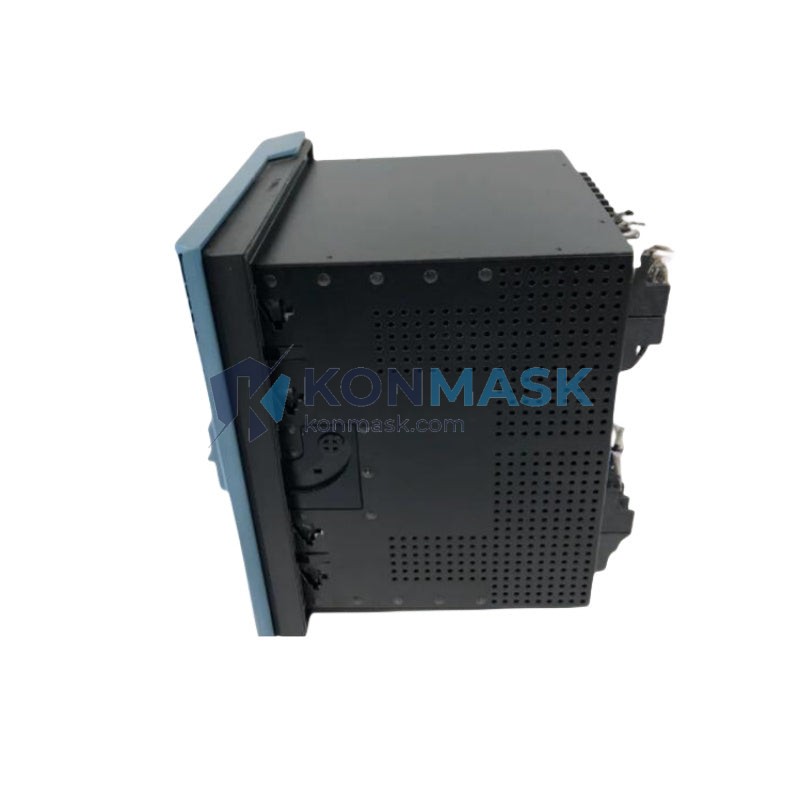

GE 469-P5-HI-A1-E-H – Advanced Motor Protection System | Multilin 469 Series
Engineering Background
The GE Multilin 469 series represents GE Grid Solutions’ flagship motor management relay platform, engineered for medium-voltage induction and synchronous motor applications in heavy industrial environments. The 469 integrates comprehensive protection, monitoring, and control functions into a single IED (Intelligent Electronic Device), replacing legacy electromechanical relay panels and reducing panel footprint while increasing diagnostic capability.
Product Positioning
The 469-P5-HI-A1-E-H variant is configured for high-current CT inputs (HI), advanced communications (A1 = RS-485 Modbus RTU), enhanced I/O (E), and high-voltage power supply (H = 125–250 V DC / 100–240 V AC). This configuration is the preferred specification for petrochemical, mining, water treatment, and power generation facilities requiring IEC 61850-ready motor protection with full data logging and event recording.
Complete Technical Specifications
| Model | 469-P5-HI-A1-E-H |
| Manufacturer | GE Grid Solutions (GE Multilin) |
| Series | Multilin 469 Motor Management Relay |
| CT Input Range (HI) | 1 A – 12,000 A (via external CTs, HI = high-current input) |
| Phase CT Ratio | 1 A or 5 A secondary (selectable) |
| Ground CT Input | 50:0.025 mA (sensitive ground) or standard 1/5 A |
| Power Supply (H) | 125–250 V DC / 100–240 V AC, 50/60 Hz |
| Communications (A1) | RS-485, Modbus RTU protocol |
| I/O Configuration (E) | Enhanced: 8 digital inputs, 6 output relays |
| Protection Functions | Thermal model, overcurrent (50/51), ground fault (50G/51G), undercurrent, phase unbalance, phase reversal, locked rotor, stall, RTD-based thermal (up to 12 RTDs), starts-per-hour, restart inhibit |
| Metering | 3-phase current, power (kW, kVAR, kVA, PF), energy (kWh, kVARh), motor thermal capacity, RTD temperatures |
| Data Logging | Event recorder (512 events), oscillography (waveform capture), motor start data log |
| Display | 40-character × 2-line backlit LCD, LED indicators |
| Mounting | Panel/rack mount, 19″ rack compatible, drawout option available |
| Dimensions | Approx. 177 mm × 267 mm × 178 mm (H × W × D) |
| Weight | 7.3 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH, non-condensing |
| Standards Compliance | IEC 60255, IEEE C37.90, UL 508, CE marked |
| SKU / Part Number | 469-P5-HI-A1-E-H |
Proven Application Environments
- Oil & Gas / Petrochemical: Compressor drives, pump motors, and critical process motors requiring SIL-rated protection and full event audit trails.
- Mining & Minerals: Conveyor drives, ball mill motors, and crusher drives subject to frequent starts and high locked-rotor currents.
- Water & Wastewater: Pump station MCC integration with SCADA via Modbus RTU for remote monitoring and alarm management.
- Power Generation: Auxiliary motor protection in thermal, hydro, and combined-cycle plants where relay coordination with generator protection is critical.
- Pulp & Paper / Steel: High-inertia load applications requiring precise thermal model tuning and RTD-based winding temperature monitoring.
- Marine & Offshore: Harsh environment installations where wide power supply range (H variant) and robust enclosure are mandatory.
Engineering Advantages
- Adaptive Thermal Model: Tracks motor thermal capacity in real time using both current-based heating and RTD feedback, preventing nuisance trips while ensuring winding protection under overload and unbalance conditions.
- Sensitive Ground Fault Detection: 50:0.025 mA ground CT input enables detection of incipient insulation faults at current levels invisible to standard ground relays — critical for high-resistance grounded systems.
- Comprehensive Start Supervision: Locked rotor, stall, and starts-per-hour protection with configurable inhibit timers eliminates motor damage from repeated unsuccessful starts.
- Integrated Metering & Power Quality: Eliminates the need for separate power meters; provides kWh/kVARh energy accounting directly from the relay.
- Oscillography & Event Log: 512-event recorder and waveform capture enable post-fault analysis without external recording equipment — reduces MTTR significantly.
- Wide Power Supply Range (H): Operates on both AC and DC auxiliary supplies (100–250 V), simplifying installation in mixed-supply substations and eliminating the need for separate DC/DC converters.
System Architecture & Signal Flow
The 469 operates as a standalone motor management IED within the MCC or switchgear lineup. Phase current signals are acquired via external CTs (1 A or 5 A secondary) connected to the HI-rated current inputs. Ground current is measured via a dedicated core-balance CT or residual connection. Up to 12 RTDs (PT100) connect directly to the relay for winding, bearing, and ambient temperature monitoring.
Digital inputs (8 channels) accept dry contact signals from the motor starter (52a/52b auxiliary contacts), process interlocks, and external trip/inhibit commands. Output relays (6 channels) drive the motor contactor/breaker trip coil, alarm annunciators, and remote indication panels. The RS-485 port (A1) connects to the plant DCS or SCADA system via Modbus RTU, enabling remote setpoint access, metering readback, and event retrieval without local panel access.
Sourcing & Quality Verification
- Origin: Genuine GE Multilin manufactured unit; not aftermarket or third-party remanufactured.
- Inspection: Each unit undergoes functional verification prior to dispatch — firmware version confirmed, communication port tested, and output relay continuity verified.
- Condition: New surplus or refurbished units clearly identified at time of quotation; full condition disclosure provided with order confirmation.
- Documentation: GE Multilin 469 Instruction Manual (GEK-106310) available upon request; factory calibration certificates available for new units.
- Warranty: 12-month Konmask warranty covering defects in materials and workmanship; advance replacement available for critical applications.
Procurement Process
- Inquiry & Specification Confirmation: Submit your exact part number (469-P5-HI-A1-E-H) and required quantity via the order form or email to support@konmask.com.
- Quotation & Lead Time: Formal quotation issued within 1 business day including unit price, condition disclosure, lead time, and shipping options (DHL Express / sea freight).
- Order Confirmation: Purchase order or online checkout accepted; proforma invoice issued for T/T wire transfer customers.
- Inspection & Dispatch: Unit inspected, photographed, and securely packaged (anti-static + foam-lined export carton); tracking number provided within 24 hours of dispatch.
- After-Sales Support: Technical support available via email and WhatsApp for commissioning assistance, setpoint guidance, and warranty claims.
Technical FAQ
Q: What is the difference between the HI and LO current input options on the 469?
A: The HI (high-current) input is rated for standard 1 A or 5 A CT secondaries and is suitable for motors from a few amperes up to 12,000 A primary. The LO (low-current) input is designed for direct connection to motors up to approximately 100 A without external CTs. The 469-P5-HI-A1-E-H uses the HI input, making it appropriate for medium-voltage motor applications.
Q: Can the 469 communicate with a Siemens or ABB DCS via Modbus RTU?
A: Yes. The A1 communications option provides an RS-485 port running Modbus RTU. The 469 Modbus register map is fully documented in GEK-106310 and is compatible with any Modbus master, including Siemens S7, ABB 800xA, Honeywell Experion, and Yokogawa CENTUM.
Q: How many RTDs can the 469-P5-HI-A1-E-H monitor?
A: Up to 12 RTDs (PT100, 3-wire) — typically 6 stator winding RTDs, 2 bearing RTDs, and up to 4 additional for ambient or load-side monitoring. Each RTD channel has independently configurable alarm and trip setpoints.
Q: Is the H power supply variant compatible with 110 V DC station battery systems?
A: The H variant is rated 125–250 V DC. For 110 V DC systems, the standard power supply variant (rated 20–60 V DC / 24–48 V AC) should be specified. Please confirm your auxiliary supply voltage at time of inquiry.
Q: What firmware version is shipped and can it be upgraded in the field?
A: Firmware version is confirmed at dispatch. GE Multilin provides field firmware upgrade capability via the front RS-232 port using GE’s EnerVista 469 Setup software (free download). Konmask can advise on the latest available firmware for your hardware revision.
