WOODWARD 5463-581 Isolated Input Module | Replacement, Equivalent & Selection Guide

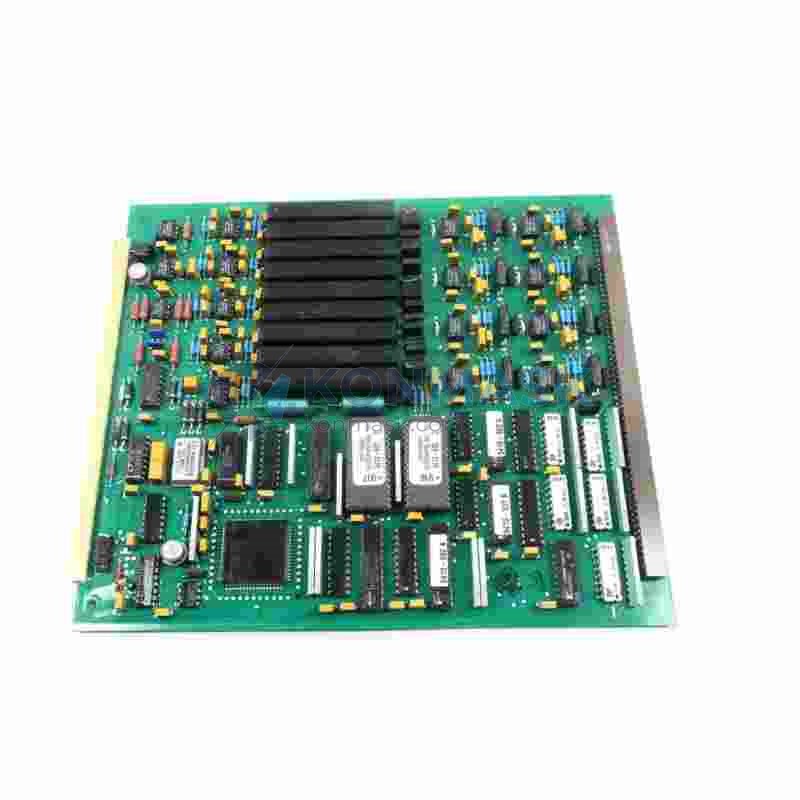

The WOODWARD 5463-581 is an Isolated Input Module designed for use within WOODWARD control and governor systems. It provides electrically isolated analog or digital signal conditioning for turbine, generator, and industrial process control applications. As a core I/O component, it interfaces field sensors with the main controller, ensuring signal integrity and system protection in demanding industrial environments.
Selection Background
Procurement engineers and maintenance teams frequently search for WOODWARD 5463-581 replacement or 5463-581 equivalent modules when facing end-of-life stock, extended lead times, or budget constraints. Understanding which alternatives are functionally compatible — and under what conditions — is critical to avoiding unplanned downtime. This guide consolidates direct drop-in options, functional equivalents, and cross-brand substitutes so buyers can make an informed selection before contacting Konmask.
Technical Specifications
| Parameter | Specification | Replacement-Critical |
|---|---|---|
| Part Number | 5463-581 | — |
| Manufacturer | WOODWARD | — |
| Module Type | Isolated Input Module | ★ Key for substitute selection |
| Isolation Type | Galvanic / Optical Isolation | ★ Must match in replacement |
| Signal Type | Analog / Digital Input (field-configurable) | ★ Verify channel type |
| Input Channels | Multi-channel (confirm with datasheet) | ★ Channel count must match |
| Operating Voltage | 24 VDC (nominal) | ★ Critical for drop-in replacement |
| Operating Temperature | -40°C to +70°C | ★ Verify for harsh environments |
| Communication Interface | Backplane / proprietary WOODWARD bus | ★ Bus compatibility required |
| Certifications | CE, UL (verify current revision) | Relevant for regulated industries |
| Weight | 500 g (approx.) | — |
| Form Factor | DIN-rail / rack-mount card | Verify mechanical fit |
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
These modules share the same part family, connector pinout, and firmware compatibility with the 5463-581. They can typically be swapped without hardware or software modification:
- WOODWARD 5463-581 (new / refurbished) — Identical OEM unit; preferred for safety-critical systems
- WOODWARD 5463-581-001 / 5463-581-002 — Revision variants; confirm firmware revision compatibility before installation
2. Functional Equivalents
These modules perform the same isolated input function within WOODWARD or compatible control architectures, but may require minor configuration or firmware adjustment:
- WOODWARD 5464-xxx series — Next-generation I/O modules with expanded channel density; verify backplane slot compatibility
- WOODWARD 5461-xxx Isolated I/O cards — Earlier generation; confirm signal range and bus protocol match
3. Cross-Brand Alternatives
For system migrations or when OEM parts are unavailable, the following third-party modules offer comparable isolated input functionality. Note: Cross-brand substitutes require engineering validation, signal mapping, and may need custom wiring adapters.
- Bachmann MX213 / MX220 — Isolated analog input modules for turbine control; compatible with open-architecture DCS
- Bently Nevada 3500/40M — Isolated process variable input for machinery protection systems
- Emerson DeltaV AI Series — Isolated analog input cards for process control migration projects
- Siemens S7-300 SM331 — Isolated analog input module; suitable for cross-platform retrofits with signal conditioning
Always consult Konmask engineers before deploying cross-brand substitutes in safety-rated or OEM-warranty-covered systems.
Why Choose the Original WOODWARD 5463-581
- Precision & Accuracy: Factory-calibrated to WOODWARD governor system tolerances, ensuring sub-millisecond response and minimal signal drift in turbine control loops
- OEM Certification: Fully certified and validated for WOODWARD NetCon, MicroNet, and 505 series control platforms — no re-certification required
- Plug-and-Play Compatibility: Direct backplane fit with zero wiring modification; firmware auto-recognition eliminates commissioning risk
- Technical Support: Full WOODWARD factory documentation, revision history, and Konmask application engineering support available
- Warranty Coverage: Genuine units supplied by Konmask include traceable sourcing documentation and warranty; aftermarket substitutes may void system warranty
- Long-Term Availability: Konmask maintains buffer stock and global sourcing channels to support legacy WOODWARD systems beyond OEM EOL dates
Typical Applications
- Gas Turbine Control: Isolated speed, temperature, and pressure signal conditioning in GE, Siemens, and Solar turbine packages using WOODWARD governors
- Steam Turbine Governor Systems: Input isolation for throttle position, extraction pressure, and vibration signals in power generation plants
- Compressor Control Panels: Signal isolation for suction/discharge pressure and flow transmitters in pipeline compression stations
- Diesel Generator Sets: Isolated input for load sharing, frequency, and voltage regulation in standby and prime power gensets
- Marine Propulsion Systems: Isolated I/O for engine speed and fuel rack position in vessel propulsion control systems
- Industrial Process Control: General-purpose isolated analog input for chemical, petrochemical, and refinery DCS integration
System Compatibility
The WOODWARD 5463-581 is designed for use within the following WOODWARD control platforms and associated components:
- WOODWARD NetCon 5000 — Primary host controller for turbine governor applications
- WOODWARD MicroNet TMR / Plus — Triple-redundant control system; module must match TMR slot assignment
- WOODWARD 505 Digital Governor — Speed and load control for steam turbines; verify I/O expansion compatibility
- WOODWARD 2301A / 2301D Load Sharing Module — Companion controller for genset paralleling applications
- WOODWARD Peak150 / Peak200 — Hydro turbine governor platform; confirm backplane revision
- Field Transmitters (4–20 mA / 0–10 V) — Standard process transmitters; isolation ensures ground loop elimination
Selection Guide
Answer these three questions to confirm the 5463-581 — or its equivalent — is the right choice for your application. Contact Konmask if any answer is uncertain.
-
Is your host controller a WOODWARD NetCon, MicroNet, or 505 series?
If yes → the OEM 5463-581 is the safest choice. If no → contact Konmask to evaluate cross-brand equivalents. -
Do your field signals require galvanic isolation (e.g., high-voltage environments, long cable runs, or ground loop issues)?
If yes → confirm the replacement module’s isolation rating matches or exceeds the original spec. Konmask can provide isolation test certificates. -
Is this installation in a safety-rated (SIL) or OEM-warranty-covered system?
If yes → only genuine OEM or certified equivalent modules should be used. Contact Konmask for traceable sourcing documentation before purchase.
📧 Contact Konmask: support@konmask.com | +0086 19859288691
Quality Assurance & Sourcing
Konmask sources the WOODWARD 5463-581 through authorized distribution channels, certified surplus networks, and direct OEM partnerships. Every unit undergoes a 4-step inspection process before shipment:
- Visual Inspection: PCB, connectors, and housing checked for damage, corrosion, or counterfeit indicators
- Functional Test: Module powered and tested against WOODWARD I/O specification benchmarks
- Firmware Verification: Revision label and embedded firmware version confirmed and documented
- Traceability Documentation: Serial number, sourcing chain, and test records archived and available on request
Available documentation: Test reports · Certificate of Conformance (CoC) · Material Safety Data Sheet (MSDS) · Customs HS code declaration · Original OEM packaging (where available)
How to Order
- Submit Your Inquiry: Email support@konmask.com with part number 5463-581, required quantity, and delivery timeline. Attach your system nameplate photo if requesting compatibility confirmation.
- Receive Quote & Availability: Konmask will respond within 24 hours with pricing, lead time, and available documentation. Expedited sourcing available for urgent shutdowns.
- Confirm & Ship: Upon order confirmation, units are inspected, packed, and dispatched with full traceability documentation. DHL / FedEx express shipping available worldwide.
Replacement & Compatibility FAQ
Q1: Can I use a WOODWARD 5463-581 substitute in my MicroNet TMR system without reconfiguration?
A: Direct drop-in replacements within the 5463-581 revision family are generally plug-and-play in MicroNet TMR systems. However, any functional equivalent or cross-brand substitute requires engineering validation and may need firmware parameter adjustment. Konmask provides pre-sale compatibility consultation at no charge.
Q2: What is the closest cross-brand equivalent to the WOODWARD 5463-581 for a DCS migration project?
A: For DCS migration, Emerson DeltaV AI Series or Siemens S7-300 SM331 isolated input modules are commonly evaluated as functional equivalents. Signal range, channel count, and bus protocol must be mapped before substitution. Konmask engineers can assist with signal mapping documentation.
Q3: Is a refurbished WOODWARD 5463-581 compatible with my existing system, and how does it compare to a new substitute module?
A: A professionally refurbished OEM 5463-581 is typically more compatible than a new cross-brand substitute, as it retains the original connector pinout, firmware, and backplane interface. Konmask refurbished units include functional test reports and a 12-month warranty. For safety-critical applications, always request traceability documentation regardless of new or refurbished status.
