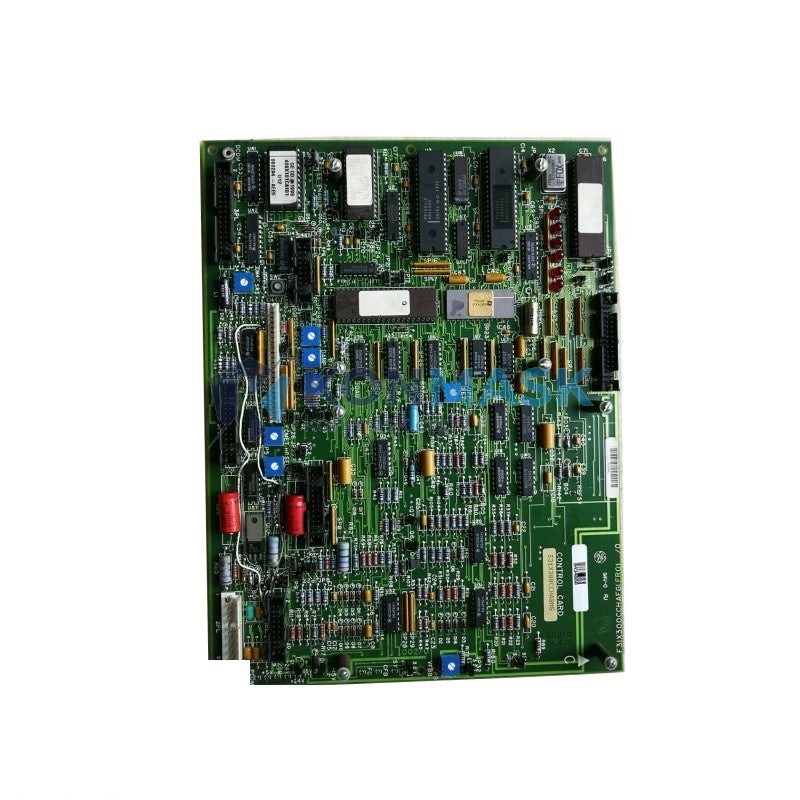

GE 531X301DCCAGG2 – Drive Control Processor Board | GE Drive Control Platform
Engineering Background
The GE 531X301DCCAGG2 is a control processor board engineered for General Electric’s industrial drive control platform. Designed to serve as the central processing unit within GE’s 531X-series drive systems, this board manages real-time signal processing, closed-loop control execution, and inter-module communication across the drive architecture. It is a mission-critical component in high-availability industrial environments where drive uptime directly impacts production continuity.
Product Positioning
Targeted at maintenance engineers, OEM integrators, and procurement specialists managing GE drive fleets, the 531X301DCCAGG2 is the authoritative replacement for failed or end-of-life control processor boards in legacy and active GE drive installations. Konmask.com sources this module through verified industrial supply channels, ensuring authenticity and functional integrity for demanding B2B procurement requirements.
Complete Technical Specifications
| Part Number | 531X301DCCAGG2 |
| Manufacturer | General Electric (GE) |
| Module Type | Drive Control Processor Board |
| Platform Series | GE 531X Drive Control Series |
| Form Factor | PCB Module (rack/chassis mount) |
| Weight | 380 g (approx.) |
| Primary Function | Central control processing for GE industrial drive systems |
| Communication | Inter-module bus compatible with 531X-series architecture |
| Operating Environment | Industrial — suitable for panel and cabinet installation |
| Condition Available | New / Refurbished / Tested surplus (specify at inquiry) |
| Lead Time | Subject to stock availability — contact for confirmation |
Proven Application Environments
- GE 531X-series AC and DC drive systems in continuous process industries
- Oil & gas compressor and pump drive control panels
- Steel mill rolling mill drive control architectures
- Paper and pulp machine drive systems
- Water treatment and utility pump station drives
- Mining conveyor and hoist drive control cabinets
- Power generation auxiliary drive systems
Engineering Advantages
- OEM-Equivalent Performance: Direct form-fit-function replacement for the original GE 531X301DCCAGG2 — no firmware re-engineering required in compatible drive configurations.
- Reduced Downtime Risk: Stocked and ready-to-ship units minimize unplanned production stoppages caused by control board failures.
- Verified Functionality: Each unit undergoes pre-shipment functional verification to confirm operational integrity before dispatch.
- Long-Tail Availability: Konmask.com maintains access to surplus and new-old-stock (NOS) inventory for discontinued GE drive components.
- Traceability: Full sourcing documentation available upon request for regulated industries and quality audit requirements.
System Architecture & Signal Flow
Within the GE 531X drive platform, the 531X301DCCAGG2 processor board occupies the central control layer of the drive’s modular architecture. It interfaces with gate driver boards, feedback signal conditioning boards, and I/O expansion modules via the 531X backplane bus. The processor executes the drive’s closed-loop speed and torque control algorithms, processes encoder and tachometer feedback, manages fault detection and protection logic, and coordinates communication with operator interface panels and external supervisory control systems (DCS/SCADA). Signal flow is bidirectional: reference commands are received from the operator interface or external control system, processed through the control algorithm, and output as firing pulses or PWM commands to the power conversion stage.
Sourcing & Quality Verification
- Source Channels: Authorized industrial distributors, OEM surplus, and verified secondary market suppliers with documented chain of custody.
- Inspection Protocol: Visual inspection for physical damage, component-level verification, and functional bench testing where applicable.
- Counterfeit Mitigation: All units are cross-referenced against GE part marking standards; suspect units are quarantined and not offered for sale.
- Documentation: Certificate of conformance, test reports, and sourcing records available for regulated procurement requirements.
- Warranty: Contact Konmask.com for applicable warranty terms based on unit condition and application.
Procurement Process
- Submit Inquiry: Contact support@konmask.com with your part number (531X301DCCAGG2), required quantity, and delivery timeline.
- Stock Confirmation: Our team confirms availability, unit condition, and lead time within 1 business day.
- Quotation: Receive a formal quotation including unit price, shipping cost, and applicable documentation.
- Order Placement: Place order via the Konmask.com storefront or via purchase order for approved B2B accounts.
- Quality Check & Dispatch: Unit undergoes final inspection and is dispatched with full shipping documentation.
- After-Sales Support: Technical support available post-delivery for installation verification and commissioning queries.
Technical FAQ
Q: Is the 531X301DCCAGG2 compatible with all GE 531X-series drives?
A: Compatibility depends on the specific drive model and firmware revision. Contact our technical team with your drive nameplate data for a confirmed compatibility assessment before ordering.
Q: Can this board be reprogrammed or reconfigured for a different drive application?
A: The 531X301DCCAGG2 is a hardware platform; drive-specific parameters are typically configured via the drive’s operator interface or engineering software. Hardware modification is not recommended without GE engineering authorization.
Q: What is the typical failure mode for this board?
A: Common failure modes include capacitor degradation, IGBT gate drive signal faults, and firmware corruption due to power transients. A failed board typically manifests as drive fault codes related to control power, communication loss, or processor watchdog trips.
Q: Do you offer exchange or repair services?
A: Yes. Konmask.com can facilitate board exchange programs and third-party repair referrals for the 531X301DCCAGG2. Contact us to discuss options based on your timeline and budget.
Q: What shipping options are available for international orders?
A: We ship globally via DHL, FedEx, and UPS Express. Export documentation including commercial invoice and packing list is provided as standard. Contact us for freight quotes to your destination.
