Process & Discrete Manufacturing Solution — GE IC695CPU315 | PACSystems RX3i

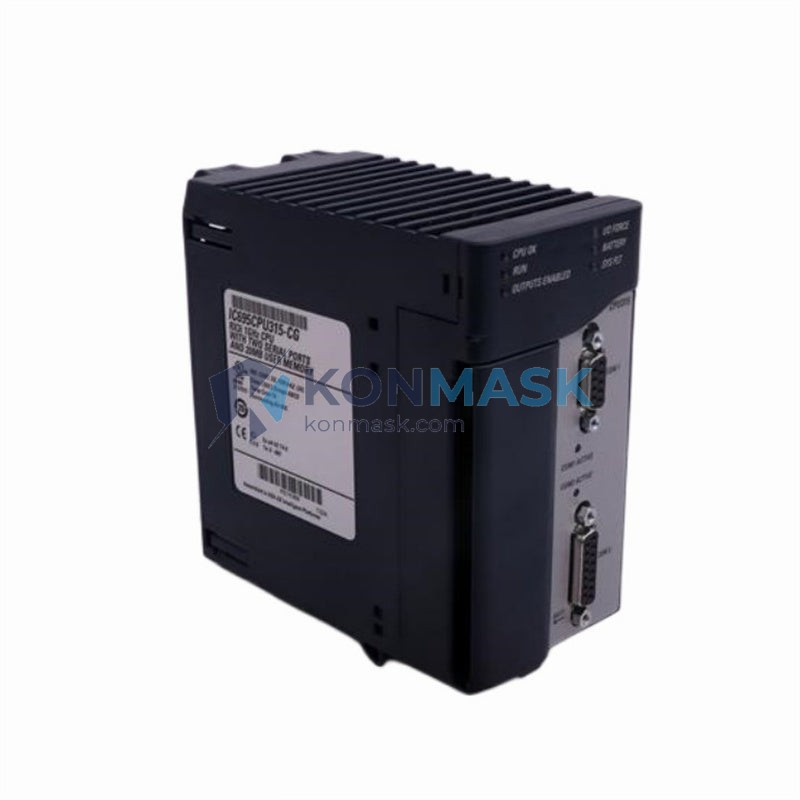

The GE IC695CPU315 is a mid-range CPU module for the GE PACSystems RX3i platform — a proven, high-performance programmable logic controller trusted by engineers across process industries, discrete manufacturing, and critical infrastructure. Designed for demanding environments where reliability, deterministic scan times, and seamless integration with legacy GE Series 90-30 logic are non-negotiable, the IC695CPU315 delivers the processing power and I/O scalability that modern automation systems require.
Where This Product Is Used
The IC695CPU315 is specified by control engineers in applications that demand robust, real-time processing with broad I/O expansion capability:
- Automotive Assembly Lines — Coordinating multi-axis motion, conveyor sequencing, and quality inspection stations with deterministic scan cycles.
- Water & Wastewater Treatment Plants — Managing pump stations, chemical dosing, filtration control, and SCADA integration in 24/7 continuous operations.
- Oil & Gas Upstream/Midstream — Wellhead control, pipeline monitoring, compressor station automation, and remote RTU applications.
- Power Generation & Utilities — Turbine control auxiliaries, switchgear automation, and substation protection relay coordination.
- Food & Beverage Processing — Batch recipe management, CIP (Clean-In-Place) sequencing, and packaging line control under FDA-compliant environments.
- Pharmaceutical Manufacturing — Validated process control for mixing, filling, and environmental monitoring systems.
- Building Automation & HVAC — Central plant chiller/boiler sequencing and energy management systems.
- Material Handling & Logistics — Sortation systems, automated storage and retrieval (AS/RS), and warehouse conveyor control.
Technical Specifications
- Part Number: IC695CPU315
- Platform: GE PACSystems RX3i (Universal Backplane)
- Processor: Intel Celeron 300 MHz
- User Memory: 10 MB (program + data)
- Battery-Backed RAM: Yes (retains program on power loss)
- Ethernet Port: 1 × 10/100 Mbps RJ-45 (embedded)
- Serial Ports: 1 × RS-232 (front panel)
- Backplane Compatibility: IC695CHS007, IC695CHS012, IC695CHS016 (7, 12, 16-slot)
- I/O Expansion: Up to 512 discrete I/O points; expandable via RX3i expansion racks
- Scan Time: ~0.1 ms per 1K boolean instructions
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Humidity: 5% to 95% non-condensing
- Power Consumption: 4.5 W typical
- Dimensions: Single-slot module (RX3i standard form factor)
- Weight: ~700 g
- Programming Software: GE Proficy Machine Edition (PME) 8.0+
- Supported Languages: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL), Sequential Function Chart (SFC)
- Legacy Compatibility: Supports Series 90-30 instruction set migration
- Certifications: UL Listed, CE Marked, cUL
Why Engineers Specify This Model
- Proven Platform Longevity: PACSystems RX3i has an extensive installed base globally, ensuring long-term spare parts availability and engineering familiarity.
- Seamless Legacy Migration: Native backward compatibility with GE Series 90-30 I/O modules protects existing capital investment during system upgrades.
- Embedded Ethernet: Eliminates the need for a separate Ethernet communications module, reducing rack slot consumption and BOM cost.
- Deterministic Performance: Fast scan times and predictable execution make it suitable for time-critical discrete and process control loops.
- Scalable Architecture: Supports local and remote I/O expansion, accommodating plant growth without CPU replacement.
- Robust Environmental Rating: Designed for industrial environments with wide temperature tolerance and vibration resistance.
- Broad Protocol Support: Ethernet/IP, Modbus TCP, SRTP, and OPC connectivity for seamless SCADA and MES integration.
Complete System Bill of Materials
A typical IC695CPU315-based control panel includes the following components:
- IC695CPU315 — CPU Module (this item)
- IC695CHS012 — 12-Slot Universal Backplane
- IC695PSA140 — 120/240 VAC Power Supply
- IC695ETM001 — Ethernet Interface Module (if additional Ethernet ports required)
- IC694MDL654 — 32-Point 24VDC Discrete Input Module
- IC694MDL754 — 32-Point 24VDC Discrete Output Module
- IC695ALG600 — 8-Channel Analog Input Module
- IC695ALG704 — 4-Channel Analog Output Module
- IC695CMM002 — Serial Communications Module (optional)
- IC695ACC402 — Battery Backup Module
Contact Konmask for complete BOM pricing and availability on all associated RX3i components.
Compliance & Industry Standards
- UL 508 — Industrial Control Equipment
- CE Directive — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- cUL — Canadian Standards Compliance
- IEC 61131-3 — PLC Programming Language Standard
- IEEE 802.3 — Ethernet Communications Standard
- RoHS Compliant — Restriction of Hazardous Substances
- ATEX / Class I Div 2 — Suitable for use in non-incendive hazardous locations (verify with specific installation requirements)
Quality Assurance & Sourcing
Konmask.com sources the IC695CPU315 through verified industrial automation distributors and authorized supply chain partners. Every unit offered through our platform undergoes the following quality checks:
- Visual inspection for physical damage, corrosion, and counterfeit indicators
- Firmware version verification against GE factory specifications
- Functional power-on test where applicable
- Traceability documentation available upon request (COC, test reports)
- Secure anti-static packaging with humidity indicator cards for international shipments
We do not list products we cannot source. Availability is confirmed before order acceptance.
How to Source This Part
- Add to Cart — Select quantity and proceed to checkout for in-stock units.
- Request a Quote — For bulk orders (5+ units), OEM projects, or urgent requirements, email support@konmask.com for priority pricing.
- Provide Your BOM — Send your full parts list and we will consolidate sourcing across all RX3i components.
- Lead Time — Standard orders ship within 3–7 business days. Expedited options available. International shipping to 50+ countries.
- Payment — T/T bank transfer, credit card, PayPal, and trade credit terms available for qualified accounts.
Application-Specific FAQ
Q: Is the IC695CPU315 compatible with existing Series 90-30 I/O modules?
A: Yes. The PACSystems RX3i platform supports Series 90-30 I/O modules via the IC694 backplane adapter, protecting your existing I/O investment during CPU upgrades.
Q: What programming software is required?
A: GE Proficy Machine Edition (PME) version 8.0 or later is required. PME supports all IEC 61131-3 languages and provides online diagnostics, logic forcing, and firmware management.
Q: Can this CPU communicate with SCADA systems over Ethernet?
A: Yes. The embedded 10/100 Mbps Ethernet port supports SRTP, Modbus TCP, and EGD (Ethernet Global Data) protocols natively, enabling direct integration with iFIX, CIMPLICITY, Wonderware, and third-party SCADA platforms.
Q: What is the maximum I/O count supported?
A: The IC695CPU315 supports up to 512 discrete I/O points locally, expandable further with remote I/O drops via RX3i expansion racks and Genius Bus controllers.
Q: Is a battery required for program retention?
A: The CPU includes battery-backed RAM for program and data retention during power loss. The IC695ACC402 battery module is recommended for extended backup. Flash memory storage is also supported for program backup without battery dependency.
Q: Do you provide warranty on this module?
A: All units sold through Konmask.com carry a 90-day functional warranty. Extended warranty and exchange programs are available — contact us for details.
Q: Can you source the IC695CPU315 with specific firmware versions?
A: We will confirm available firmware versions at time of order. Firmware upgrade services are available for select units — inquire at time of purchase.
