GE DS200DTBAG1AAA – Digital Input Terminal Board | Mark V/VI DCS Platform
Engineering Background

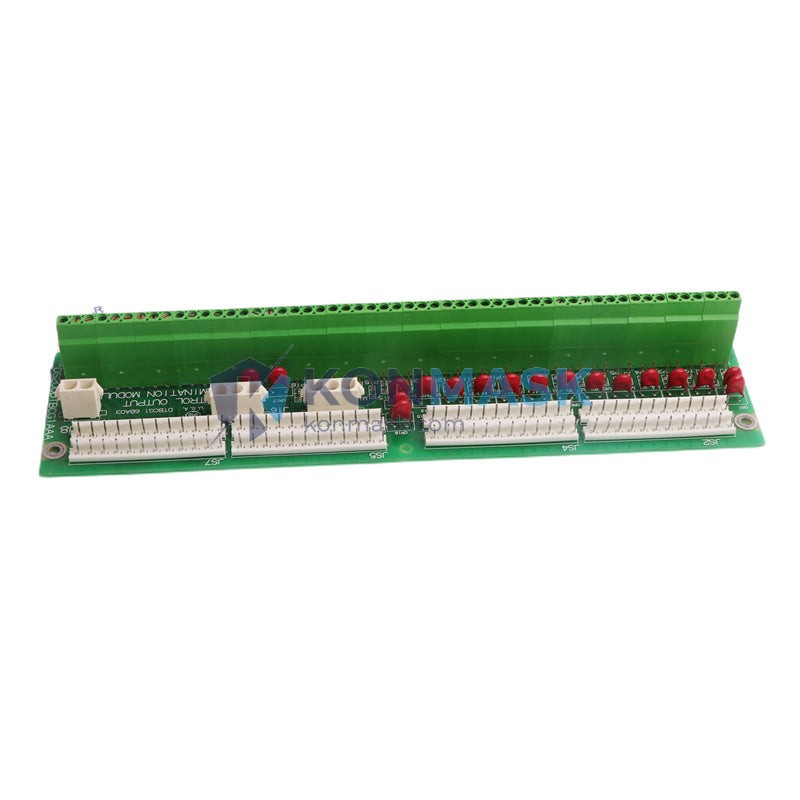

The DS200DTBAG1AAA is a Digital Input Terminal Board designed and manufactured by General Electric as part of the Mark V and Mark VI Distributed Control System (DCS) platform — one of the most widely deployed turbine control architectures in power generation, oil & gas, and heavy industrial facilities worldwide. This board serves as the primary field-wiring interface for discrete digital input signals, bridging field instrumentation with the core control processor modules.
Product Positioning
Engineered for mission-critical environments where signal integrity and system uptime are non-negotiable, the DS200DTBAG1AAA is the preferred replacement and spare-parts solution for plant engineers managing aging Mark V/VI control systems. Konmask.com supplies this board from verified surplus and refurbished channels, providing a cost-effective alternative to OEM new pricing without compromising on reliability.
Complete Technical Specifications
- Part Number: DS200DTBAG1AAA
- Manufacturer: General Electric (GE)
- Series / Platform: Mark V / Mark VI DCS
- Board Type: Digital Input Terminal Board
- Function: Field-wiring termination for discrete digital input signals
- Input Type: Discrete digital (dry contact / voltage-level)
- Connector Interface: Screw-terminal field wiring connectors
- Backplane Compatibility: GE Mark V / Mark VI I/O backplane
- Operating Temperature: 0°C to +60°C (typical industrial DCS range)
- Weight: 380 g
- Form Factor: Standard GE DCS terminal board (rack-mount)
- Condition Available: Surplus / Refurbished (tested)
Proven Application Environments
- Gas turbine and steam turbine control systems (GE Frame 5, 6, 7, 9 series)
- Combined-cycle power plant DCS upgrades and spare-parts programs
- Oil & gas upstream/downstream process control panels
- Petrochemical plant automation with legacy Mark V infrastructure
- Industrial compressor and pump station control systems
- Utility-scale power generation facilities requiring long-term parts support
Engineering Advantages
- Direct OEM Compatibility: Drop-in replacement for existing Mark V/VI installations — no firmware changes or re-engineering required.
- Signal Isolation: Terminal board architecture provides clean separation between field wiring and backplane electronics, reducing noise ingress.
- Simplified Field Wiring: Screw-terminal design enables fast, error-resistant field cable termination by maintenance technicians.
- Proven Reliability: GE Mark V/VI platform has decades of field-proven operation in the most demanding industrial environments globally.
- Cost Efficiency: Surplus-channel sourcing delivers significant savings vs. OEM new pricing, extending the economic life of existing control systems.
System Architecture & Signal Flow
In the Mark V/VI DCS architecture, the DS200DTBAG1AAA mounts in the I/O terminal board slot of the control panel enclosure. Field instrument cables (limit switches, proximity sensors, relay contacts, etc.) terminate directly at the board’s screw terminals. The terminal board routes conditioned digital input signals via the backplane ribbon or direct connector to the corresponding I/O processor module (e.g., DSPX, DSPC). The processor module then communicates signal states to the core TCCA/TCCB control processors over the internal VME or proprietary GE bus. This architecture ensures deterministic scan times and high noise immunity critical for turbine protection logic.
Sourcing & Quality Verification
- Source: Verified industrial surplus and decommissioned plant inventory
- Inspection: Visual inspection, board-level cleaning, and functional bench test prior to shipment
- Traceability: Part number and revision label verified against GE documentation
- Packaging: Anti-static ESD bag + foam-padded carton for safe international transit
- Warranty: 90-day operational warranty against DOA (Dead on Arrival) defects
- Certification: Sourced and handled in compliance with IEC 62368 / RoHS guidelines where applicable
Procurement Process
- Confirm Part Number: Verify DS200DTBAG1AAA matches your panel’s terminal board slot designation and revision requirements.
- Request Stock Confirmation: Contact support@konmask.com with your required quantity and delivery timeline.
- Receive Quotation: We provide a formal quotation with unit price, lead time, and shipping options within 24 business hours.
- Place Order: Submit PO or complete checkout. We accept T/T bank transfer, PayPal, and major credit cards.
- Shipment & Tracking: Orders ship within 1–3 business days. Full tracking information provided via email.
- Incoming Inspection: We recommend a standard incoming inspection per your plant’s spare-parts acceptance procedure upon receipt.
Technical FAQ
Q: Is DS200DTBAG1AAA compatible with both Mark V and Mark VI systems?
A: The board is primarily designed for the Mark V platform. Mark VI compatibility depends on the specific I/O backplane revision in your panel. Please confirm your panel’s backplane part number before ordering.
Q: Do you provide a test report with the board?
A: Yes. A basic functional test record is available upon request. For critical applications, we recommend final validation in your own test rig or during a planned maintenance window.
Q: What is the lead time if the board is not in stock?
A: Typical lead time for sourcing from our supplier network is 5–15 business days. We will confirm availability and lead time at the quotation stage.
Q: Can you supply multiple units for a spare-parts program?
A: Yes. We support bulk procurement for plant spare-parts programs. Contact us for volume pricing.
Q: What shipping methods are available for international orders?
A: We ship via DHL Express, FedEx International, and UPS Worldwide. Customs documentation (commercial invoice, packing list, HS code declaration) is provided with every international shipment.
