GE DS200EXPSG1ACB – Excitation Power Supply Board | Mark VI Control Platform
Engineering Background

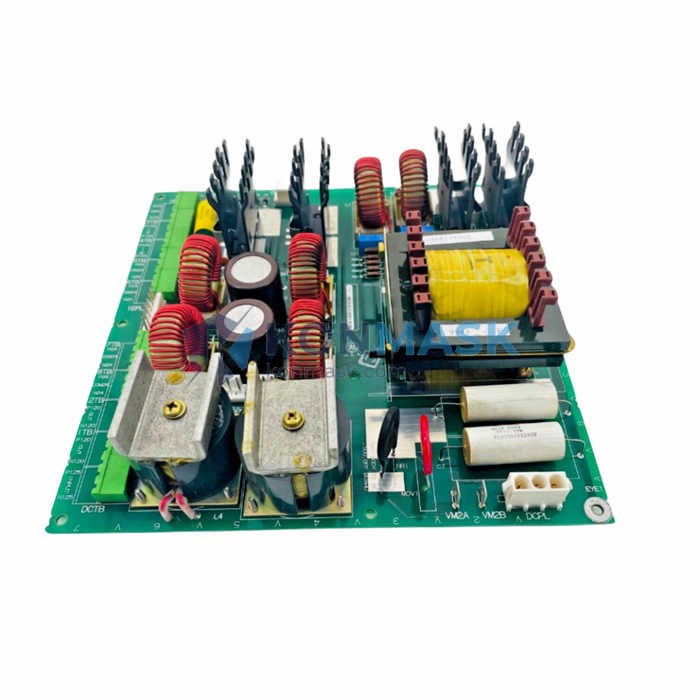

The DS200EXPSG1ACB is a dedicated power supply board engineered by GE as part of the Mark VI Turbine Control and Excitation System platform. Designed to operate within GE’s EX2100 and Mark VI excitation control architectures, this board provides regulated, conditioned DC power to downstream excitation control circuitry, ensuring stable field voltage delivery to synchronous generators in power generation and industrial drive applications.
Product Positioning
This board is a critical infrastructure component for utilities, combined-cycle power plants, and industrial facilities running GE Mark VI-based generator excitation systems. Procurement engineers specify the DS200EXPSG1ACB as a direct replacement or spare-holding component to minimize unplanned downtime in high-availability generation assets.
Complete Technical Specifications
- Part Number: DS200EXPSG1ACB
- Manufacturer: General Electric (GE)
- Series / Platform: Mark VI / EX2100 Excitation Control System
- Board Type: Excitation Power Supply Board (EXPSG)
- Form Factor: PCB module, rack-mount compatible with GE Mark VI I/O chassis
- Input Voltage: 120/240 VAC nominal (refer to GE IS420 series documentation for exact rail specs)
- Output: Regulated DC power rails for excitation control logic and gate drive circuits
- Operating Temperature: 0°C to +60°C (standard industrial range)
- Humidity: 5% to 95% RH, non-condensing
- Communication Interface: Internal backplane bus (Mark VI I/O rack)
- Revision: Revision ACB (latest production revision at time of listing)
- Weight: Approx. 500 g
- Compliance: Designed to GE internal quality and safety standards for power generation control equipment
Proven Application Environments
- Gas turbine generator excitation control (GE Frame 6, 7, 9 series)
- Steam turbine generator excitation systems
- Combined-cycle power plant (CCPP) Mark VI control rooms
- Hydro generator excitation retrofit projects
- Industrial synchronous motor drive excitation panels
- Utility-scale power generation facilities requiring high-availability spare inventory
Engineering Advantages
- Platform Compatibility: Fully compatible with GE Mark VI and EX2100 excitation control racks — no firmware modification required for direct replacement
- Regulated Output Stability: Provides clean, conditioned DC rails that protect sensitive excitation control logic from upstream AC line disturbances
- Proven Field Reliability: Deployed across hundreds of GE Mark VI installations globally; established MTBF track record in continuous-duty generation environments
- Revision ACB Improvements: Latest production revision incorporating GE’s component-level reliability enhancements over earlier A/B revisions
- Drop-in Replacement: Identical mechanical footprint and connector pinout to predecessor revisions — minimizes maintenance window duration
System Architecture & Signal Flow
Within the Mark VI excitation control architecture, the DS200EXPSG1ACB resides in the power supply slot of the EXPSG I/O module assembly. AC input is received from the plant auxiliary bus, conditioned through onboard EMI filtering and rectification stages, and converted to regulated DC rails distributed via the Mark VI backplane. These rails power the EXREG (Excitation Regulator), EXCI (Excitation Interface), and associated gate drive boards. Loss of this board results in excitation system de-energization and generator trip — making it a Tier-1 critical spare for any Mark VI excitation installation.
Sourcing & Quality Verification
- Source: Procured from authorized GE channel partners, decommissioned OEM-maintained plant inventories, and certified industrial surplus networks
- Inspection Protocol: Each unit undergoes visual inspection, board-level continuity verification, and component-level screening prior to dispatch
- Authenticity: GE part number, revision marking, and date codes verified against OEM documentation
- Condition: New surplus, refurbished-to-spec, or tested-used — condition specified at time of order confirmation
- Packaging: Anti-static ESD bag + foam-lined carton for international transit protection
- Documentation: Certificate of conformance and test report available upon request
Procurement Process
- Submit your RFQ via the product page or email support@konmask.com with your required quantity and delivery timeline
- Receive stock confirmation, unit condition report, and firm quotation within 1 business day
- Confirm order — payment via T/T, PayPal, or approved credit terms
- Unit dispatched with tracking within 2–3 business days; express DHL/FedEx available for AOG/emergency requirements
- Post-delivery technical support available for installation verification queries
Technical FAQ
Q: Is the DS200EXPSG1ACB compatible with both Mark VI and Mark VIe systems?
A: The DS200EXPSG1ACB is designed for the Mark VI / EX2100 platform. Mark VIe uses a different I/O architecture — please confirm your exact system revision before ordering.
Q: Can this board be repaired if a specific power rail fails?
A: Board-level repair is possible by qualified GE service engineers or certified third-party repair facilities. Konmask can facilitate repair-and-return service upon request.
Q: What is the lead time for new OEM units?
A: New OEM units from GE typically carry 12–26 week lead times. Konmask maintains surplus and refurbished stock for immediate or short-lead delivery.
Q: Do you provide a warranty?
A: Yes — all units carry a minimum 12-month functional warranty. Extended warranty options available for critical spare agreements.
Q: Can I request a datasheet or GE documentation?
A: Yes. Contact support@konmask.com with your request. We can provide GE IS420/DS200 series reference documentation where available.
