Turbine Control Solution — GE DS200FCSAG1A | Mark V Series
Where This Product Is Used

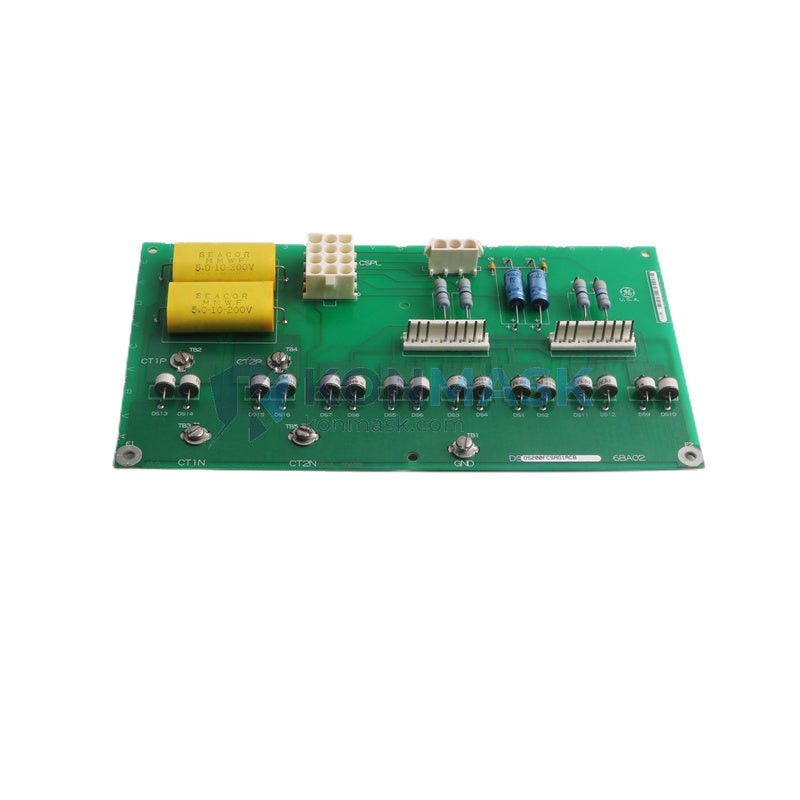

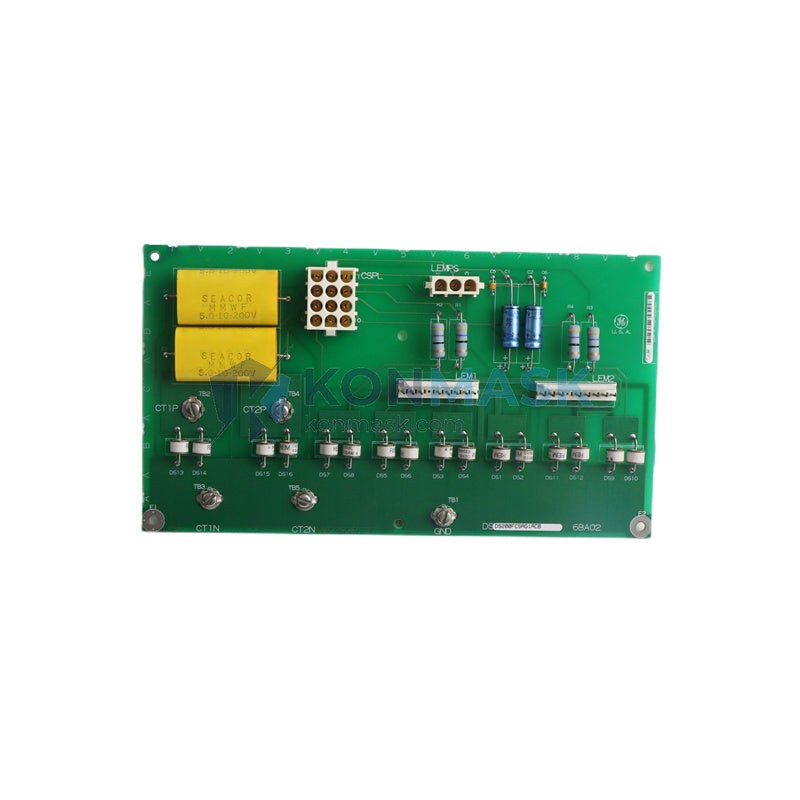

The GE DS200FCSAG1A (also known as DS200FCSAG1ACB) is a Flame Control and Safety (FCS) board within the GE Mark V Turbine Control System. It is deployed in mission-critical environments where precise flame detection, fuel control sequencing, and safety interlock logic are required. Typical installation sites include:
- Gas turbine power generation plants (combined-cycle and simple-cycle)
- Steam turbine control systems in industrial cogeneration facilities
- Oil & gas upstream and midstream compression stations
- Petrochemical and refinery process turbine drives
- LNG liquefaction and regasification terminal turbines
- Marine propulsion turbine control panels
- Pulp & paper and steel mill captive power turbines
Engineers specify this board when the Mark V system requires a dedicated flame-sensing and fuel-sequencing controller that integrates directly with the TCCA/TCCB processor cards and the I/O terminal boards.
Technical Specifications
| Attribute | Detail |
|---|---|
| Part Number | DS200FCSAG1A / DS200FCSAG1ACB |
| Manufacturer | General Electric (GE) |
| Series | Mark V Turbine Control System |
| Board Function | Flame Control & Safety (FCS) |
| Form Factor | VME-style PCB, single-slot |
| Operating Voltage | +5 VDC, ±15 VDC (supplied via Mark V backplane) |
| Communication Interface | Mark V proprietary backplane bus (IONet) |
| Flame Detector Inputs | UV/IR scanner signal conditioning channels |
| Operating Temperature | 0 °C to +60 °C |
| Weight | 560 g (approx.) |
| Compliance | CE, UL, IEC 61511 (functional safety) |
| Condition Available | New surplus, Refurbished (tested), Exchange |
Why Engineers Specify This Model
- Dedicated safety function: The FCS board handles flame detection logic independently from the main processor, providing a hardware-level safety layer aligned with IEC 61511 SIL requirements.
- Seamless Mark V integration: Designed to slot directly into the Mark V <> panel without firmware modifications or adapter hardware.
- Proven field reliability: Deployed in thousands of GE Frame 5, Frame 6, Frame 7, and Frame 9 turbine installations worldwide since the 1990s.
- Reduced downtime risk: Having a verified spare on-site eliminates multi-week OEM lead times during unplanned outages.
- Backward compatibility: DS200FCSAG1ACB is a revision of DS200FCSAG1A and is interchangeable in most Mark V configurations — confirm with your system revision documentation.
Complete System Bill of Materials
The DS200FCSAG1A typically operates alongside the following Mark V components. Konmask.com stocks many of these — contact us for bundle pricing:
- DS200TCQAG1BHF — Turbine Control Quad (TCQA) Processor Card
- DS200TCDAG1AHD — Turbine Control Data Acquisition (TCDA) Board
- DS200SDCIG2AGB — Signal Distribution Card (SDCI)
- DS200IOCAG1A — I/O Controller Board
- DS200DSPCH1ADA — Digital Signal Processor Card
- IS200TBAIH1C — Terminal Board Assembly
- DS200EXPSG1AEB — Expansion Power Supply Board
Compliance & Industry Standards
- IEC 61511: Functional Safety — Safety Instrumented Systems for the Process Industry Sector
- IEC 61508: Functional Safety of E/E/PE Safety-related Systems
- NFPA 85: Boiler and Combustion Systems Hazards Code (flame safeguard relevance)
- CE Marking: Conformity with EU Low Voltage and EMC Directives
- UL Listed: Applicable UL industrial control equipment standards
- RoHS: Compliance status varies by revision — confirm with Konmask sourcing team
Quality Assurance & Sourcing
Every DS200FCSAG1A unit shipped from Konmask.com undergoes the following verification process:
- Visual inspection: PCB, connectors, and component integrity checked against OEM reference boards
- Functional bench test: Power-on test and I/O channel verification using Mark V-compatible test fixtures (for refurbished units)
- Traceability documentation: Serial number, revision level, and sourcing chain recorded per shipment
- Anti-static packaging: ESD-safe bags and foam-lined cartons for international transit
- 90-day warranty: Covers defects in materials and workmanship under normal operating conditions
We source from decommissioned plant inventories, authorized distributors, and verified surplus channels — never from unvetted grey-market brokers.
How to Source This Part
- Add to cart directly if your revision matches DS200FCSAG1A or DS200FCSAG1ACB.
- Request a quote for volume orders (3+ units) or exchange programs — email support@konmask.com.
- Provide your Mark V panel revision (found on the nameplate inside the <> panel door) to confirm compatibility before ordering.
- Expedited shipping available: DHL Express and FedEx International Priority for urgent plant outage situations.
- Export documentation: We provide commercial invoices, packing lists, and ECCN classification support for cross-border shipments.
Application-Specific FAQ
Q: Is DS200FCSAG1ACB a direct replacement for DS200FCSAG1A?
A: In most Mark V configurations, yes. The “CB” suffix denotes a board revision. Always verify against your Mark V system revision documentation or contact our technical team before installation.
Q: Can this board be used in a Mark VI or Mark VIe system?
A: No. The DS200FCSAG1A is designed exclusively for the Mark V architecture. Mark VI and Mark VIe use a different I/O and communication platform.
Q: Do you offer repair/exchange services?
A: Yes. We offer board-level repair and exchange programs. Contact us with your failed unit’s serial number for a repair quote and turnaround estimate.
Q: What is the lead time for a new surplus unit?
A: In-stock units ship within 1–3 business days. If not in stock, typical sourcing lead time is 5–15 business days depending on availability.
Q: Can you provide a test report with the shipment?
A: Yes, for refurbished units we include a functional test report. New surplus units include a visual inspection certificate.
