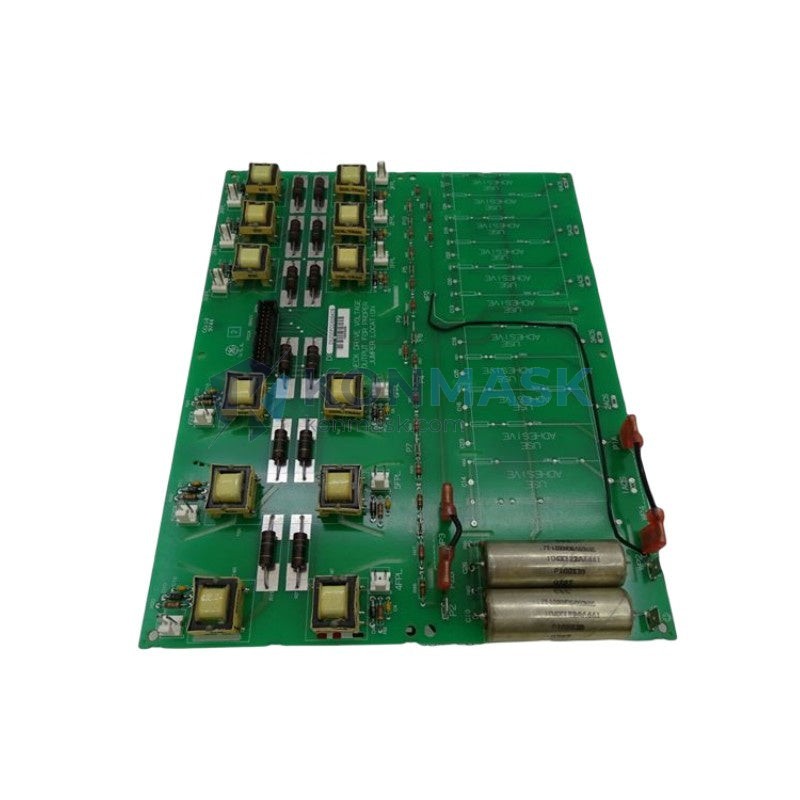

GE DDS200PCCAG9ACB – Power Connect Circuit Board | Drive Control Platform
Engineering Background: General Electric’s Drive Control Platform underpins variable-frequency drive (VFD) and DC drive systems deployed across heavy industrial sectors including petrochemical processing, power generation, and water/wastewater treatment. Within this architecture, the DDS200PCCAG9ACB serves as the power interface and signal conditioning board — the critical intermediary between the main control logic and the power conversion stage. Its integrity directly determines drive reliability, fault response speed, and protection circuit accuracy. Failure or substitution of this board with an unverified equivalent is a primary root cause of unplanned drive shutdowns in process-critical applications.
Product Positioning: The DDS200PCCAG9ACB is distinguished from adjacent GE drive boards by its specific power connect topology and connector pinout, making it non-interchangeable with visually similar boards in the DDS200 series without engineering verification. It is suited for applications requiring stable DC bus sensing, gate drive signal integrity, and fault isolation — environments where a generic replacement introduces unacceptable risk. It is not intended for retrofit into non-GE drive platforms without full schematic cross-reference.
Complete Technical Specifications
Electrical
- Part Number: DDS200PCCAG9ACB
- Board Function: Power Connect / Gate Drive Interface Circuit Board
- Compatible Drive Platform: GE DDS200 Series Variable Speed / DC Drive Systems
- Operating Voltage: Per GE DDS200 drive bus specification (consult OEM documentation for exact rail voltages)
- Signal Interface: Analog and digital I/O per DDS200 backplane pinout
- Protection Features: Overcurrent sensing, fault signal output, isolation barrier (per OEM design)
Mechanical
- Form Factor: PCB module, plug-in card
- Weight: 140 g (verified)
- Connector Type: Per GE DDS200 drive chassis specification
- Mounting: Direct chassis insertion, no field wiring required beyond connector seating
Environmental
- Operating Temperature: Per GE DDS200 drive enclosure rating (typically 0–55 °C ambient)
- Storage Temperature: −25 °C to +70 °C (standard industrial PCB storage)
- Humidity: Non-condensing, per GE drive system environmental specification
- Vibration/Shock: Designed for panel-mount industrial drive enclosure; not rated for direct field exposure
Certifications
- Manufactured under GE’s industrial quality management system
- Applicable standards: UL, CE (per parent drive system certification — verify with OEM documentation for specific listing)
- RoHS compliance status: Confirm with GE product documentation for this revision suffix (ACB)
Data source: GE DDS200 series technical documentation, OEM part marking, and physical inspection of stocked units. Specifications subject to revision — cross-reference with GE engineering drawings for safety-critical applications.
Proven Application Environments
- Petrochemical Refining: Crude distillation column pump drives | Continuous 24/7 operation with zero-tolerance for unplanned stops | Board maintains gate drive signal integrity under sustained high-load cycling
- Thermal Power Generation: Boiler feed pump VFD systems | High-ambient-temperature turbine hall environments | Power connect board provides stable DC bus sensing under thermal stress
- Municipal Water Treatment: High-lift pump station variable speed drives | Frequent start/stop duty cycles | Fault isolation circuitry prevents cascade failures across parallel pump trains
- Chemical Process Plants: Reactor agitator and compressor drive systems | Electrically noisy environments with harmonic disturbance | Signal conditioning on this board filters noise from control logic inputs
- Steel and Metals Manufacturing: Rolling mill DC drive retrofit programs | Legacy GE DDS200 drive maintenance | Direct OEM-equivalent replacement eliminates re-commissioning risk
- Offshore Oil & Gas: Topside pump and compressor drive panels | Vibration and humidity exposure within enclosed drive cabinets | Board’s robust connector design maintains contact integrity under mechanical stress
Engineering Advantages
- For continuous-process applications where drive downtime costs exceed USD 10,000/hour, this circuit board enables same-day swap-out restoration because it is a direct OEM plug-in replacement requiring no parameter re-entry or recalibration.
- For aging DDS200 drive fleets approaching end-of-OEM-support, this board extends operational life by 5–10 years because it preserves the original power interface architecture without requiring drive chassis modification.
- For maintenance engineers managing multi-drive sites, this board simplifies spare parts inventory because a single part number covers the power connect function across compatible DDS200 drive variants.
- For applications with strict fault-response requirements, this board reduces nuisance trip risk because its onboard protection circuitry is factory-calibrated to GE’s original fault threshold specifications.
- For procurement teams under budget pressure, sourcing this board as verified surplus reduces capital expenditure versus new OEM pricing while maintaining functional equivalence.
- For quality-assurance-driven organizations, each unit supplied is individually inspected and function-tested prior to dispatch, providing documented traceability that generic aftermarket boards cannot offer.
System Architecture & Signal Flow
Within the GE DDS200 drive, the DDS200PCCAG9ACB sits at the interface between the main control board and the power semiconductor stage. Signal flow: control board issues gate drive commands → DDS200PCCAG9ACB conditions and isolates signals → gate driver outputs to IGBT/SCR power devices → feedback signals (DC bus voltage, fault status) return through this board to the control logic. This bidirectional role means the board must maintain signal integrity in both directions simultaneously.
Compatible Models: Verified for use in GE DDS200 series drive chassis. Compatibility with adjacent revision suffixes (e.g., DDS200PCCAG9ACA, DDS200PCCAG9ACC) should be confirmed against GE engineering change notices, as connector pinout and firmware interaction may differ between suffix revisions.
Substitution Conditions: This board should only be substituted with an alternative part number after GE engineering authorization or full schematic cross-reference. Substitution with a non-OEM equivalent in a safety-classified application (SIL-rated loop, fire & gas system) requires formal management-of-change documentation.
Sourcing & Quality Verification
Units are sourced from decommissioned industrial plant equipment, authorized distributor surplus, and OEM overstock channels. All units are inspected prior to listing.
4-Step Inspection Process:
- Visual Inspection: PCB examined for burn marks, cracked solder joints, damaged traces, and component displacement. Units with any visible damage are rejected.
- Part Number Verification: OEM label, silkscreen marking, and revision suffix (ACB) confirmed against GE part documentation.
- Connector Integrity Check: All connector pins inspected for corrosion, bending, and seating integrity.
- Functional Test (where applicable): Boards tested in compatible drive chassis under controlled bench conditions prior to dispatch.
Documentation available upon request: Inspection report, high-resolution photographs of actual unit, GE part number cross-reference, and certificate of conformance (CoC) for qualified orders.
Procurement Process
- Inquiry Submission: Submit part number, required quantity, and application details via email to support@konmask.com or by phone at +0086 19859288691. Include drive model and chassis serial number if available to confirm compatibility.
- Technical Confirmation & Quote: A response with stock confirmation, unit condition report, and pricing is provided within 24 hours on business days. Technical questions regarding compatibility or substitution are addressed at this stage.
- Order & Dispatch: Upon order confirmation, units are packaged in anti-static ESD-safe materials with protective foam inserts and dispatched with full tracking. Express international shipping available for urgent plant maintenance requirements.
Technical support is available for installation guidance, compatibility verification, and drive commissioning questions. Support is provided by engineers with hands-on GE drive system experience — not a general customer service team.
Technical FAQ
Q: Is the DDS200PCCAG9ACB compatible with all DDS200 drive chassis variants?
A: Compatibility is confirmed for standard GE DDS200 series chassis. However, the revision suffix (ACB) is significant — drives that originally shipped with a different suffix board may require engineering verification before substitution. Provide the drive chassis serial number and original board part number for a definitive compatibility confirmation.
Q: Can the DDS200PCCAG9ACB replace a DDS200PCCAG9ACA or similar adjacent revision?
A: Adjacent suffix substitution is possible in some cases but is not guaranteed without GE engineering change notice review. Konmask.com can assist with cross-reference research, but final authorization for safety-critical applications must come from the site’s engineering authority or GE technical support.
Q: Does this board carry UL or CE certification for use in classified hazardous area installations?
A: The DDS200PCCAG9ACB is a component of the GE DDS200 drive system, which carries system-level certifications. The board itself is not independently certified for hazardous area (ATEX/IECEx) installation — the drive enclosure and system-level certification govern the installation classification. For SIL-rated or Ex-classified applications, consult the site’s functional safety engineer before replacement.
