GE DS200GDPAG1AEB Power Supply Board | Replacement, Equivalent & Selection Guide

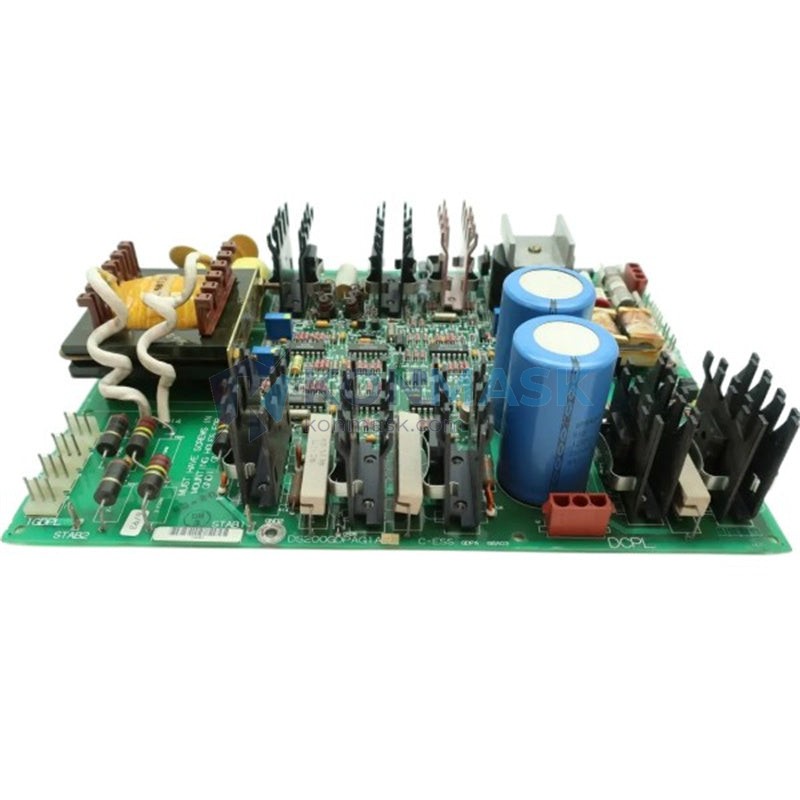

The GE DS200GDPAG1AEB is a Power Supply Board designed for use in General Electric’s Mark V and Mark VI turbine control systems. This board provides regulated DC power to the control system’s I/O and processor modules, ensuring stable and reliable operation in demanding industrial environments. Whether you are sourcing an original unit, seeking a compatible replacement, or evaluating equivalent alternatives, this guide covers everything you need to make an informed selection decision.
Technical Specifications
- Part Number: DS200GDPAG1AEB
- Manufacturer: General Electric (GE)
- Series: DS200 / Mark V / Mark VI Turbine Control
- Function: Power Supply Board — provides regulated DC voltage rails to control system modules
- Form Factor: PCB card, rack-mount compatible
- Input Voltage: Typically 120/240 VAC (refer to system documentation for exact rating)
- Output: Multiple regulated DC rails (±5 VDC, ±15 VDC, +24 VDC typical)
- Weight: Approx. 240 g
- Operating Temperature: 0°C to 60°C
- Compliance: Designed to GE Mark V/VI system standards
- Condition Available: New surplus, refurbished, tested
Compatible Replacement & Equivalent Models
When the DS200GDPAG1AEB is unavailable or discontinued, the following models may serve as functional replacements or equivalents. Always verify electrical and mechanical compatibility with your specific system revision before substitution.
- DS200GDPAG1AFB — Revised suffix variant; functionally equivalent in most Mark V applications
- DS200GDPAG1AEA — Earlier revision; compatible in many configurations, verify firmware compatibility
- DS200GDPAG1BEB — B-series variant; check connector pinout and rail voltages before substitution
- DS200GDPAG2AEB — Generation 2 variant; may require system configuration update
- IS200GDPAG1A — IS200-series equivalent for Mark VI systems; confirm rack slot compatibility
Note: Suffix letters (A/B/C, EA/EB/FA/FB) typically denote hardware revision levels. Consult GE system documentation or contact Konmask.com for cross-reference verification.
Why Choose the Original Model
- Guaranteed Compatibility: The DS200GDPAG1AEB is factory-validated for GE Mark V/VI turbine control systems — no configuration risk.
- Stable Power Rails: Original GE design ensures precise voltage regulation, protecting sensitive processor and I/O modules.
- Long Service Life: Industrial-grade components rated for continuous duty in power generation and heavy industrial environments.
- Reduced Downtime Risk: Using the exact OEM part eliminates compatibility guesswork and accelerates commissioning.
- Traceability: Original parts support full audit trails for regulated industries (power generation, oil & gas, utilities).
Typical Applications
- Gas turbine control systems (GE Frame 5, Frame 6, Frame 7, Frame 9)
- Steam turbine control and protection panels
- Combined-cycle power plant automation
- Compressor station control systems
- Offshore and onshore oil & gas processing facilities
- Industrial power generation and co-generation plants
- Utility-scale energy management systems
System Compatibility
- GE Mark V Turbine Control System — Primary application platform
- GE Mark VI Turbine Control System — Compatible with appropriate rack configuration
- DS200 Series I/O and Processor Boards — Powers co-located boards in the same rack
- VPRO / VTUR / VCMI Modules — Verify power rail requirements per module datasheet
Always cross-reference the GE system BOM (Bill of Materials) and rack layout drawing before ordering a replacement unit.
Selection Guide
Use the following decision framework to select the correct power supply board for your application:
- Step 1 — Identify your control system: Confirm whether your system is Mark V or Mark VI, and note the rack/panel drawing number.
- Step 2 — Verify the part number suffix: The suffix (e.g., G1AEB) encodes hardware revision and connector type. Match exactly when possible.
- Step 3 — Check output rail requirements: Confirm the voltage rails required by your I/O and processor boards. Mismatched rails can damage downstream modules.
- Step 4 — Assess condition requirements: For critical applications, specify new surplus or factory-tested refurbished. For non-critical spares, tested used may be acceptable.
- Step 5 — Confirm lead time vs. urgency: If the original part is on long lead, evaluate the compatible replacement models listed above with Konmask’s engineering team.
Quality Assurance & Sourcing
- All units sourced through Konmask.com undergo visual inspection and functional verification prior to shipment.
- Refurbished units are tested under load conditions to validate all output voltage rails.
- Traceability documentation (test reports, photos, serial numbers) available upon request.
- Units are packaged in anti-static ESD bags with foam protection for safe international shipping.
- Konmask.com maintains relationships with authorized distributors and reputable surplus suppliers globally.
How to Order
- Online: Add to cart directly on this page. Specify required condition (new surplus / refurbished / tested used) in the order notes.
- Email RFQ: Send your part number, quantity, required condition, and delivery timeline to support@konmask.com.
- Phone/WhatsApp: +0086 19859288691 — available for urgent inquiries and technical pre-sales support.
- Lead Time: In-stock units ship within 1–3 business days. Out-of-stock units subject to sourcing lead time — contact us for availability.
- Export & Customs: We support international shipments with full commercial invoice and packing list documentation.
Replacement & Compatibility FAQ
Q: Can I use DS200GDPAG1AFB instead of DS200GDPAG1AEB?
A: In most Mark V applications, yes. The suffix FB vs EB typically denotes a minor hardware revision. Verify with your system drawing before installation.
Q: Is this board compatible with Mark VI systems?
A: The DS200GDPAG1AEB is primarily a Mark V component. Mark VI systems typically use IS200-series equivalents. Contact us to confirm compatibility for your specific rack configuration.
Q: Do you offer a warranty on refurbished units?
A: Yes. Refurbished units carry a 12-month warranty against manufacturing defects under normal operating conditions. New surplus units carry a 24-month warranty.
Q: Can you source this part if it’s not currently in stock?
A: Yes. Konmask.com has an active global sourcing network. Submit an RFQ and we will provide availability and pricing within 24–48 business hours.
Q: What information do I need to provide when ordering?
A: Part number (DS200GDPAG1AEB), quantity, required condition, delivery address, and any urgency requirements. System drawing number is helpful but not mandatory.
